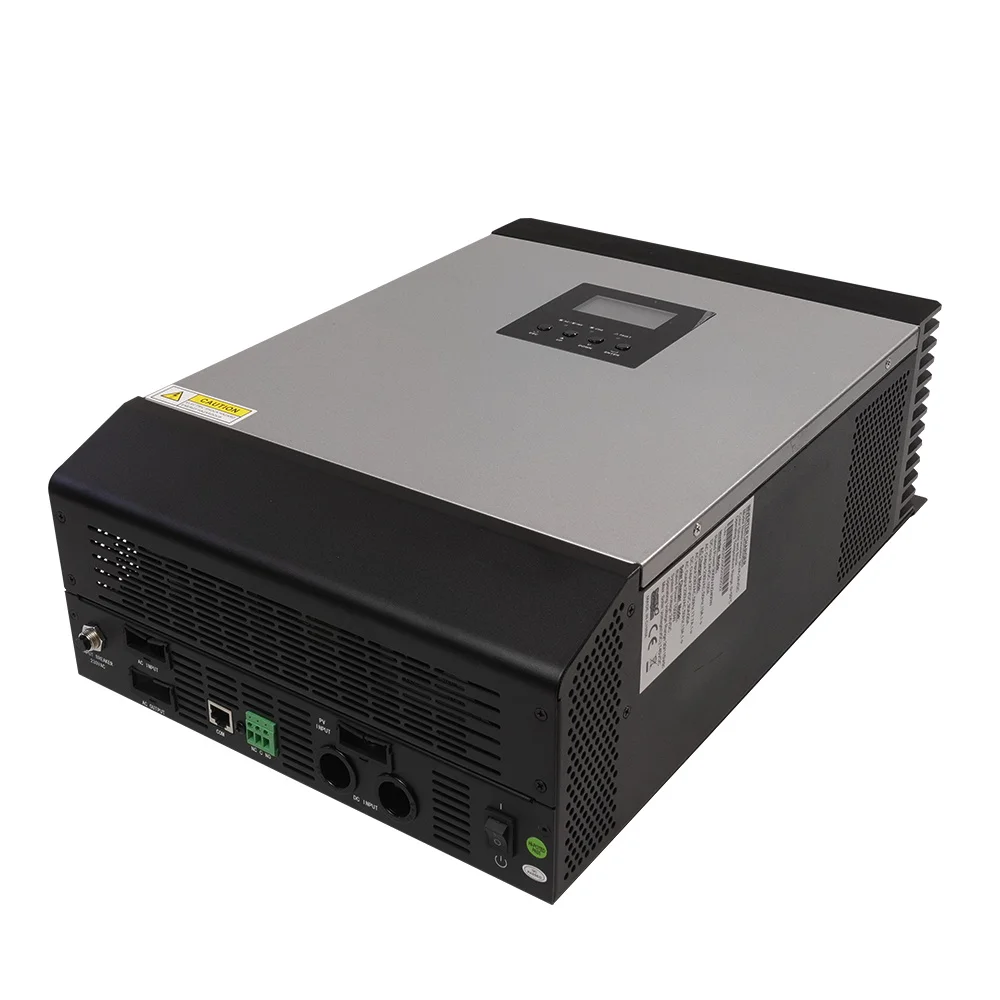

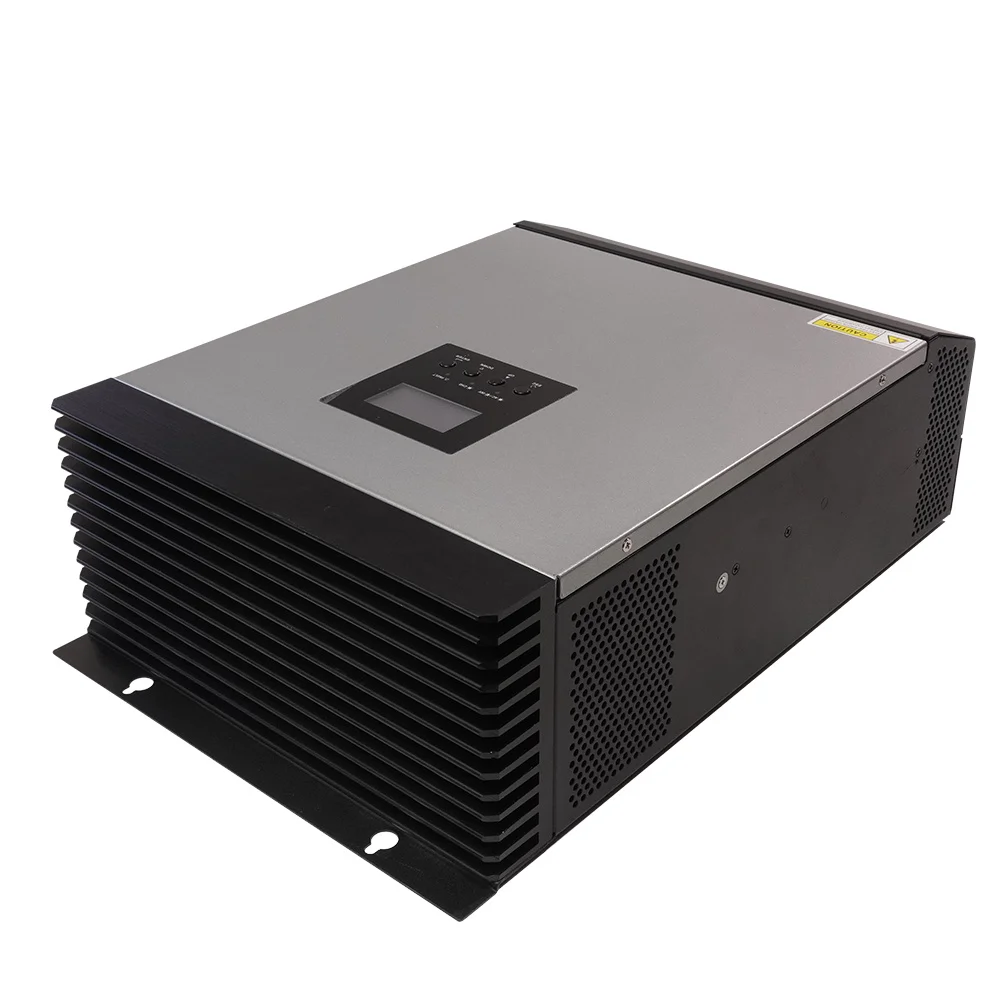

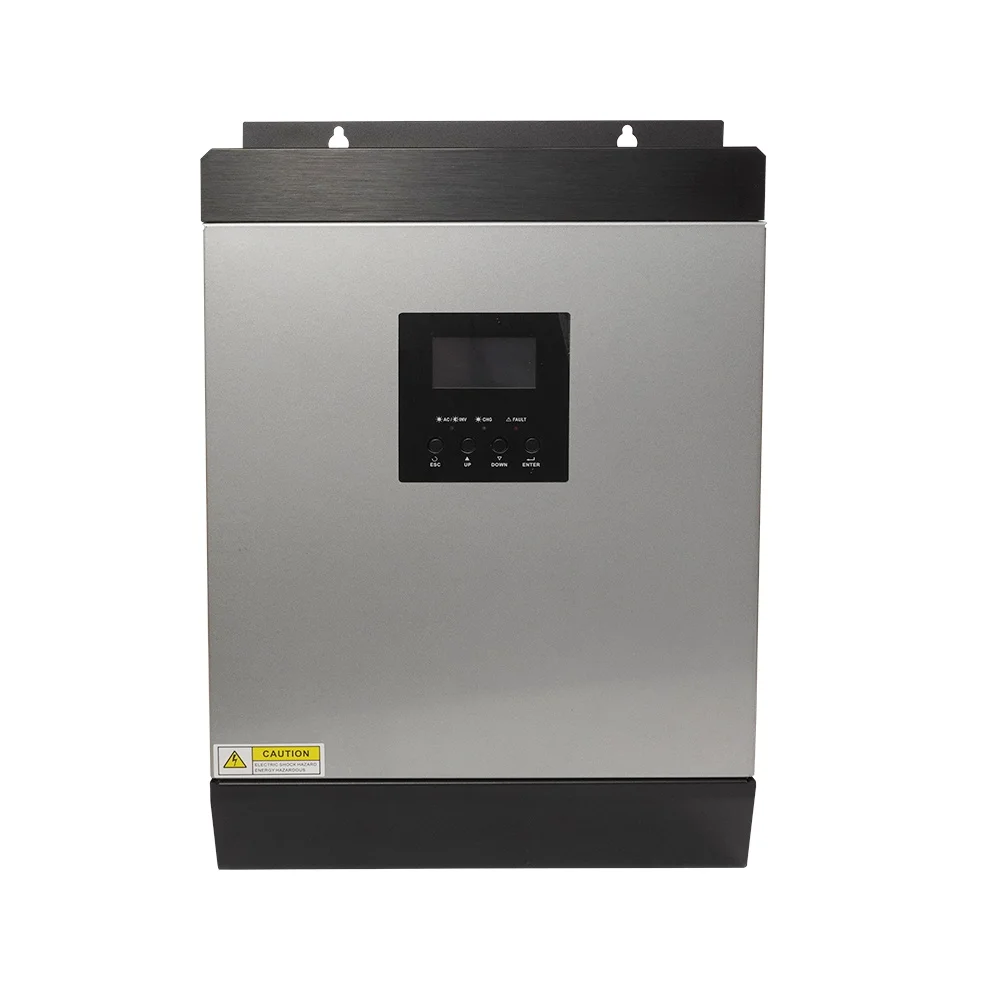

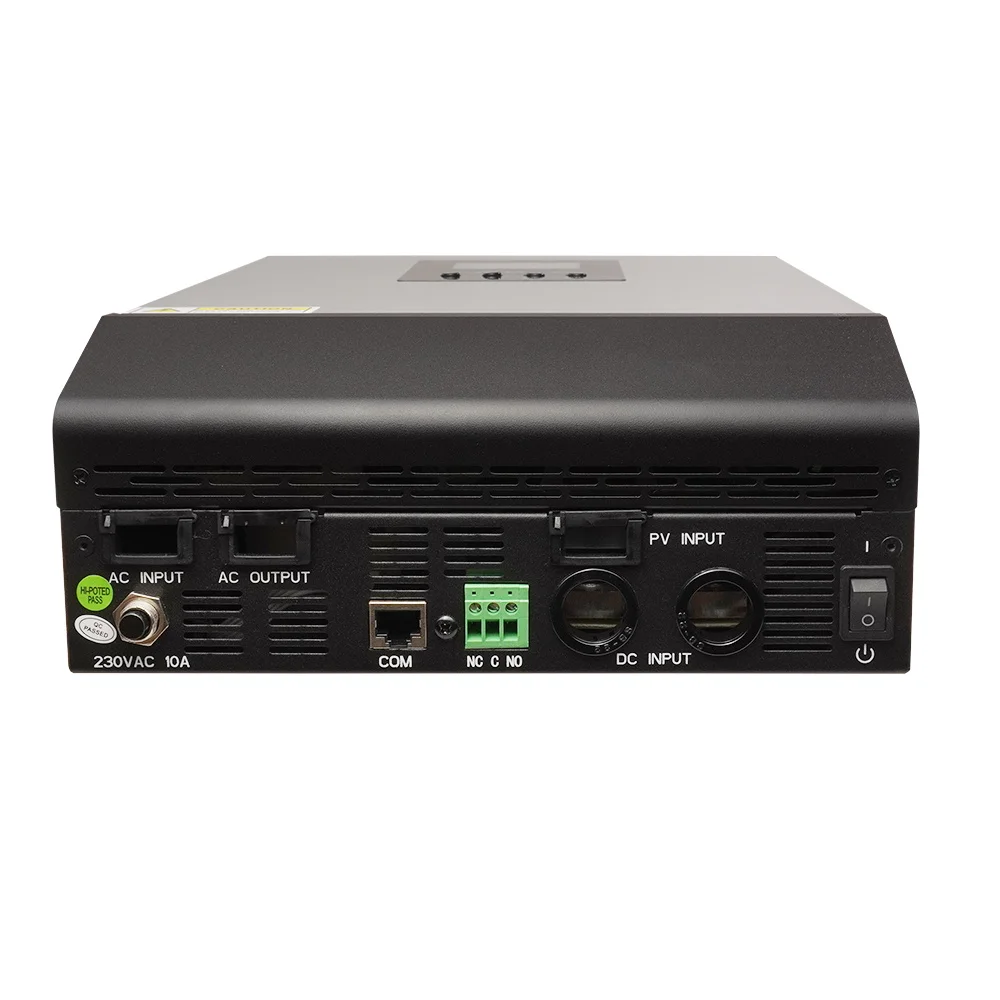

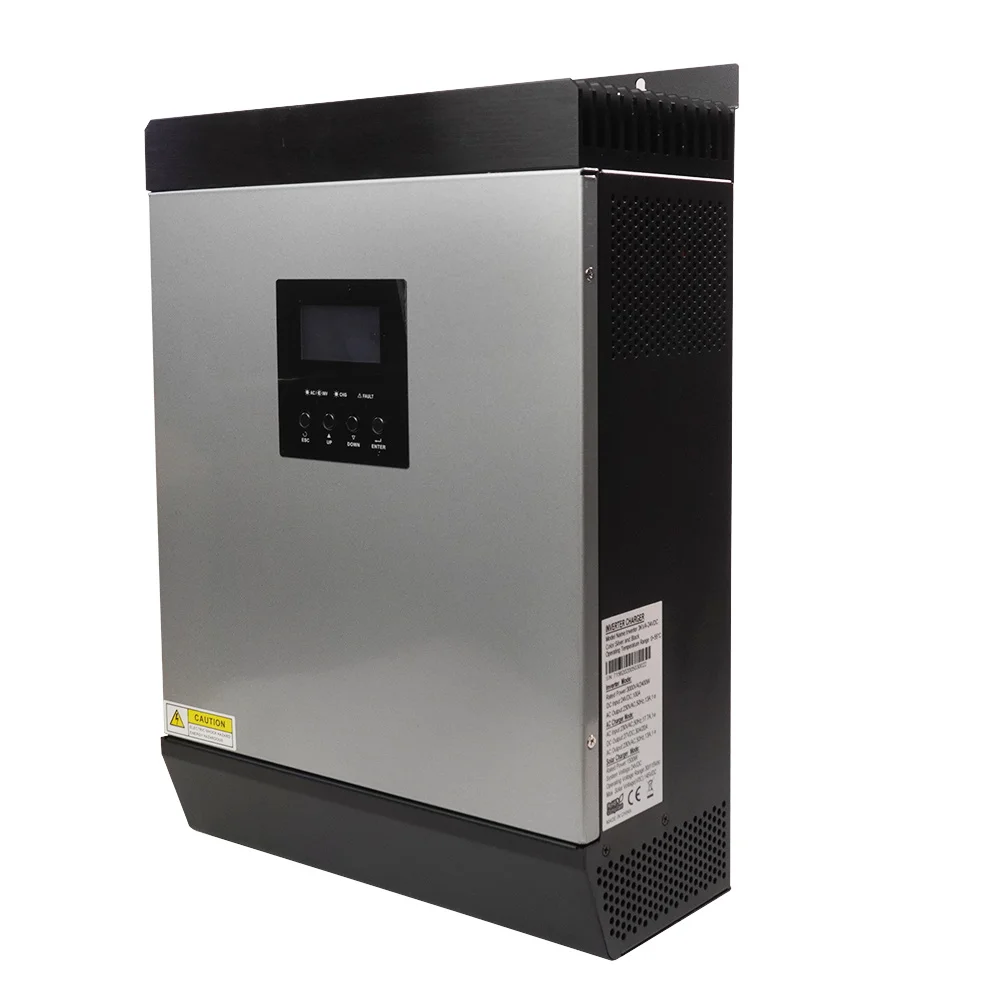

Factory price 5KW solar inverter mppt hybrid 48V 80A for off grid solar system

Product Overview

Description

Factory price 5KW solar inverter mppt hybrid 48V 80A for off grid solar system



 Hybrid Solar inverter Features:



1.Pure sine wave inverter
2.Built-in MPPT solar charge controller
3.Selectable input voltage range for home appliances and personal computers.
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8.Overload and short circuit protection
9.Smart battery charger design for optimized battery performance
10.Cold start function
11.Parallel operation with up to 8 units only available for MPS 5KVA



Specification Details:



MODEL	MPS 1K-24	MPS 3K-24		MPS 5K/MPS PLUS 5KVA
Rated Power	1000VA/800W	3000VA/2400W		5000VA/4000W or 5000VA/5000W (MPS PLUS)
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280VAC (For Personal Computers)                                                                                                                                 90-280 VAC (For Home Appliances)
Frequency Range	50HZ/60HZ (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode)	230VAC +/- 5%
Surge Power	2000VA	6000VA		10000VA
Efficiency(Peak)	90%-93%	93%
Transfer Time	10ms (For Personal Computers)                                                                                                                                                                     20ms  (For Home Appliances)
Waveform	Pure sine wave
BATTERY & AC CHARGER
Battery Voltage	24VDC	24VDC		48VDC
Floating Charge Voltage	27VDC	27VDC		54VDC
Overcharge Protection	31VDC	31VDC		60VDC
Maximum Charge Current	10A/20A	20A or 30A		10A/20A/30A/40A/50A/60A
SOLAR CHARGER
Maximum PV Array Power	600W	600W	1500W	3000W/4000W
MPPT Range at Operating Voltage	30VDC-66VDC	30VDC-66VDC	30VDC-115VDC	60VDC-115VDC
Maximum PV Array Open Circuit Voltage	75VDC	75VDC	145VDC	145VDC
Maximum Charging Current	25A	25A	60A	60A/80A
Maximum Efficiency	98%
Standby Power Consumption	2W
PHYSICAL
Dimension, D*W*H(mm)	128*272*355		140*295*540
Net Weight(kgs)	7.4	8	10	11.05/13.5
OPERATING ENVIRONMENT
Humidity	5%-95% Relative Humidity (Non-condensing)
Operating Temperature	0 ℃ - 55 ℃
Storage Temperature	Below 15 ℃ - 60 ℃

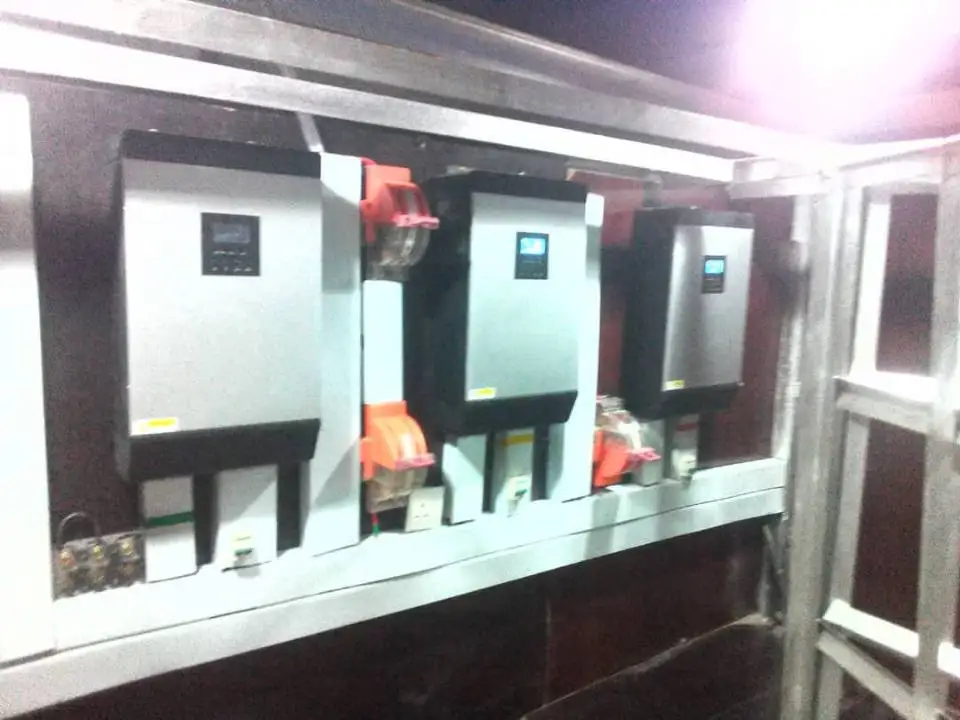

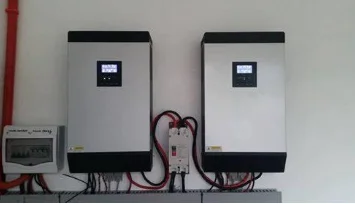

Parallel Connecting Drawing:
