Система вентиляции и кондиционирования высокий ряд очищения вентилятор FFU с фильтры FFU filter (1600122000604)

Share on:


Price:250,00 $
Price in USD:Details

Quantity:


Product Overview

Description


HVAC System High Purification Rank FFU Fan Filters FFU filter



Product Description


Fan Filter Unit which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for cleanroom applications.





Application


FFU’s are commonly used in the construction of Class 1 to Class 100,000 cleanrooms, even forming ultra clean line, clean closet and etc.





 Features



  • Nice appearance , human centered design--Adding stainless handle, easy installation and delivery, and perpendicular design.

  • High performance and low noise fans--Adopting Energy-saving Multi-blade turbine fan, lower noise, Pressure spreads evenly, stable air velocity, low consumption, low running cost, service life can reach to longer than 80 thousand hours.

  • Light, thin shape--Without filter net, thickness of shape is 23cm, 25KG weight, application in low ceiling are also available.

  • Flexible, diversified design--Except for standard items, custom made FFU is available, such changings as filter nets, the materials of shell and etc...

  • Concerning, convenient design---Pedals are designed in the body, which makes it convenient to install and repair.

  • Premium Current-averaging design of the inside--Ensures deviation of the blowing side lower than ±10%.


  Fan Filter Unit Specification and technical parameters











































































































Model



FFU-1175



FFU-1228






  FFU-578







FFU-618




Dimension



mm






575*1175*320



615*1225*320



575*575*320



615*615*320



air filter size



mm



575*1170*69



610*1220*69


     570*570*69610*610*69

air Volume



m³/h



700-1800



700-1900


   350-900350-950

External static pressure



Pa



98



98



 98


98

Main body









-



Standard



cold rolled steel plate with powder coated



Option



Stainless steel


Galvanized steel


Aluminum coated zinc plate


SUPER GALUM



Power supply



Standard



V/Hz



220V 50Hz



Option



V/Hz



Pls contact us if you have any other requirement about the power.



Output poewr





140-150






Filter



Efficiency



-



HEPA Over 99.99% @ 0.3um



-



ULPA Over 99.9995% @ 0.1um



Frame



-



Aluminum



Shock



m/s2



≤0.4



≤1.1








Noise



Db(a)



≤55



≤55








Option



-



Differential draft gauge; Remote control; Duct flange for suction air; Pre-filter



 Special size can be customized.





 Product show

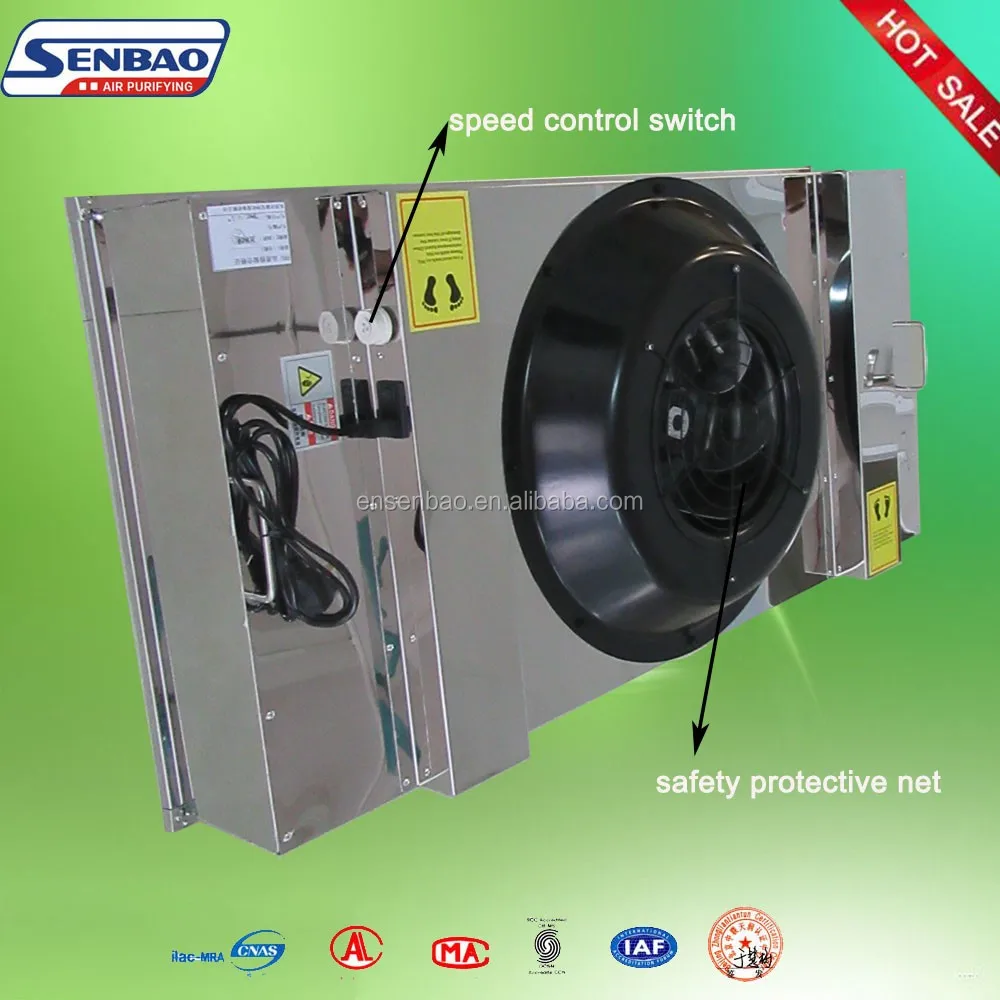

HVAC System High Purification Rank FFU Fan Filters FFU filter
