Portable Grinding Dust Collector/Mobile Welding Fume Extractor/Soldering Smoke Filter Price (62553351043)

Share on:


Price:$175.00 - $180.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


DEER-QF SERIES Portable Laser/Soldering Fume Extractor



Applicable occasions: Soldering iron welding;Tin furnace, wave soldering, reflow soldering;Laser welding, engraving, marking, cutting;The chemistry lab;Medical institutions; Beauty, etc





Characteristic
■Fume mist integrated filtering structure design features easy installation, flexible movement, no need to lay smoking pipelines.
■ High-power DC brushless motor, long life service, low noise and high air flow.
■ The design of fume mist filtering 3-layers
filtration ensures the removal of harmful substances from the fume mist and protects human safety. The initial effect filter,
intermediate filter and the main filter can be replaced separately, which can take advantage of the filter to reduce the
production cost.
■ Built-in type fume mist filter circulating air filtration way prevents the indoor cooling air/warm air from
exhausting outdoor.
■ Multi-station design, adjustable air volume and flexible fume arm.
■ Low noise design.
■ Single-station or double-station design, adjustable air volume, directional air duct adjustment and location.


BALCK COLOR

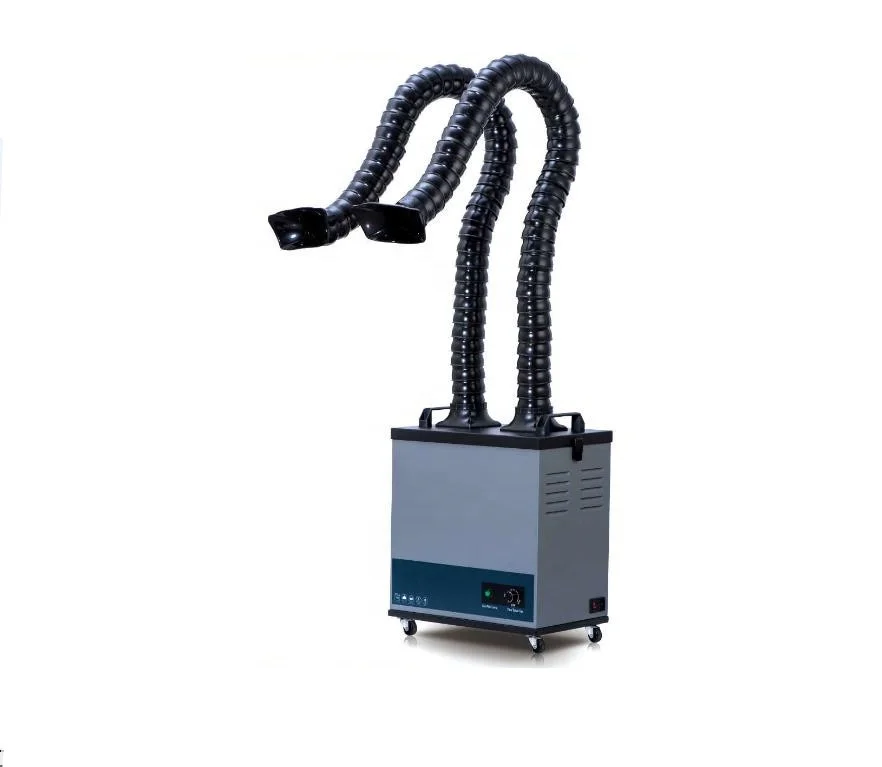

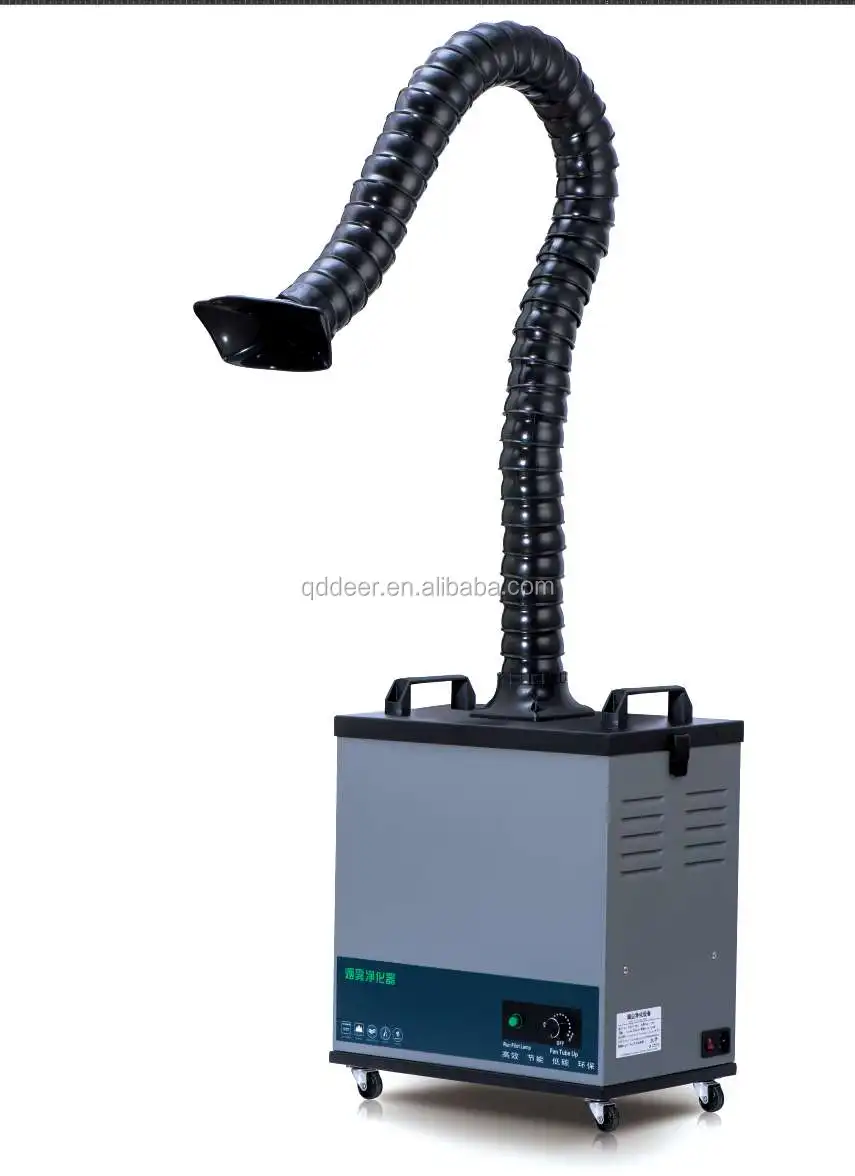

QF001 QF002




BALCK COLOR

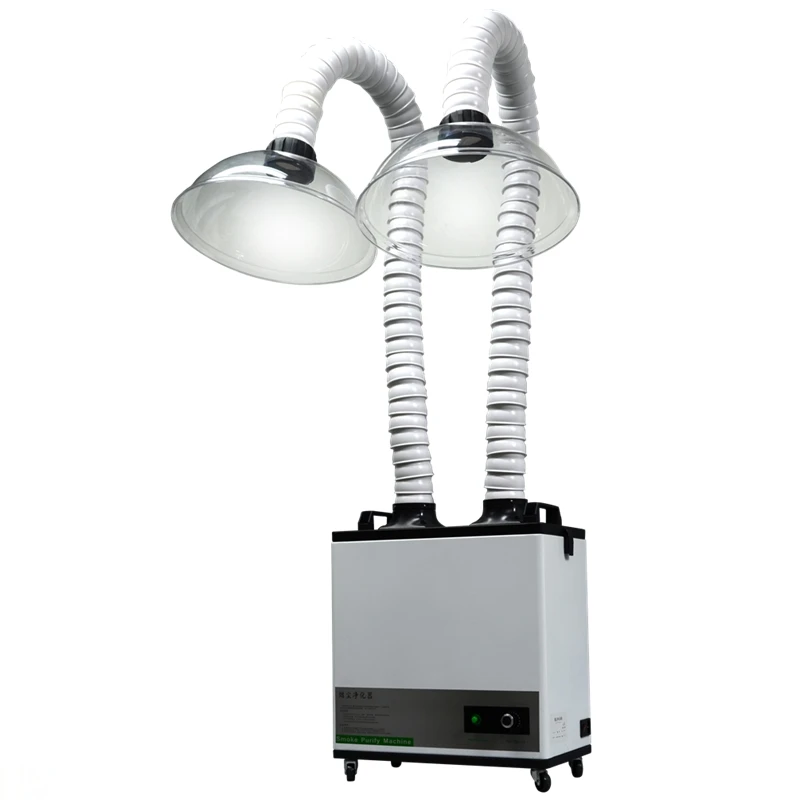

QF400 SINGLE SUCTION ARM QF400 DOUBLE SUCTION ARMS




Model
DER-QF001
DER-QF002
DER-QF400
DER-QF400S
Exhaust volume
(m3/h)
250
320
600
600
Outline size
(L*W*H)mm
420*240*450
420*240*450
450*350*720
450*350*720
Power
80W
150W
400W
400W
Noise
<55
<55
<65
<65
Length of Suction arm
                                                         1.5M,75MM in Diameter
1.5M,75MM in Diameter
1.5M,75MM in Diameter
Voltage
220V /50hz/1ph or 110v/60hz/1ph
Weight(KGS)
7.8kgs
15.5kgs
30kgs
32kgs


Filter advantage
Filter advantage:
With four filtration devices: It uses four filtration devices, including two initial filters, medium filter
and main filter. The main filter is made up of HEPA high efficiency filtration and gas filtration. Large area primary filter can effectively.


Optional tube:

Diameter:50mm,length:75mm
Optional tube:

Diameter:75mm,Length:1.5m
Optional tube:

Diameter:75mm,Length:1.5m


Application case:
