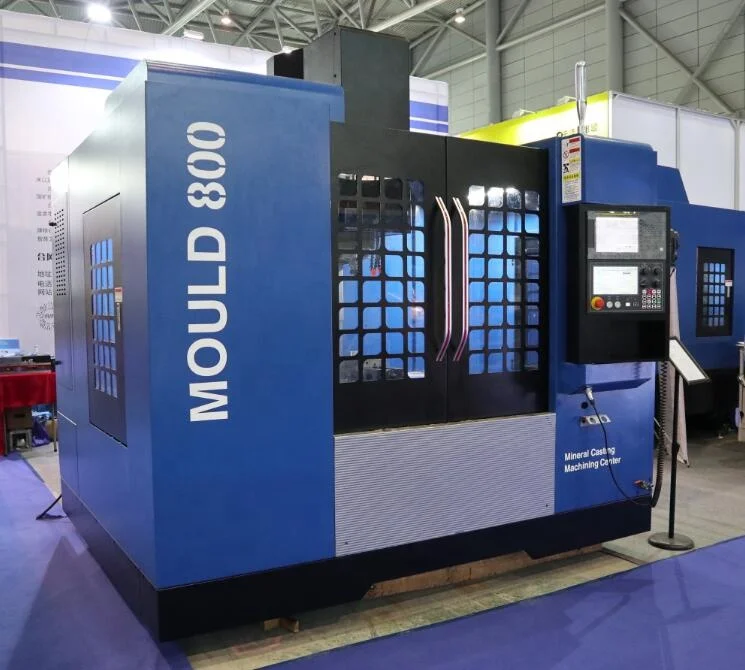

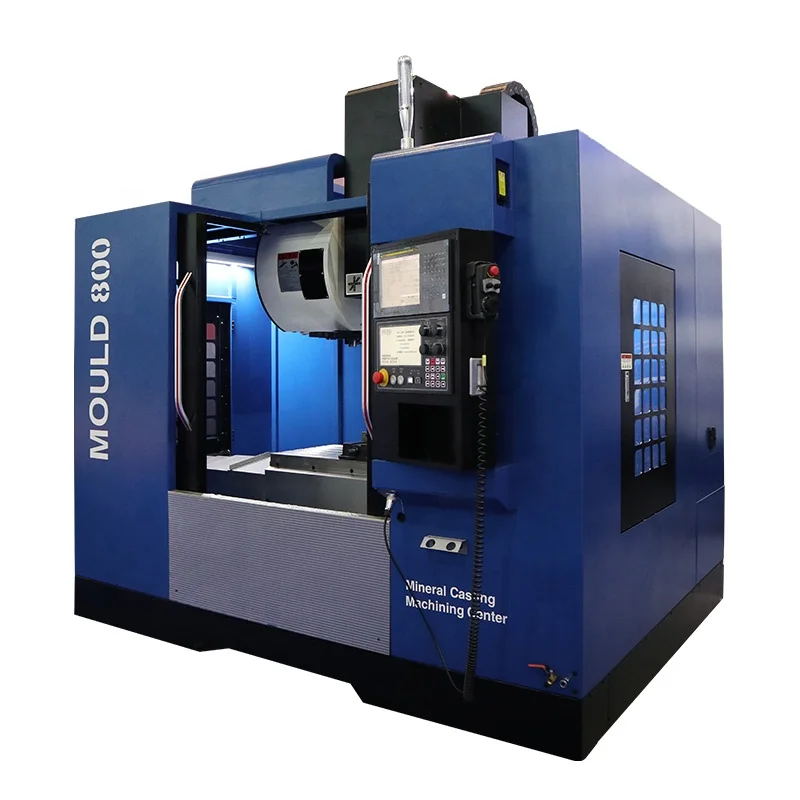

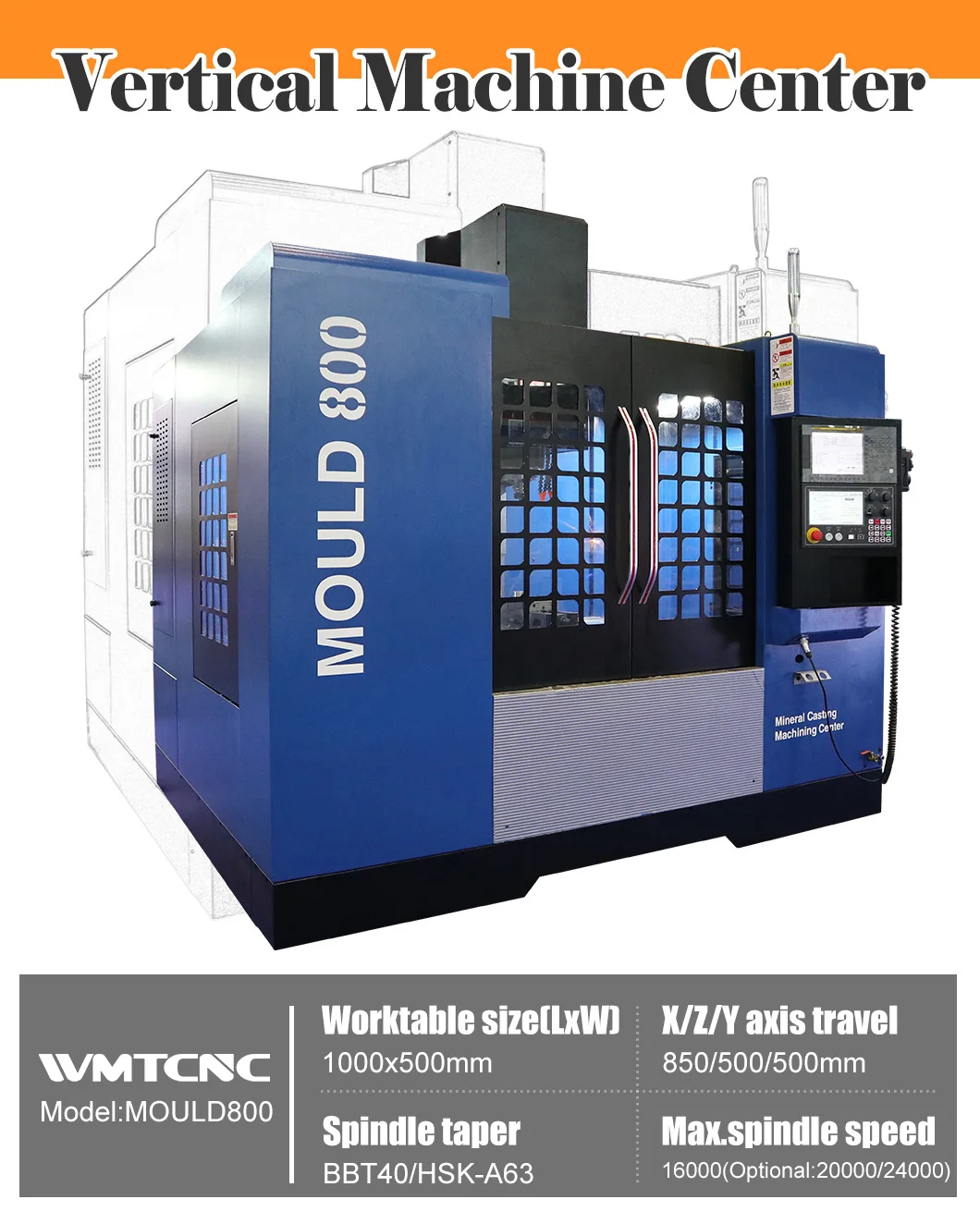

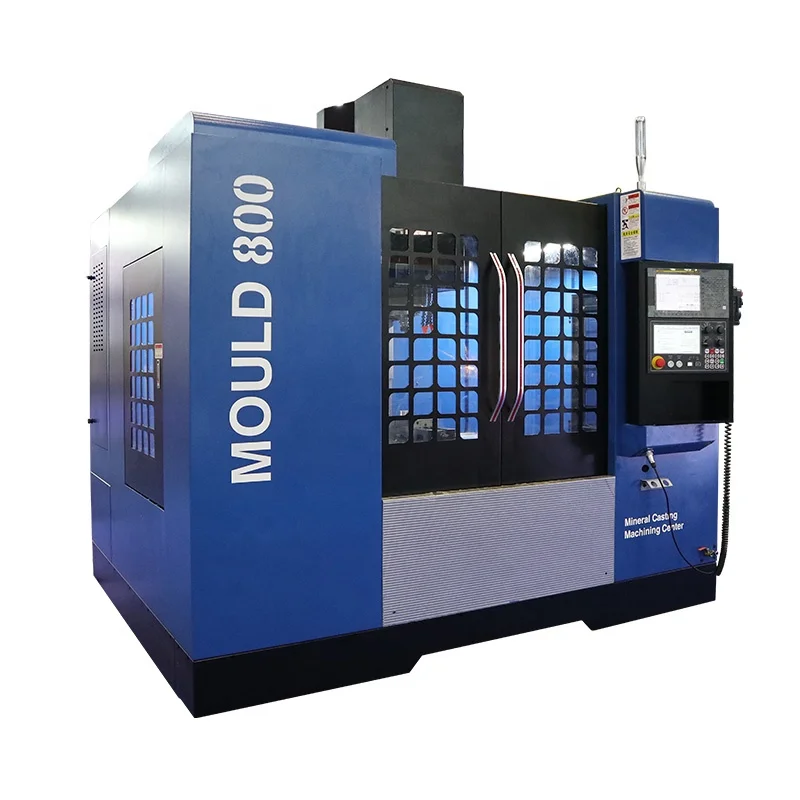

MOULD800 high precision Mineral Casting Machining Center
- Category: Machine Centre >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1600122154657):
Product Overview
Description

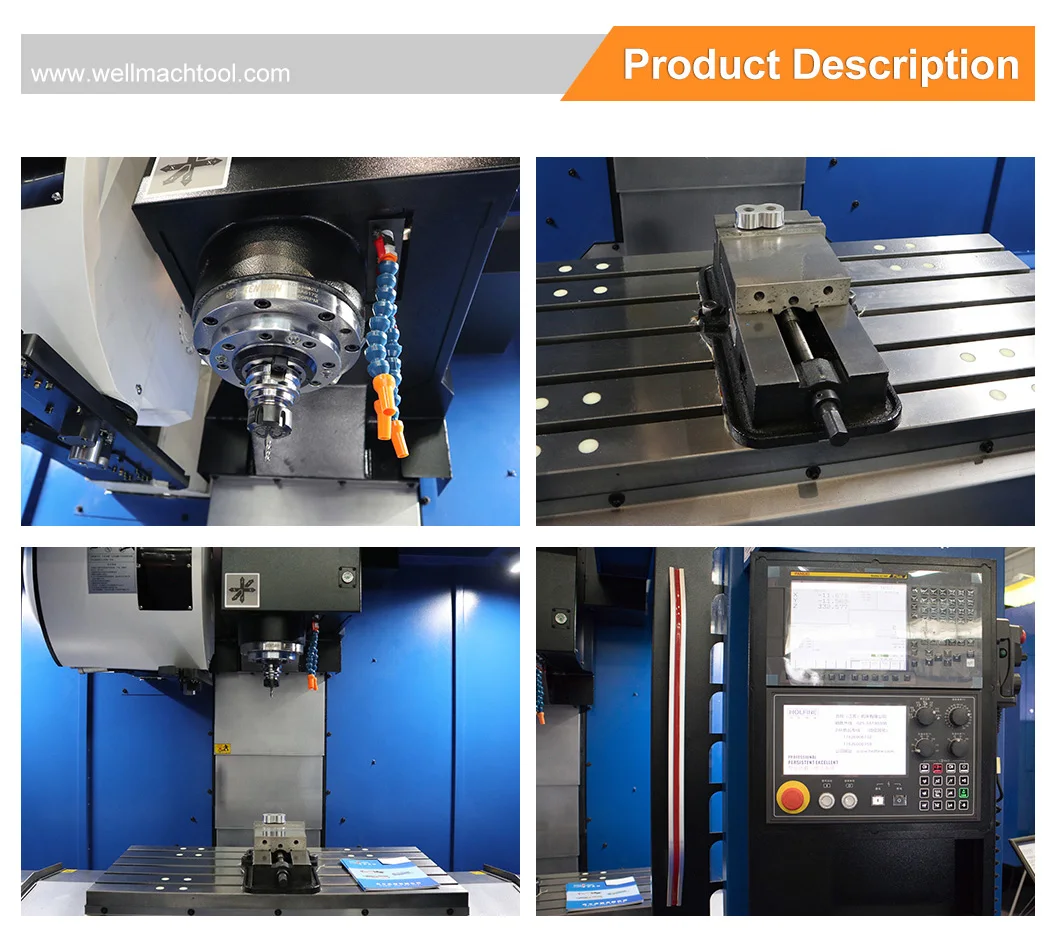

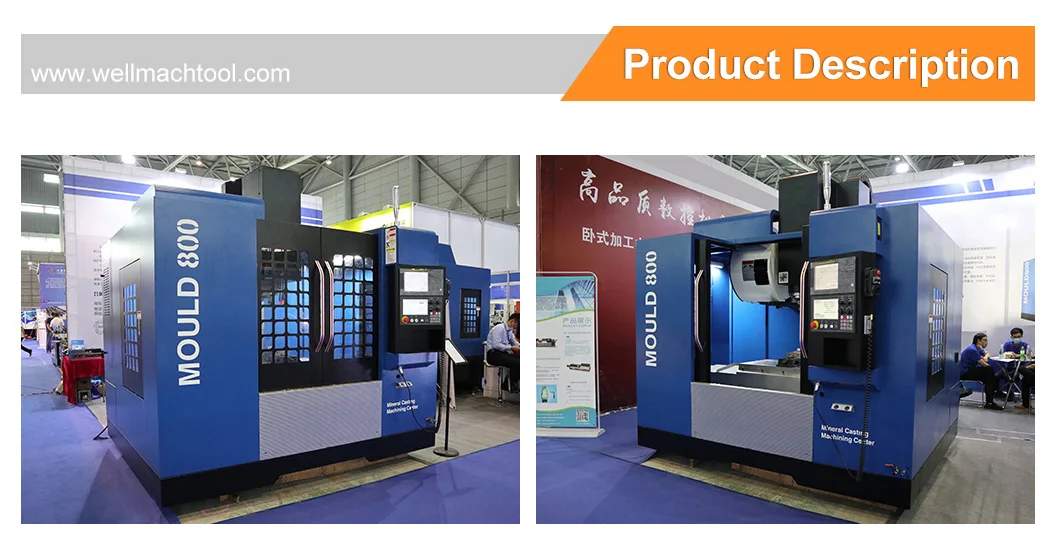

Product Description
Specification(
Specification | Unit | MOULD800 |
X axis travel | mm | 800 |
Y axis travel | mm | 500 |
Z axis travel | mm | 500 |
Distance from spindle nose to worktable surface | mm | 120/620 |
Distance from spindle center to column | mm | 585 |
T-slot size | 18*5 | |
Worktable size | mm | 1000x500 |
Max.loading of worktable | Kg | 500 |
Spindle taper | # | BBT40/HSK-A63 |
Spindle speed | rpm | 16000(Optional:20000/24000) |
Drive mode | Electricity spindle | |
Rapid feed speed (X/Y/Z) | m/min | 36/36/36 |
Tool magazine capacity | pcs | 24 |
Cutting tool selection mode | Dual | |
Tool change time | sec | 1.5-3 |
Max. diameter of adjacent tool | mm | 90 |
Max.length of tool | mm | 250 |
Weight of tool | Kg | 8 |
Spindle motor | KW | 15/18.5 |
X/Y/Z axis motor | KW | 3/3/3 |
Positioning accuracy | mm | 0.008 |
Re-positioning accuracy | mm | 0.005 |
X/Y/Z guideway | Roller linear guideway | |
Ball screw (diameter + lead) | mm | 40|12 |
Cutting fluid oil tank volume | L | 180 |
Lubrication system oil tank volume | L | 3 |
Power | Mpa | 0.55-0.65 |
Battery capacity | KVA | 25 |
Weight | KG | 5500 |
Machine size | mm | 2650*2250*2500 |

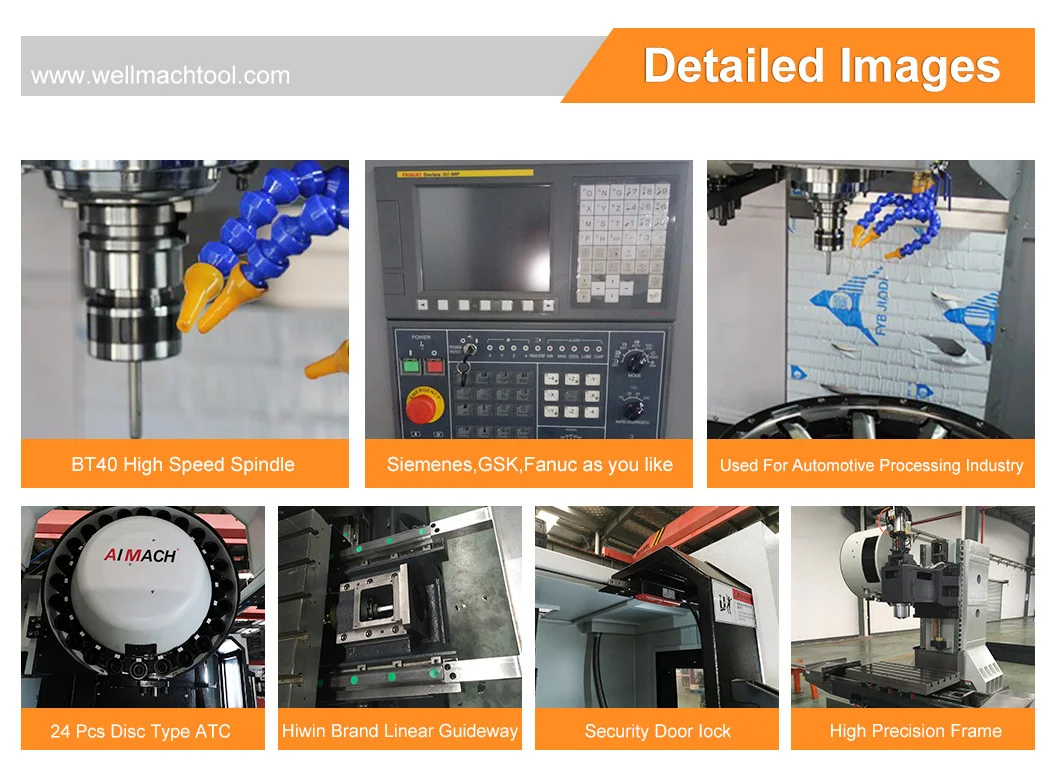

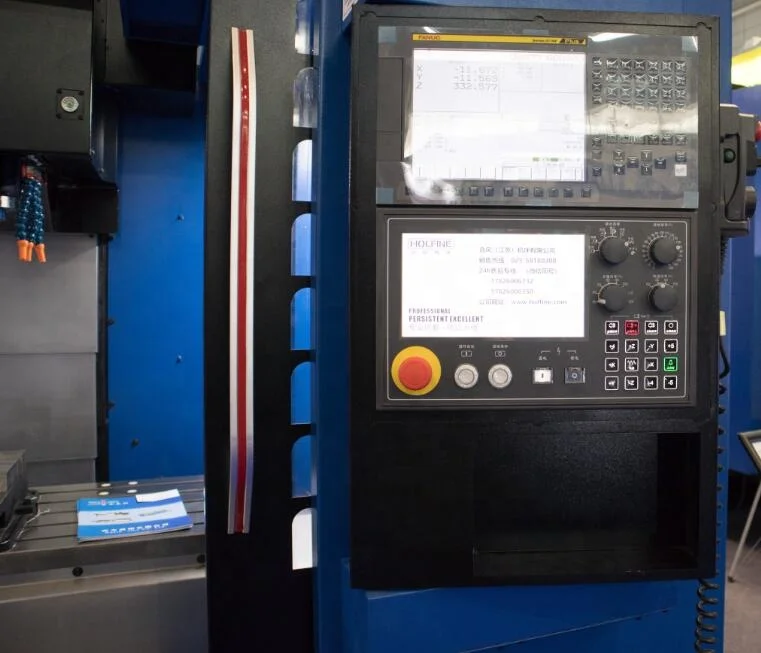

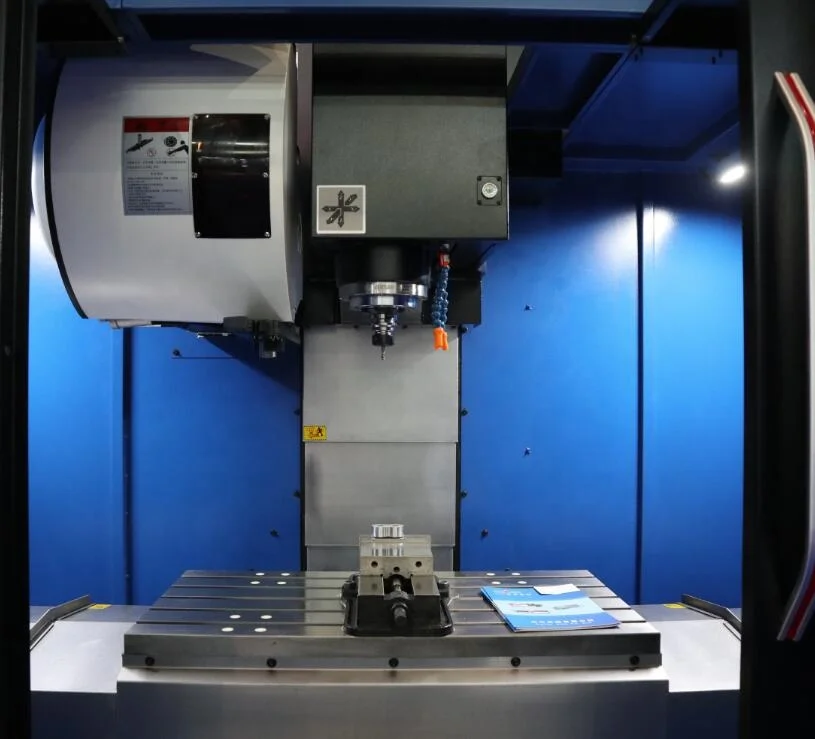

Machine details:
Package detail:

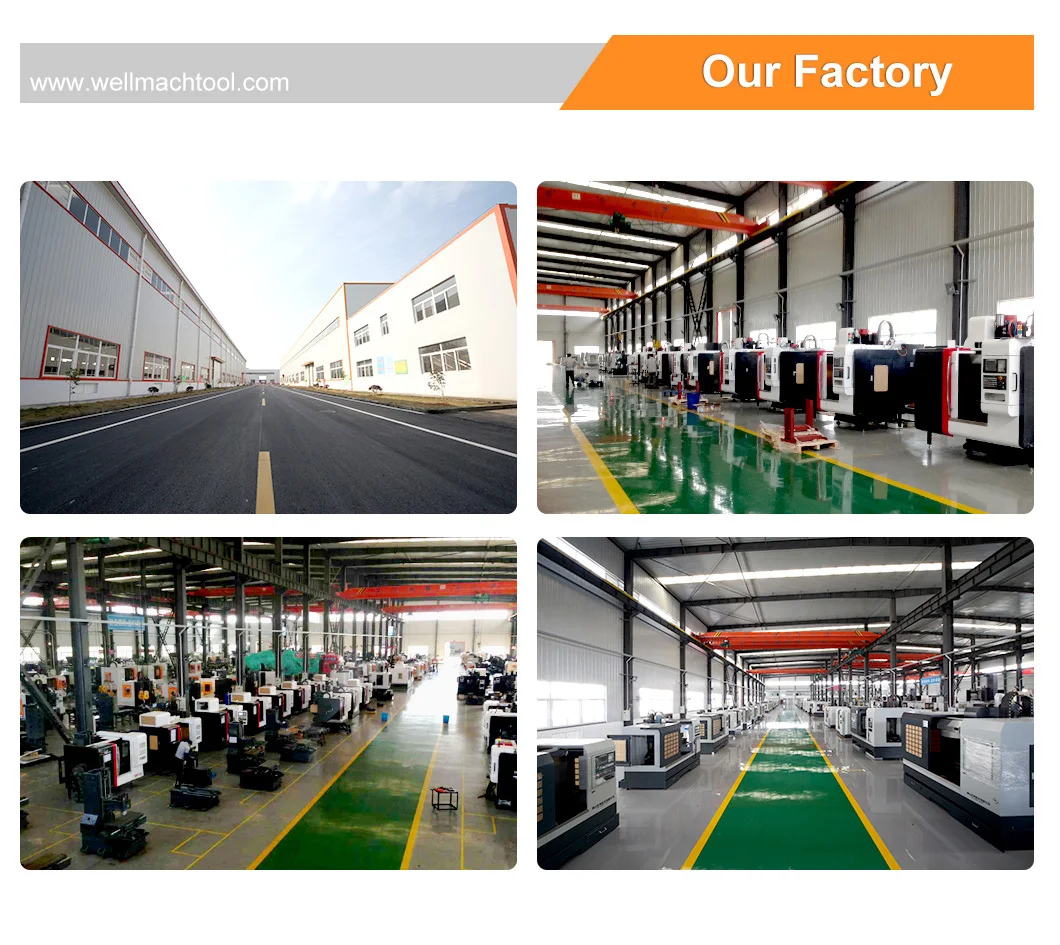

Our company
