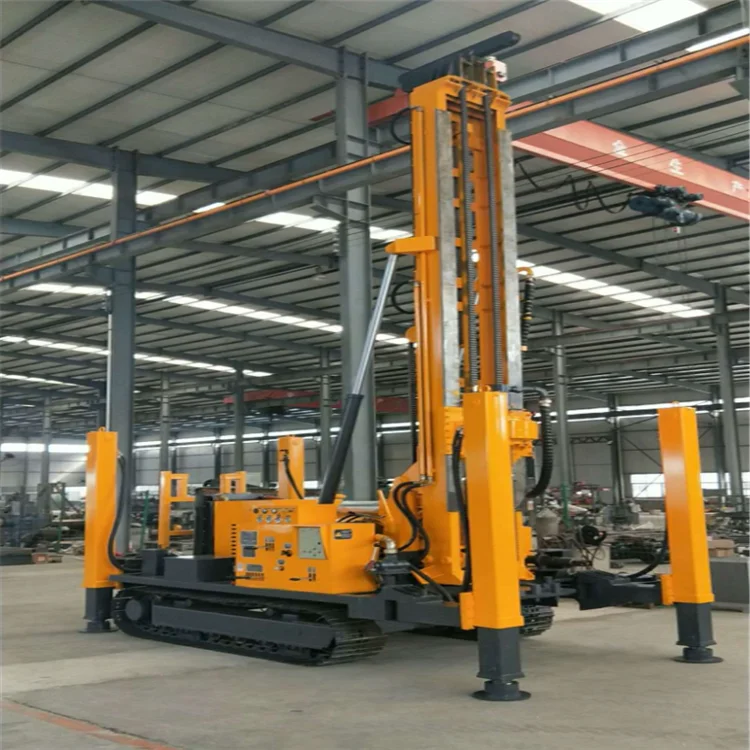

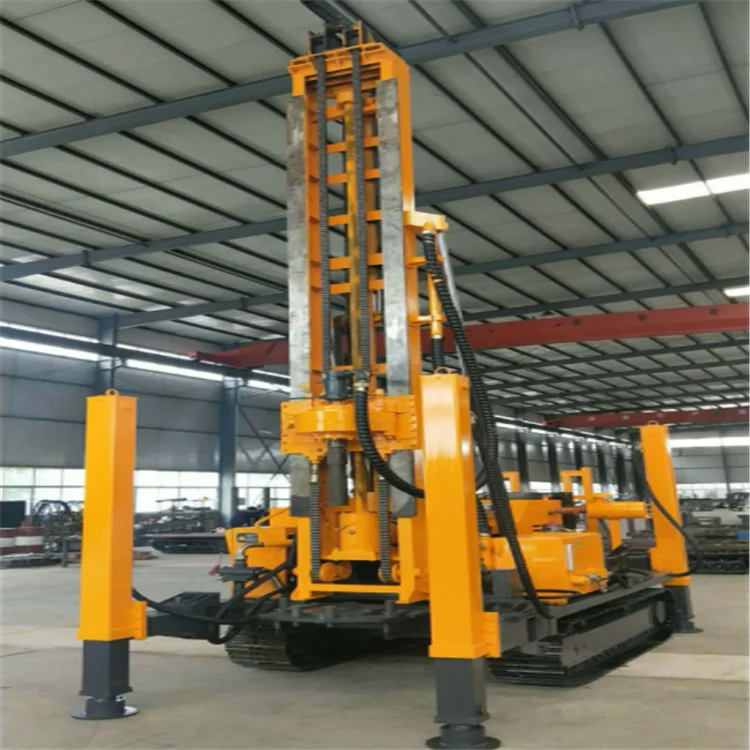

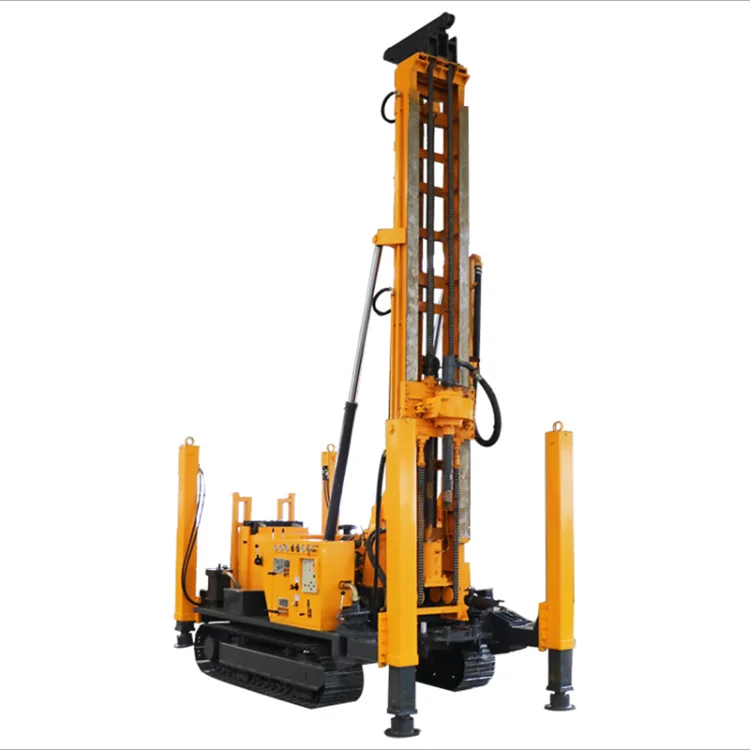

Professional 200m 300m 400m water well drill rigs for hot sale

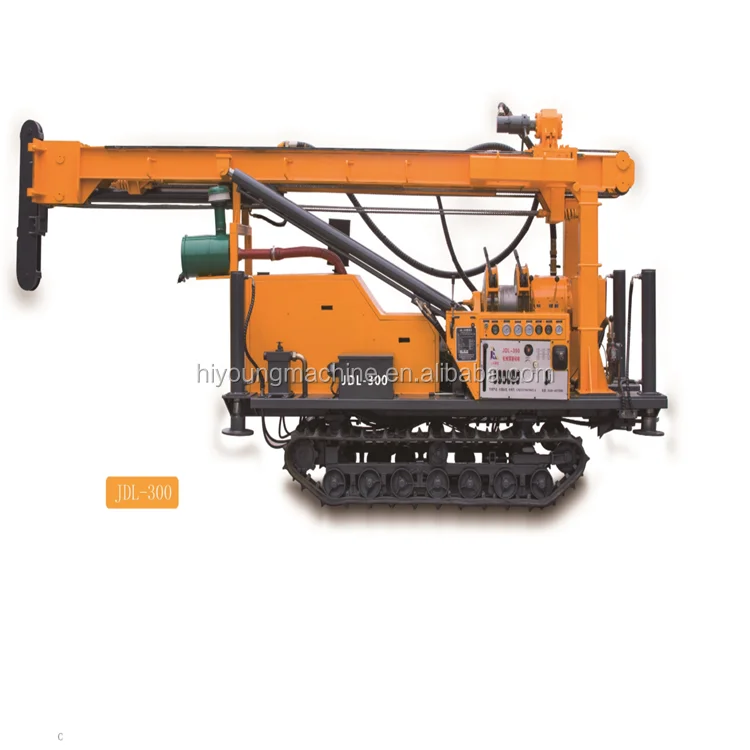

1. Introduction of JDL-300 mud/airdrilling rig
JDL-300 mud/air drilling rig is a water well drilling rig that mix mud drilling rig and air drilling rig in one equipment with mechanical top head. It is a good solution to the difficulty of drilling in the soil layer for DTH rig and the low efficiency of drilling for mud rotary rig in the hard rock, gravel and pebble layer. The mud/air drilling rig adapts to various soil strata. The mud/air drilling rig is efficiency and energy saving to drill water well and geological exploration of core sample.
2. Main drilling methods
Conventional DTH hammer drilling,Non-core PDC bit or tricone bit drilling
3. Features of JDL-300 mud/airdrilling rig
The rig can be equipped with a five-speed manual integrated gearbox, hydraulically separated bearings, full synchronizer shifting, high reliability and long service life.
The drilling rig adopts a mechanical winch, which has a fast lifting speed and is easy to handle the bottom hole accident.
Technology parameter
JDL-300 mud/air drilling rig
Working stratum
Loose soil layer and bedrock(hardness:F6~20)
Drillingcapacity
Φ42 Mud drilling depth
530m
NQ wireline coring
600m
Φ75 Air Drilling depth
300m
Borehole dia.
Φ115~Φ350
Power
Diesel engine model
YN27
Rated power
42kw
Rated speed
2400rpm
Drivehead
Rotary speed
50~1020r/min
Max. torque
5000N.m
Feedingsystem
Lifting capacity
4T
Thrusting capacity
2.1T
Winchcapacity
Hydraulic tool winch(optional)
1.5T
Mechanical winch
4.5T
Drillpipe
Drill pipe DIA.
Φ76/Φ89/Φ102
Drill pipe length
3000mm
Crawlerchassis
Walking speed
0~2km/h
Climbing angle
20°
Dimension
Transport
5380*1575*2500mm
Working
3480*1575*6280mm
Weight
4380kg
Aircompressor
Air pressure
10.5~24.6bar
Air consumption
16~35m³/min

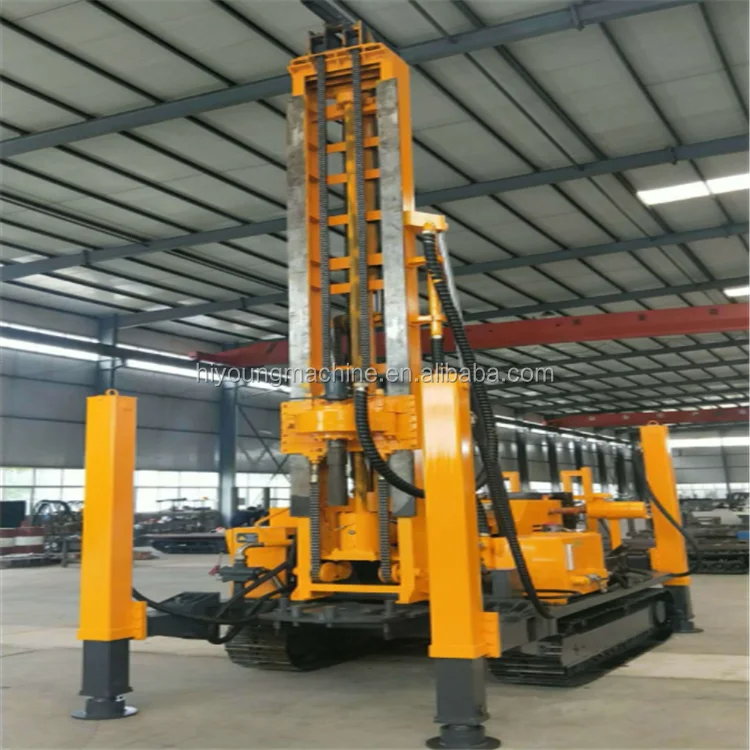

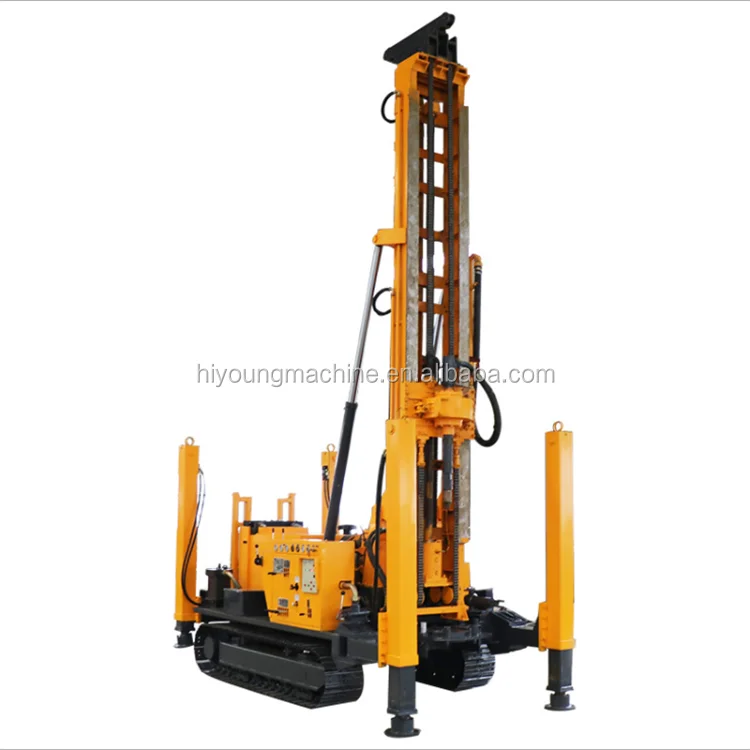

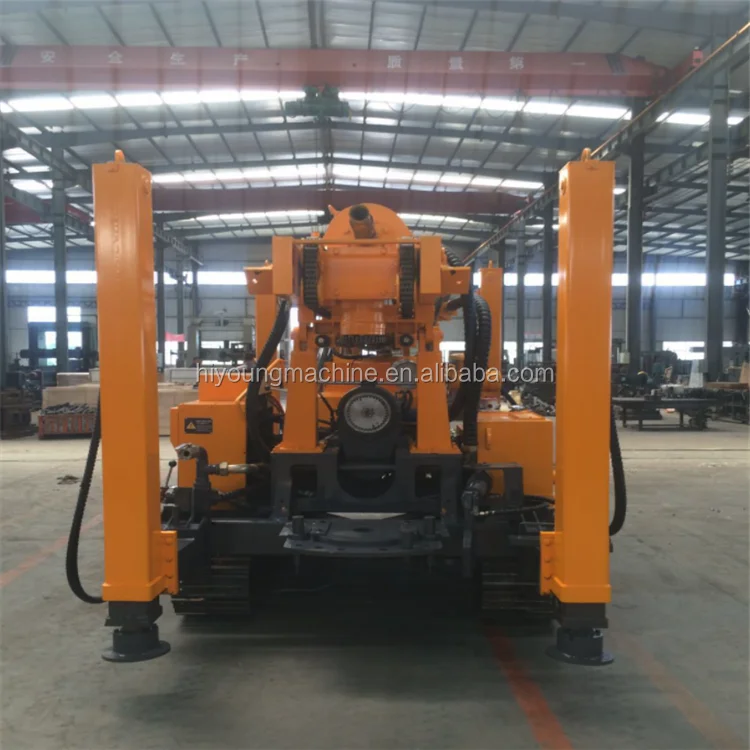

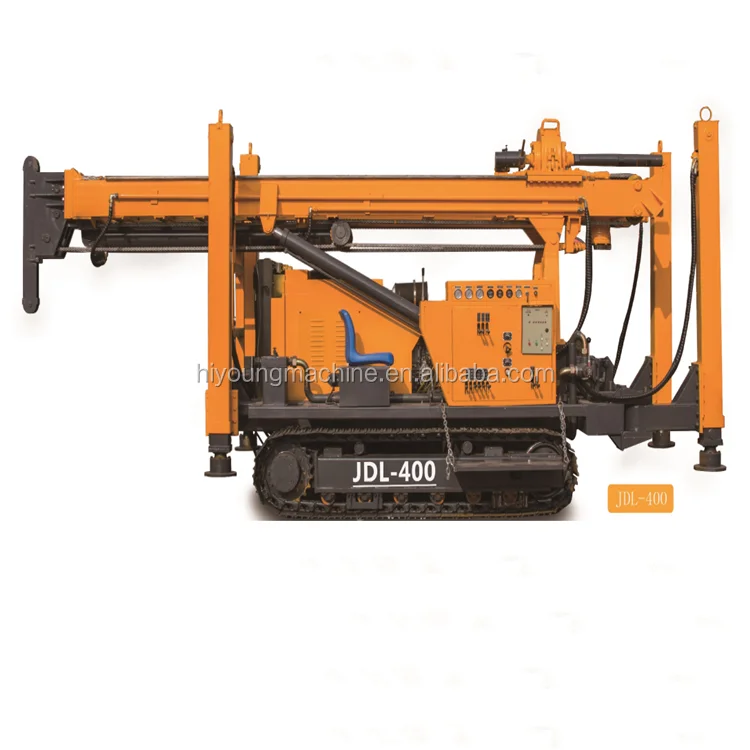

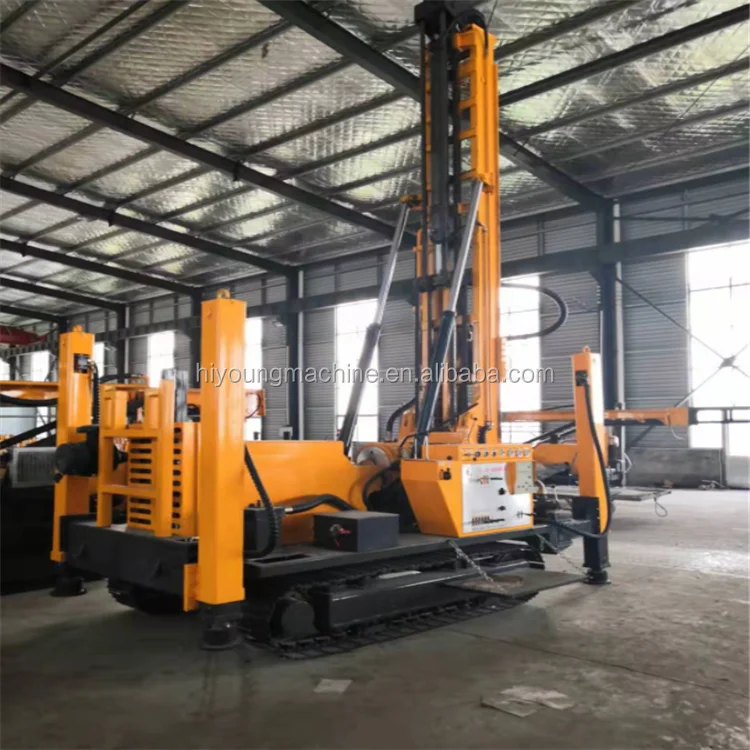

Machine details
Company Information

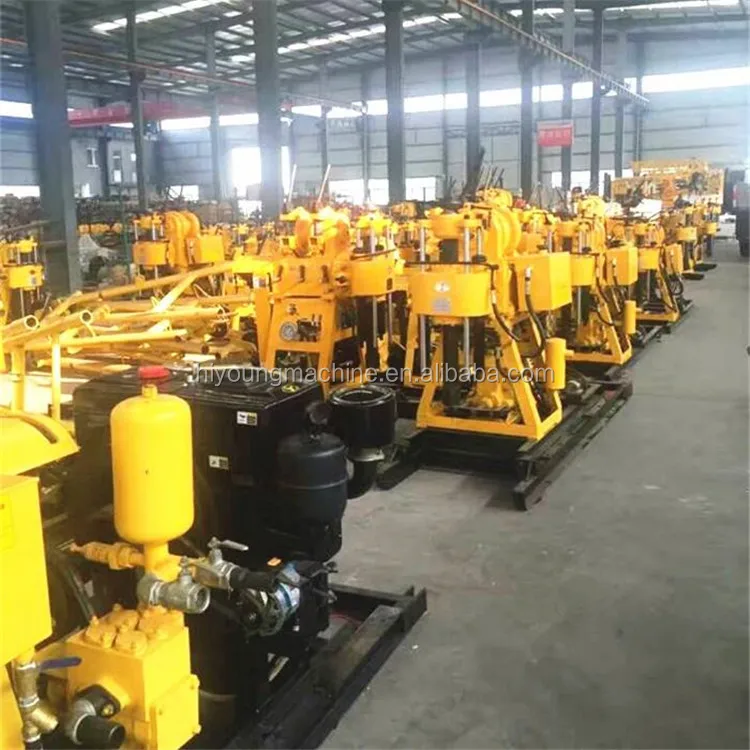

Our workshop
Packaging & Shipping
Delivery Time
7-20working days after receiving clients’ payment.
Payment Terms
T/T, Trade assurance,Paypal, Western Union, L/C, D/P, D/A, Escrow
Packing
1. Machines are wrapped in plastic film first before packing,
which is to avoid moisture on the sea. 2.The machines are putted in strong iron sheet case/wooden case
which is free of fumigation, lined with metal wire if necessary.
Quality Guarantee Terms
Quality guarantee term is forone year. Malfunctions which are caused
by machine-self and quality will be responsible for our manufacturer.
Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
