Africa type Single phase Digital Meter KHLSM
US $6.83-$7.10

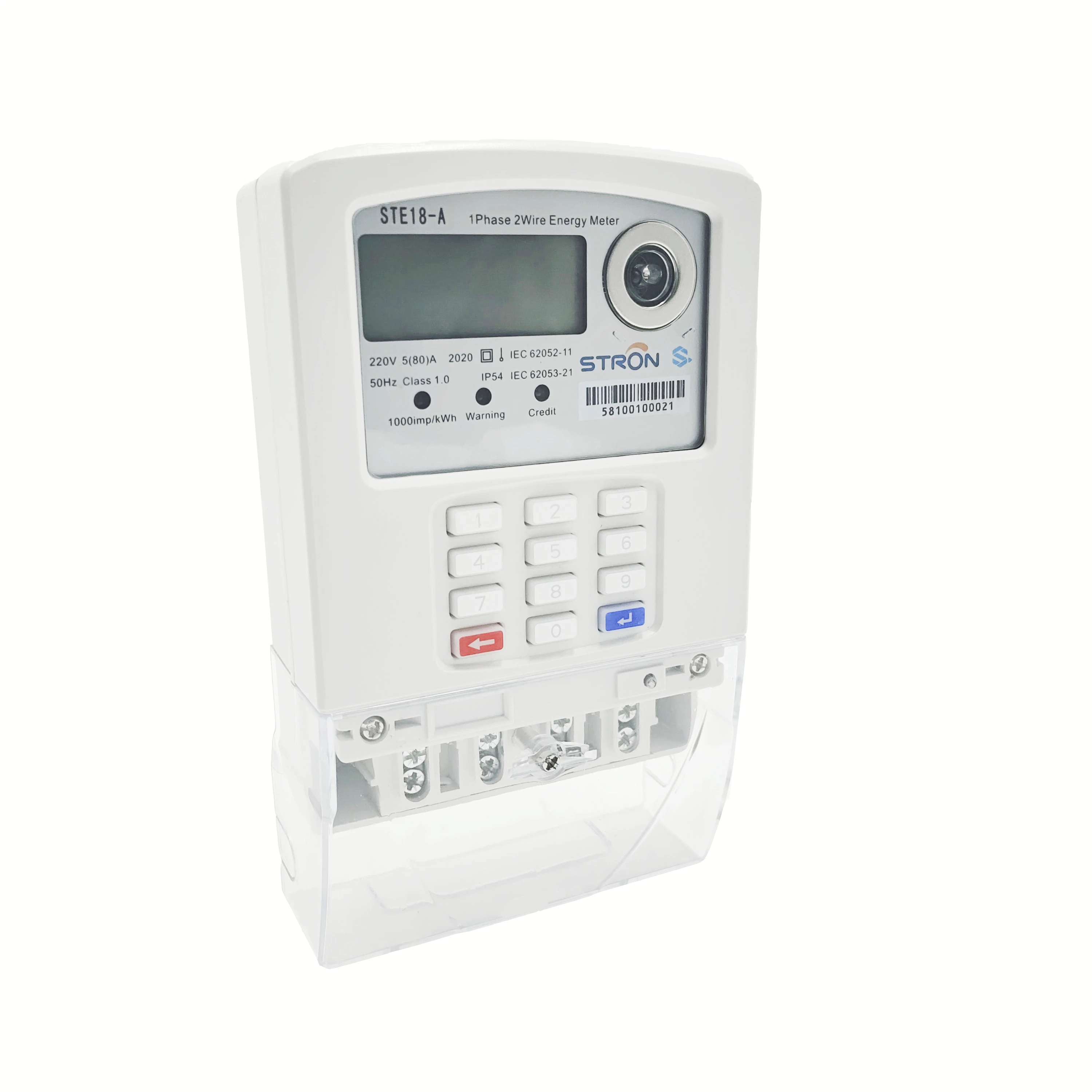

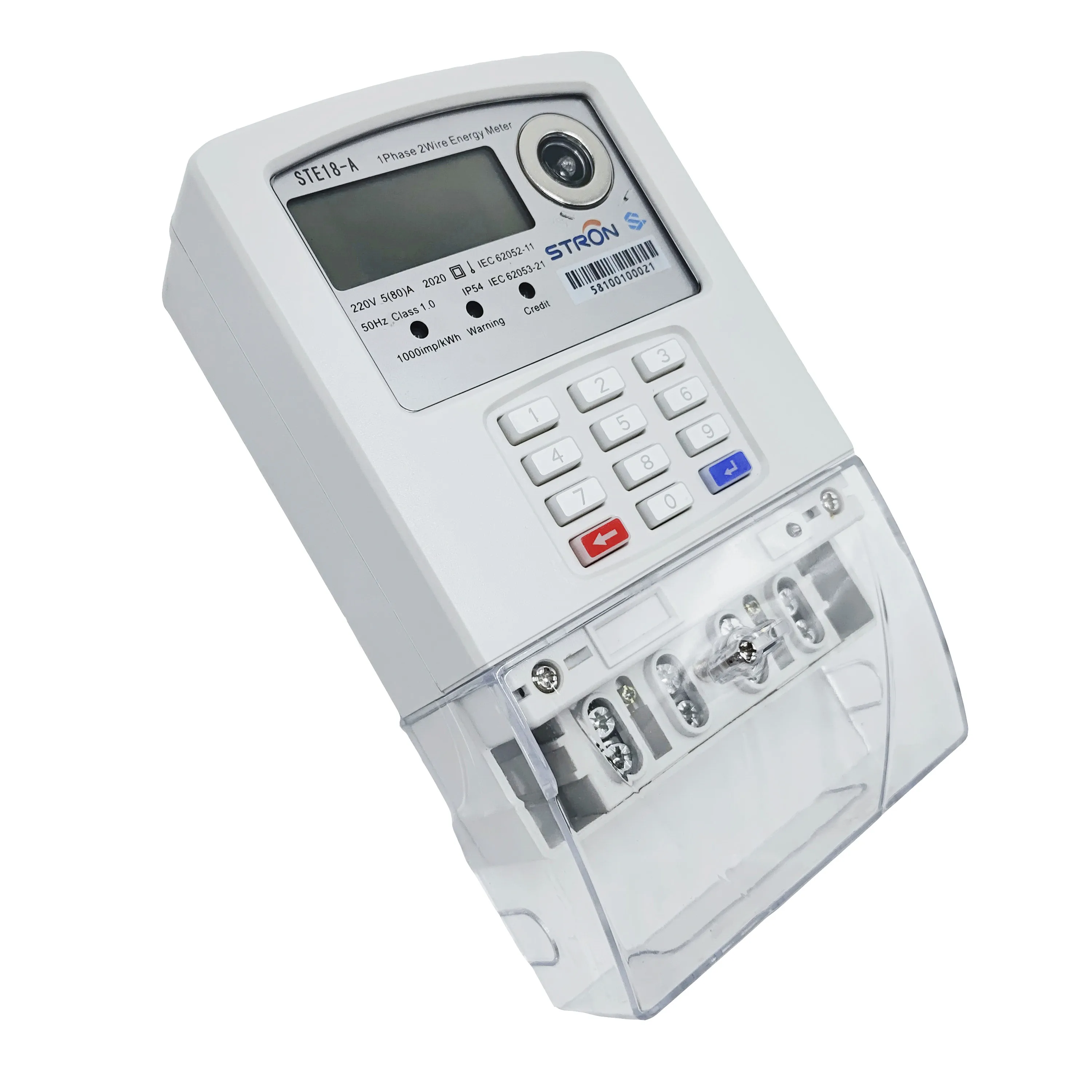

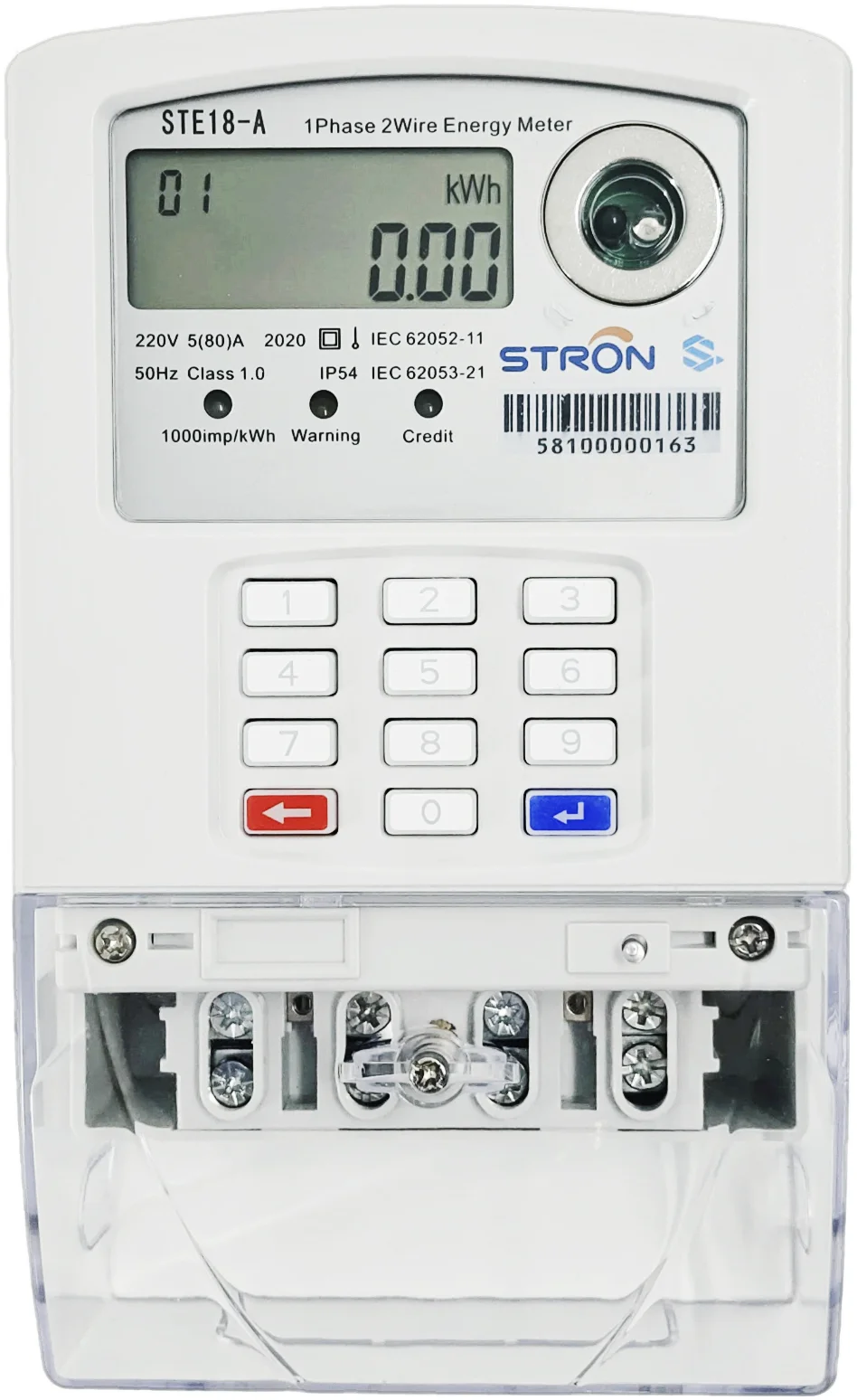

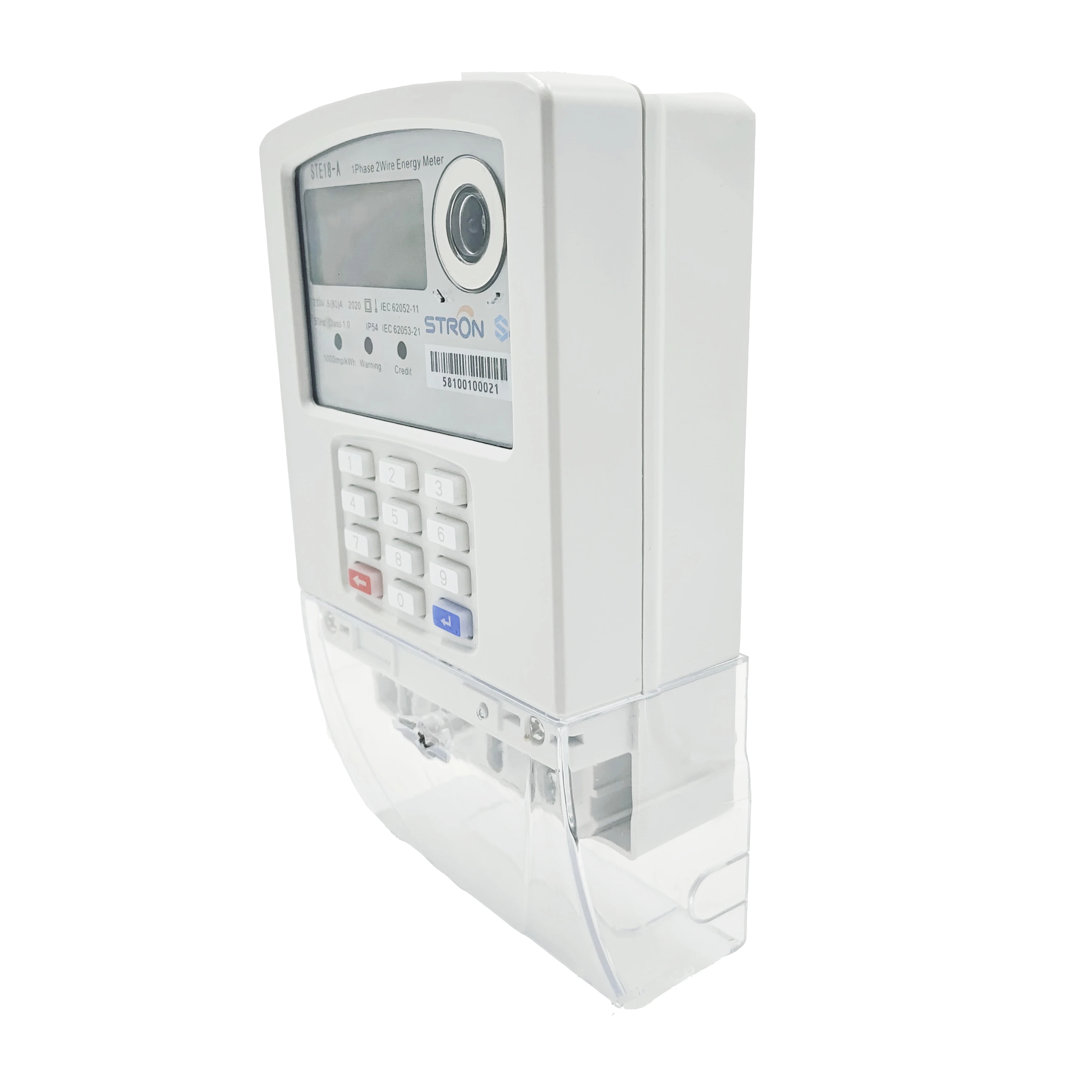

STE18 A STS standard Single phase Prepaid electricity Meter
- Category: Energy Meters >>>
- Supplier: Hunan Stron Smart Co. Ltd.
Share on (1600145207045):
Product Overview
Description
Products Description
Main points
STE18-A is an STS Standard compliant, keypad type, automatically connection or disconnection prepaid electricity meter. It can be top up with Stronpay vending software directly and communicate with AMI system via LORA-RF or PLC module.
Application:
Counting the electricity consumption of users over a period of time.
Counting the electricity consumption of users over a period of time.
Compliance with Standard:
✽ ISO 9001 ; ISO 14001
✽ STS Certificated
✽ ISO 9001 ; ISO 14001
✽ STS Certificated
Main Features
1. Ingress protection IP54 waterproof;
2. Up to 8 years battery life;
3. Remote connection/disconnection;
4. STS Standard;
5. Real-time clock;
6. Utilities can set TOU price into meter on request;
7. Anti-Tamper Magnetic field protection;
8. LORA-RF communication (optional);
9. Pay by mobile payment M-PESA, Alipay, MTN, Airtel, etc.

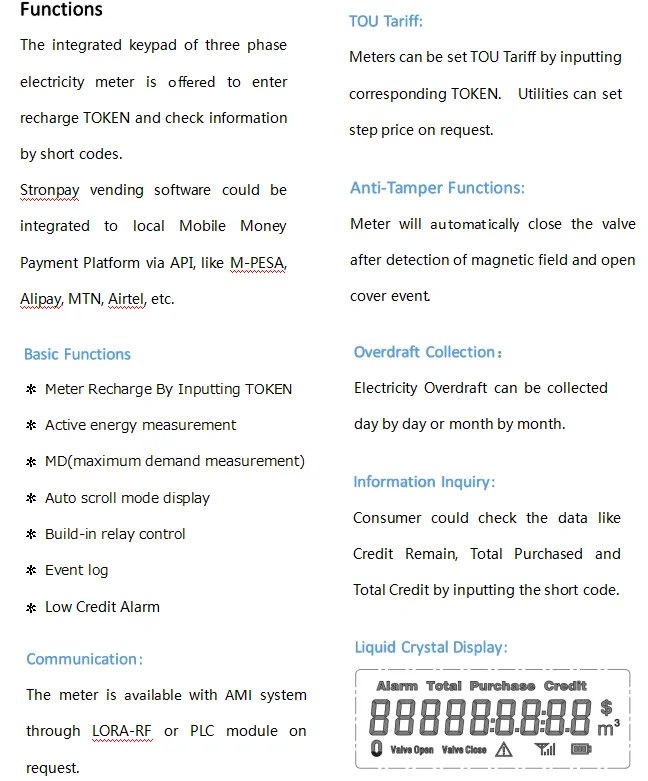

Functions
Electrical Parameters
Nominal Voltage | 230V |
Working Voltage Range | 70%~120%Un |
Nominal Frequency | 50-60Hz |
Basic Current (Ib) | 5A |
Maximum Current (Imax) | 80A |
Starting Current (Ist) | 20mA |
Active Energy Constant | 1000imp/kWh |
Measurement Accuracy | Class 1.0 |
Power Consumption in Voltage Circuit | <2W <8VA |
Power Consumption in Current Circuit | <1VA |
Operation Temperature Range | -25℃-70℃ |
Storage Temperature Range | -40℃-85℃ |
Electric Magnetic Compatibility
AC Insulation Strength | 4kV at 50Hz during 1min |
Impulse voltage 1.2/50 us mains connections | 8kV |
Electrostatic Discharges: Contact discharge Air discharge | 8kV 16kV |
Electromagnetic RF Field: 27MHz-500MHz 100KHz-1GHz | 10V/m 30V/m |
Fast transient burst test | 4kV |
Protection | Class II |

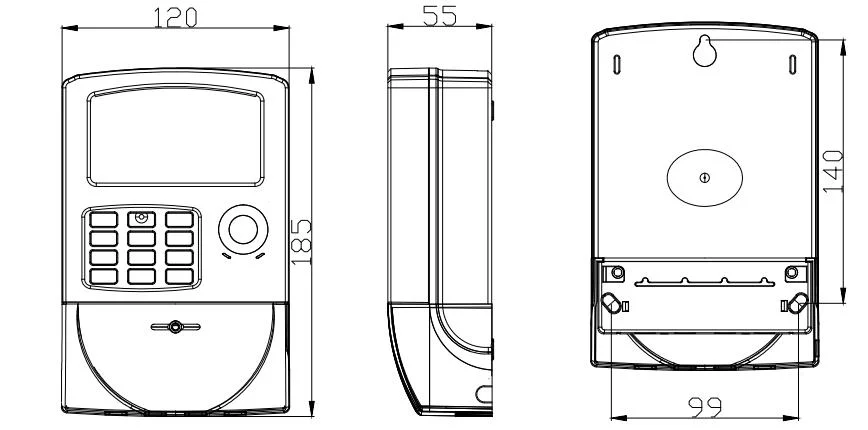

Meter Dimension
Three solutions to recharge prepaid electricity meter
1.By Stronpay vending Software
➯ Via local sales point or handheld mobile vending unit
➯ Via local sales point or handheld mobile vending unit
Operation of vending software
1. Login vending system
2. Meter number registration
3. Customer information registration
4. Price Setting
5. Open Account
6. Vending/Topping up meters
7. Get the Token
8. Input Token to meter with keypad
9. Recharging successfully
2. Meter number registration
3. Customer information registration
4. Price Setting
5. Open Account
6. Vending/Topping up meters
7. Get the Token
8. Input Token to meter with keypad
9. Recharging successfully

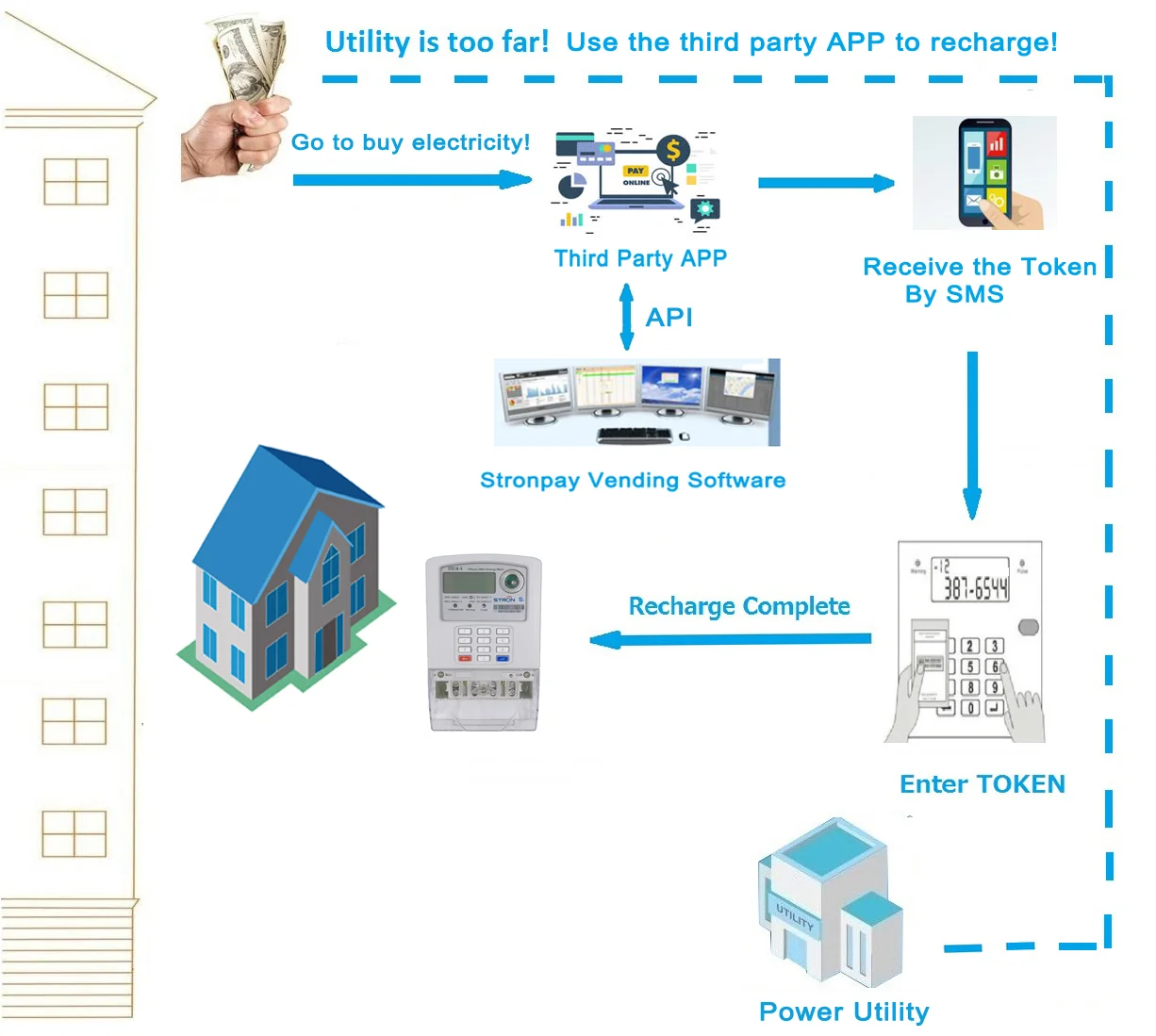

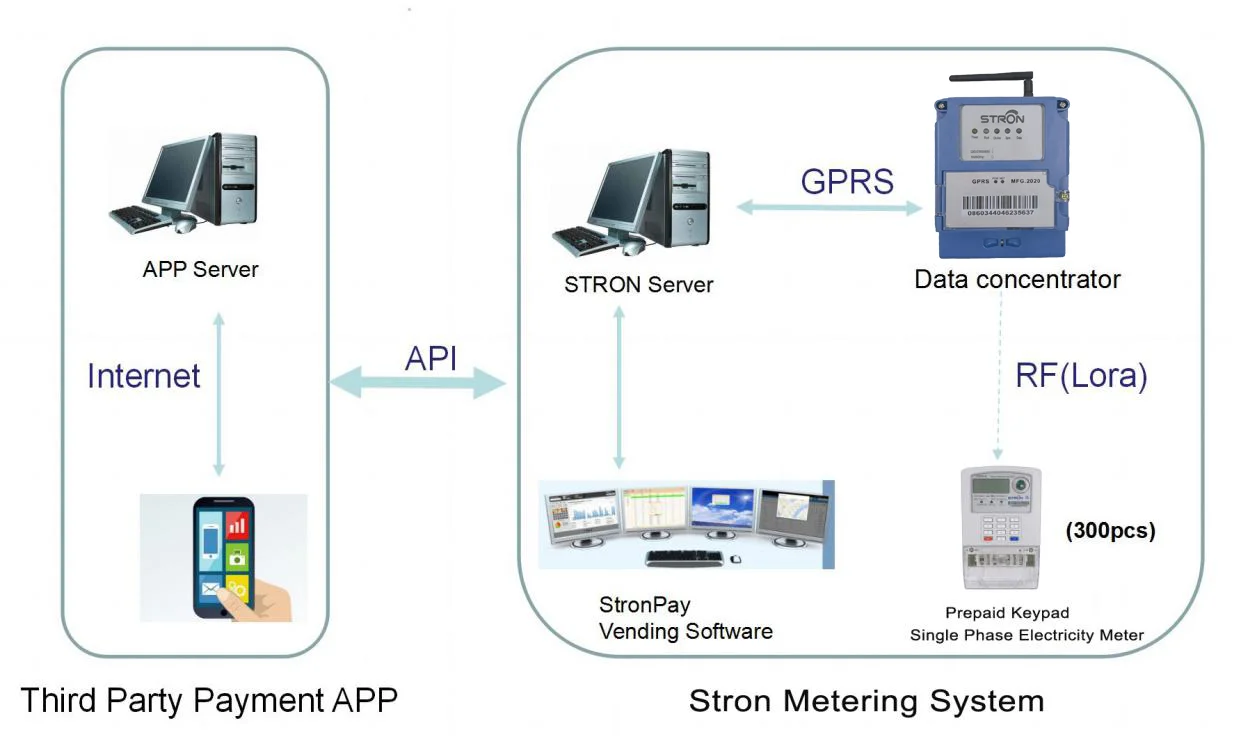

2.By the third party platform or local mobile payment with API
➪ Via mobile phone
➪ Via mobile phone
API: Application Program Interface, which is the agreement connecting the third party APP and our Stronpay vending software.

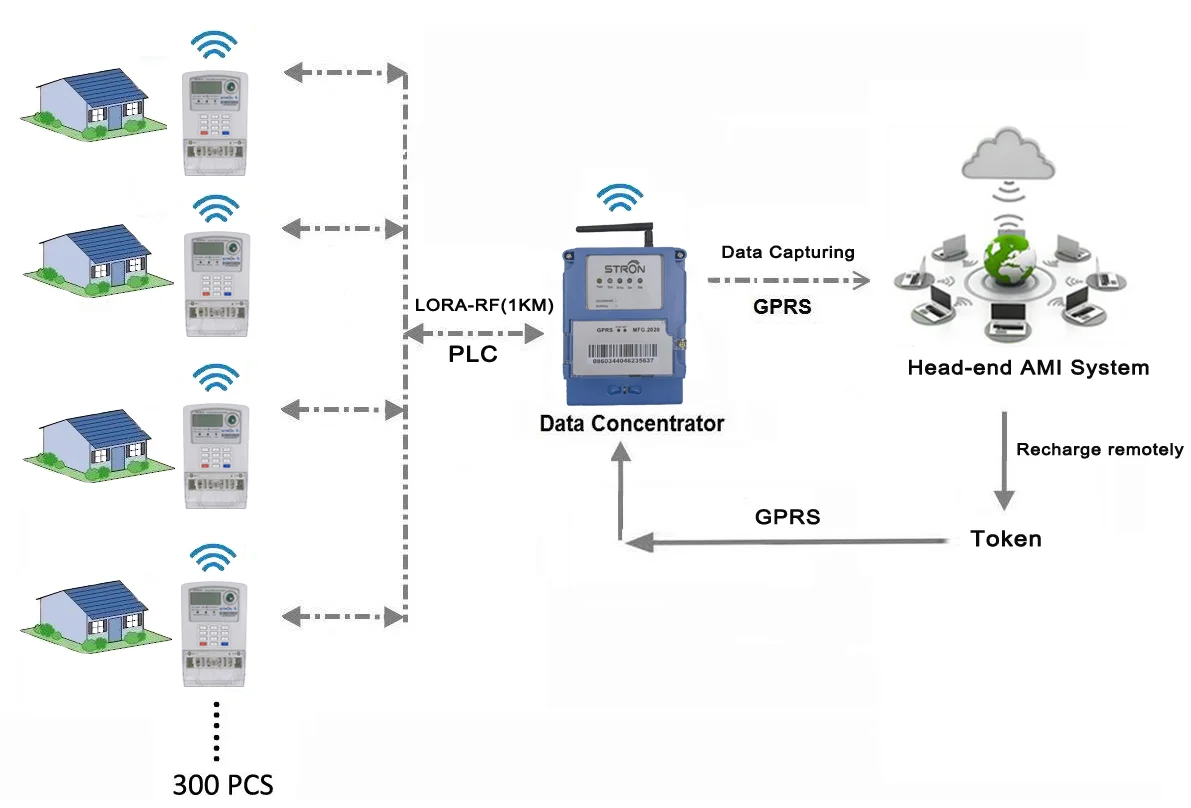

3.By the AMI System
➪ Recharge remotely via DCU and LORA-RF or PLC module
➪ Recharge remotely via DCU and LORA-RF or PLC module
Our Company
Hunan Stron Smart Co., Ltd founded in 2007, is the leading supplier of smart meters in China. There are 500 employees in our company including 100 technical engineers, among which 100 people with professional title. We are devoting ourselves to be the intelligent product service provider.
Stron owns a strong technical team comprised of industry professional engineers and eminent experts and has applied for over 100 patents and intellectual property rights, while a number of its products and technologies have won the national, provincial and municipal awards.
we have more than 10 million meters running in State Grid of China, which is the biggest utility in the world. Our production capacity is 8million smart meters per year, and have a workshop only working for overseas’ order to guarantee the delivery time and quality control.
Stron has kept long-term cooperation with partners from over 60 countries andregions including Canada, India, Egypt, South Africa, Nigeria, Tanzania, Kenya, Russia, Bangladesh, Indonesia, etc.
Stron has kept long-term cooperation with partners from over 60 countries andregions including Canada, India, Egypt, South Africa, Nigeria, Tanzania, Kenya, Russia, Bangladesh, Indonesia, etc.
Certifications
FAQ
Q: Can I have a sample to test it?
A: Of course, but we will charge some fees for the sample to cover the cost. However, if your purchasing quantity is large, we will deduct or reduce the cost of your samples from the purchase price.
Q: When Can I receive the goods?
A: Generally 5~10 days, but if you have special requirements, it will take 15 to 30 days.
Q: How many users of your product in the world?
A: Our main market is Africa and South Asia, and we not only produce our own products but also ODM/OEM with other meter manufacturers, together with vending system, offering solutions it's very difficult to estimate the quantity, a conservative estimate should be 500,000 users in this two main regions.
