Compere KPM53 400V 3 Phase Multi Function Smart Energy Meter Intelligent High Quality Power Meter With RS485

Compere KPM53 400V 3 Phase Multi Function Smart Energy Meter Intelligent High Quality Power Meter With RS485

Category: Energy Meters >>>
Supplier: Henan,Compere,Smart,Technology,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Compere KPM53 400V 3 Phase Multi Function Smart Energy Meter Intelligent High Quality Power Meter With RS485

Application

• Alternative analog pointer table.

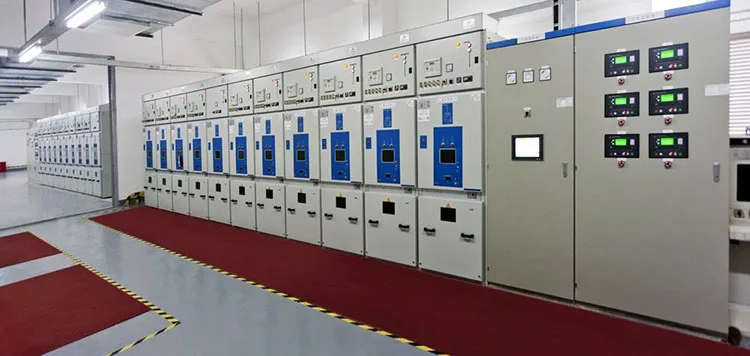

• Display and control of electrical parameters in mid-low voltage distribution System.
• Collect energy consumption data that cost center analysis needs.
• Green building or DC.

Details Images

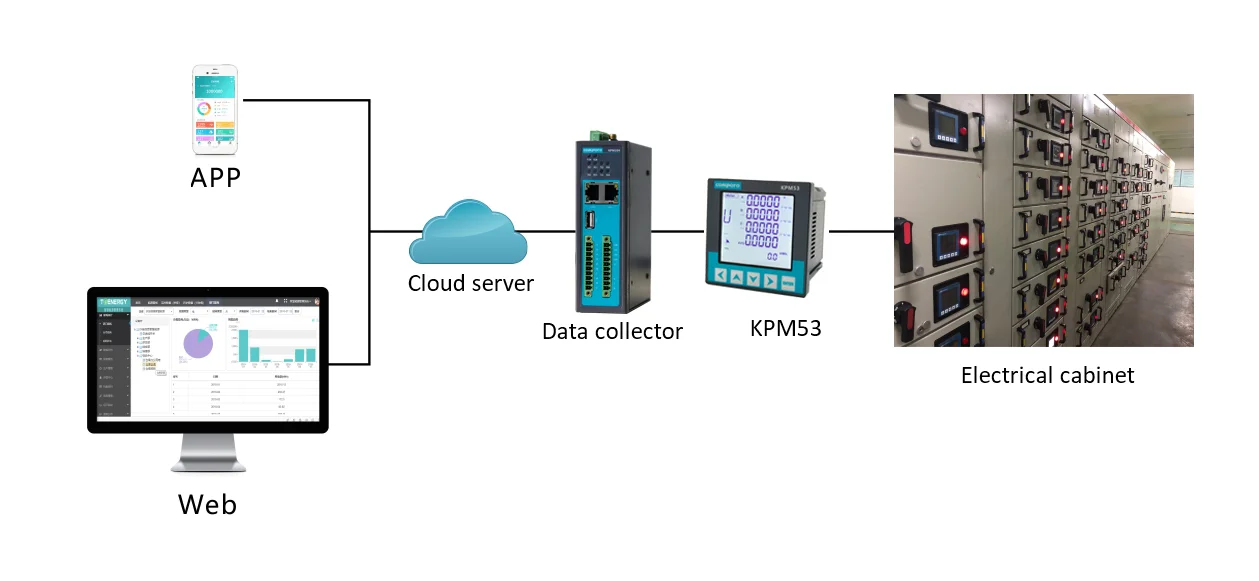

KPM53 series Digital Panel Meter Multifunction Power Analyzer 3 Phase Power Meter RS485 is with accurate measurement of power parameters,the instrument uses advanced ARM processor and digital signal processing technology designed from the set of three-phase electrical parameters measurement,display, power statistics,power quality analysis,digital input/Output and network communications in one;with high precision,strong isolation,stable performance,anti-interference ability and a little; the instrument also has a very strong expansion capabilities,such as monitoring of external switching action,4-20mA analog output,but also The network management of the instrument can be realized through RS-485/Modbus communication protocol.

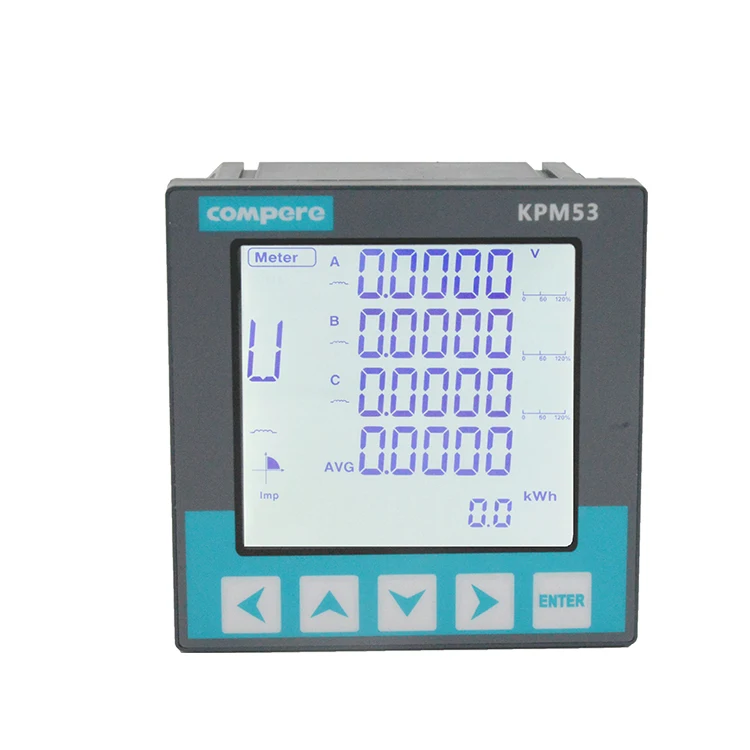

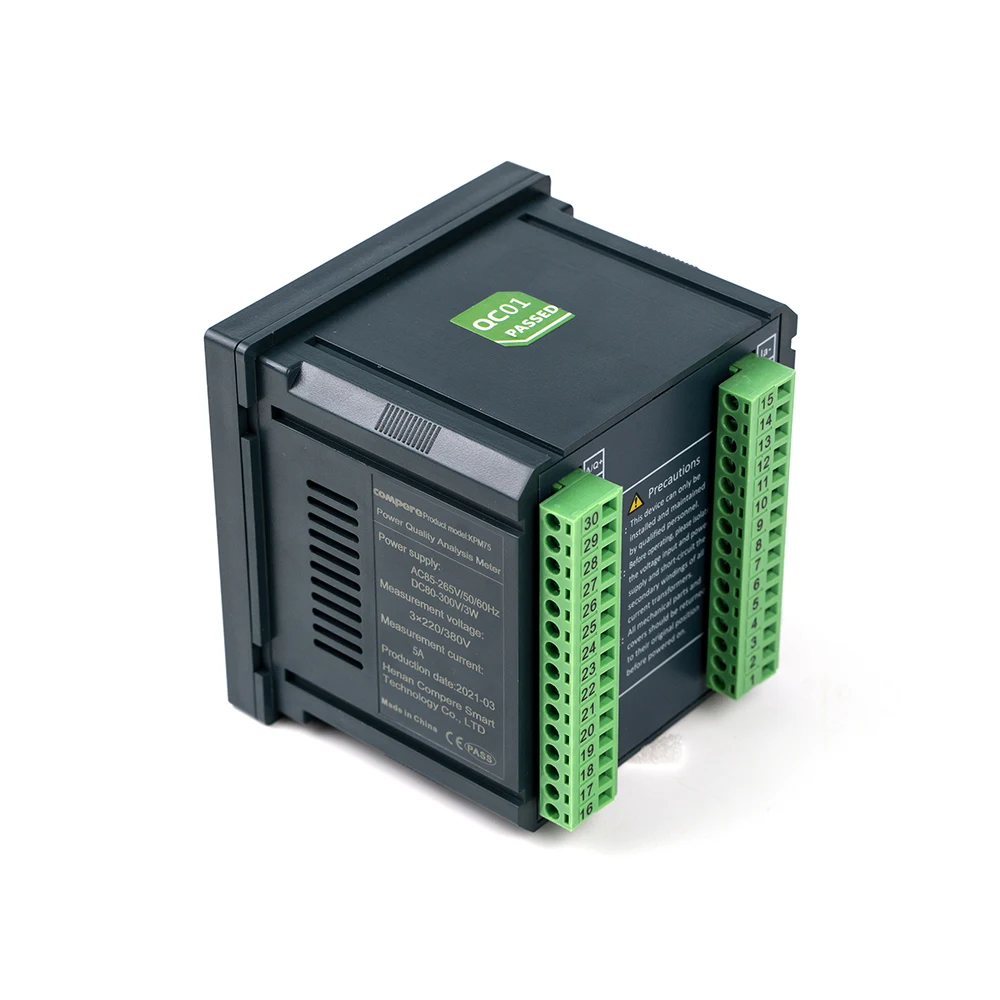

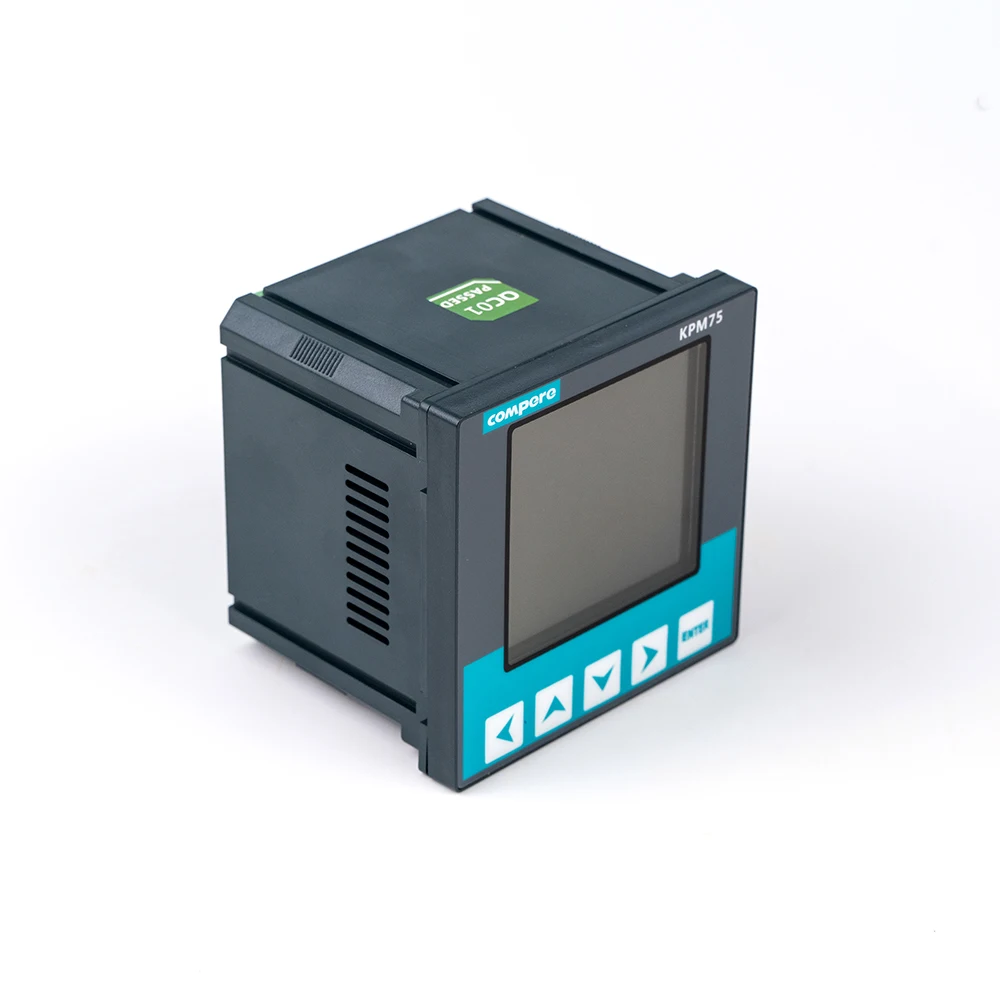

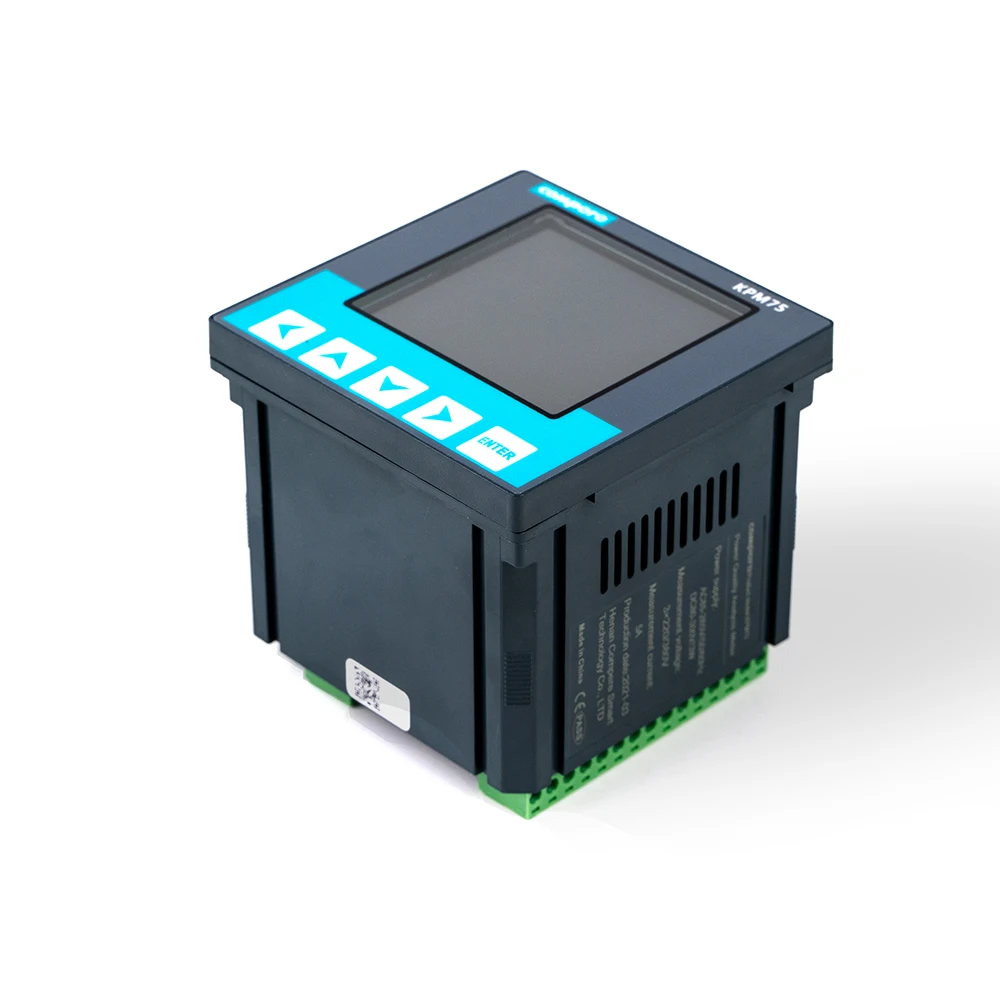

Apperance

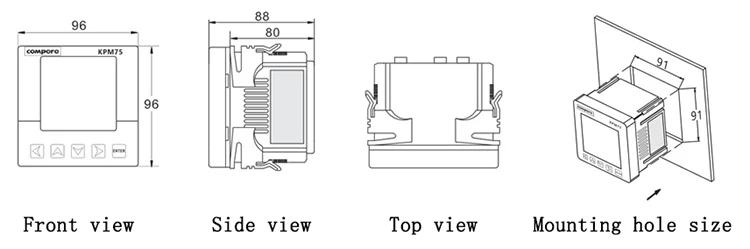

Dimensions

Wiring diagram

High-voltage three-phase three-wire typical wiring diagram

Low-voltage three-phase four-wire typical wiring diagram

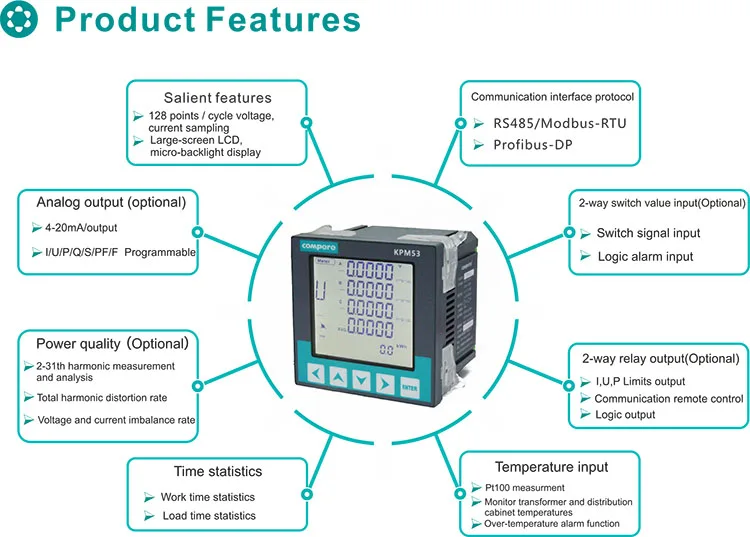

Function features

1.Measuring three-phase AC voltage, current, voltage / current unbalance rate, four-quadrant power, active / reactive 2.power, power factor, frequency, maximum / minimum.

3.Voltage / current ratio programmable.
4.Working hours, load time statistics.
Support up to 31st harmonic calculation
5.1 –way RS485 communication interface, Modbus protocol.
6.Optional 2-way passive digital input.
7.Optional 2-way relay output.
8.Optional 1-way 4-20mA analog output.
9.1 road passive optical coupler collector active pulse output.
10.Can be extended 1-way PT100 temperature input.
11.Excellent temperature characteristics and work stability.
12.FSTN large screen LCD, bright LED backlight uniform display, in the bright light and large viewing angle environment to obtain a good visual effect.

Product Parameters

Technical Parameters - Compere KPM53 400V 3 Phase Multi Function Smart Energy Meter Intelligent High Quality Power Meter With RS485
accuracy class	Voltage: 0.2; Current: 0.2; Frequency: 0.02Hz; Power Factor: 0.5
		Active Power: 0.5S; Reactive Power: 2.0
		Active Energy: 0.5S; Reactive Energy: 2.0
Input	Rated Value	Voltage: 57.7/100V, 220/380V,380/660V
	Rated Value			Current: 1A(0~1.2A), 5A (0~6A)
		Overload	Voltage: Sustained Overload: 1.2 times of the rated value
				Momentary Overload: 2 times of the rated value, allows 1s
				Current: Sustained Overload: 1.2 times of the rated value
				Momentary Overload: 20 times of the rated value, allows 1s
		Frequency	45-60Hz
Functional Module	Pulse Output	1
Functional Module		Interface	1*RS485; Modbus RTU protocol; Baud Rate: 1200-38400 bps
Power Supply	Working Range	AC: 85-265V; DC: 80-300V
Power Supply		Consumption	< 3VA
Working Condition	Temperature	Operating: -25°C~+70°C. Storage: -30°C~ +75°C
		Humidity	5%~95% No condensation
		Altitude	<4000m
Dimensions			960×960×880mm
