Product Name: Din rail 3P4W multi functional 470 868 915MHz lora wireless energy meter
PD194Z-E20 Multi-function power meter adopts rail mounting mode, and can be equipped with different functional modules.It is used to monitor and control DC system. They also support limit alarm, analog output, digital input, relay output and communication functions. All the measured data and status can be read through RS485 communication interface with Modbus-RTU protocol.
Wireless Module
The SC2 LoRa communication gateway uses a serial port for data transmission and reception, which reduces the threshold for wireless applications and can realize one-to-one or one-to-many communication.
SCX series gateway is a small gateway device that can collect multiple protocol bus devices and upload data to cloud platform or local HMI display. A complete set of SmartHMI tools supports the configuration of the device that hangs down and monitors its data or status.

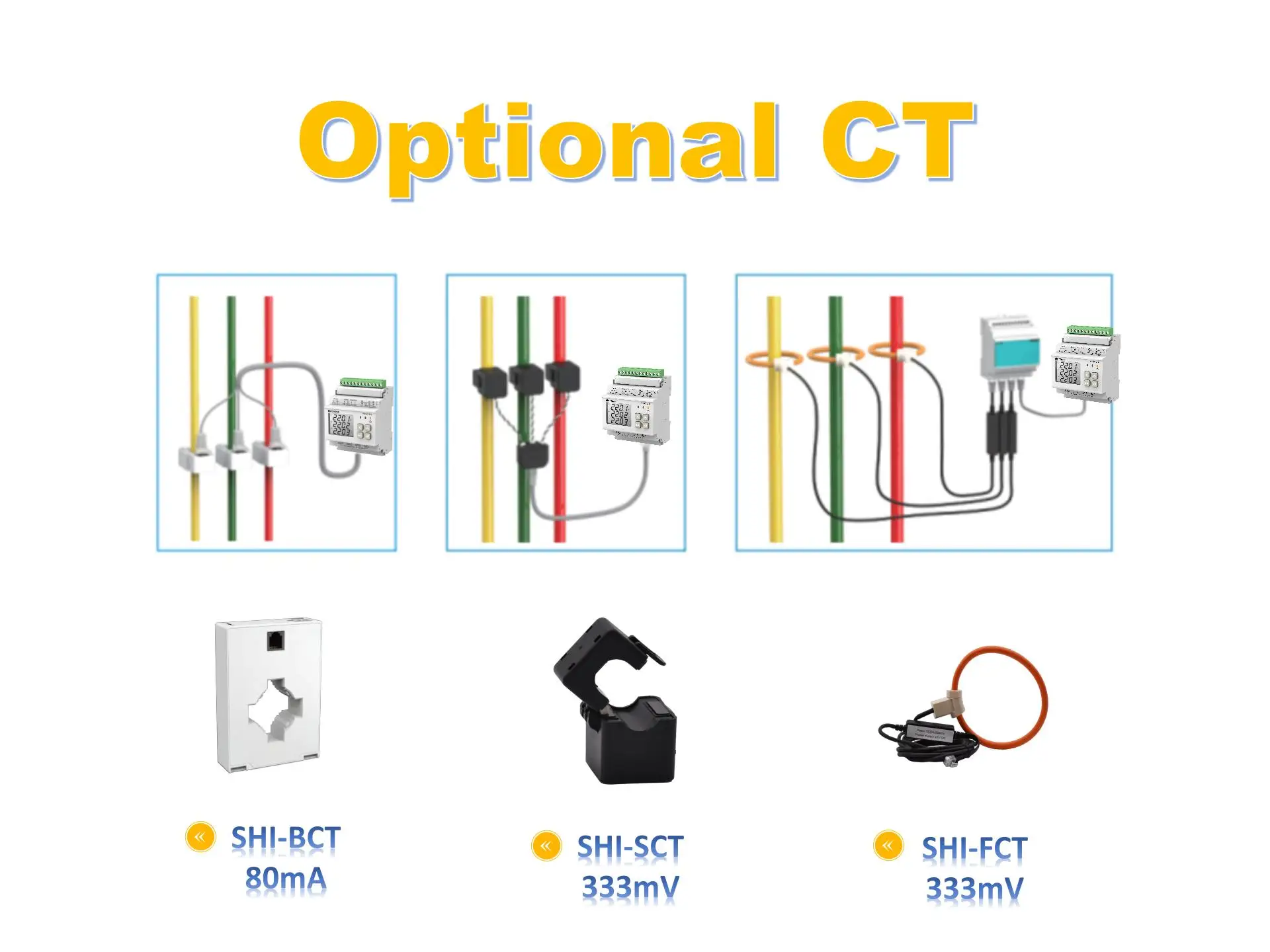

Special RJ12 CT optional
Technical Specification
Accuracy | V/A | 0.2% |
P/Q/S/PF | 0.5% | |
F | ±0.01 Hz | |
土kWh | Class O.5S | |
±kvarh | Class 2 | |
Rated value | 3x220V/380V | |
Overload | Continuous: 1.2Vn Instantaneous: 2Vn/10s | |
Burden | 0.1 VA (per phase) | |
Impedance | 21.7MQ | |
Frequency | 45Hz〜65Hz | |
Rated value | External CT | |
Overload | Continuous: 1.2ln Instantaneous: 2ln/5s | |
Burden | <0.2VA (per phase) | |
Impedance | <20mC | |
Residual Current Input | AC 1mA | |
Working range | AC/DC 80〜270V | |
Consumption | <5VA | |
Default | RS485, Modbus-RTU, up to 9600bps | |
LoRa, EC2 module | 470MHz | |
GPRS.EC4 module | 850/900/1800/1900MHZ | |
N^oT, EC6 module | Band3/5/8 | |
Energy Pulse Output | 1 photocoupler output, pulse width (80±20%) ms | |
Digital inputs | Dry digital inputs, Isolation: 22kVAC | |
Relay outputs | Contact rated at AC 250V/5A or DC 30V/5A | |
Operating temperature | -25C 〜70 C | |
Storage temperature | -30C~80C | |
Relative humidity | M93% | |
Altitude | <2500m |
