Africa type Single phase Digital Meter KHLSM
US $6.83-$7.10
IEC Standard Single Phase Energy Meter with Removable LoRawan NB WIFI GPRS PLC Communication
- Category: Energy Meters >>>
- Supplier: Wuxi,Zhongyi,Smart,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

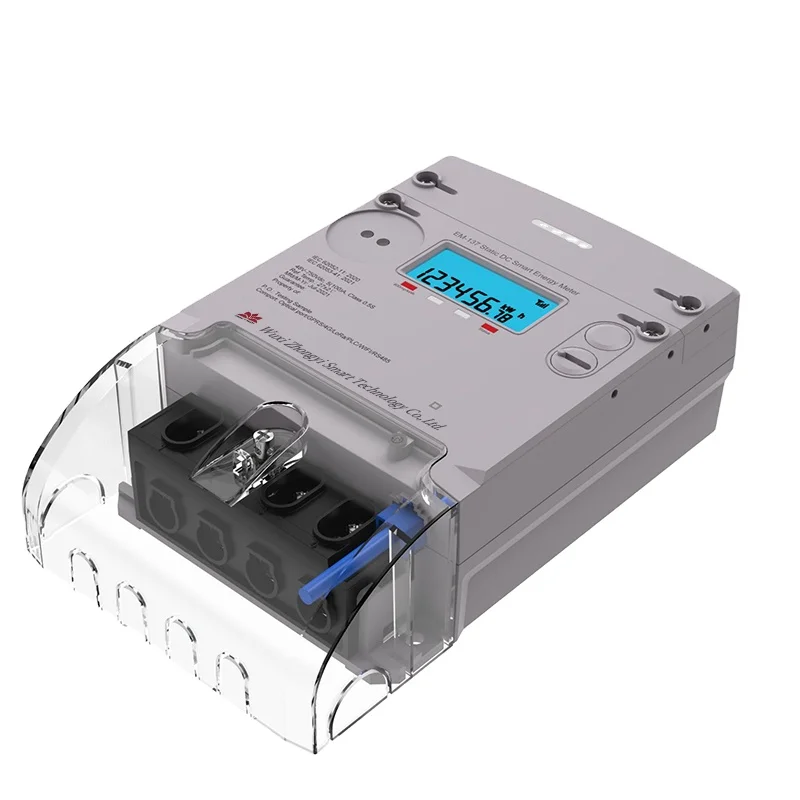

IEC Standard Single Phase Energy Meter
A direct connection modular design single phase AMI meter, which is used to measure electric energy accurately for commercial and residential customers. Meter supports varieties communication mediums for remote management and reading with hot swappable communication module such as LoRaWAN,WIFI, GPRS, 3G, 4G, NB-IoT, PLC etc.
Multiple display mode switchable in order to comfortable reading on site. Excellent features in anti-tamper (neutral missing, load earth, magnetic tamper, open cover) , irregularities detection and real time event pushing to ensure utility asset protection and revenue growth.
Multiple display mode switchable in order to comfortable reading on site. Excellent features in anti-tamper (neutral missing, load earth, magnetic tamper, open cover) , irregularities detection and real time event pushing to ensure utility asset protection and revenue growth.
FEATURES AT A GLANCE
HIGH PROTECTION DEGREE IP54
ANTI TAMPER
TIME OF USE
MULTIPLE COMMUNICATION MODES
PRODUCT SPECIFICATIONS
No | Item | Data | |
1 | Accuracy | Active Class 1 (IEC 62053-21) | Reactive Class 2（IEC 62053-23） |
2 | Voltage | 220V/230V/240V | |
3 | Frequency | 50HZ/60HZ | |
4 | Current | basic current 5A/10A | max current 60A/80A/100A |
5 | LCD | 8 digits display | |
6 | Working Temperature | -40~+70℃ | |
7 | Humidity Range | Up to 95%, non-condensing | |
8 | RTC | Replaceable 3.6V lithium battery, capacity>1200mAh, able to maintain RTC for more than 10 years | |
9 | TOU | Up to 8 tariff index, 8 time period configurable, 2 seasonal tariffs | |
10 | Communication | Infrared/RS485/LoRawan/NB/GPRS/PLC | |
11 | Protection | IP 54 |
Successful Project
Project in Russia
Project in Syria
Project in Nantong
FAQ
Q1. What are the main application scenarios of this product?
It includes school,office building, mall, hotel,hospital, factory, residentail area and so on.
Q2. Is it an energy meter with wireless communication?
If you choose RS485 energy meter, it's wired communication. If you'd like wireless communication, you can choose our Lorawan/NB/GPRS/Wifi energy meter.
Q3. What functions does this energy meter possess?
Energy metering, monitoring, timing function, event record, data storage, load control, communication function
Q4. Do you support customization?
Yes we support customization for bulk orders.
It includes school,office building, mall, hotel,hospital, factory, residentail area and so on.
Q2. Is it an energy meter with wireless communication?
If you choose RS485 energy meter, it's wired communication. If you'd like wireless communication, you can choose our Lorawan/NB/GPRS/Wifi energy meter.
Q3. What functions does this energy meter possess?
Energy metering, monitoring, timing function, event record, data storage, load control, communication function
Q4. Do you support customization?
Yes we support customization for bulk orders.
