HQ800 Мини Многоцелевой сверлильный токарный фрезерный станок с CE
- Category: Lathe >>>
- Supplier: Anhui Chizhou Household Machine Tool Co. Ltd.
Share on (1600178333353):
Product Overview
Description
Product Description
HQ 800
Features:
1.Vector frequency converter and variable frequency AC motor can get high torque cutting under low speed.
2. Speed with both the main spindle and milling and drilling spindle can be adjust variaby during its range of 0-1500rpm,easily operating and reading.
3. The table can automatic feeding in both longitudinal and cross direction,and safe with the special protection unit for chuck during cutting.
4.200mm travel of the drilling and milling headstock no square column from up to down can realize different sizes of work pieces processing
5. Square colomn is more rigid and more beautiful.
1.Vector frequency converter and variable frequency AC motor can get high torque cutting under low speed.
2. Speed with both the main spindle and milling and drilling spindle can be adjust variaby during its range of 0-1500rpm,easily operating and reading.
3. The table can automatic feeding in both longitudinal and cross direction,and safe with the special protection unit for chuck during cutting.
4.200mm travel of the drilling and milling headstock no square column from up to down can realize different sizes of work pieces processing
5. Square colomn is more rigid and more beautiful.

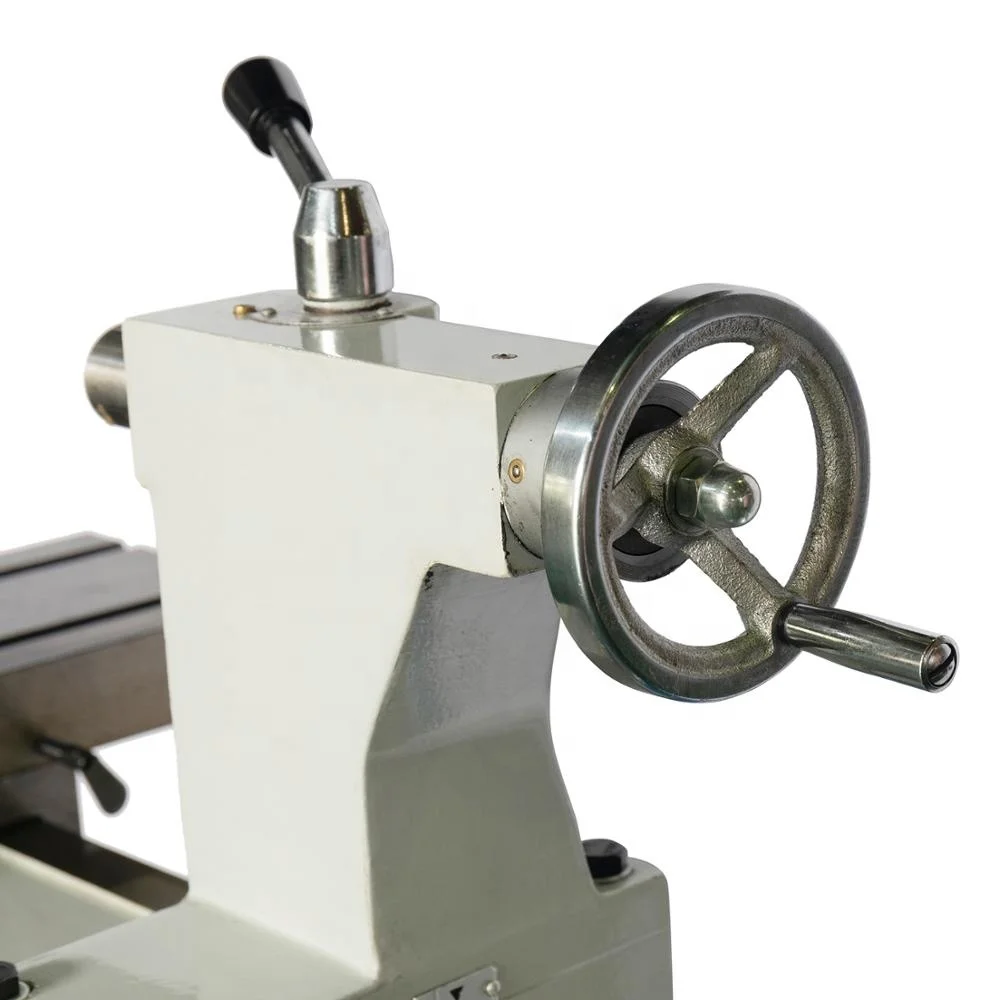

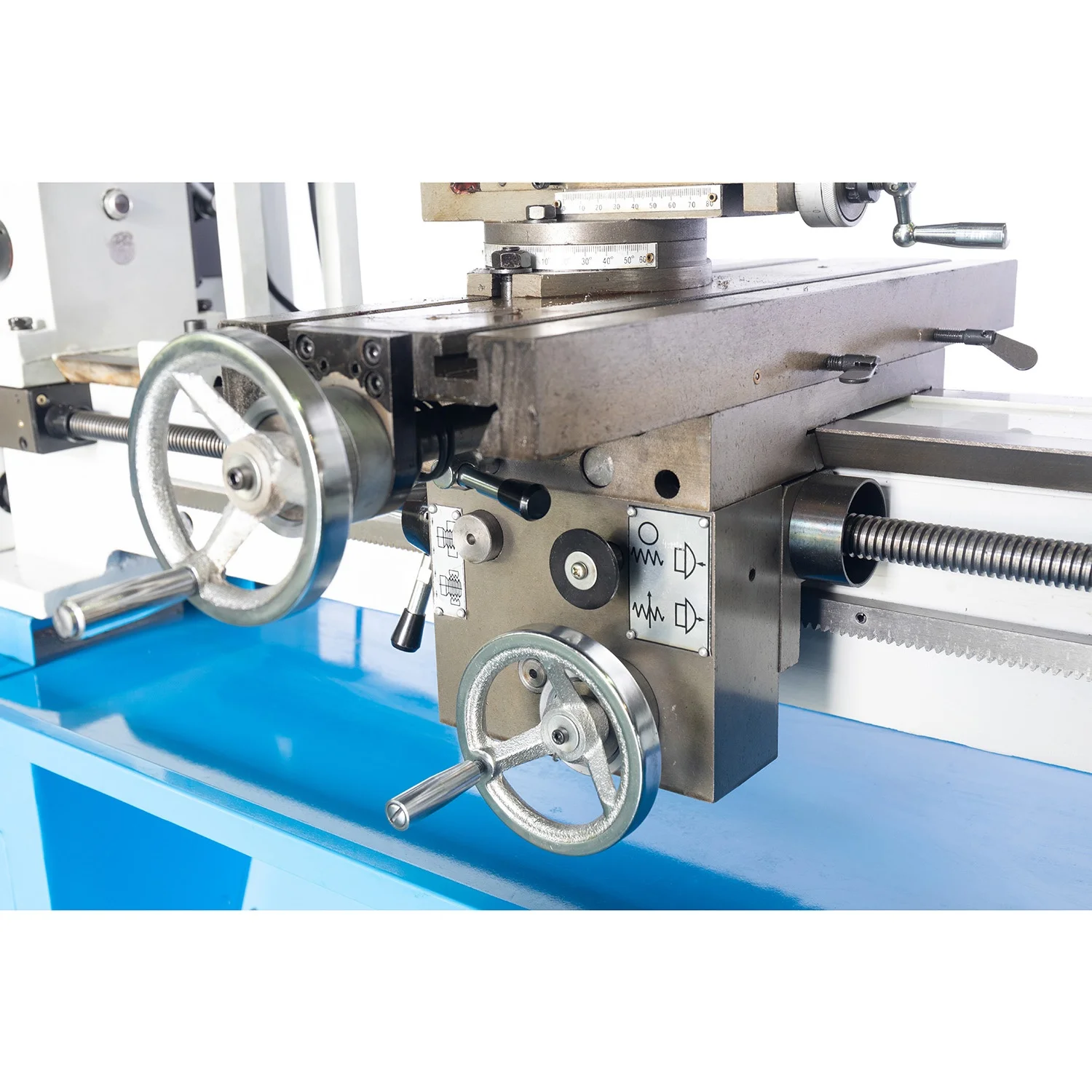

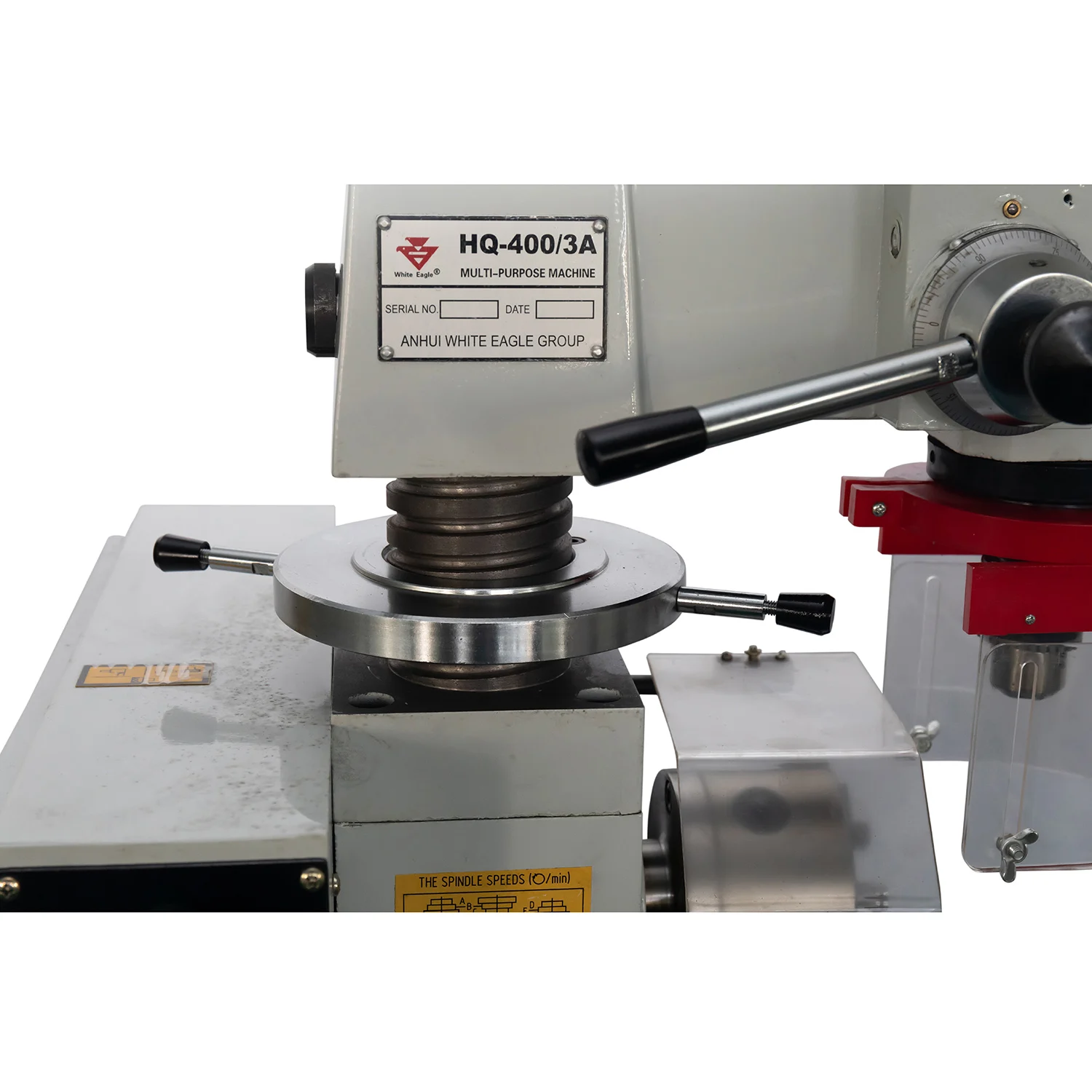

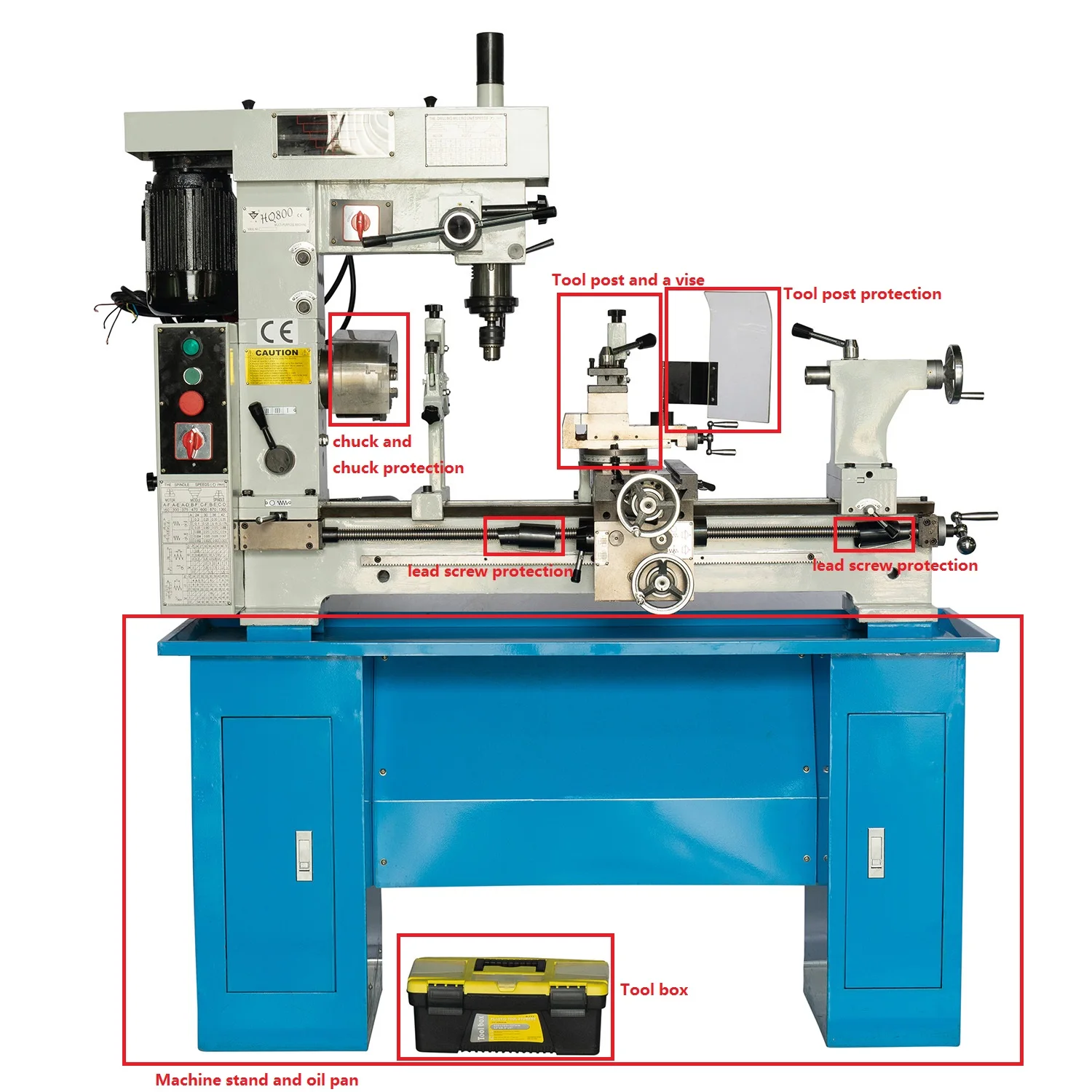

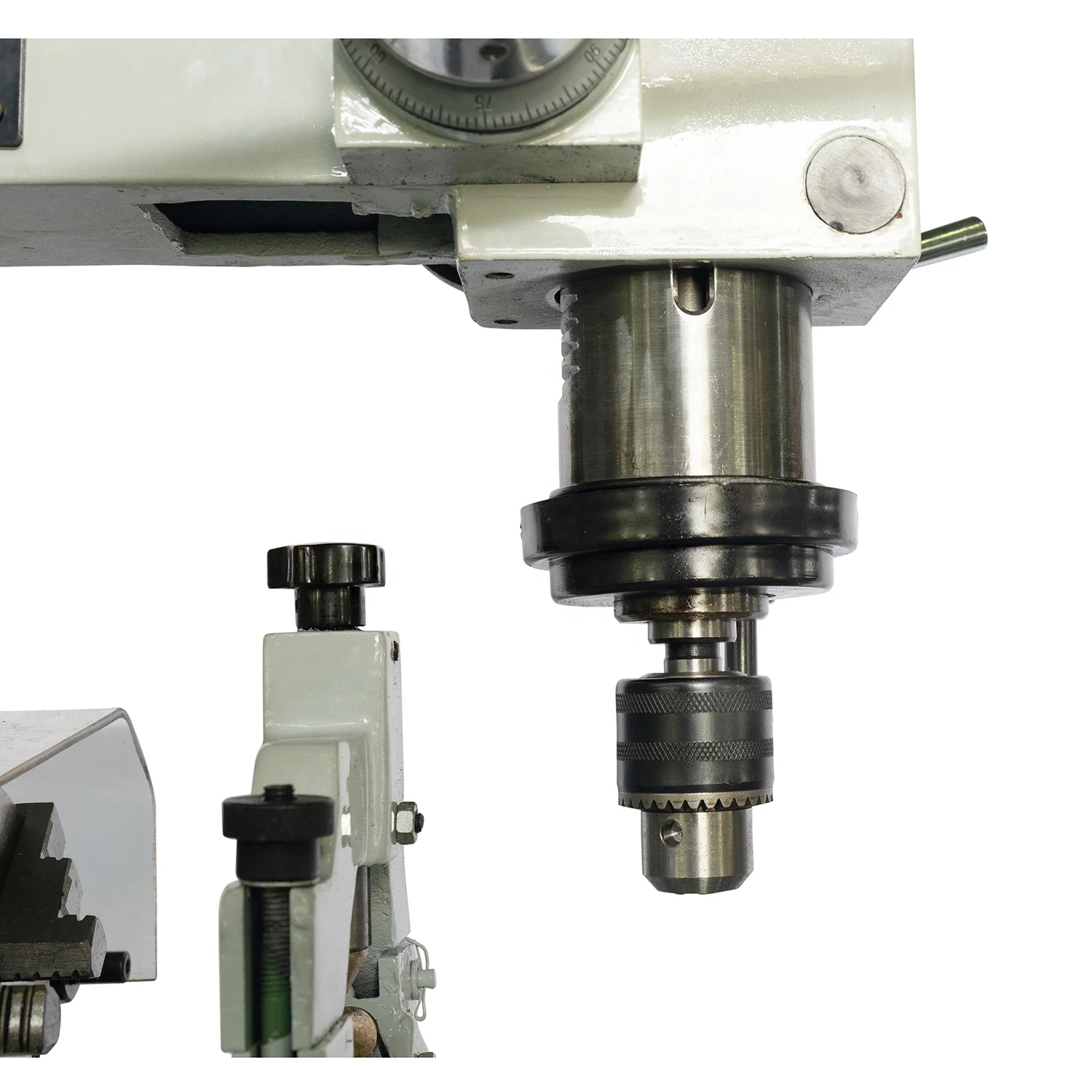

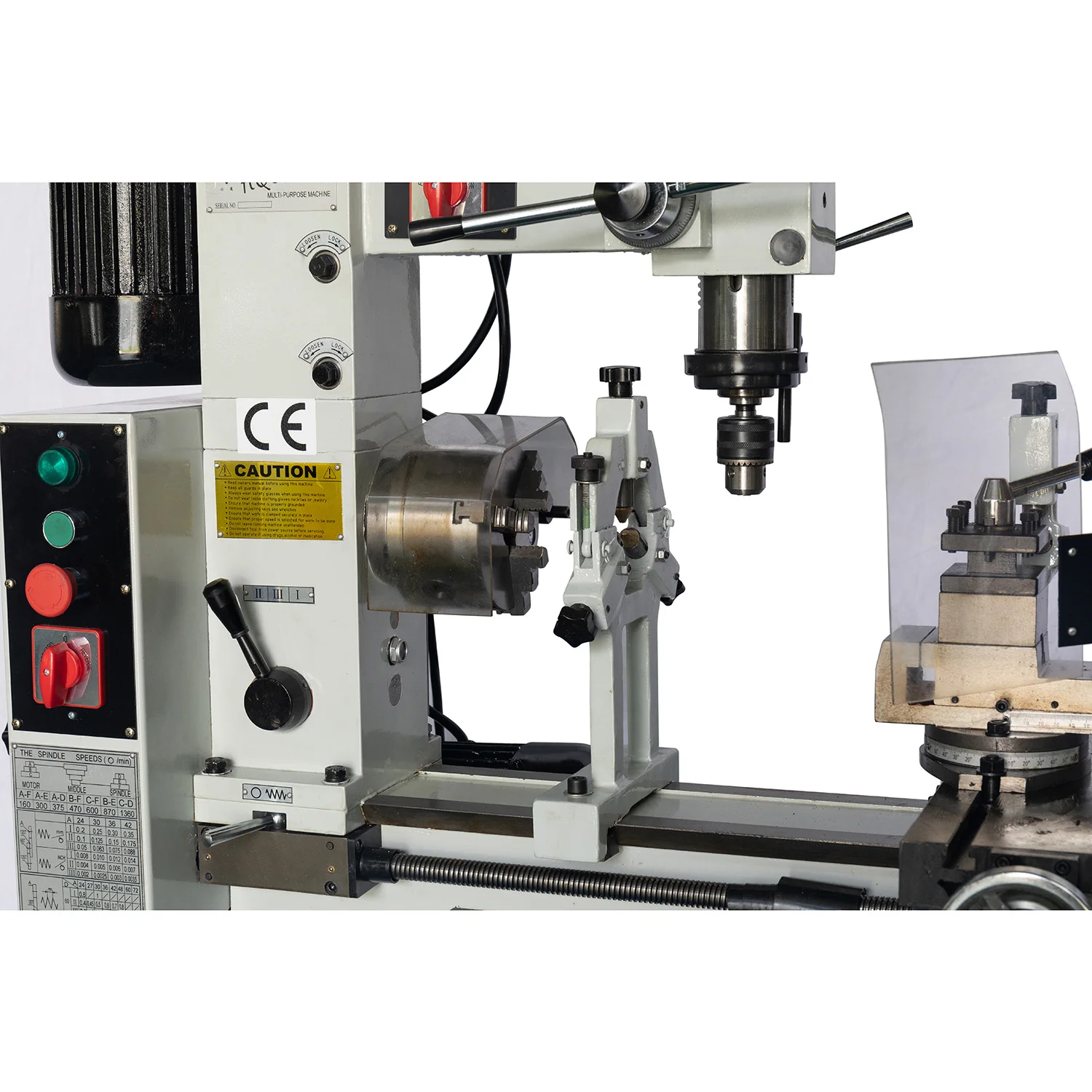

Detail Images
Accessories

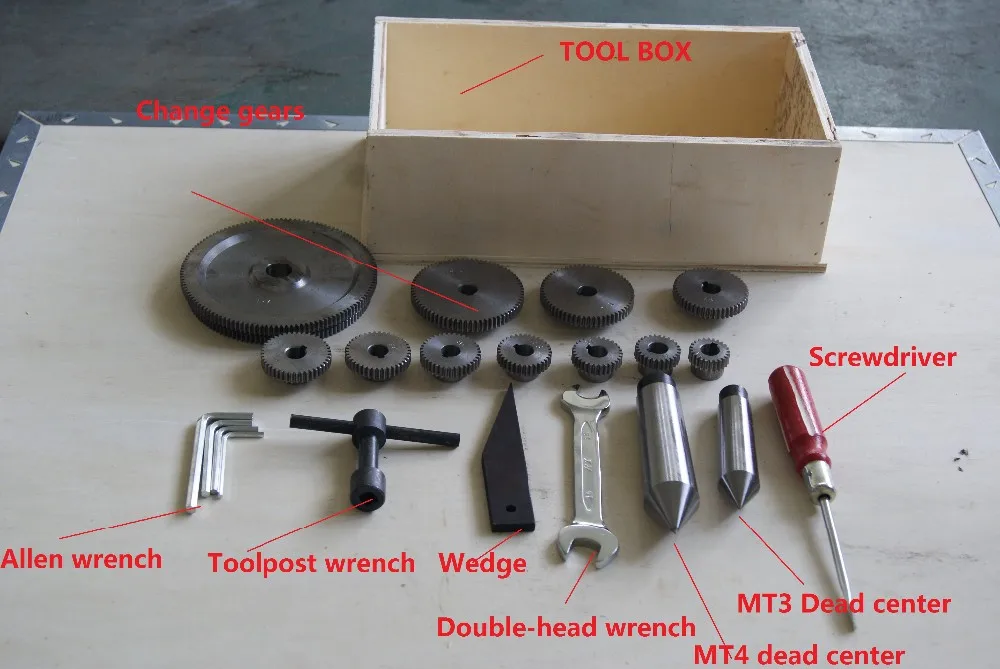

Standard Accessories
1:Tool-post wrench 2:Double ends wrench 3:Draw bar and washer (Install on the machine) 4:Drill chuck arbor ( Install on the machine ) 5:3-jaw chuck (Install on the machine) 6:Screwdriver 7:Wedge 8:Center 9:Allen wrench 10:Changing gears

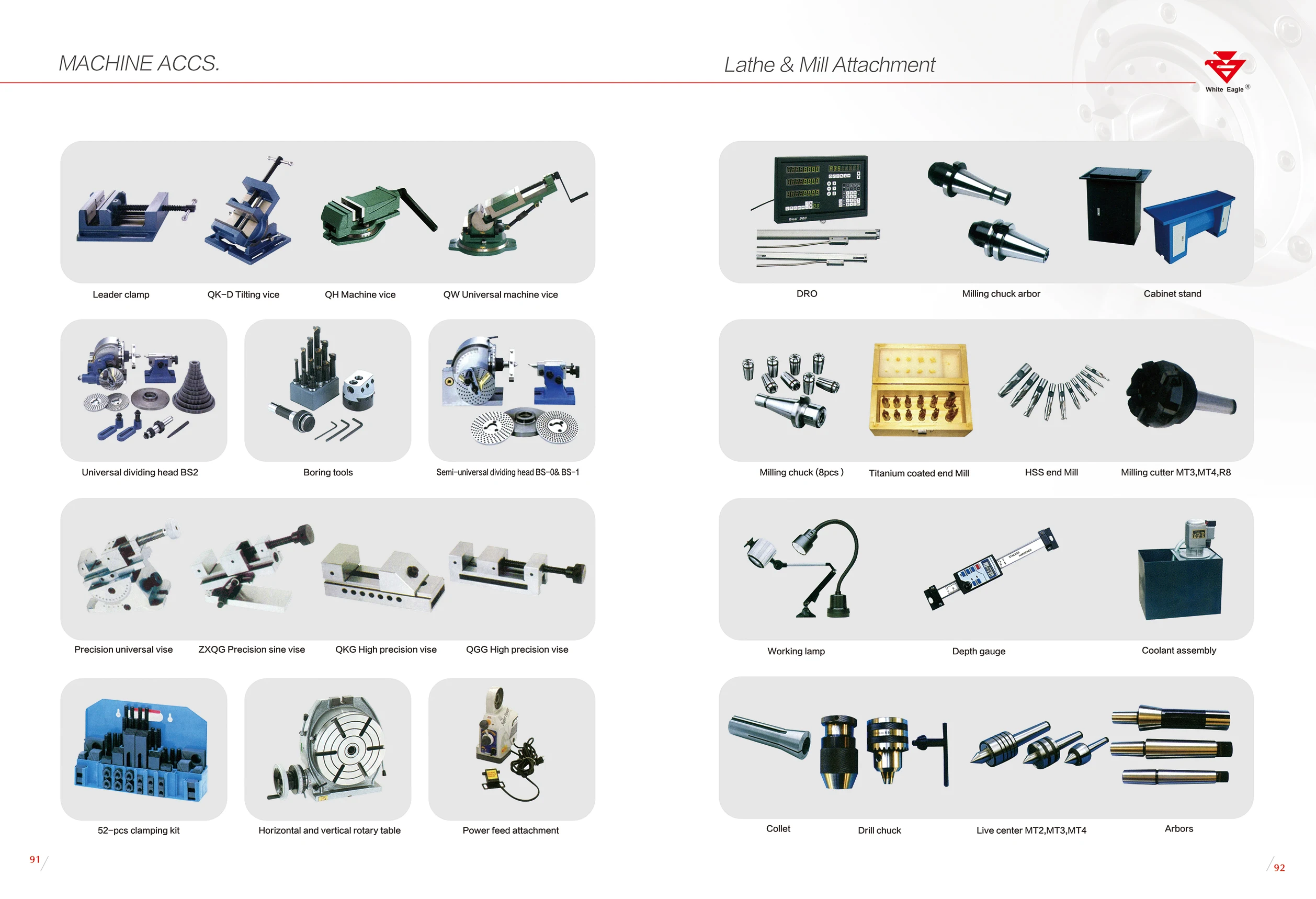

Optional Accessories
Specification
ITEM | HQ800 |
Swing over bed | φ420mm |
Distance between centers | 800mm |
Max. longitudinal travel | 740mm |
Max. cross travel | 200mm |
Taper of spindle | M.T.4 |
Spindle hole | φ28mm |
Step of spindle speed | 7 |
Range of spindle speed | 160-1360r.p.m |
Barrel travel | 70mm |
Taper of center | M.T.3 |
Metric thread range | 0.2-6mm |
Inch thread range | 4-120T.P.I |
Longitudinal range of automatic feeding | 0.05-0.35mm/0.002-0.014＂ |
Cross range of automatic feeding | 0.05-0.35mm/0.002-0.014＂ |
Max. drilling capacity | φ22mm |
Worktable size (L*W) | 475×160mm² |
Max. end mill | φ28mm |
Max. face mill | φ80mm |
Distance between spindle center and column | 285mm |
Distance between spindle and worktable | 306mm |
Headstock travel of up and down | 110mm |
Spindle taper | M.T.3 |
Step of spindle speed | 16 |
Range of spindle speed | 120-3000r.p.m |
Swivel degree of headstock | ±360° |
Motor power | 0.55Kw/0.55Kw |
Voltage/Frequency | As customers’ requirement |
Packing size | 1430×580×1100mm |
N. weight/G .weight | 275kg/325kg |
Loading amount | 32pcs/20’container |
Packing & Delivery
Standard and strong polywood box
Packing size ：145*58*114cm
N.G. Weight：315/350KGS
Fumigation wooden box
Shipping
Our nearest port is Shanghai，and we also can ship any port in China.Also we have our own forwarder ，they can help us to ship goods to any port all over the world
Company Profile

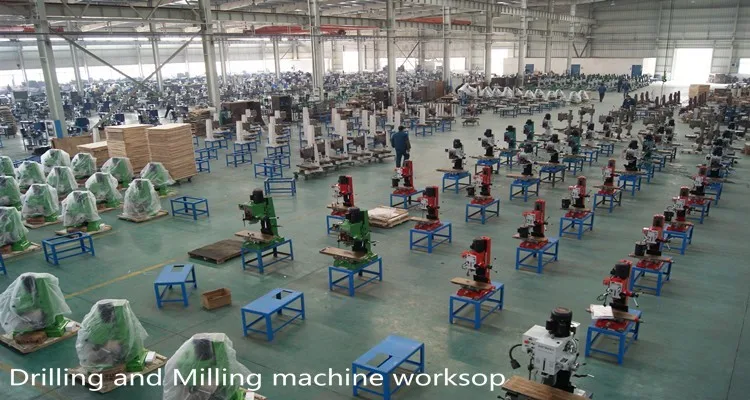

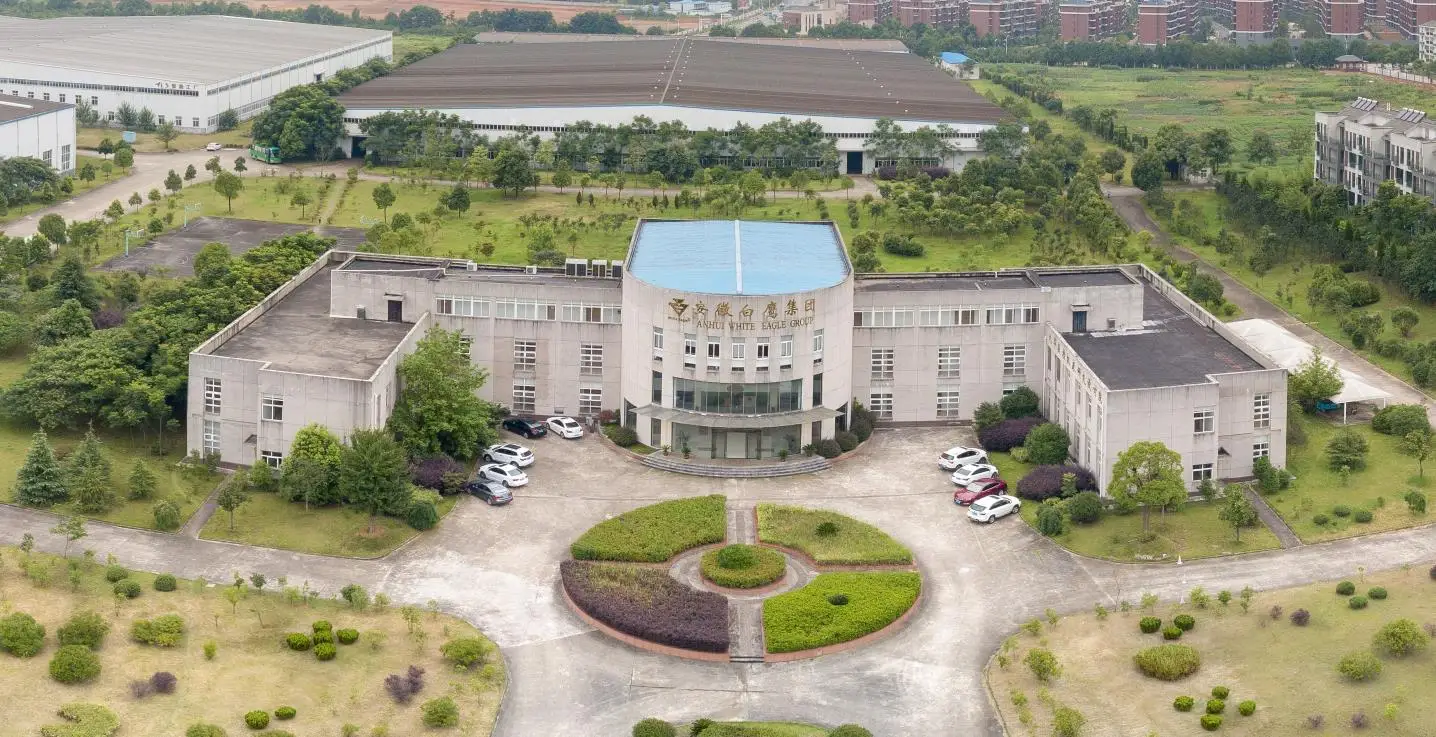

Anhui Chizhou Household Machine Tool Co., Ltd. founded in 1994.covers a land area of 355,000㎡ and building area of 180,000㎡.There are more than 500 sets of various production equipments, such as the imported Gantry Type Pentahedron Machining Center,Precision Guideway Grinders, CNC Gantry Milling Machine, Vertical Machining Center, Horizontal Machining Centers, CNC lathes, CNC universal grinding machine and CNC milling machine, etc, more than 40 high-tech advanced equipments. Products are sold at home and abroad and International market network were established in more than 140 countries and regions. Products are widely used in aerospace, automotive, shipbuilding, electric power, mold manufacturing, textile, information industry, general machinery and other fields.
Certifications
We In Fairs
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
FAQ
Q：Can you provide customzied machines?
A：Yes, we can design and manufacture according to your specific requirements.
Q：How about your quality?
A：We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system and Social Accountability 8000(SA8000).Most products have been approved the Europe and American safety standard, including CE,GS,EMS&UL,90% of our products are exported to more than 60 countries and regions around the world,especially to Europe and America market and always win high reputation.So you can rest assured on our quality products and our best services.
Q：What's the MOQ?
A：One set only.
Q：Do you have a stock?
A：Sorry,most of our machines don't have stock,we always produce according to order,However,if during fairs months,maybe have few samples back from fairs.
Q：Can we visit your factory before order?
A：Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at station or airport if
needed.We will be very honored to help with tickets and accommodation booking.
Q：How is warranty?
A：Warranty time is 13 months after BL date.
A：Yes, we can design and manufacture according to your specific requirements.
Q：Do you have professional engineers?
A：Yes.we have professional engineers and designers.We can provide OEM services.
A：Yes.we have professional engineers and designers.We can provide OEM services.
Q：How about your quality?
A：We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system and Social Accountability 8000(SA8000).Most products have been approved the Europe and American safety standard, including CE,GS,EMS&UL,90% of our products are exported to more than 60 countries and regions around the world,especially to Europe and America market and always win high reputation.So you can rest assured on our quality products and our best services.
Q：What's the MOQ?
A：One set only.
Q：Do you have a stock?
A：Sorry,most of our machines don't have stock,we always produce according to order,However,if during fairs months,maybe have few samples back from fairs.
Q：Can we visit your factory before order?
A：Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at station or airport if
needed.We will be very honored to help with tickets and accommodation booking.
Q：How is warranty?
A：Warranty time is 13 months after BL date.
