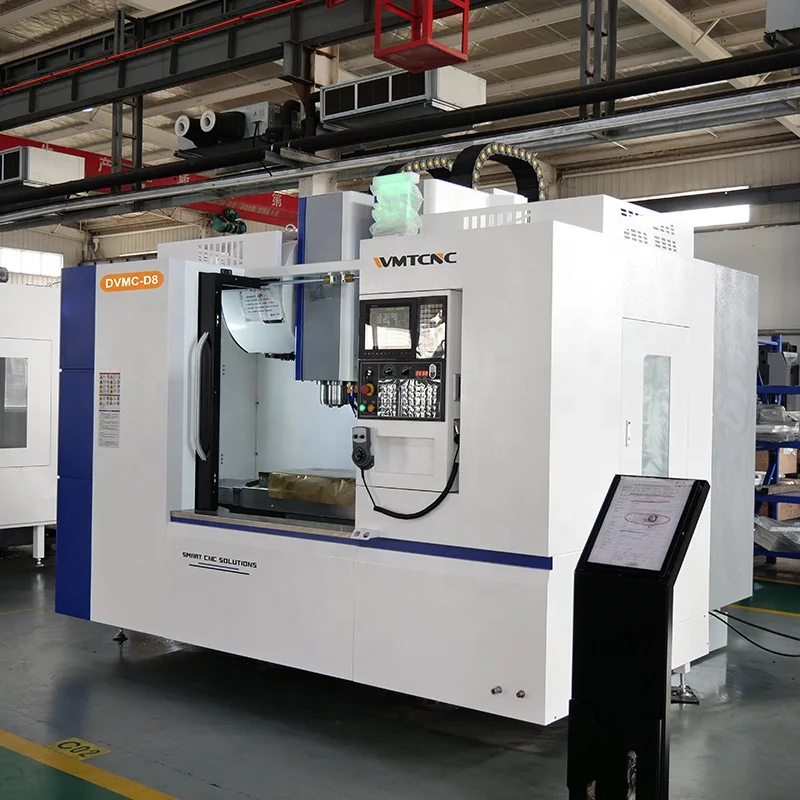

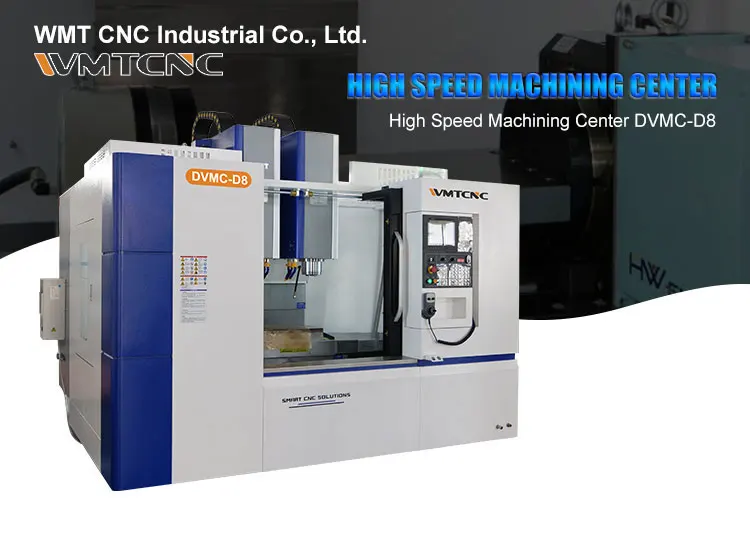

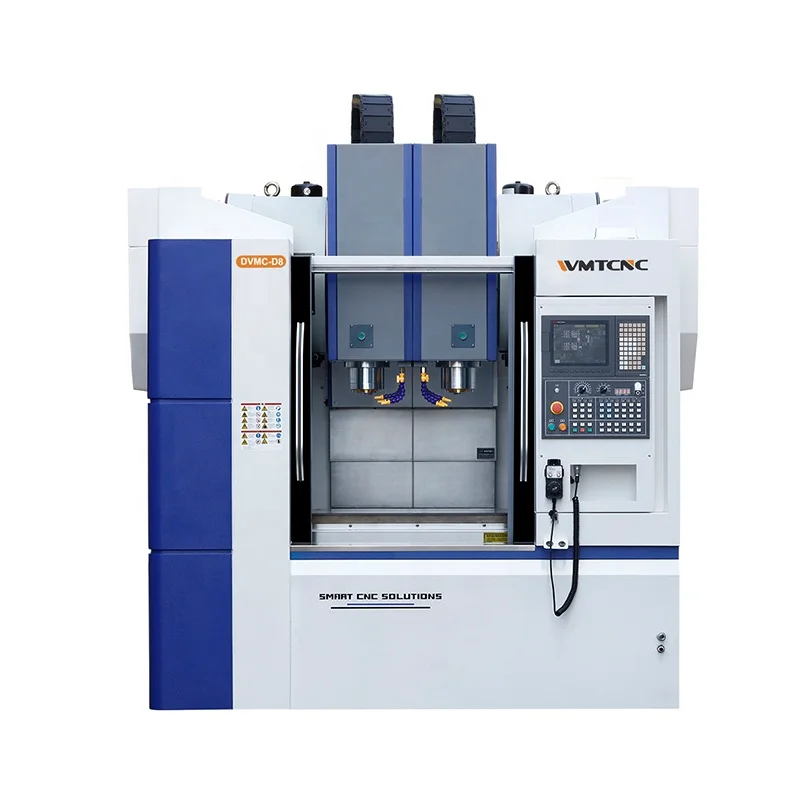

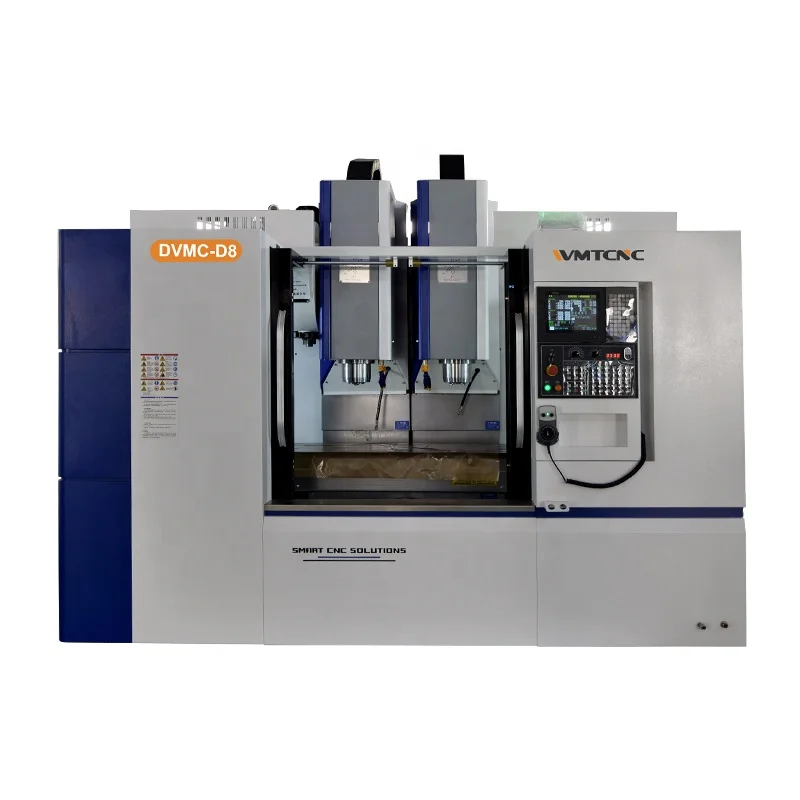

DVMC D8 heavy duty dual spindle and dual ATC cnc machining center
DVMC-D8 heavy duty dual spindle and dual ATC cnc machining center
DVMC-D8 heavy duty dual spindle and dual ATC cnc machining center
DVMC-D8 heavy duty dual spindle and dual ATC cnc machining center
DVMC-D8 heavy duty dual spindle and dual ATC cnc machining center
DVMC-D8 heavy duty dual spindle and dual ATC cnc machining center

DVMC D8 heavy duty dual spindle and dual ATC cnc machining center

Share on (1600201097410):


Price:

Quantity:


Product Overview

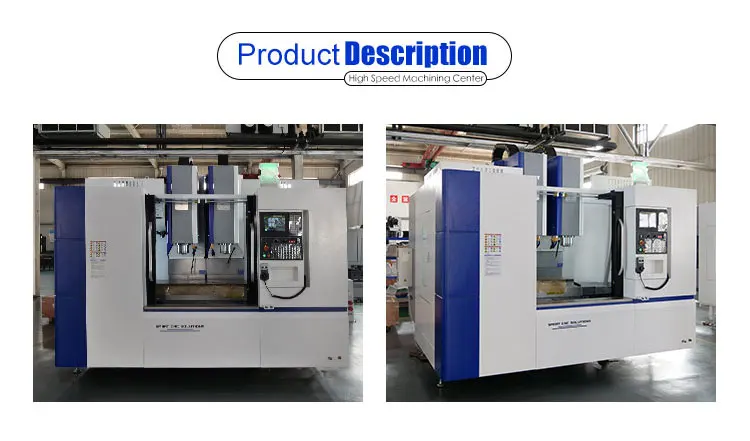

Description





Features:

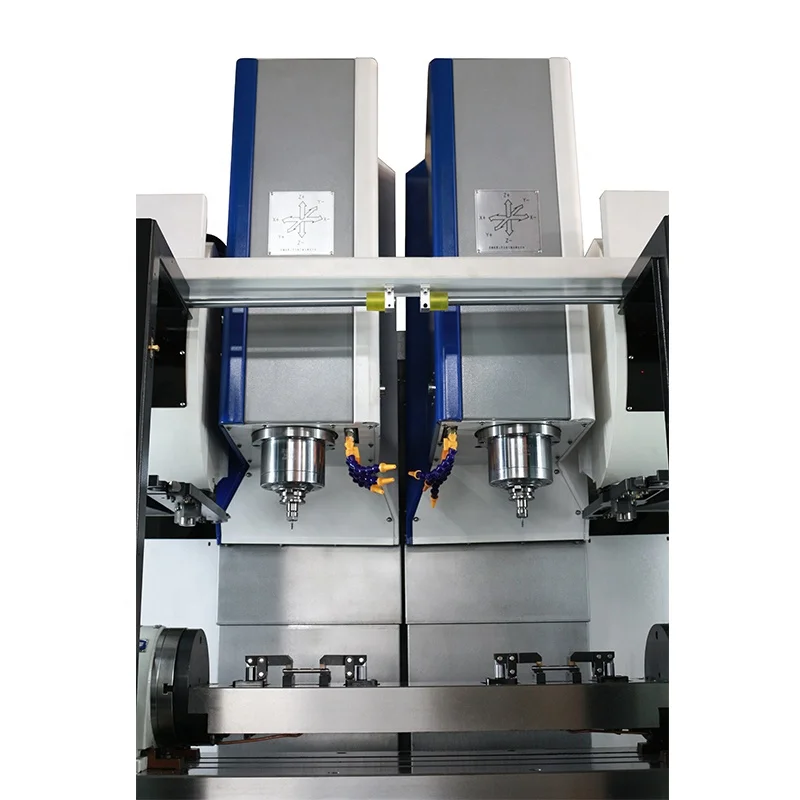

Dual-spindle, Dual ATC, Dual Z Axis design double raises machining efficiency. Integrated design optimizes the machine structure with reasonable layout, which brings better rigidity and higher reliability. Adapting pre-load technology on ballscrew realizes higher transmission accuracy and longer working service.


Specifications
DVMC-D8
Worktable size
1300×520mm
T-slot
18×5×90mm
Max. loading of worktable
600kg
Spindle center to column distance
580mm
Spindle nose to table distance
130-700mm
Rail type
Linear Guideway
Spindle taper
BT40
Spindle speed
8000/12000rpm
Main motor power
7.5/11kw
X axis travel
650mm
Y axis travel
500mm
Z axis travel
Z1:570 Z2:570mm
X/Y/Z rapid traverse
30000mm/min
Tool magazine capacity
24*
Max.weight of tool
8*
Positioning accuracy
±0.006mm
Re-positioning accuracy
±0.003mm
Air pressure
0.5-0.8mpa

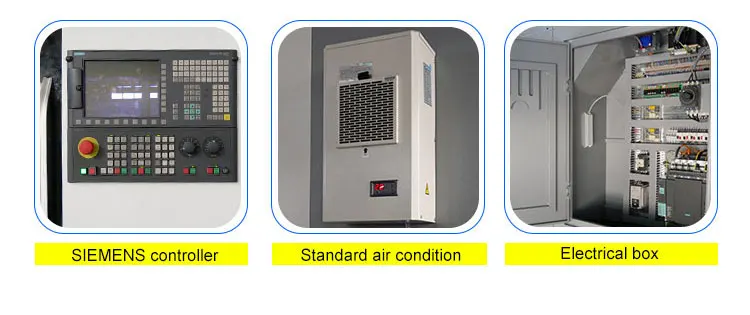

Coolant
air conditioning
Overall dimension(LxWxH)
3250×2800×2950mm
Weight
7500kgs
