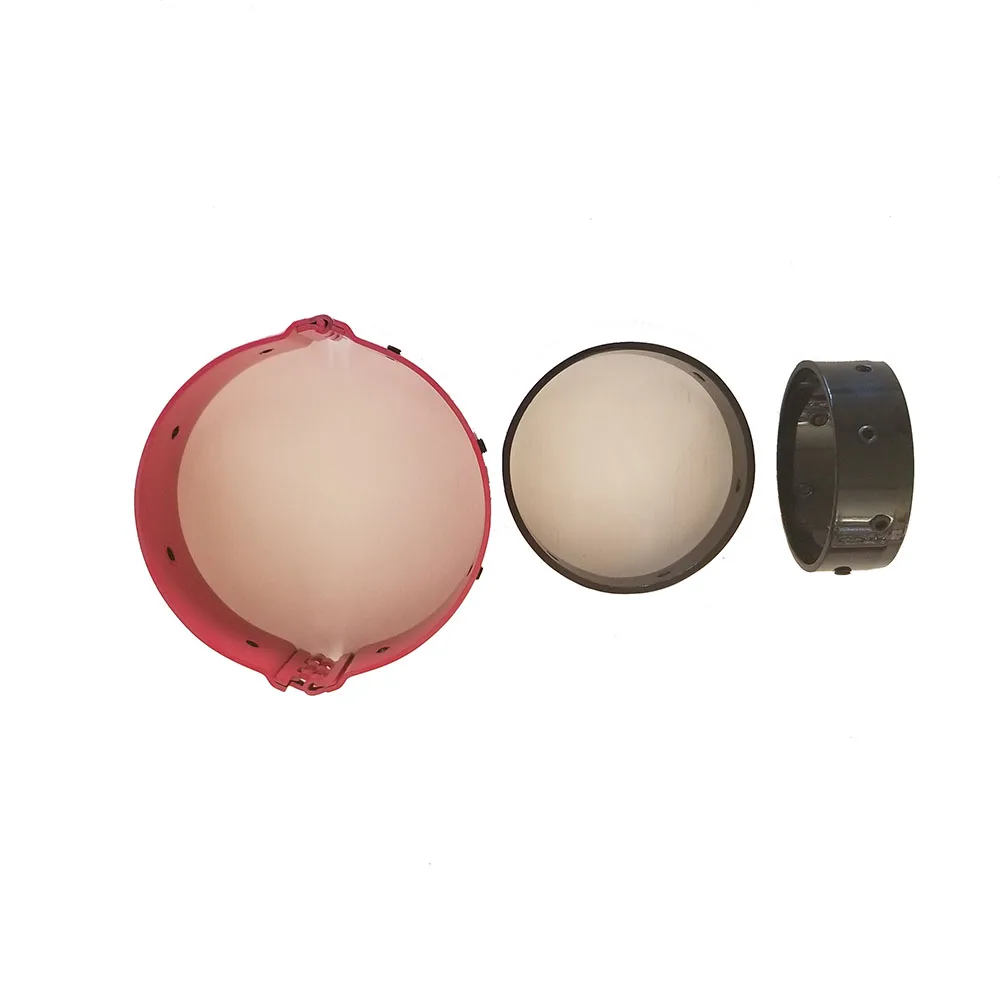

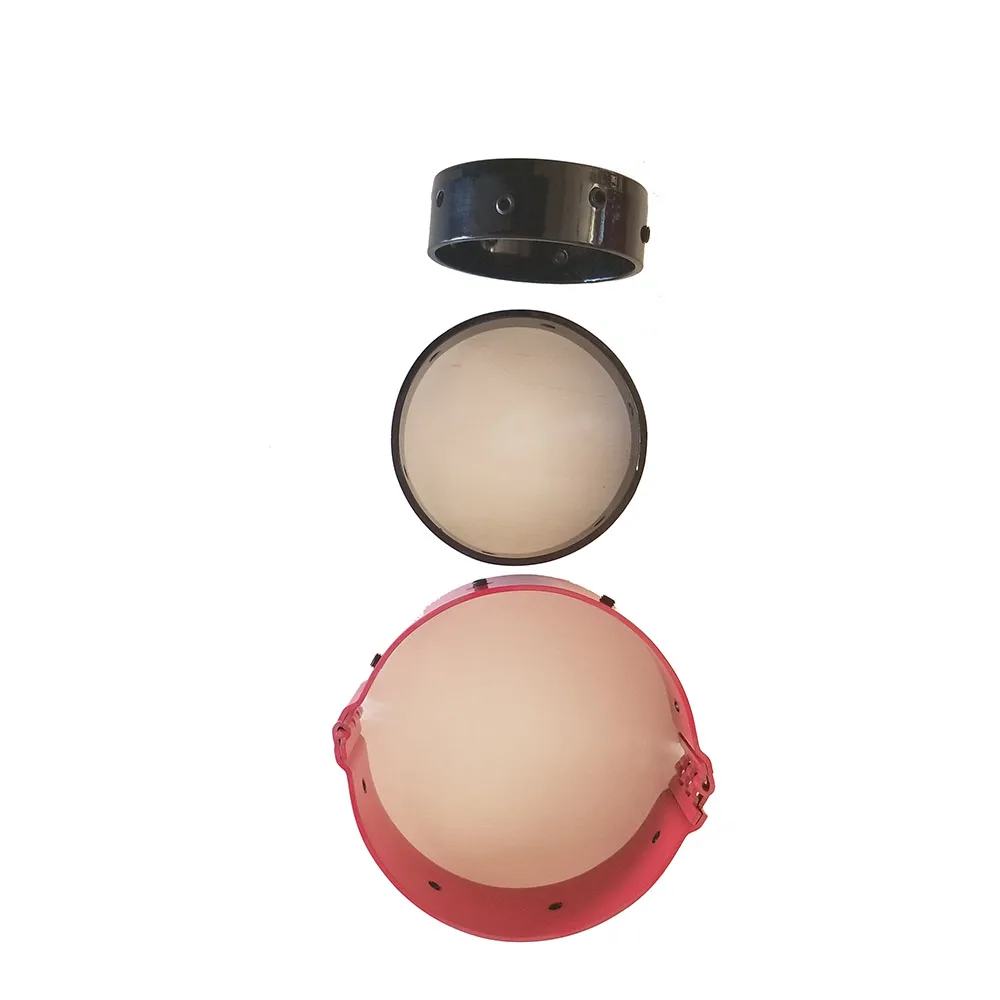

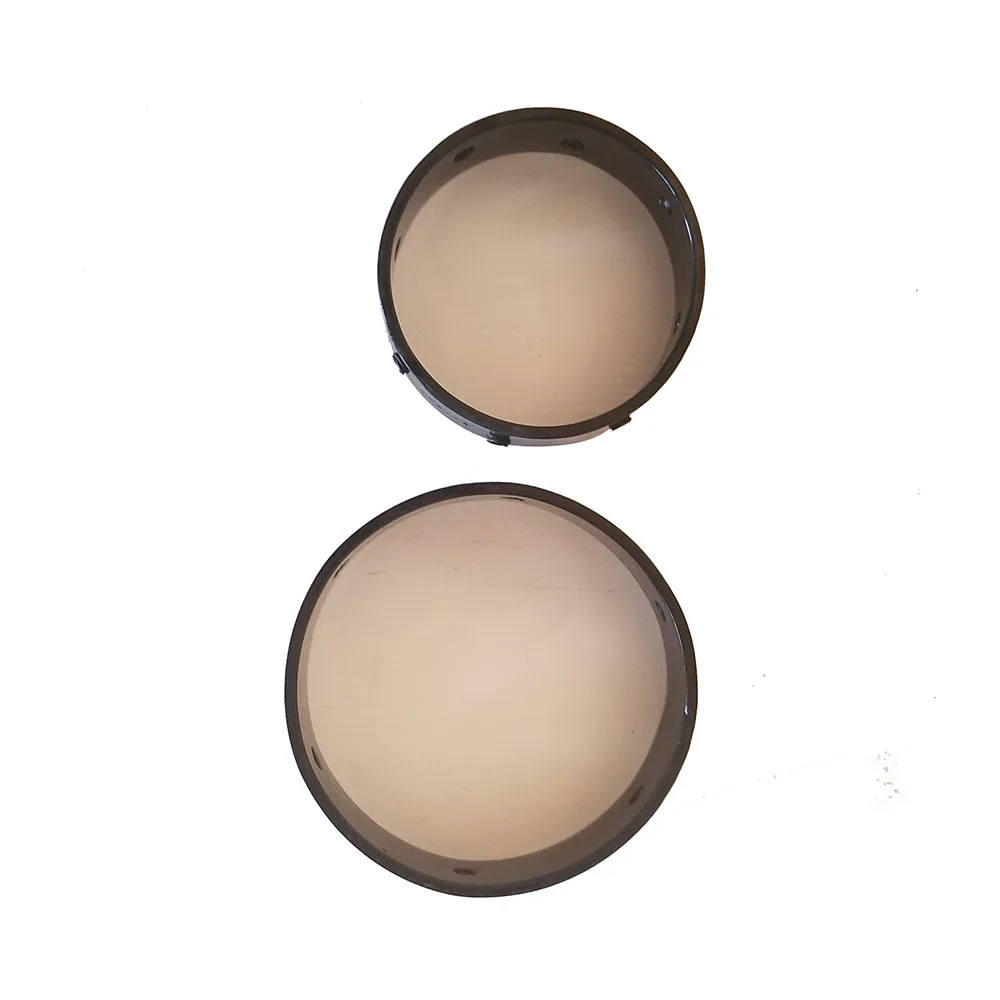

9 5/8 Stop Collar Slip On Set Screw

Product Overview

Description

PRODUCTS DESCRIPTION



Stop collars use set screws for increased holding force. Hinged stop collars that use hardened inserts (dogs) to provide a positive lock onto the casing. The specially designed dogs bite into the casing, which provides the stop collar's strong holding force. The recommended torque on the bolt is approximately 25 to 35ft-lb. When properly installed, the hinged stop collar can provide a holding force up to 40,000lb.



NO.	Size (in)	ID(mm)	Height  (mm)
1	4-1/2”	116-118	20-50
2	5-1/2”	142-147	20-50
3	7”	181-184	20-50
4	7-5/8”	197-201	20-50
5	9-5/8”	247-251	20-50
6	13-3/8”	343-347	20-50



PRODUCTS DETALS





COMPANY PROFILE









CERTIFICATIONS

We have got the API Q1, ISO 9001, ISO 14001 and ISO 18001 certifications now.



QUALITY CONTROL

We have the professional quality control team to ensure our products have high performance. And we have many test equipment. We will do the test every batch by myself.
