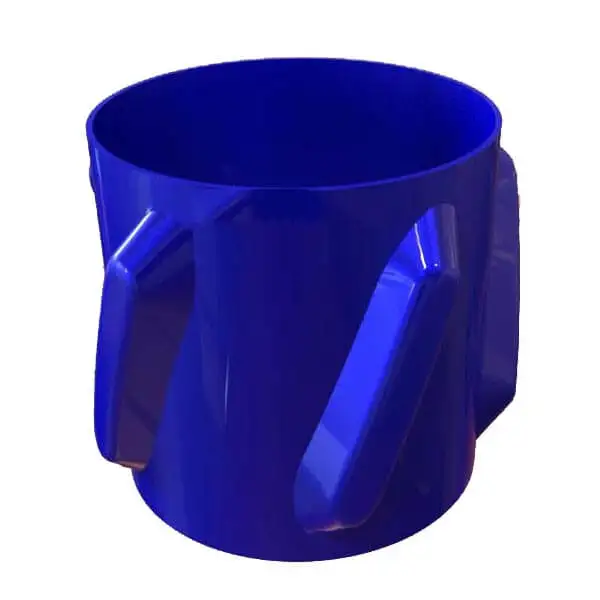

semi rigid casing centralizer
semi-rigid casing centralizer
semi-rigid casing centralizer
semi-rigid casing centralizer
semi-rigid casing centralizer

semi rigid casing centralizer

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Overview


Present Force Centralizer
It is made of seamless steel pipe stamped as a whole, which is the first in China, without welding weak points, and the righting bar will not fall off.


FEATURES AT A GLANCE


Present Force Centralizer
With the advantages of rigid and semi-rigid centralizer,suitable \u2029for irregular well bore.

The centralizer strip can deformed when passing through the \u2029necking down string,it easy to let casing go through.

The force of centralizer strip can preset according to the requirement.\u2029







PRODUCT SPECIFICATIONS


Specification
Casing size(mm)
Borehole size(mm)
Inner Diameter
(mm±2)
Outer Diameter
(mm±2)
4-1/2″×6″
114
152
118
148
5-1/2″×8-1/2″
140
216
142
210
7″×8-1/2″
178
216
182
210
9-5/8″×12-1/4″
244
311
249
305
13-3/8″×17-1/2″
340
445
344
435
