Customized Oilfield Cementing Spiral Vane Steel Solid Rigid Centralizer

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Overview

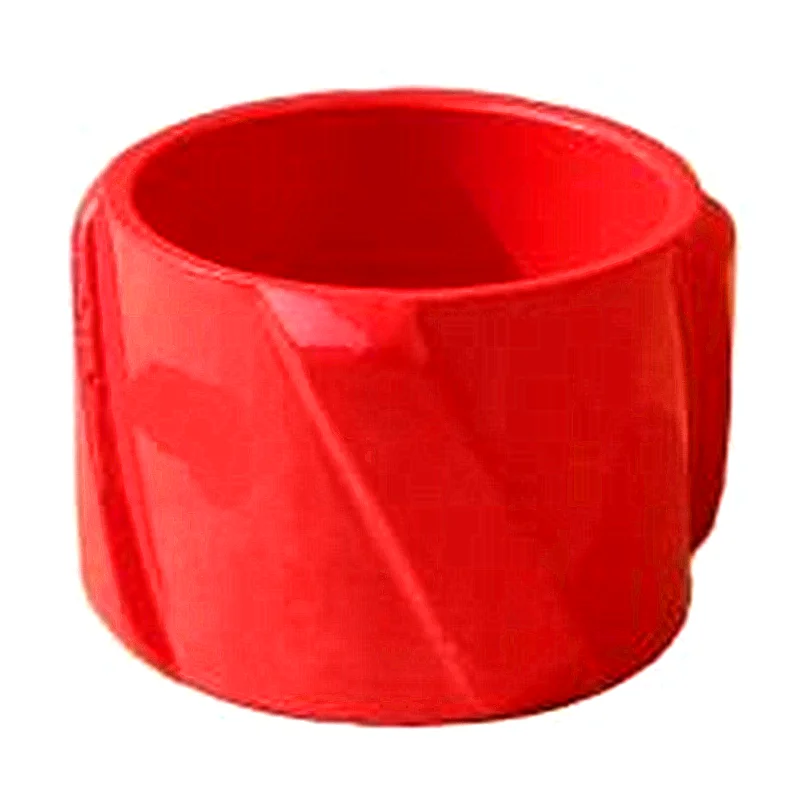

Solid Rigid Centralizer
Spiral vane steel solid rigid centralizers are developed to meet the need for better cementing in high deviated and horizontal well.


FEATURES AT A GLANCE


Solid Rigid Centralizer
Available in left, right, or straight vane orientation.

Available with set screws.

All Centralizers are stove painted or coated with polyester powder.









PRODUCT SPECIFICATIONS


Specification
Casing size(mm)
Borehole size(mm)
Inner Diameter(mm)
Outer Diameter(mm)
4-1/2″×6″
114
152
118
146
5-1/2″×8-1/2″
140
216
142
210
7″×8-1/2″
178
216
182
210
9-5/8″×12-1/4″
244
311
249
305
13-3/8″×17-1/2″
340
445
344
438
