CNC Wire Winder PLC Control Distribution Transformer Coil Winding Machine
Usage:
CNC Wire Winder PLC Control Distribution Transformer Coil Winding Machine ZPX600 is for winding copper or aluminium wire coil, which can be used in transformers, reactors and other similar products.
Features:
Slow starting, smooth running, strong torque;
Easy to operate;
Winding round and flat wire;
Automatic wire laying

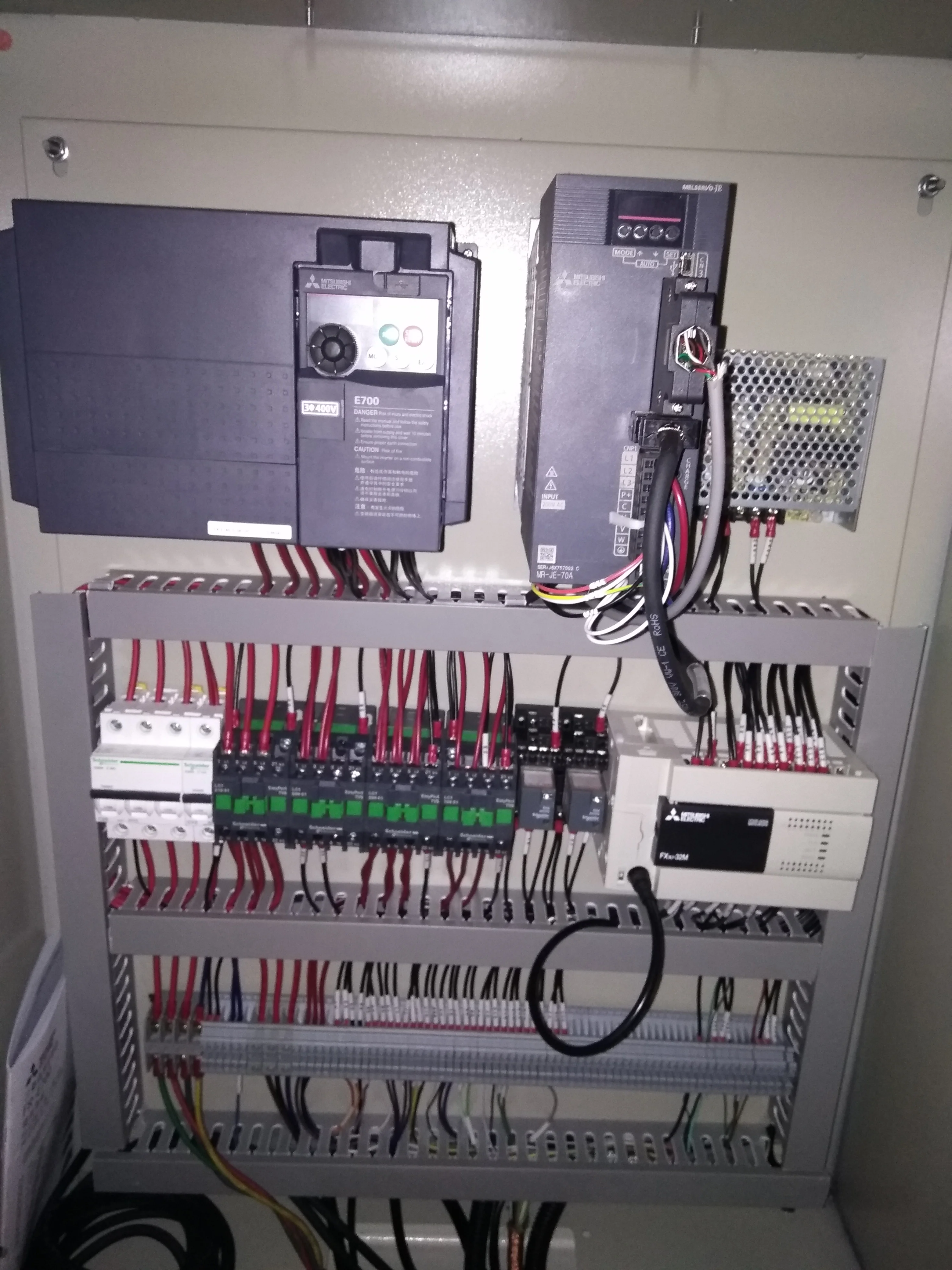

Main Components
1. Winding motor

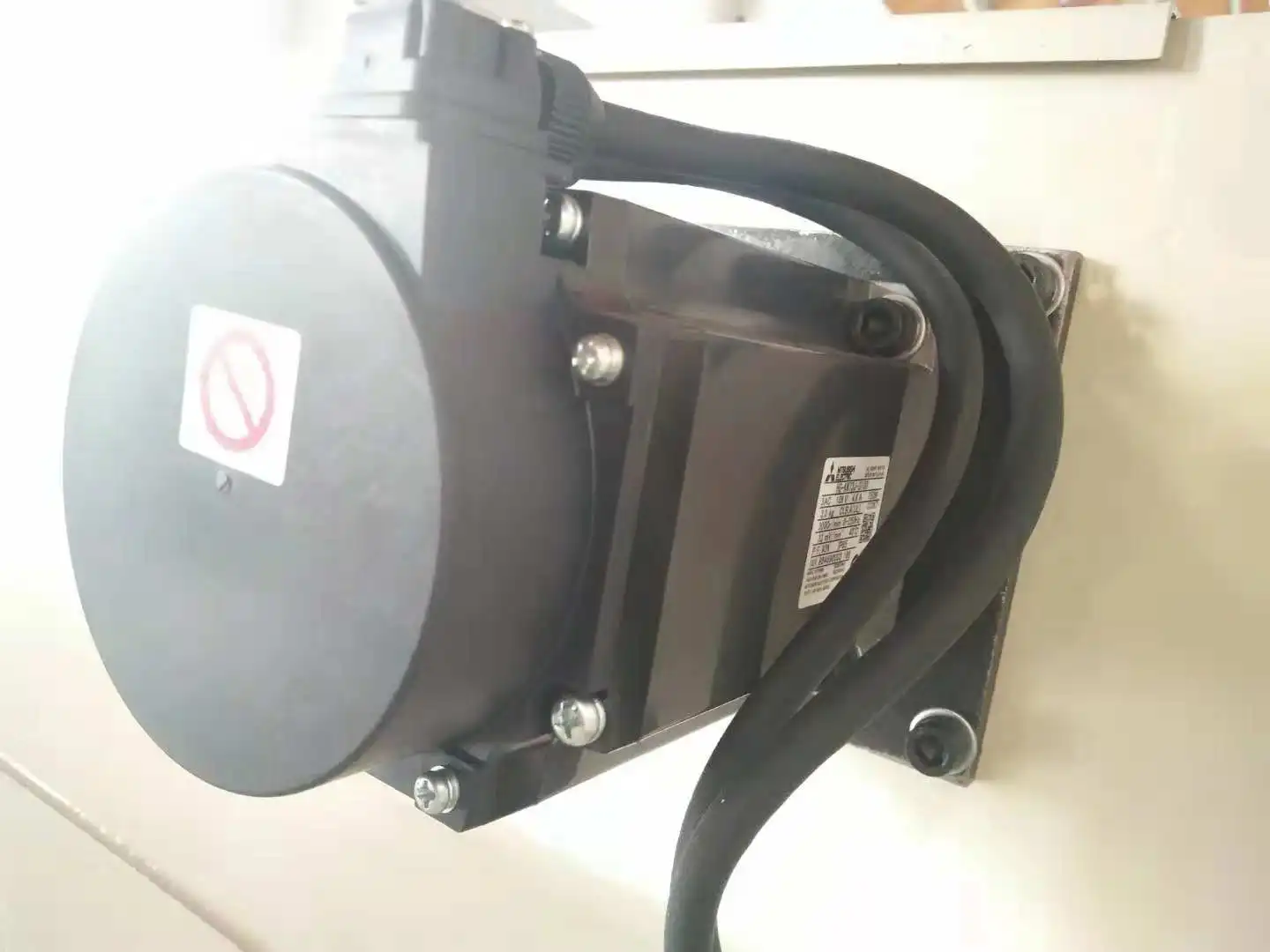

2. Servo motor
3.VFD
4.PLC
5.Pneumatic system
Similar Model Parameters Comparison
Item
ZPX600
ZPX800
ZPX1000
Center Height:
900mm
900mm
900mm
Finished Coil Height:
≤600mm
≤800mm
≤1000mm
Winding Power:
4kw
4kw
5.5kw
Winding Speed:
0-200rpm
0-160rpm
0-120rpm
Speed Regulation:
stepless regulation
stepless regulation
stepless regulation
Max. Flat Wire Size:
-
5x12mm
5x12mm
Round Wire Diameter
0.3-5.0mm
0.3-5.0mm
0.3-5.0mm
Finished Coil OD.:
≤400mm
≤800mm
≤800mm
Loading Capacity:
≤500kg
≤700kg
≤800kg
Min. Spread Pitch:
0.01mm
0.01mm
0.01mm
Counting Range:
0 - 9999.9
0 - 9999.9
0 - 9999.9
Send Inquiry
Company Information
Main Products
Packaging & Shipping
EXIBITION
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Are you responsible for installing and training operators overseas?
A: We will do it if you need.
3) Q: How do you provide after sales service? A: We provide technical support online as well as overseas services provided by our skilled technicians.
4) Q: How does your factory control product quality?
A: Every machine has to be tested before loading.
5) Q:How can I trust you that machines pasted testing before shipping?
A: 1) We can record the testing video for your reference if you need, or;
2) You can come to our factory for acceptance.
6) Q: Do you sell only standard machines?
A: Besides standard machines, we can also manufacture these machines as requested.
