30 tons port crane container double beam gantry crane 50 tons



Product Description

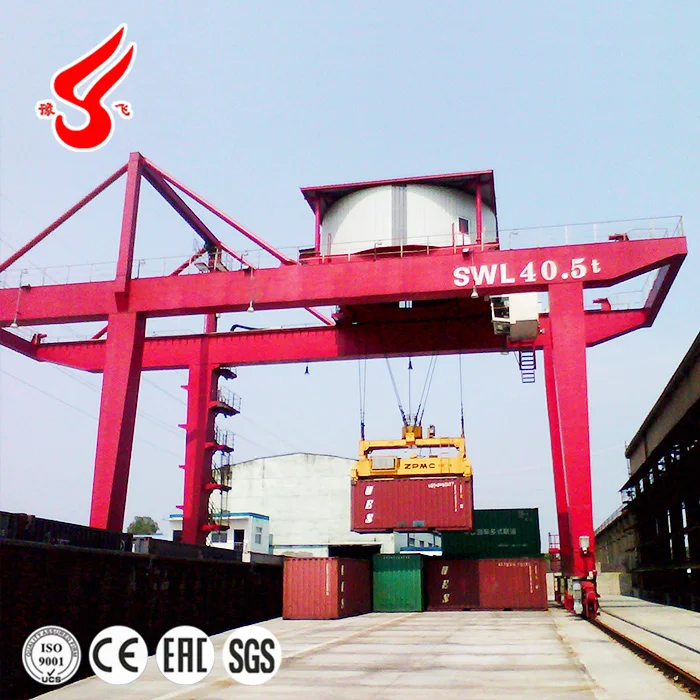

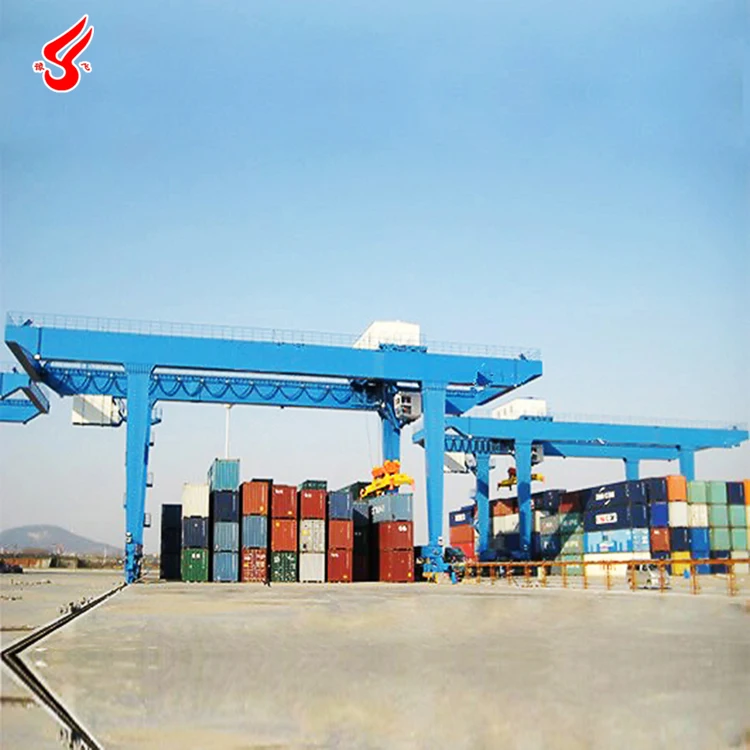

1.1 Rail mounted small Rail container wide span 35ton gantry crane crane for sale is a kind of rail mounted crane used to offload, stack and load 20ft, 40ft, 45ft ISO standard containers. Its provision of power is offered by cable reel. The crane contains three mechanisms: hoisting, trolley travelling and gantry travelling. The trolley running along the track mounted on gantry beam is capable to serve among legs. The crane is able to make straight movement along rails.


1.2 The crane is equipped with appropriate flexible hydraulic container spreader, which is connected to trolley through the upper frame and wire rope system.
And the hydraulic power comes from spreader itself, and we just provide the power supply and communication
1.3 Hoisting mechanism and trolley travel are able to work simultaneously or separately with load; the same applies to gantry travel and trolley travel.
1.4 Electrical drive of main working mechanism is equipped with full digital AC frequency convertor, PLC speed governor and constant power adjustment device for hoisting mechanism.
1.5 The crane has a monitoring and management system. It has the function of data collection, analysis, management, and fault diagnosis and is also able to deliver the main parameters and operating conditions to the electrical room, cabin and control centre for monitoring and control.





 Want to know more, contact me!


10 to 200 ton MG Box Type Double Beam Portable Mobile Gantry Crane

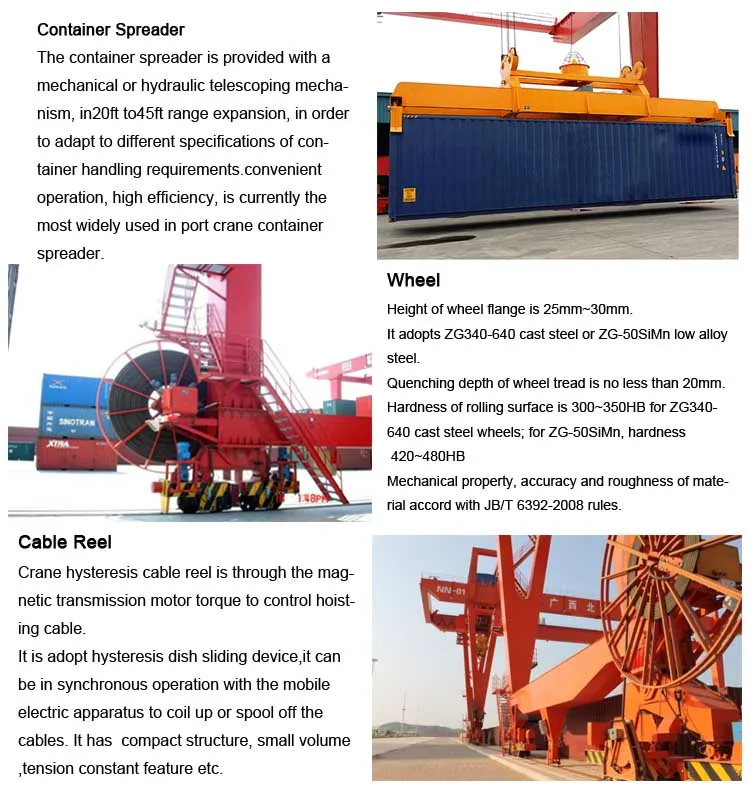

Product part display


10 to 200 ton MG Box Type Double Beam Portable Mobile Gantry Crane


10 to 200 ton MG Box Type Double Beam Portable Mobile Gantry Crane





Want to know more details to contact me!





1. Modular Design


According to the general rules of products, components, it forms the hoisting mechanism modeule, trolley traction mechanism module, trolley assembly module, steel structure module, founction module, general module and etc.


The standard module production ensures product stability of quality and shortens the delivery cycle.


2. Advanced Manufacturing Technology


Steel shot blasting pretreatment, the surface quality reaches Sa 2.5 grade.


Crane wheel and wheel shaft through the high frequency quenching and tempering treatment, it eliminates the internal stress and ensures the machining accuracy. the use of welding robot, the main girder inseam weld by advanced MAG welding. The main girder welding adopts radiographic testing and ultrasonic testing to ensure the welding quality.


3. High reliability


The motor and ruducer are imported from domestic famous brands with industry reconnition, quality assurance. It has reliable quality.


The main electrical components is from the selection of Schneider, Siemens, ABB and other international well-known brands, the protection degree electronic control box is less than IP54.


4. Safety Parameters
1. Automatic rectify deviation control
2.Weight overload protection device
3.Top quality polyurethane buffer
4.Phase protection
5.Lifting limit switch
6.Cross travelling limit switch





Send your special needs to us!



Technical data










































































































Caoacutt of Spreader


T30.53540.550

Working Duty


A6A6A6A6

Span (m)


S35353535

Base (m)


B16161616

Lifting Height (m)


H15.415.418.218.2
SpeedHoistingWith Full load

m/min


12121818
Only winty Spreader24243636
Travese60607070
Traveling45454545

Total Power



kw



~200



~230



~255



~300



Max. working Load of Wheel



kn


260260280300

Crane Rail






P50P50P50QU80

Power Source



Three-phase AC 50Hz 380V
