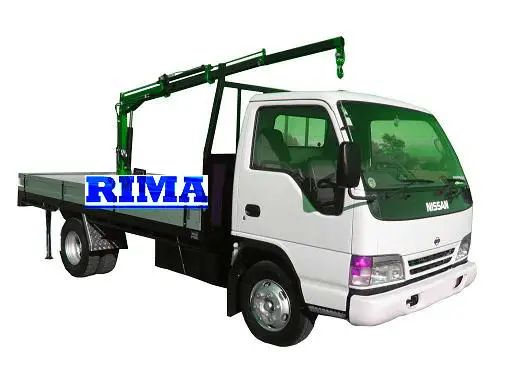

truck with loading crane 0.5/1 ton

Model

MLC1000

Load moment

1.5tm

Lifting capacity at min. reach

1.2-1100m/kg

Lifting capacity at 2.3m

400kg

Lifting capacity at max. reach

3-200m/kg

Mix Reach

3m

Telescopic boom

2section(1 hydraulic+1 mechanical)

Slewing angle

330°

Slewing motor

1 pcs

Control unit

Remote control

Height above chassis

1355mm

Crane height

1915mm

Support leg

Mechanical

Fan

YES

Slewing angle

330°

Max. lifting height above base

4.8m

Pump performance

2-3L/min

Power unit

Independent

Working pressure

15.5Mpa

Separate electro-hydraulic pump

24 V

Oil capacity in base

10L

Power

24V

Hydraulic power unit size

360x225x440mm

Weight

230kg
