Tiny Ultrasonic Steel Mould Machine Signature Artifact Name Seal Customization Engraving Machines
- Category: CNC Engraving & Milling Machine >>>
- Supplier: Changzhou,Kuaile,Technology,Co.,Ltd.
Share on:
Product Overview
Description

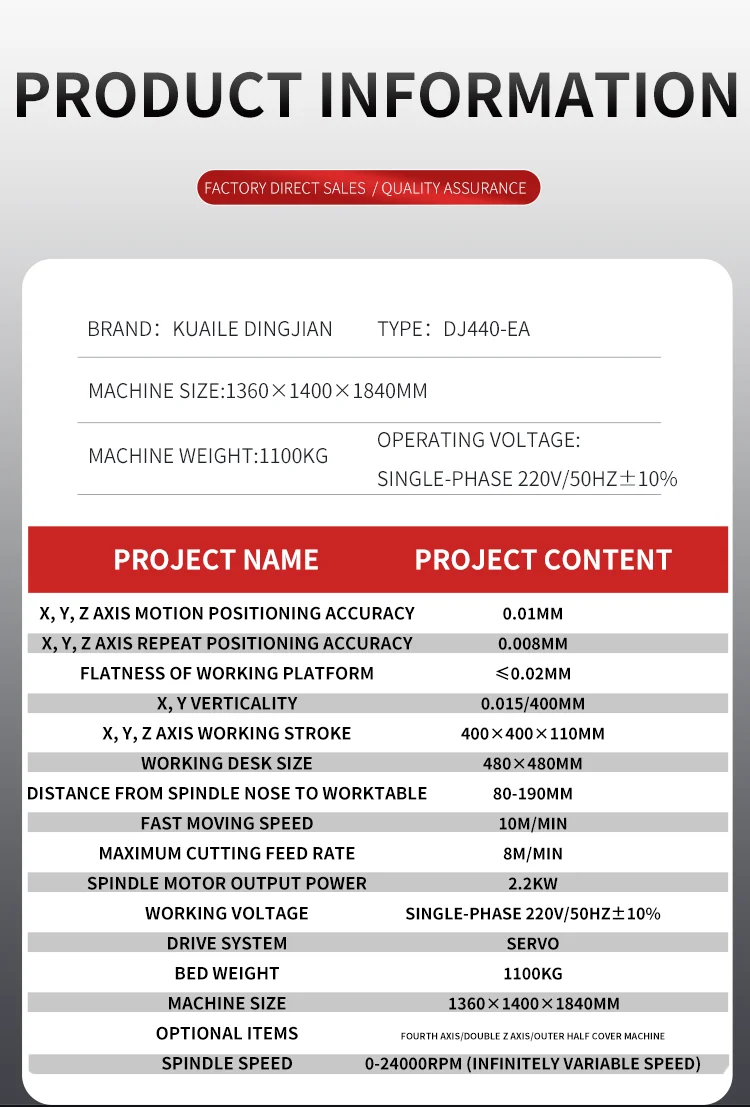

| Project name | Project content |
| X, Y, Z axis motion positioning accuracy | 0.01mm |
| X, Y, Z axis repeat positioning accuracy | 0.008mm |
| Flatness of working platform | ≤0.02mm |
| X, Y verticality | 0.015/400mm |
| X, Y, Z axis working stroke | 400×400×110mm |
| working desk size | 480×480mm |
| Distance from spindle nose to worktable | 80-190mm |
| Fast moving speed | 10m/min |
| Maximum cutting feed rate | 8m/min |
| Spindle motor output powe | 2.2Kw |
| Working voltage | Single-phase 220V/50Hz±10% |
| Drive system | Servo |
| Bed weight | 1100Kg |
| Machine size | 1360×1400×1840mm |
| Optional items | 4th axis/double Z axis/outer half cover machine |
| Spindle speed | 0-24000rpm (infinitely variable speed) |
FAQ
What molds can your machine make?
Metal molds, small and medium-sized molds, shoe molds, etc. can all be processed.
Does the machine support customization?
Our machines support customization.
What are the advantages of your machine?
The advantages of our machine are: complete machine casting, good rigidity, imported screw guide rail, servo motor.
How long is the delivery time of your machine?
The delivery time for small machines is about 5 days, for large machines is about 15 days, and for customized models is about 1 month.
Does the machine support installment payment?
Not support installment payment at the moment.
What molds can your machine make?
Metal molds, small and medium-sized molds, shoe molds, etc. can all be processed.
Does the machine support customization?
Our machines support customization.
What are the advantages of your machine?
The advantages of our machine are: complete machine casting, good rigidity, imported screw guide rail, servo motor.
How long is the delivery time of your machine?
The delivery time for small machines is about 5 days, for large machines is about 15 days, and for customized models is about 1 month.
Does the machine support installment payment?
Not support installment payment at the moment.
