2 вертикальной оси линейные направляющие токарный станок с ЧПУ
- Category: Lathe >>>
- Supplier: Guangzhou Jasu Precision Machinery Co. Ltd.
Share on (1600271772811):
Product Overview
Description
Product Overview
2 axis vertical linear guideway lathe
apply for European design! Great rigidity, supramaximal swing diameter. Also expedient clamping and safety
stuff change
Because of the personnel change. NOW, new person charge the part of lathe and machining center!!!NAME: Klein
EMAIL:zoulongyugz@126.com
PHONE/WECHAT: +86 1338000192
Linkedin: klein klein
WhatsApp: +61 0421165440
Please check it! contact me if you looking for our INF of machine tool part
EMAIL:zoulongyugz@126.com
PHONE/WECHAT: +86 1338000192
Linkedin: klein klein
WhatsApp: +61 0421165440
Please check it! contact me if you looking for our INF of machine tool part
PRODUCT SPECIFICATIONS
Item | Item | L-650V | L-850V | ||
Capacity | MAX. swing diam over. bed | 780 | 950 | ||
2 | MAX. turning diam | 650 | 850 | ||
3 | MAX. turning length | 550 | |||
4 | MAX. workpiece weight | 250kg | 350kg | ||
spindle | spindle nose | A2-8 | A2-11 | ||
6 | chuck | 15'' | 18'' | ||
7 | MAX. spindle speed | 2000 | 1200 | ||
feeding axis | X/Zaxis travel | 330/600mm | 500/650m | ||
X/Zaxis rapid traverse | 20/20m/min | ||||
X/Zaxis ballscrew specs | 4010/4010 | ||||
positioning accuracy(JIS） | 0.01 | ||||
repeatability(JIs) | 0.007 | ||||
electrical machinery | spindle motor | 15/18.5kw | 22/26kw | ||
X/Zaxis servo motor(FANUC) | 2.5/2.5kw | ||||
coolant motor | 0.49kw | ||||
hydraulic power unit motor | 3HP | ||||
tool change system | tool changing type | hydraulic turret | |||
turret model | Y200 | ||||
tool capacity | 10 | ||||
OD tool shank | 25x25mm | ||||
ID tool shank | Φ32mm | ||||
general | power capacity | 25KVA | 30KVA | ||
over all diemsions | 2000x1800x2000 | 2400x2300x2300 | |||
N.W. | 4.8T | 5.5T | |||
PRODUCT CONFIGURATION

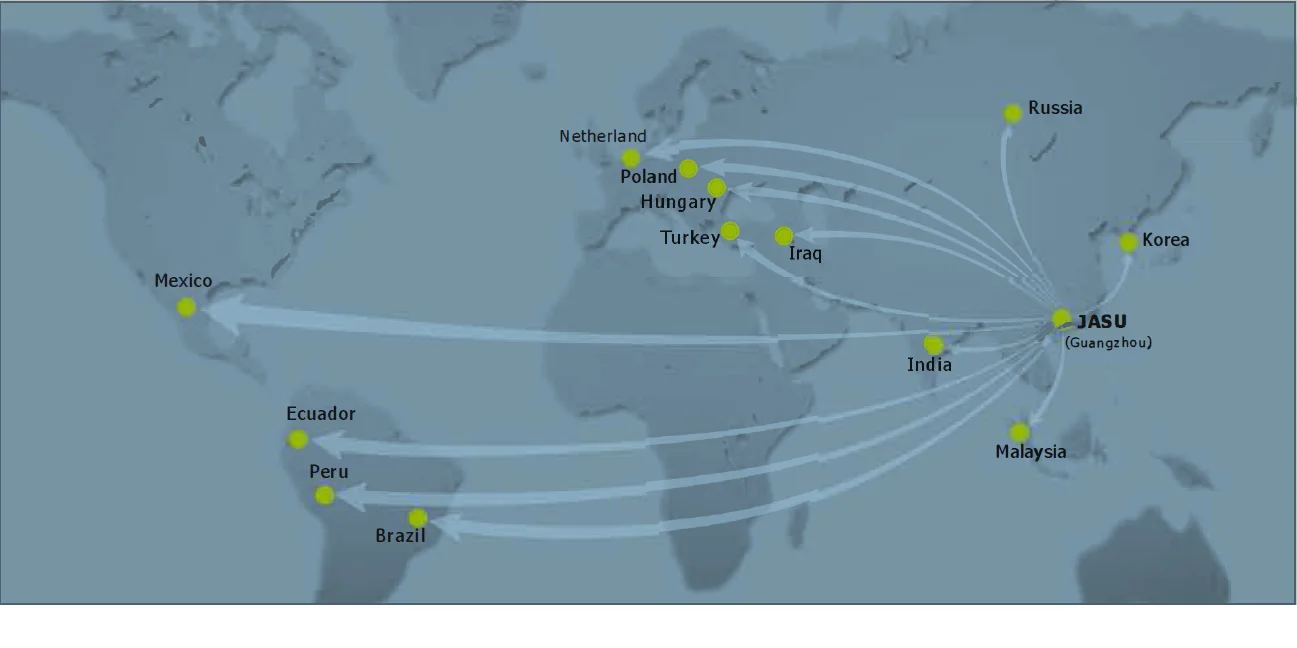

SALES AND SERVICE NETWORK
