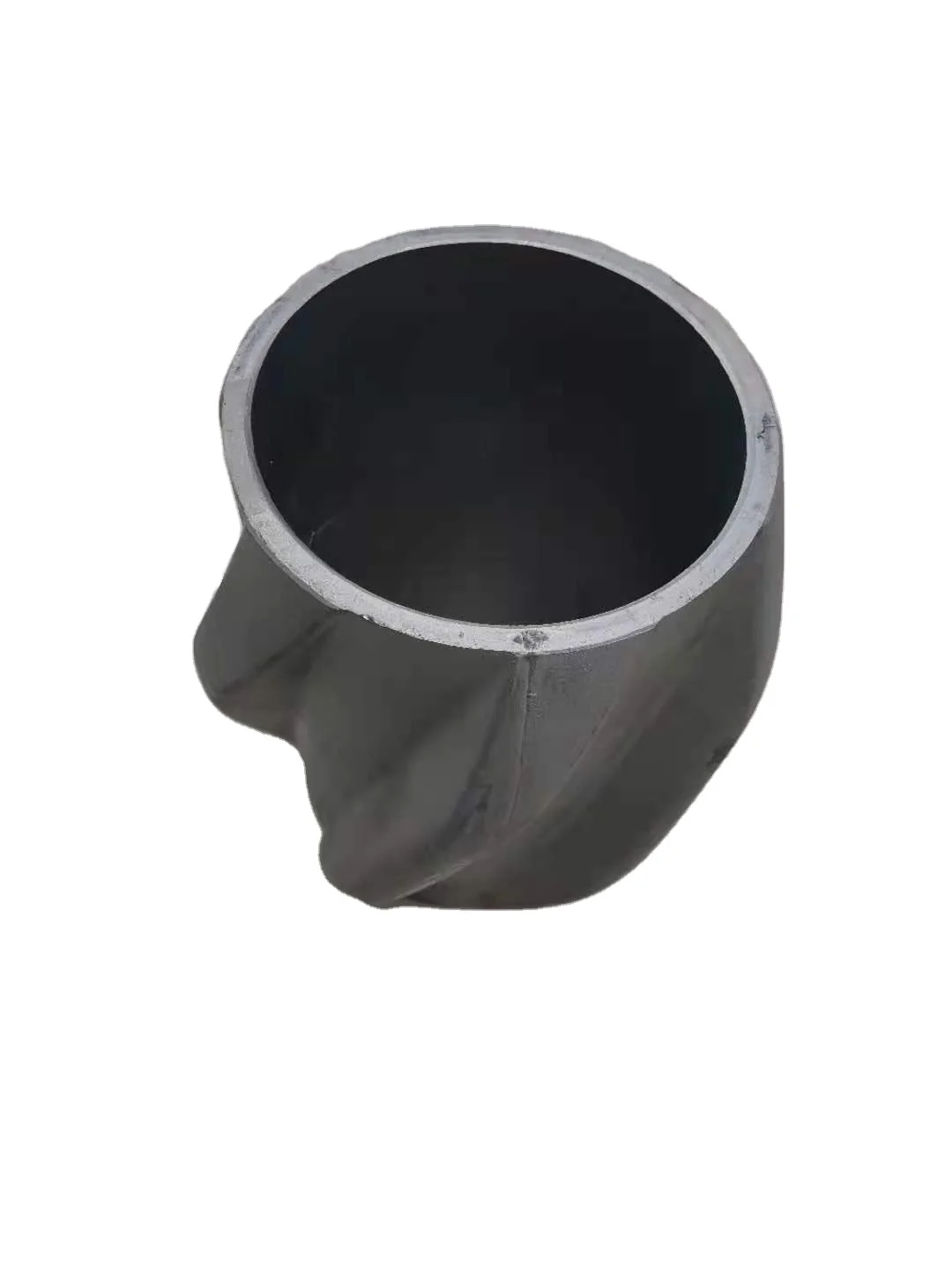

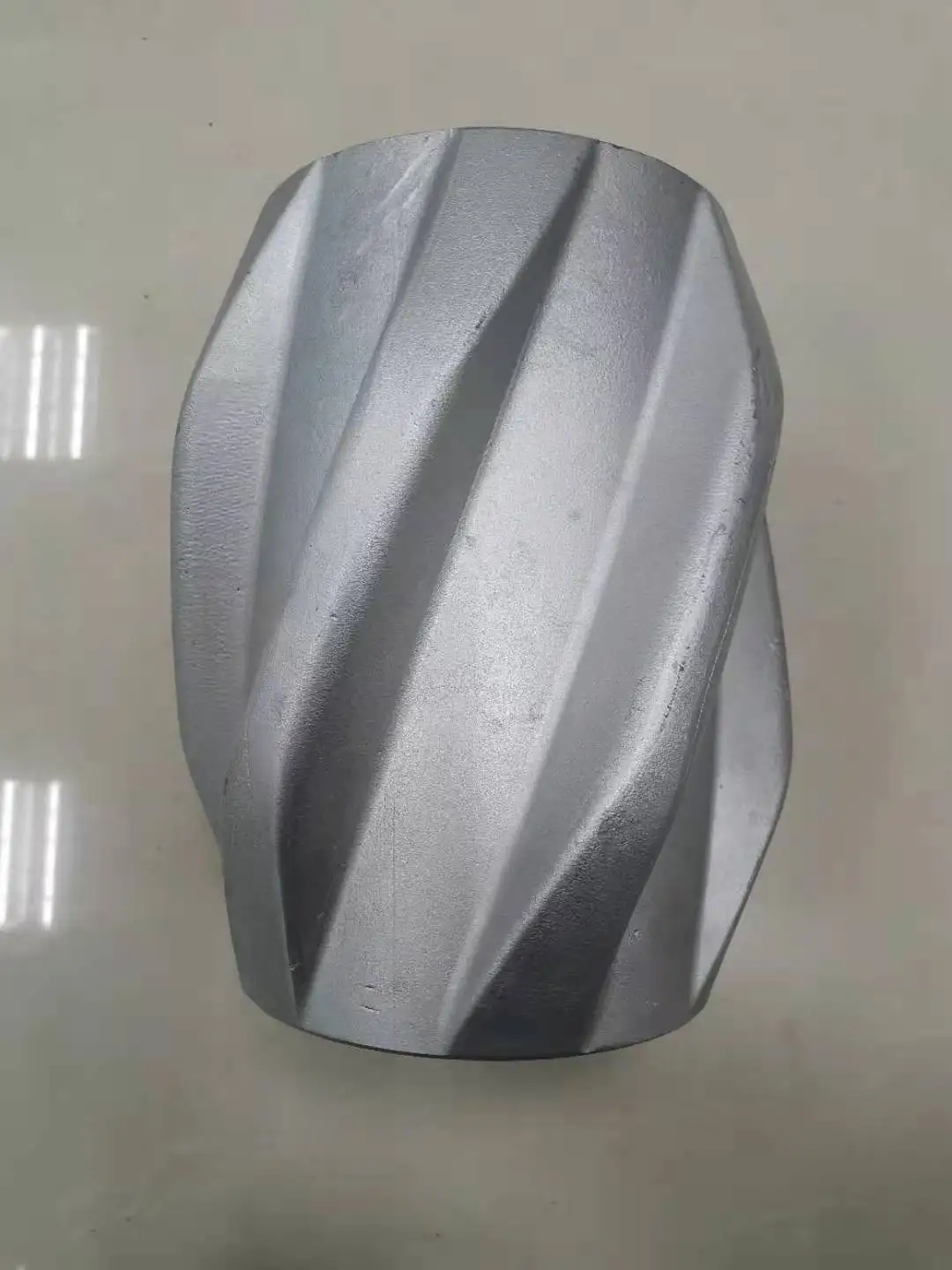

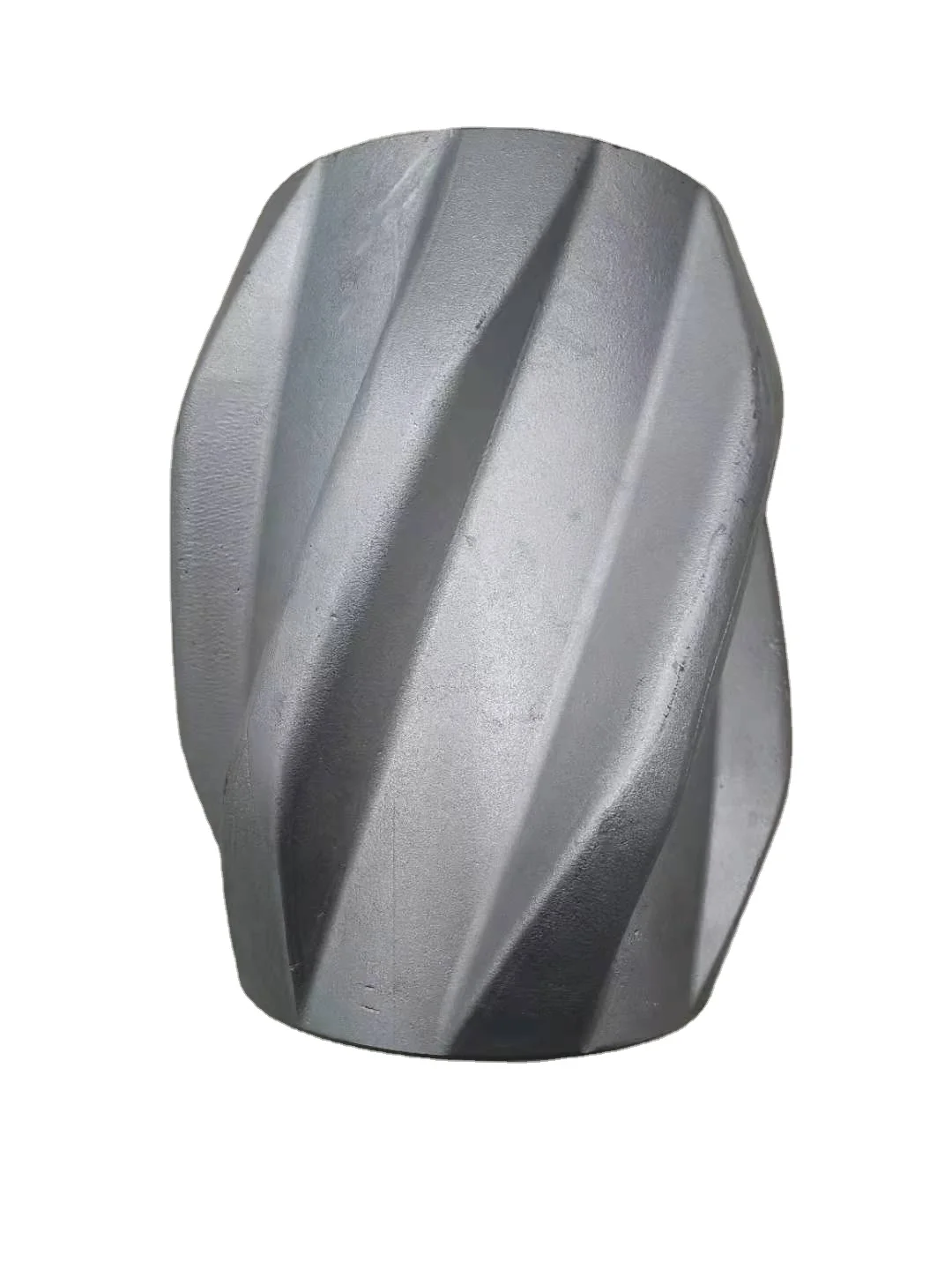

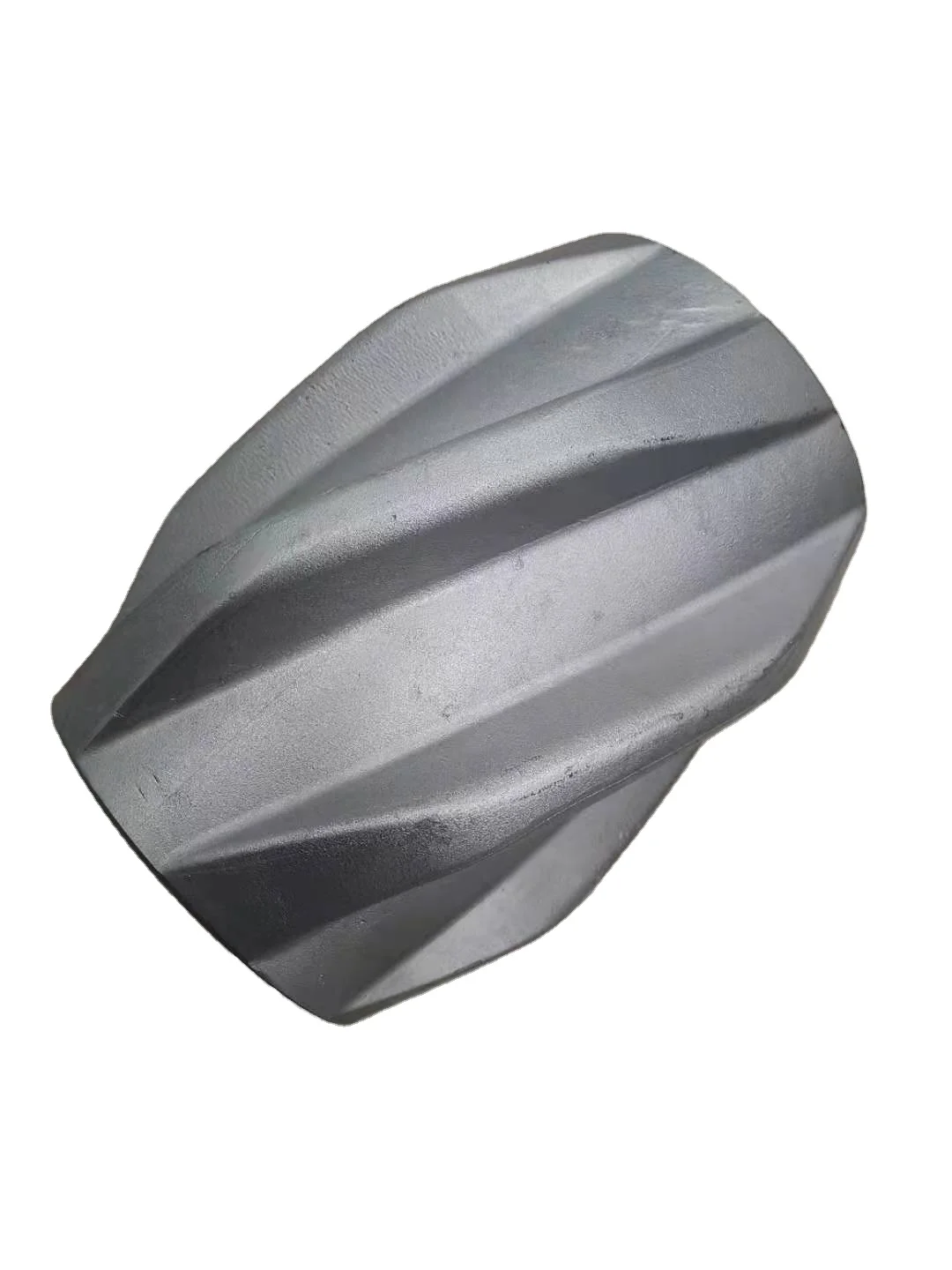

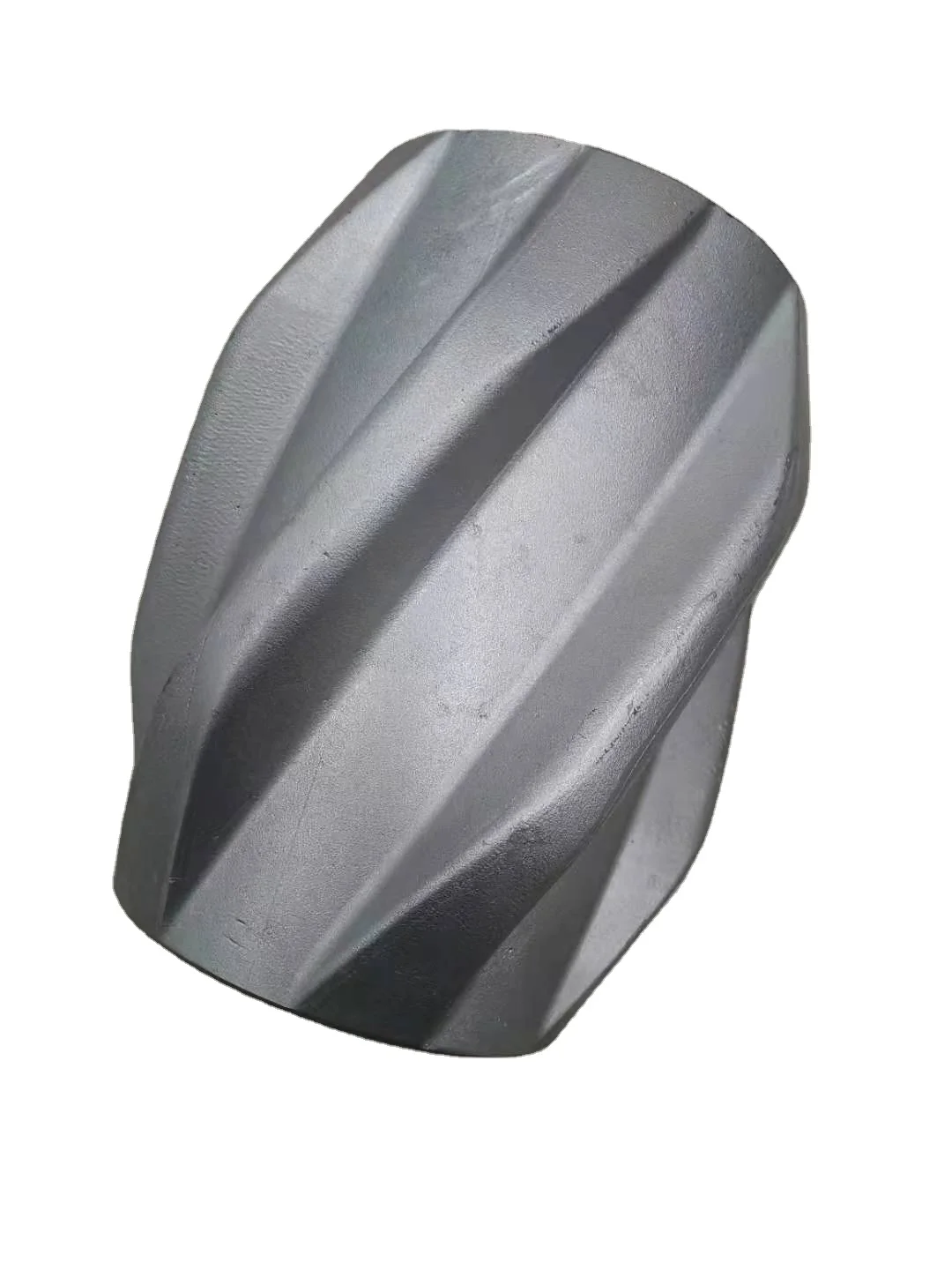

Casted aluminum centralizer

Product Overview

Description

PRODUCTS DESCRIPTION



Casted aluminum centralizer its wide vanes distribute load from the casing string into the well bore without gouging.

The design of the vanes keeps running forces at a minimum.

Aluminum material is corrosion-resistance.



NO.	Size (in)	ID(mm)	Height  (mm)	OD (mm)
1	4-1/2”*6” (OD)	116-118	200	150-152
2	5-1/2”*8-1/4” (OD)	142-147	250	207-210
3	7”*8-1/4” (OD)	181-184	250	207-210
4	7-5/8”*9-3/8” (OD)	197-201	250	235-238
5	9-5/8”*12” (OD)	247-251	250	300-304
6	13-3/8”*15-3/4”(OD)	343-347	250	396-400
7	13-3/8”*17-1/4”(OD)	343-347	250	435-438
