Automated 1 3 T/H Compost Machine Organic Waste Fertilizer Pellet Production Line For Sale
- Category: Chemical Machinery & Equipment >>>
- Supplier: Kaifeng Richi Machinery Co. Ltd.
Share on (1600300885039):
Product Overview
Description

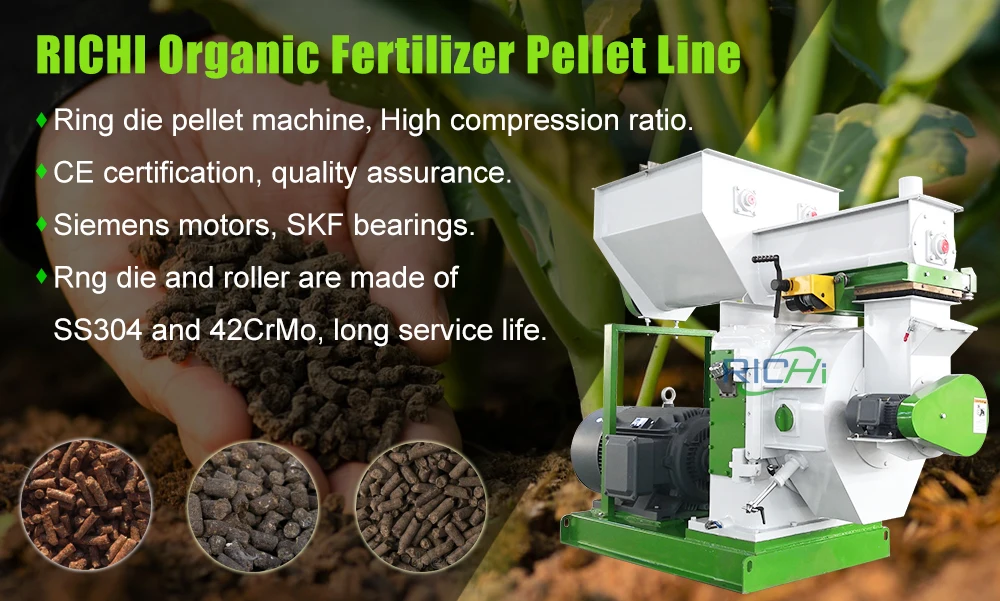

RICHI Organic Fertilizer Pellet Line
Description Of The RICHI Organic Fertilizer Pellet Production Line:
The RICHI organic fertilizer pellet production line can make various biomass raw materials into organic fertilizer pellets.
Suitable for a variety of raw materials, such as animal manure, agricultural straw waste, forestry leaf waste, urban domestic wet
garbage, etc.

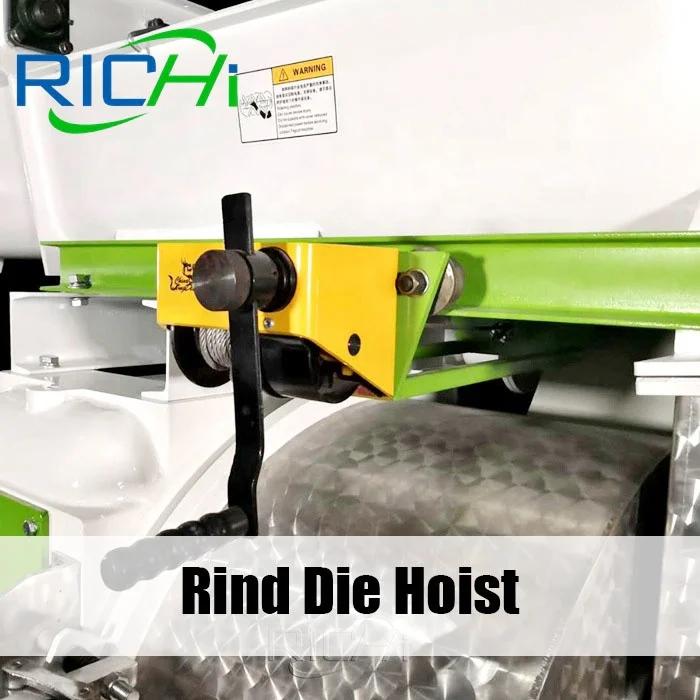

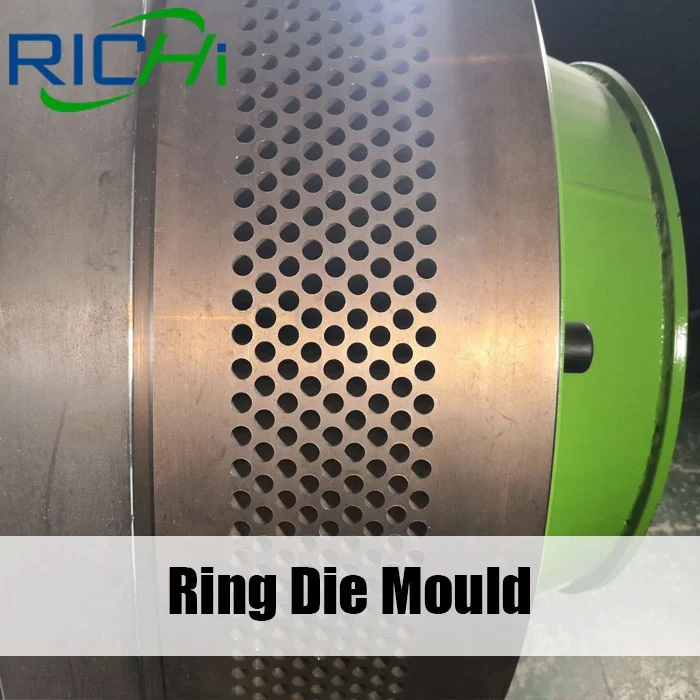

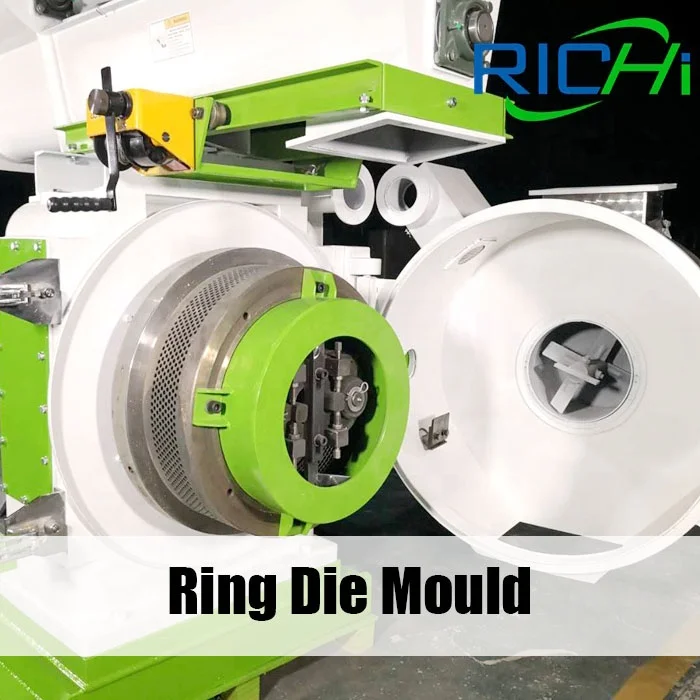

When the organic fertilizer is squeezed by the ring die and pressure roller of the RICHI ring die pellet machine, it forms pellets
with a certain compression ratio. The components of the organic fertilizer pellets are uniformly released, and the transportation
is convenient.

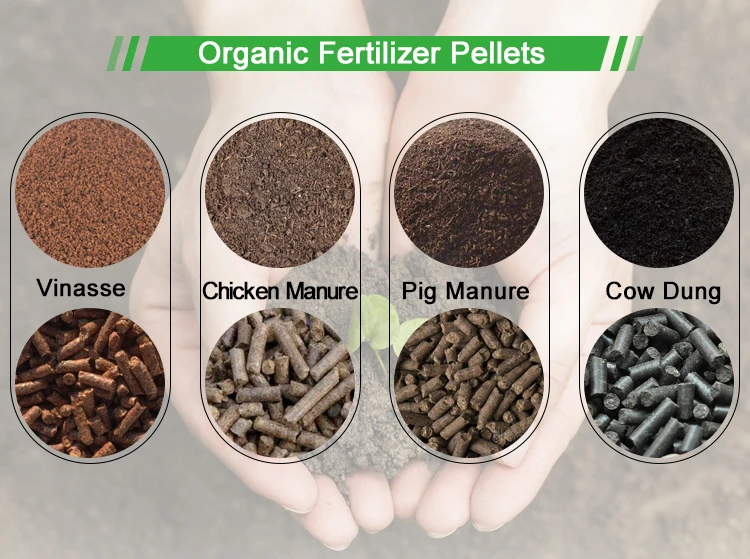

Raw Materials To Pellets
Advantages Of Organic Fertilizer Pellets Made By RICHI's Pellet Line:
- Wide sources of raw materials:
The raw material of the organic fertilizer pellets can be various animal manures, such as chicken manure, cow manure, and sheep manure. Crop straw and other plant residues. Leftovers of agricultural and sideline products. Such as soybean meal, rapeseed meal and so on. Residents' domestic garbage. Such as kitchen waste, plant ash, etc. Other raw materials, such as biogas residue, peat, plant ash, silt, municipal sludge, etc.- Easy to transport:
Good pelletizing process makes the organic fertilizer not easy to agglomerate and has better transportation performance.
- Can add inorganic substances:
Some inorganic components can be added to the organic fertilizer pellet production line to improve the fertilizer efficiency of organic fertilizers. On the contrary, if the powdered fertilizer is added with inorganic components, it is easy to absorb moisture and agglomerate.
- Release more balanced:
Fertilizer pelletizing improves agricultural technology. Granular organic fertilizer releases more slowly and evenly, and it is
convenient to fertilize, and it is not easy to be blown away by the wind.
Process Flow

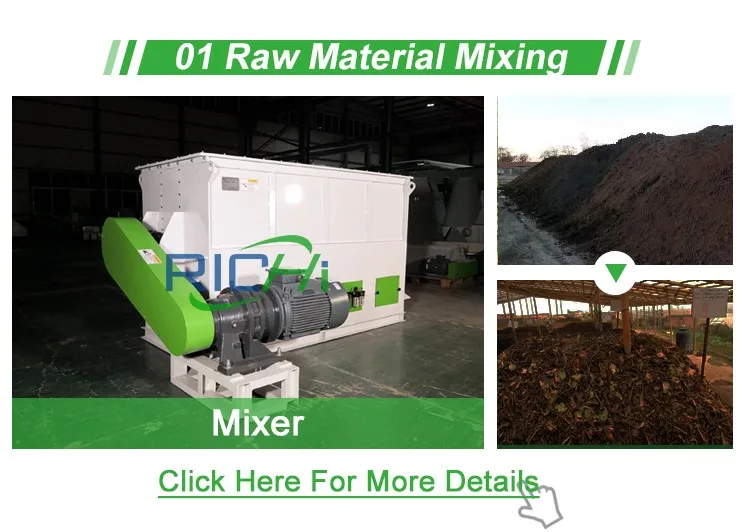

After fermentation system and crushing systef ,the materials will be weighed in batching scale according to proportional, then go down to mixer to reach uniformity.
Capacity: 2m3/batch. Siemens motor. SKF bearings. Mixing period: 60-180s, High uniform, patent the blade design enhanced material
flow, shear ,mixing. Mixing uniformity very good,CV≤2.3%
flow, shear ,mixing. Mixing uniformity very good,CV≤2.3%

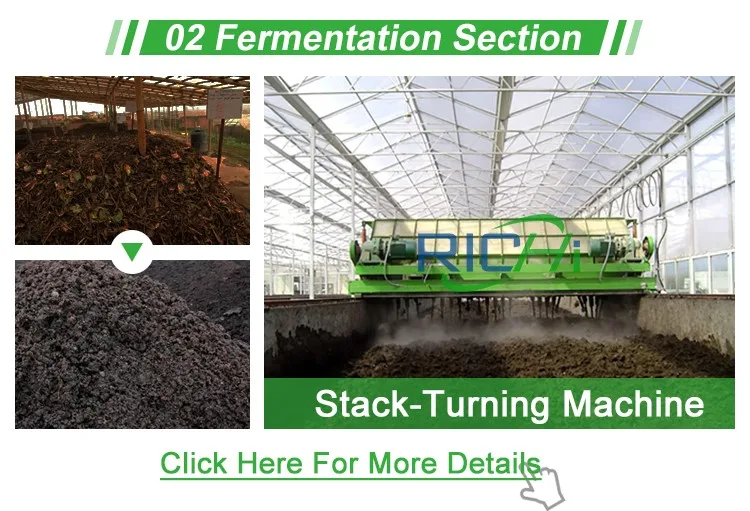

The fermentation form is easy to put in and take out from the fermentation tank. The rubbish such as faeces can be long-time retention. Addation, the compost can be used as wet adjustment material. As for hot fermentation ( chicken manure: about 80°C, pig manure: about 75°C, cow dung: about 70C) and long-time retention, which can produce none secondary fermentation high quality compost, use as organic frtilizer to help edaphic recovery.

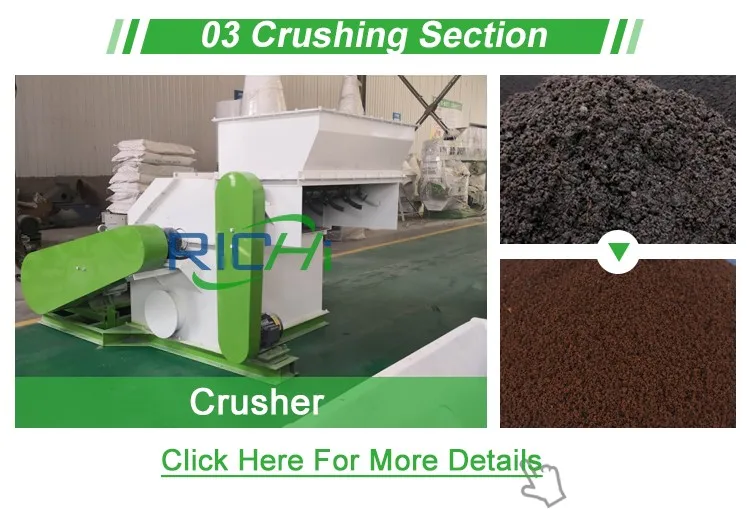

The compost lump materials should be crushed before the pellet making section. The organfer ferillizer hammer mill is applied mainly to grinding the raw material to make it suitable to make organic fertilizer pellets.
The hammer mill is composed of electric motor, couping, bearing, rotor, hinge pin, hammers 8mm pore size sieve plate.
The hammer mill is composed of electric motor, couping, bearing, rotor, hinge pin, hammers 8mm pore size sieve plate.

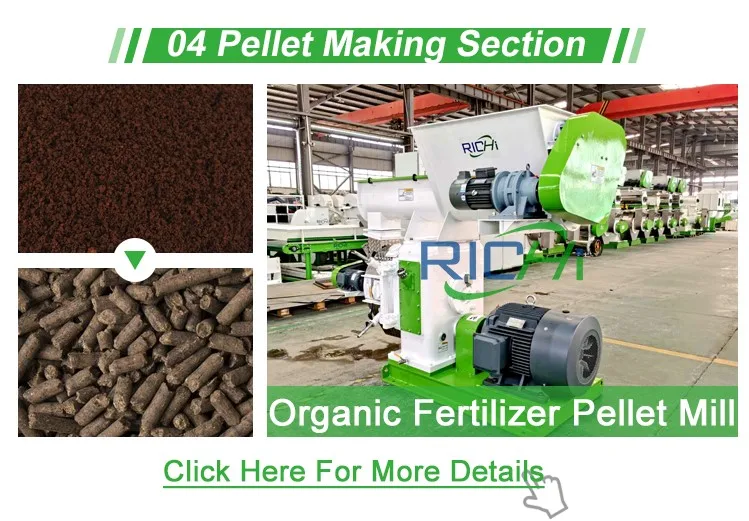

The organic ferilizer pellet making section to make organic fertilizer into pellets. The pellet machine is the main equipment in the production line to make pellets, it compress the dry finely pulverized material and transform them into a cylinder shape
pellet at a temperature of 80 degree. The pellet size from 2- 12mm can be adjuist.
pellet at a temperature of 80 degree. The pellet size from 2- 12mm can be adjuist.

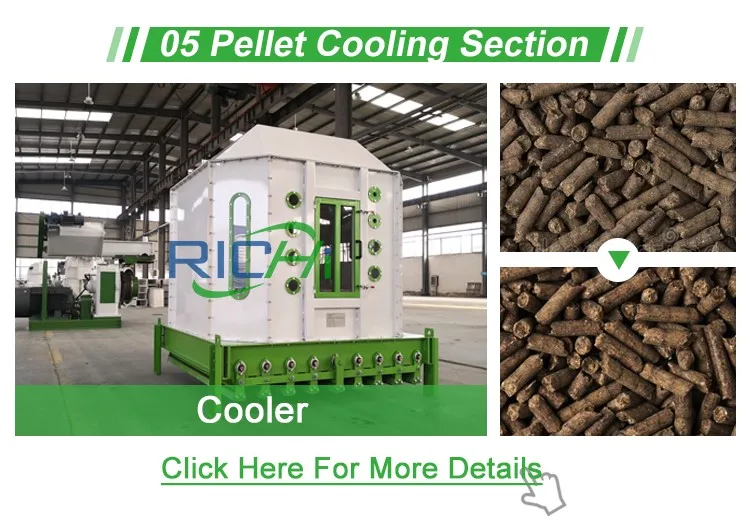

The cooling system is used for cooling fertilizer to make ferilizer pellet stronger. The organic ferilizer pellets come out from pellet machine, its temperature is around 70 C，by momentary cooling,It can cool the down to room terperature immediately, and the hardness of pellets will become more stronger.

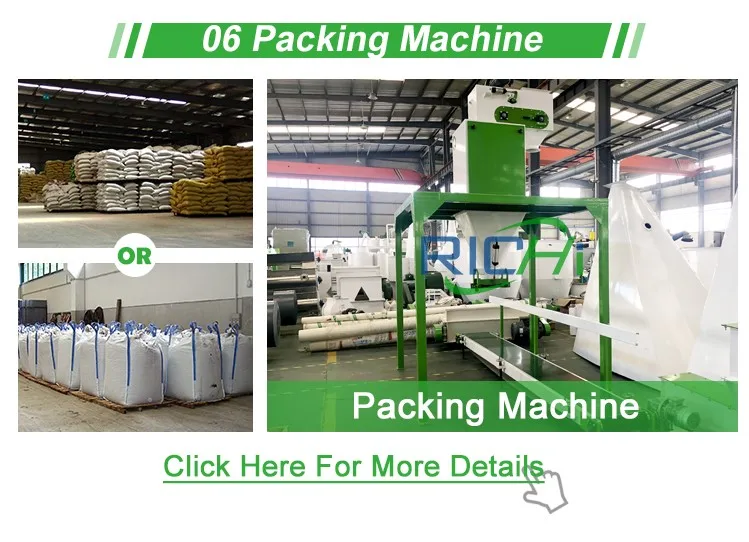

The automatic packing system can used to package the final organic fertilizer pellet. The qualified pellets are packed into plastic bag from 10 kg to 100kg and 1 ton.Then use thermoplastic sealing machine to sew, these can make the pellets dry and water-proof. To extend the organic fertilizer pellets storage time.
Product Parameters
Main Equipment And Technical Parameters Of The Organic Fertilizer Pellet Prodction Line | ||||
Notes: We provide customized pellet production lines with capacities ranging from 0.5T/H to 100T/H. | ||||
Name | Model | Single Power (Kw) | ||
Mixing Machine | SLHY1.0A | 7.5 | ||
Hammer mill | 9FB56*40 | 22 | ||
Latest pellet making machine | MZLH Pellet Mill | 22 | ||
Pellet cooling machine | SKLN11*11 | 0.75 | ||
Screener machine | SFJH150*2c/3c | 5.5 | ||
Automatic packing machine | DCS Serise Packing System | 3/5 | ||
Sewing machine | / | 1.1 | ||
MCC Control Center ;Mimic control panel | / | / | ||
Note: The equipment parameters and the specific details of the production line will depend on different raw materials, capacity and designs. | ||||
Project Cases
Company Profile
Our Advantages
FAQ
Q: What brand is your motor and bearing?
We use German Siemens motors and SKF brand bearings.
Q: Can I use this production line to produce multiple size pellet ?
Yes, our production line is multi-functional, and we can customize the ring die with different size. This way you can easily adjust the size of your pellet.
Q: I know little for pellet production line, how can I choose most suitable machine?
Just tell us your raw materials, your capacity (t/h) and the size of the final pellet product, and we will select the machine for you according to your specific situation.
Q: Our worker can not know how to operation the production line, what should i do?
Our engineers will guide workers on site how to install machines and build workshops. Then our engineers will test run the production line on site and train your workers how to operate it.
Q: Are you a trading company or a manufacturer?
We are a manufacturer, which has more than 26 years of experience in this industry.
Q: In which countries do you have projects?
Our products are exported to more than 109 countries such as America, Canada, Australia, Mexico, England, Uzbekistan, South Africa, Afghanistan, Kenya,Tanzania, Algeria,Morocco, Sudan, Saudi Arabia, Australia, Malaysia, Indonesia, Philippines, etc
Q: Where is your factory? Can I visit it?
Of course, we welcome customers to visit our factory. We are located in Kaifeng City, Henan Province, China. And we have a technology research and development center in Zhengzhou City.
We use German Siemens motors and SKF brand bearings.
Q: Can I use this production line to produce multiple size pellet ?
Yes, our production line is multi-functional, and we can customize the ring die with different size. This way you can easily adjust the size of your pellet.
Q: I know little for pellet production line, how can I choose most suitable machine?
Just tell us your raw materials, your capacity (t/h) and the size of the final pellet product, and we will select the machine for you according to your specific situation.
Q: Our worker can not know how to operation the production line, what should i do?
Our engineers will guide workers on site how to install machines and build workshops. Then our engineers will test run the production line on site and train your workers how to operate it.
Q: Are you a trading company or a manufacturer?
We are a manufacturer, which has more than 26 years of experience in this industry.
Q: In which countries do you have projects?
Our products are exported to more than 109 countries such as America, Canada, Australia, Mexico, England, Uzbekistan, South Africa, Afghanistan, Kenya,Tanzania, Algeria,Morocco, Sudan, Saudi Arabia, Australia, Malaysia, Indonesia, Philippines, etc
Q: Where is your factory? Can I visit it?
Of course, we welcome customers to visit our factory. We are located in Kaifeng City, Henan Province, China. And we have a technology research and development center in Zhengzhou City.
