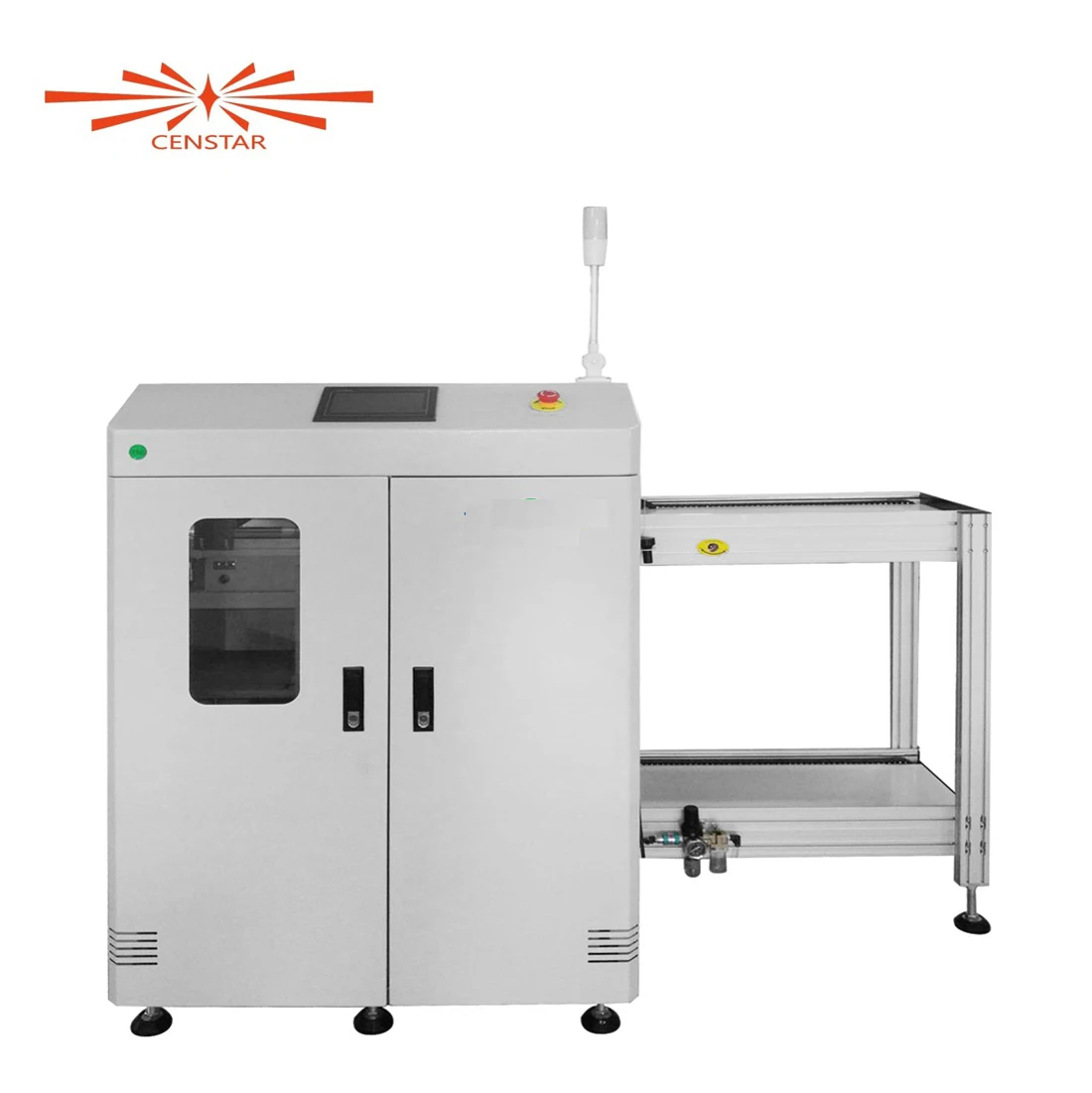

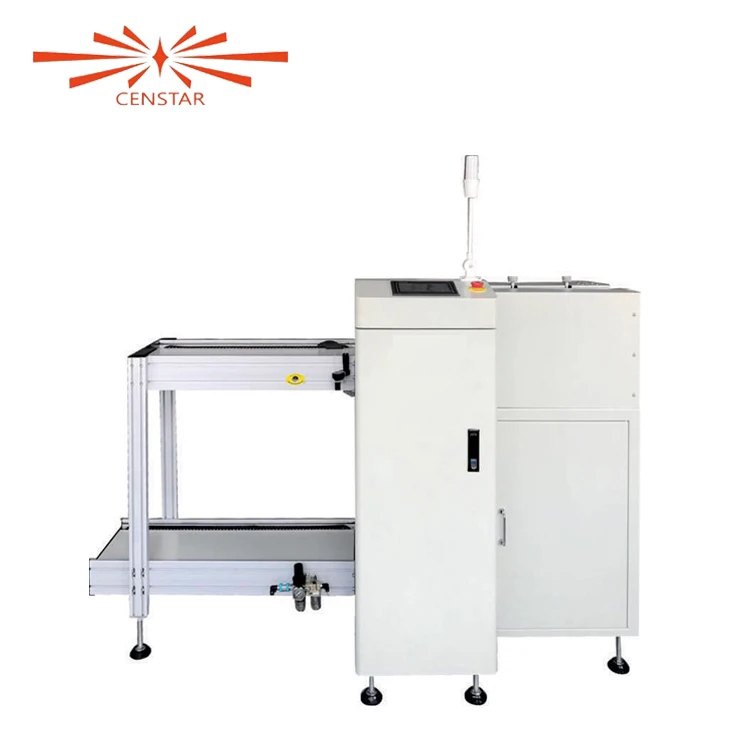

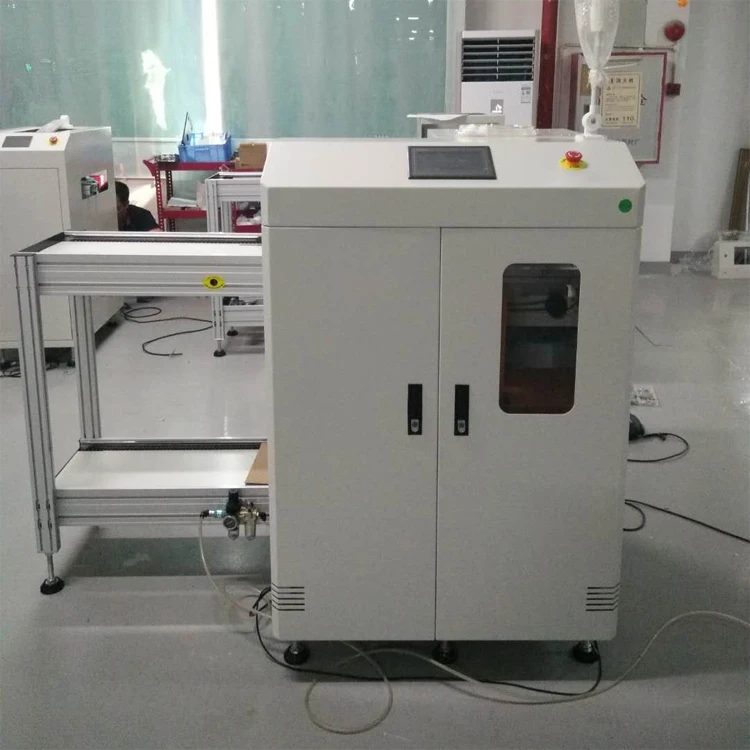

For Smt Production Line Full Automatic Vacuum And Magazine Combination Loader
- Category: >>>
- Supplier: Shenzhen Censtar Technology Co. Ltd.
Share on (1600301166108):
Product Overview
Description
Description

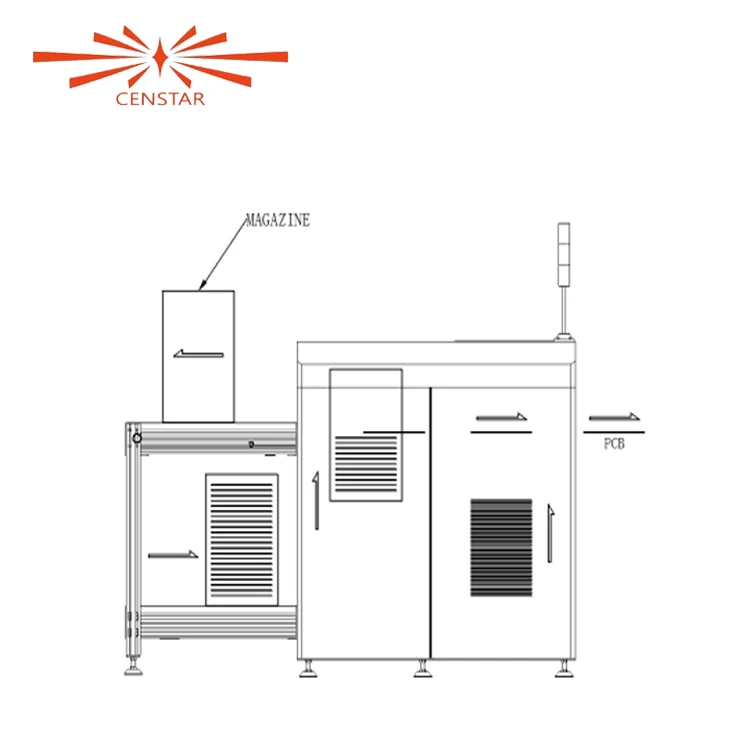

This equipment is used for the automatic loading operation of double-sided PCB boards and PCB light boards on SMT production lines.
Features
1.Applies to the PLC+touch screen controller.
2.Strong ,firm and stable design.
3.Up&down pneumatic clamps to ensure the magazine rack position.
4.Special gas circuit design to ensure no PCB breakage.
5.With SMEMA signal.
2.Strong ,firm and stable design.
3.Up&down pneumatic clamps to ensure the magazine rack position.
4.Special gas circuit design to ensure no PCB breakage.
5.With SMEMA signal.
Technical Parameters | ||||||||
Model | VL-M-TN | VL-L-TN | VL-LL-TN | VL-XL-TN | ||||
Dimension(mm) | 1800*865*1250 | 2220*945*1250 | 2450*1110*1250 | 2450*1250*1250 | ||||
PCB size(mm) | 50*50-320*250 | 50*50-445*330 | 50*50-530*390 | 50*50-530*460 | ||||
Magazine (mm) | 355*320*563 | 460*400*563 | 535*460*563 | 535*530*563 | ||||
PCB capacity | 400 pieces (0.6mm thick circuit board) | |||||||
Magazine | Up: 1: Down: 2 | |||||||
Time feed PCB | Approx. 6 Seconds or specity | |||||||
Mazagine change | Approx. 12 Seconds or specity | |||||||
Indexing pitch | 10. 20. 30. 40mm selectable | |||||||
Power supply | AC 110/220V±10V, 50/60HZ | |||||||
Power | Max 300VA | |||||||
Air prssure | 4-6bar | |||||||
Air consumption | 10itr/min max | |||||||
Transport height | 900±20mm(or customer specified)) | |||||||
PCB direction | L-R or R-L (optional) | |||||||
Weight | 200kg | 240kg | 280kg | 320kg | ||||
