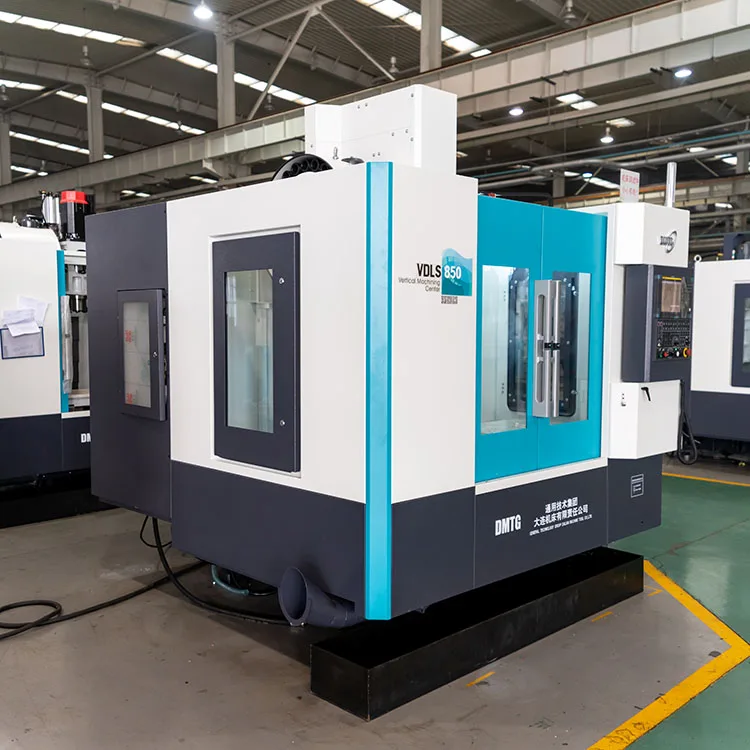

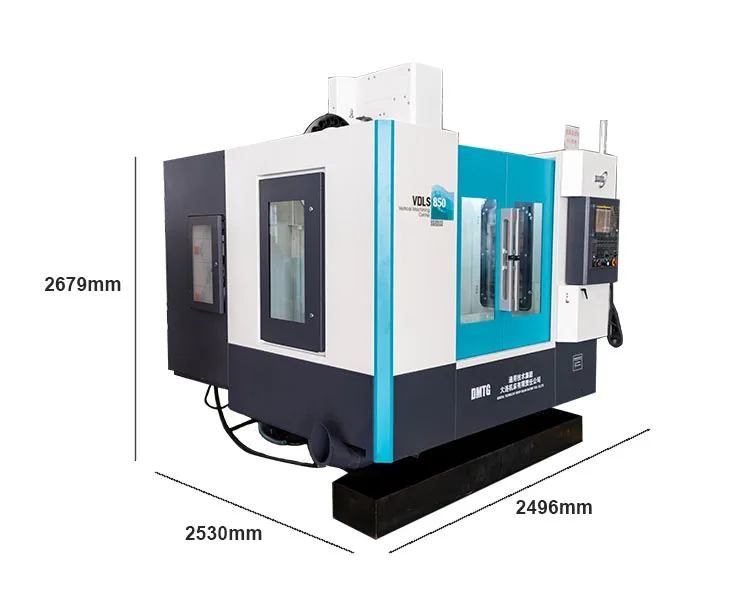

DMTG VDLS850 Dalian Machine Center High Speed VMC Milling Machine CNC VMC Machine Center Vertical Machining Center
- Category: Machine Centre >>>
- Supplier: General Technology Group Dalian Machine Tool Import And Export Co. Ltd.
Share on (1600311653602):
Product Overview
Description

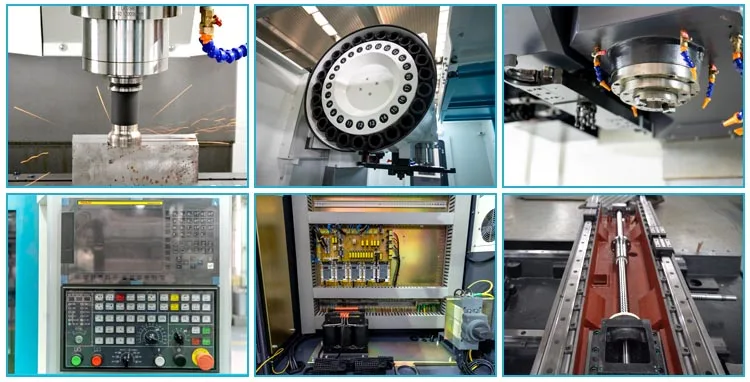

PRODUCT DETAILS

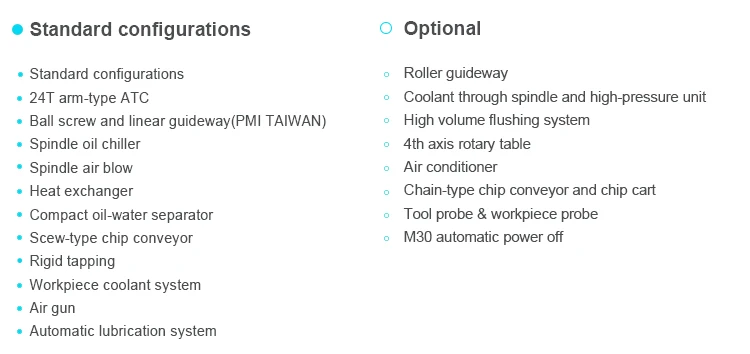

1.Standard configurations
2.24T arm-type ATC
3.Ball screw and linear guideway(PMI TAIWAN)
4.Spindle oil chiller
5.Spindle air blow
6.Heat exchanger
7.Compact oil-water separator
8.Scew-type chip conveyor
9.Rigid tapping
10.Workpiece coolant system
11.Air gun
12.Automatic lubrication system
2.24T arm-type ATC
3.Ball screw and linear guideway(PMI TAIWAN)
4.Spindle oil chiller
5.Spindle air blow
6.Heat exchanger
7.Compact oil-water separator
8.Scew-type chip conveyor
9.Rigid tapping
10.Workpiece coolant system
11.Air gun
12.Automatic lubrication system
Work table size | 1000X500mm |
Max. load | 500kg |
T slots(No.×W×P) | 5X18X100mm |
Distance from spindle center to column | 607mm |
Distance from spindle nose to table | 145-705mm |
Rapid traverse of X/Y/Z-axis | 36/36/30m/min |
Cutting federate | 0-10000mm/min |
X/Y/Z-axis travel | 860/510/560mm |
X/Y/Z-axis travel guide way type | Linear guideway |
Spindle motor power | 7.5/11kw |

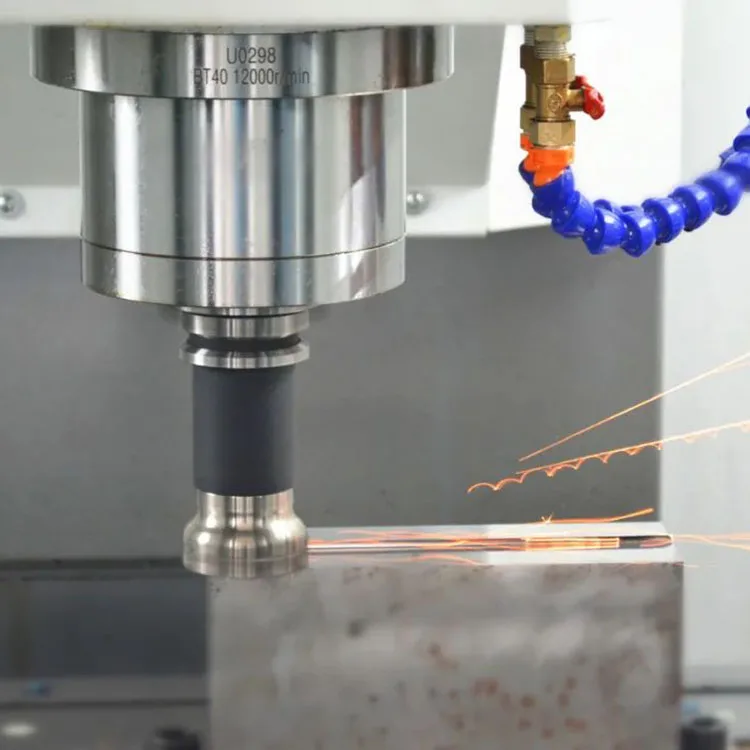

Spindle speed | 12000r/min |

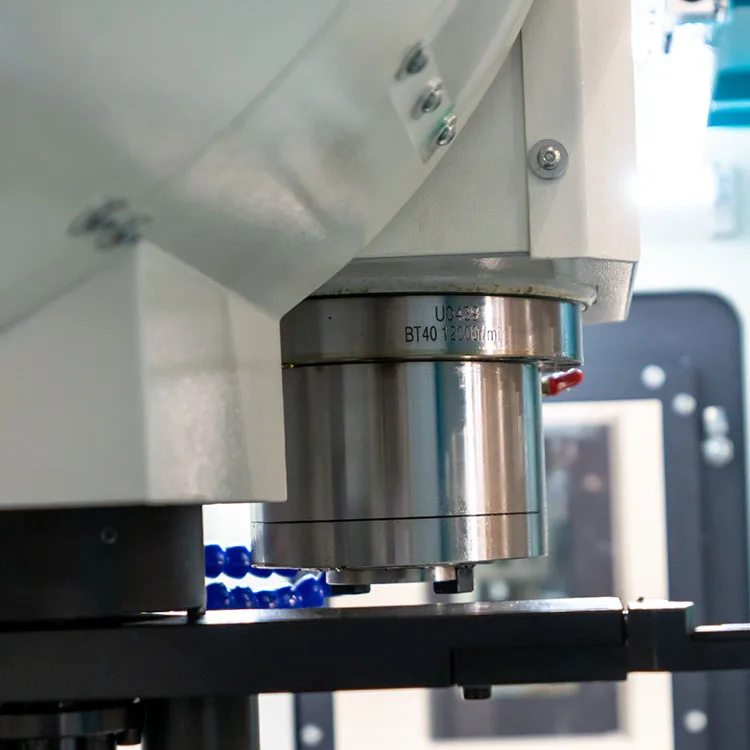

Spindle taper | No.40(7:24) |
X/Y/Z-axis positioning accuracy | 0.008/0.008/0.008mm |
X/Y/Z-axis repeatability accuracy | 0.005/0.005/0.005mm |

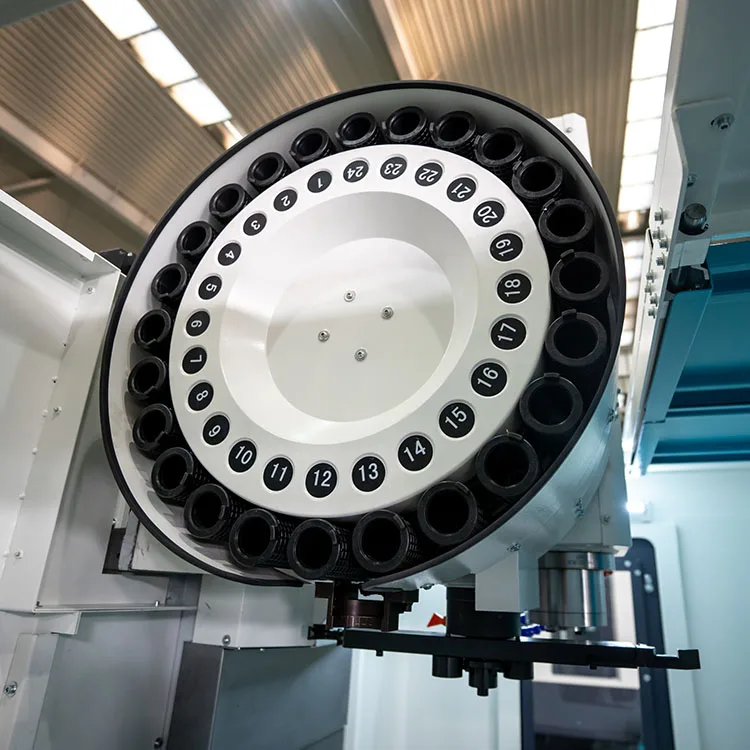

Tool magazine capacity | 24T/Arm type |
Tool shank type | BT40 |
Max. tool weight | 8kg |
Max. tool dia.(w/o adjacent tool) | ø78/155mm |
Tool change time (T-T) | 2.5s |
System | Fanuc/Siemens |

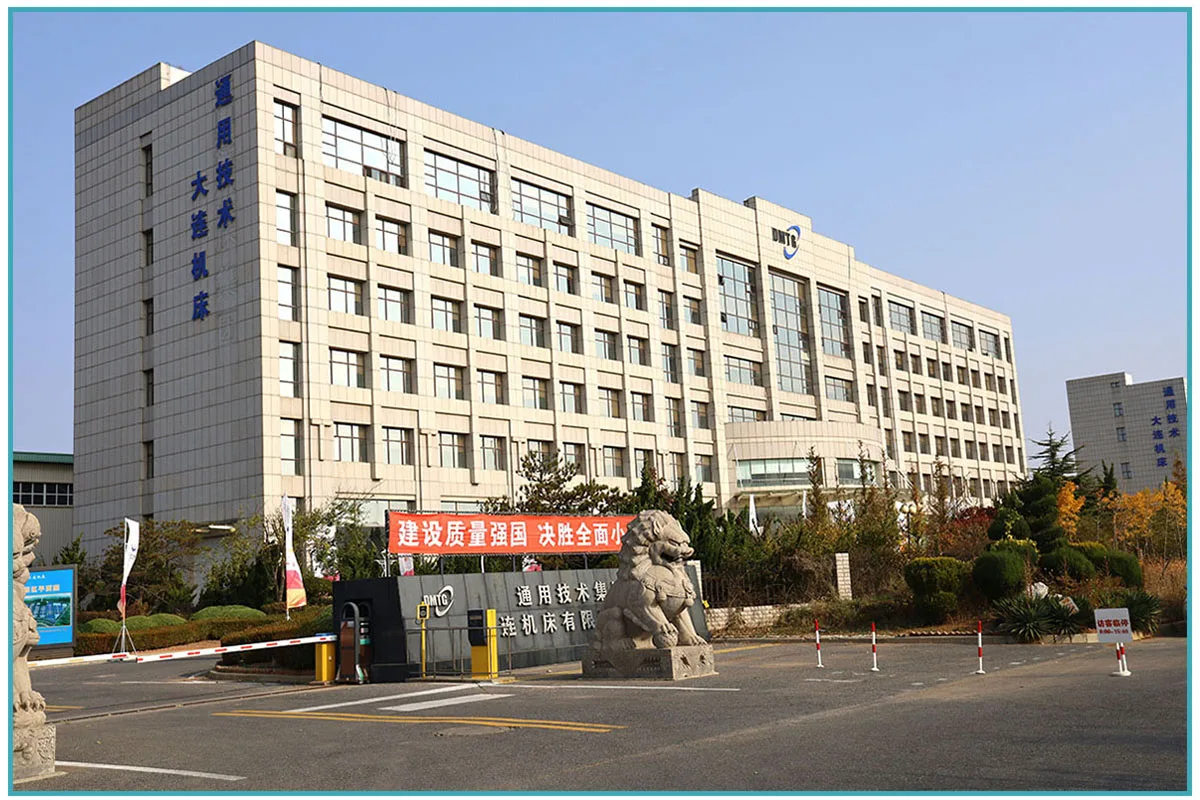

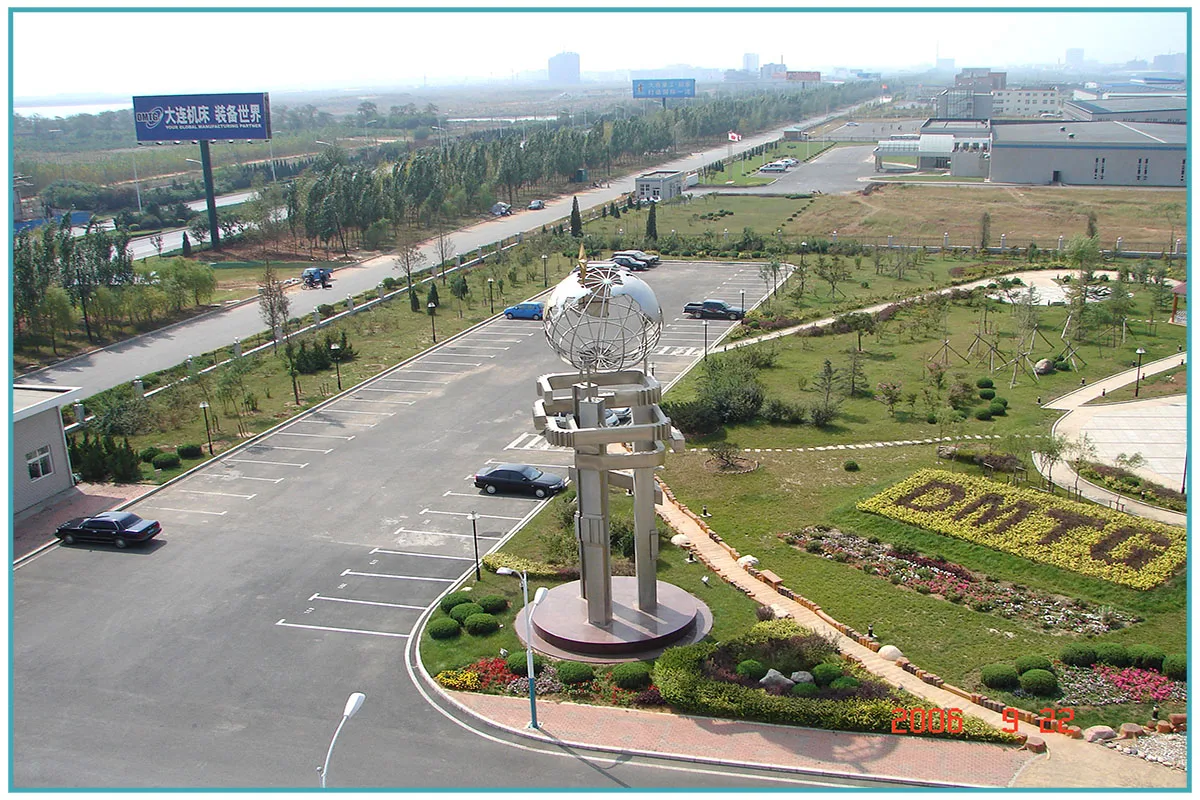

COMPANY PROFILE
EXHIBITION
CUSTOMER

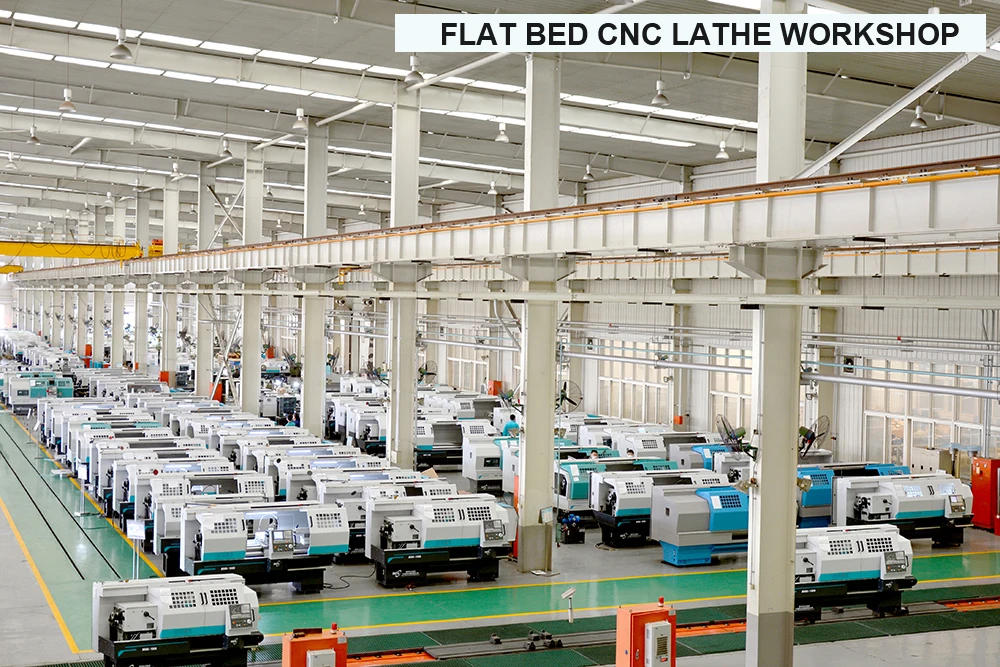

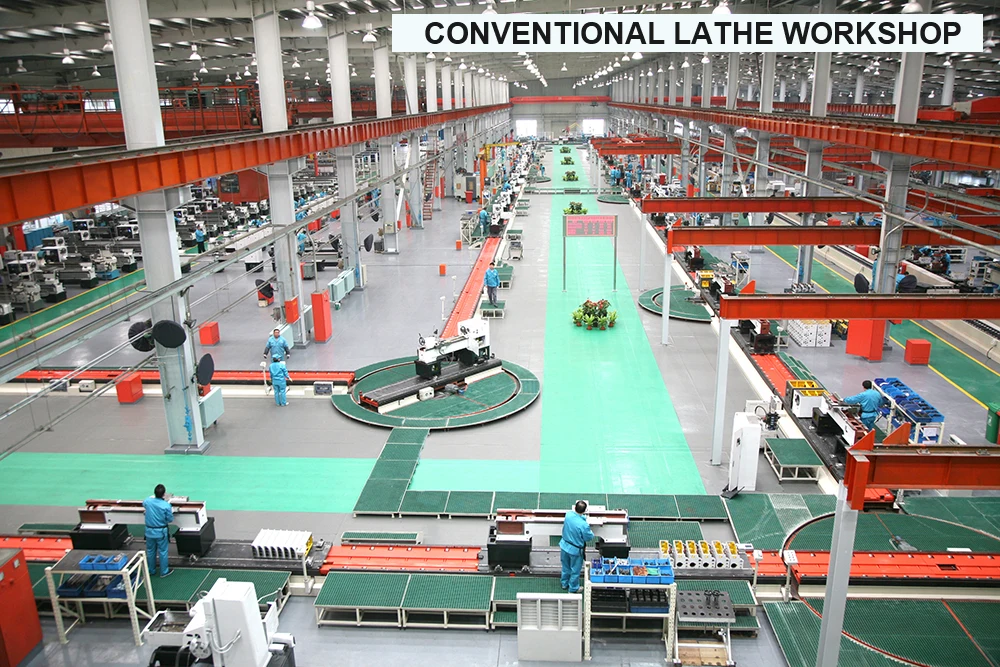

DMTG’s main products are: Conventional lathes, Flat and slant Bed CNC Lathes, Vertical Milling Machines, Vertical Machining Center 5-axis Vertical Machining Centers, Horizontal Machining Centers, Gantry Machining Centers and Automatic lines, etc.
General Technology Group Dalian Machine Tool Co., Ltd. belongs to the central enterprise China General Technology Group, formerly known as DMTG, which was established in 1935. In 1995, the major state-owned machine tool enterprises in Dalian were merged together to be DMTG. Since 2002, it has successively merged three famous machine tool factories, which were Ingersoll Production Systems, Ingersoll CM System from America, and Zimmermann in Germany. Also established eight joint ventures with the company from America, Germany, Japan, Switzerland, Israel, South Korea and other countries. In April. 2019, China General Technology Group strategically reorganized DMTG and established General Technology Group Dalian Machine Tool Co., Ltd.
PACKING&SHIPPING
CERTIFICATIONS
FAQ
1. Is your company a factory or trading company ? |
We are factory and DMTG was founded in 1935. |
2. Can we pay by L/C or others ？ |
Yes ,you can make the payment by T/T , l/C etc. |
3. What is your payment terms ? |
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation. |
4. What is your delivery time ? |
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not. |
5. Do you have CE certificate? |
Yes , we have CE certification, machine quality is guaranteed. |
6. What is the warranty period ? |
The warranty period is general 13 monthes after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. |
7. Can you send the service engineer to our company ? |
When the machine arrive the destination, we timely send service engineers to install machine according to buyer's schedule, the buyer shall bear all expenses. |
