2023 New High Speed Automatic Paper Cup Making Machine
US $5500-$7800
Машина для картонных коробок
- Category: Paper Product Making Machinery >>>
- Supplier: Hebei Xinguang Carton Machinery Manufacture Co. Ltd.
Share on (1600326272147):
Product Overview
Description
ZJ-V5B hydraulic shaftless mill roll stand
★adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others，thelifting of the paper adopts hydraulic drive.
★brake adjustable adopts multipoint braking system.
★every stand matched two sets paper car , and they can paper on the both sides at the same time.

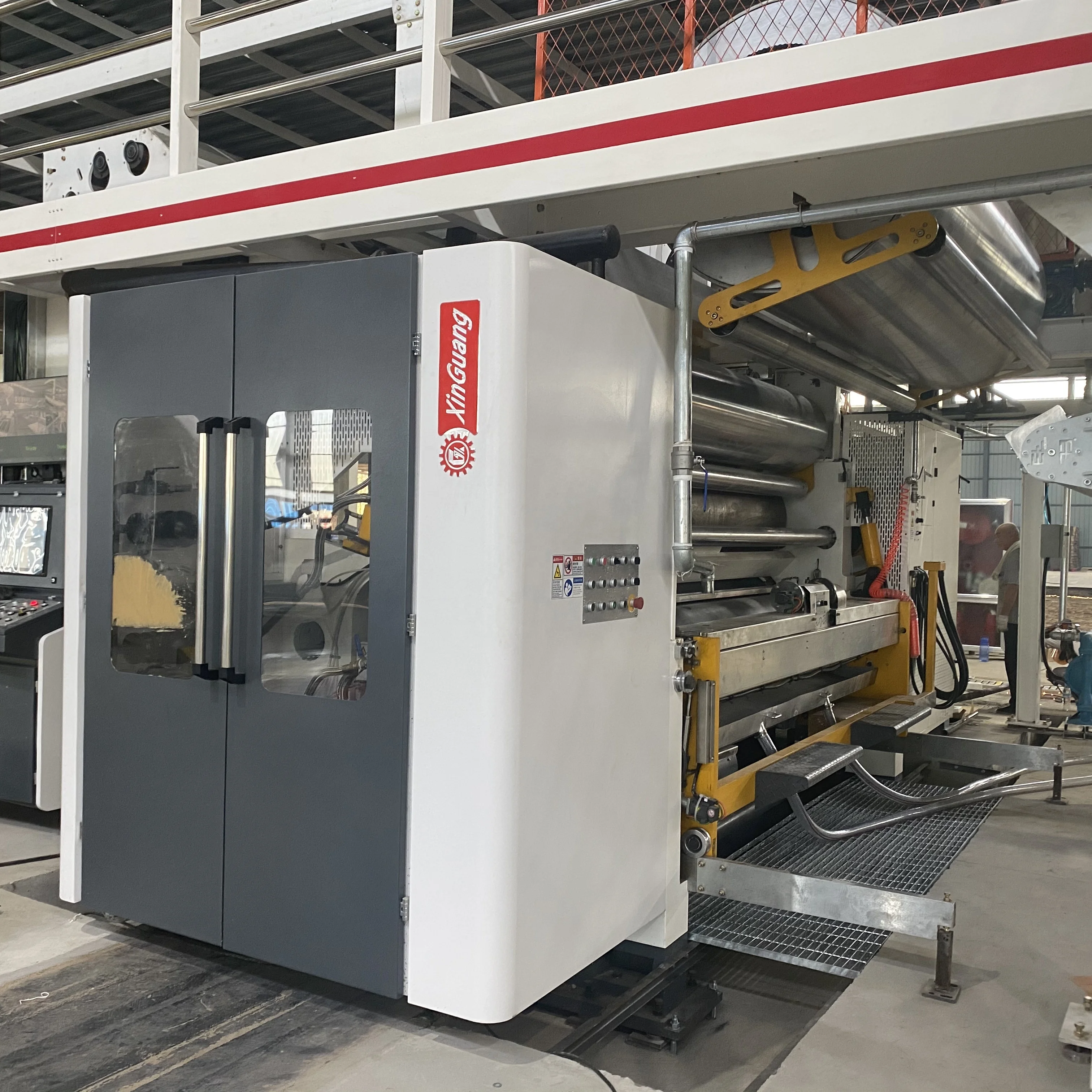

Multi-cassette positive pressure single facer
★using negative pressure design, lower heat consumption, helps the core paper to press evenly and close to the surface of
corrugated roller, make the corrugate molding better, because the pressure evenly, the top of corrugate can glue uniform and
better, make the single corrugated paper have perfect laminating.
★quickly change rollers in 15 minutes, while change corrugated roller with the electric trolley loading,put into the machine，and
air pressure system will lock it,fixed to the machine base，only need a few buttons can complete the replacement quickly and
easily.
★corrugated roller adopt50CRMO high quality alloy steel, dealing with heat,after grinding tungsten carbide surface treatment.
★corrugated roller, pressure roller adopt airbag control system having high stability, having the barometric pressure control
buffering effect at the same time.
★Glue volume control with electric adjustment，rubber septum electric device，the glue system can operate independently when the
motor stops,prevent glue exhausted。
★the moveable type glue unit is convenient to clean and maintain。
★easy operation control system, touch screen operation interface,Drawing with color display operating status, function selection,
fault indication, and parameter settings, etc. can exclude exhibit this machine fully functional, easy to operate, user-friendly.
★built-in pre-conditioner with proportional spraying device, adjustment the core paper temperature and moisture.
★main, vice corrugating and pressure roller bearings are used in high-temperature grease to ensure bearing life running smoothly。
corrugated roller, make the corrugate molding better, because the pressure evenly, the top of corrugate can glue uniform and
better, make the single corrugated paper have perfect laminating.
★quickly change rollers in 15 minutes, while change corrugated roller with the electric trolley loading,put into the machine，and
air pressure system will lock it,fixed to the machine base，only need a few buttons can complete the replacement quickly and
easily.
★corrugated roller adopt50CRMO high quality alloy steel, dealing with heat,after grinding tungsten carbide surface treatment.
★corrugated roller, pressure roller adopt airbag control system having high stability, having the barometric pressure control
buffering effect at the same time.
★Glue volume control with electric adjustment，rubber septum electric device，the glue system can operate independently when the
motor stops,prevent glue exhausted。
★the moveable type glue unit is convenient to clean and maintain。
★easy operation control system, touch screen operation interface,Drawing with color display operating status, function selection,
fault indication, and parameter settings, etc. can exclude exhibit this machine fully functional, easy to operate, user-friendly.
★built-in pre-conditioner with proportional spraying device, adjustment the core paper temperature and moisture.
★main, vice corrugating and pressure roller bearings are used in high-temperature grease to ensure bearing life running smoothly。

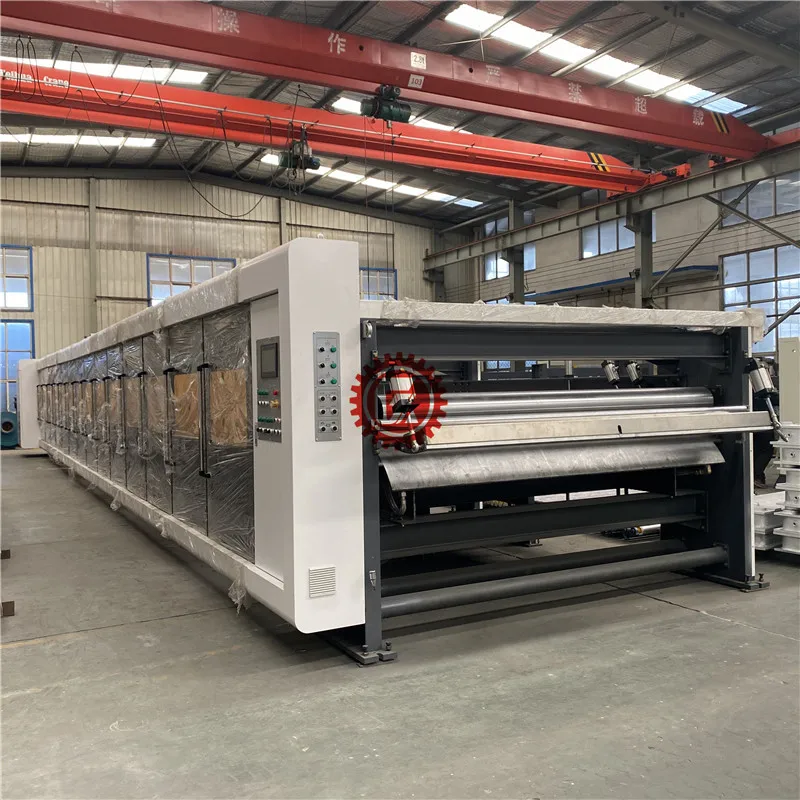

SM-F type double facer
★Heating plate surface by grinding treatment，hot plate width600mm，a total of 16 pieces heating plate,Cooling stereotypes
Department 4 m.
Preheat board is made of contacts board, in accordance with the national standard of pressure container, enclosed the pressure
container certificate and inspection certificate.
★Hot plate using the touch plate design structure. Plate movements using pneumatic spring-type structure.
★On both sides about conveyor belt deviation adjustment adopts automatic adjustment，2 sets of the conveyor belt tensioning
system，one set is manual（fine tuning）、the other is pneumatic adjustment（high speed）。
★Thermal pipe heating plate temperature control points seven sections with temperature display.
★up cotton belt with double cylinder S cotton belt tensioning device。
★bottom cotton belt with s-shaped correction manually tensioning mechanism, structure simple and practical，under with manual
fine-tuning.
★Drive roller coated with attached wear-resistant rubber ，showed a herringbone structure，With a high, ensure smooth cardboard
output.
★Main drive motor for frequency conversion motor，low-speed torque，wide speed range ,reliable, and easy maintenance.
★hot plate internal for partition isolation structure,s-shaped flow of steam，Steam, water separation function significantly
improves the utilization of steam。
Department 4 m.
Preheat board is made of contacts board, in accordance with the national standard of pressure container, enclosed the pressure
container certificate and inspection certificate.
★Hot plate using the touch plate design structure. Plate movements using pneumatic spring-type structure.
★On both sides about conveyor belt deviation adjustment adopts automatic adjustment，2 sets of the conveyor belt tensioning
system，one set is manual（fine tuning）、the other is pneumatic adjustment（high speed）。
★Thermal pipe heating plate temperature control points seven sections with temperature display.
★up cotton belt with double cylinder S cotton belt tensioning device。
★bottom cotton belt with s-shaped correction manually tensioning mechanism, structure simple and practical，under with manual
fine-tuning.
★Drive roller coated with attached wear-resistant rubber ，showed a herringbone structure，With a high, ensure smooth cardboard
output.
★Main drive motor for frequency conversion motor，low-speed torque，wide speed range ,reliable, and easy maintenance.
★hot plate internal for partition isolation structure,s-shaped flow of steam，Steam, water separation function significantly
improves the utilization of steam。
TQ conveyor bridge
★Independent frequency motor lifting mechanism, PVC conveyor belt, a single watt of cardboard into a wavy rule stable。
★All roller surface after grinding hard chrome plated。
★Vacuum adsorption tension control，5-inch suction tube，add regulator valve，air volume stepless adjustable air volume.
★Electric corrective devices II sets，correction baffle double guide column positioning，Screw Driver，positioning fast and accurate
, smooth running。
★All roller surface after grinding hard chrome plated。
★Vacuum adsorption tension control，5-inch suction tube，add regulator valve，air volume stepless adjustable air volume.
★Electric corrective devices II sets，correction baffle double guide column positioning，Screw Driver，positioning fast and accurate
, smooth running。

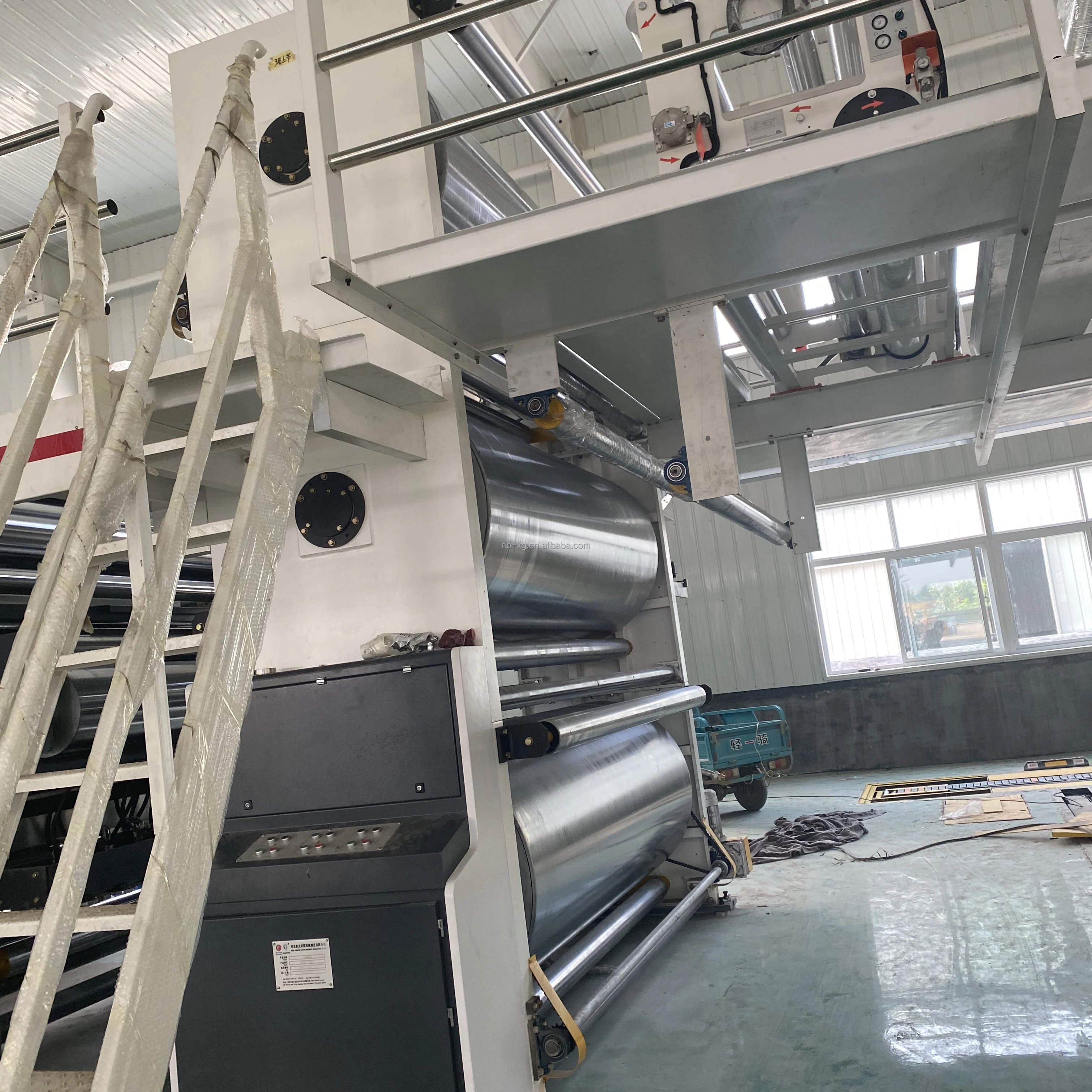

RG-1-900 preheater.
★preheat roller accord the pressure container national standards,and enclose the pressure container certificates and inspection
certificate.
★Each roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durable.
★electromotion adjustment angle, and angle can rotation adjustment the preheat area in the range of 360°.
certificate.
★Each roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durable.
★electromotion adjustment angle, and angle can rotation adjustment the preheat area in the range of 360°.
