semi automatic transformer winding machines cnc automatic coil winding machine

Share on:

Price:$446.00 - $508.00
Price in USD:Details


Product Overview


Product Description

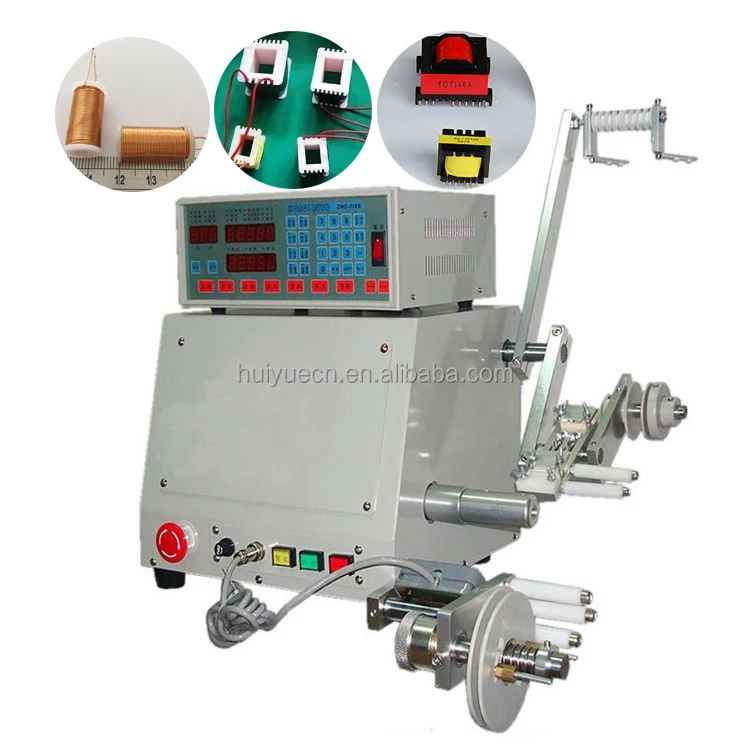

semi automatic transformer winding machines cnc automatic coil winding machine


For a variety of switching power transformers, supplies, Japanese word transformer, inductance coil, relay coil
1, Taiwan controller, brushless DC motor and drive, environmental protection, low noise;
2, multi-functional microcomputer design, data easy to set, turn off to save data, and power-down protection;
3, teaching function design, can be assisted from the starting point and the width of the position setting, the suspension of the editing of winding information;
4, 0 ~ 999 sets of steps to set the capacity, with brushless motor and precision stepper motor, can be easily set forward, reverse, cross slot and sparse winding work;
5, Special cable assembly design, can be placed up to 6 different diameter, with insulating tape station, can be wound, the tape, insulation with a complete: replaceable type fixture or fly fork winding group operating.
6, Unique motor design, the spindle is directly driven by the motor, clean and environmental protection, improve sensor life;
7, low speed high torque, low power, high torque, suitable for winding switching power supply, solenoid valves, relays, general coil, using a wide range.

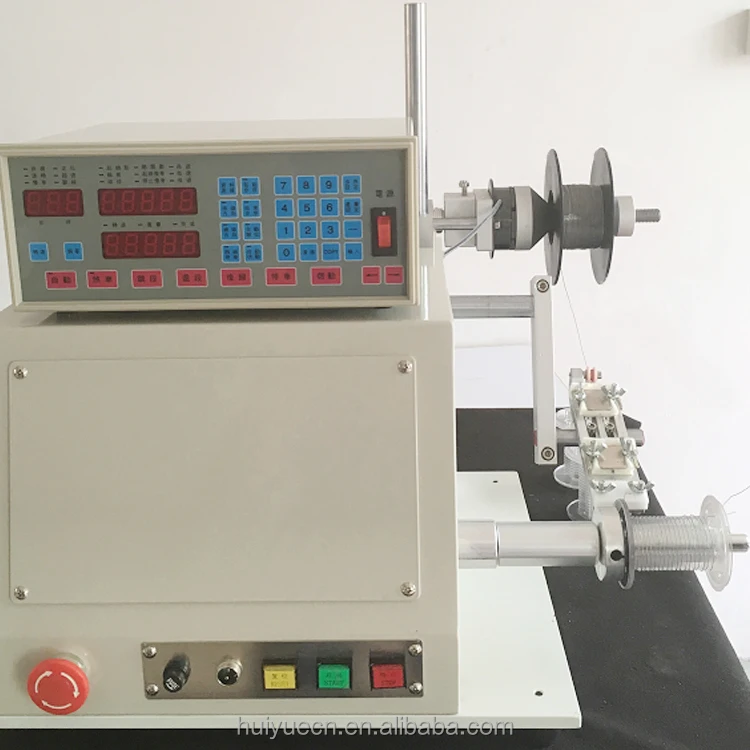

semi automatic transformer winding machines cnc automatic coil winding machine

Applicable diameter

0.03-1.0 mm

Maximum revolutions

6000 rpm

Number of spools1
Spindle motor

DC brushless 420W

Winding width

120 mm

Cable motor

9V Stepping Motor

Cable width

140 mm

Can set the diameter


Machine Size (mm)

L450 * W320 * H600

Machine weight




Packaging & Shipping



Wooden packing

Our Services

24 hour online technical support and 100% quality warranty for 12 months except consumable parts.


Our vision : created a century brand success for centuries

Our mission : to promote the progress and development of the most cost-effective automation technology

Our values : customer first, teamwork, loyalty, dedication, passion, dedication

Our business purpose : to satisfy customers, employees, businesses of both material and spiritual well-being

Our quality policy : quality is life, progress endless; service is fundamental, innovation to win

Our commitment : no excuses

Our two style : serious, fast

Our three thanksgiving : thanksgiving customers to create my performance,thanksgiving my career platform company, thanksgiving working with my colleagues




Dongguan Huiyue Automation Equipment Co., Ltd. FAQ:


Q: What is the power supply of the machine?
A: The standard power supply in china is 220v 50Hz. We also can customized accordingly.
Q: Our required parameter is not standard,can made to order?
A: Our machines can made to order according to customer’s requirement.
Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, etc
Q: What is the payment term?
A: T/T , L/C.
Q: What is the delivery time?
A: Normally the delivery time of the machine is 4-5 working days after receive payment.
Q: What is the warranty period of the machine?
A: The warranty period is one year.Lifetime Maintenance
