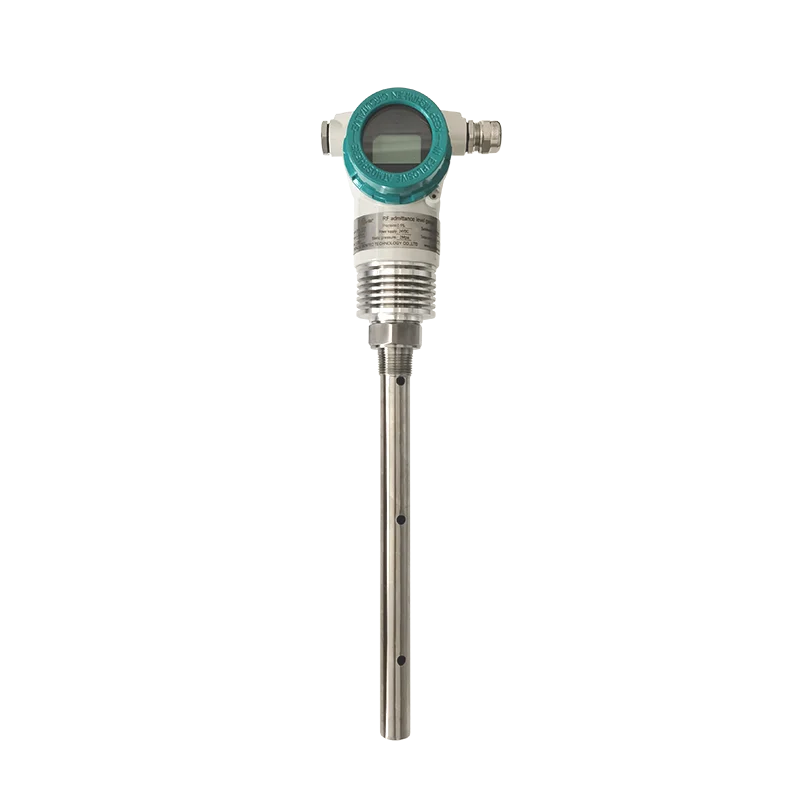

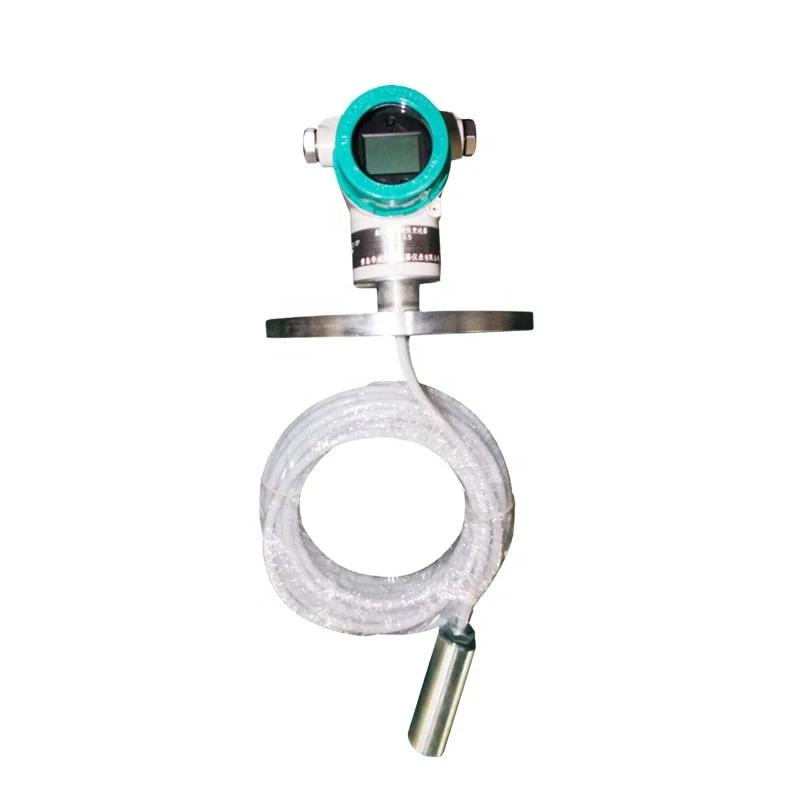

Fuel tank level gauge capacitive liquid level sensor/tank level sensor

Product Overview

Description

Fuel tank level gauge capacitive liquid level sensor/tank level sensor

Rf Radio Frequency Admittance Capacitance Level Gauge Meter  For Water Oil Fuel Tank

Capacitance level gauge parameter table
model	APX603
Measuring range	200MM~10m
measurement accuracy	± 0.05
Operating temperature range	-20-260℃
Working pressure	2mpa
Sensor material	304 stainless steel sprayed PTFE
Material of connecting rod and flange	304 stainless steel sprayed PTFE
Power supply	24VDC,≥50 mA
Analog signal output	2-wire system/4 -20 Ma
Process connection	M27*2
Protection level	IP65
Electrical Interface	M20*1.5
shell	Aluminum alloy
length	1M





The electronic circuit of the product adopts anti-adhesion circuit, which can detect real objects and remove the influence of false object level signals stuck and hung around the probe. The working principle is based on radio frequency (R F) capacitance technology. This product can detect any process materials, such as refined oil, gasoline, conductive mud, etc.

1. Strong reliability: Since the magnetostrictive level gauge adopts the waveguide principle, there is no mechanical movable part, so there is no friction and no wear. The whole transducer is enclosed in a stainless steel tube and has no contact with the measuring medium. The sensor works reliably and has a long life.
2. High accuracy: Because the magnetostrictive level gauge works with waveguide pulses, the measured displacement is determined by measuring the time of the initial pulse and the end of the pulse during work, so the measurement accuracy is high, and the resolution is better than 0.01% FS. It is an accuracy that is difficult to achieve with other sensors.
3. Good safety: The magnetostrictive level gauge has high explosion-proof performance, intrinsically safe explosion-proof, safe use, and is especially suitable for the measurement of chemical raw materials and flammable liquids. There is no need to open the tank lid during measurement, to avoid the insecurity of manual measurement.
4. Magnetostrictive level gauge is easy to install and simple to maintain: Magnetostrictive level gauges are generally installed through the existing nozzles on the top of the tank, and are especially suitable for the installation of underground storage tanks and tanks that have already been put into operation. The process does not affect normal production.
5. Facilitate system automation: the secondary instrument of the magnetostrictive level gauge adopts standard output signals, which is convenient for the microcomputer to process the signals, and it is easy to realize networking work and improve the automation degree of the entire measurement system.

 Workshop production work





  we promise:
1. Ensure that it is the manufacturer of the tuning fork density meter
2. Technical support: 24-hour technical consultation
3. Guarantee product quality, free maintenance or replacement within 12 months
4. Product lifetime maintenance
5. Non-standard customization, can be ordered according to customer needs
6. Standard products can be shipped within 2 days
7. Trading companies are welcome, OEM products are available
8. Larger quantity is more favorable
9. You can visit the factory and video tracking at any time
