Abrasive Belt Metal Deburring Machine 1300mm for SS, CS, AL
Abrasive Belt Metal Deburring Machine 1300mm for SS, CS, AL
Abrasive Belt Metal Deburring Machine 1300mm for SS, CS, AL
Abrasive Belt Metal Deburring Machine 1300mm for SS, CS, AL
Abrasive Belt Metal Deburring Machine 1300mm for SS, CS, AL
Abrasive Belt Metal Deburring Machine 1300mm for SS, CS, AL
Abrasive Belt Metal Deburring Machine 1300mm for SS, CS, AL

Abrasive Belt Metal Deburring Machine 1300mm for SS, CS, AL

Share on (1600329645968):


Price:$50,000.00

Quantity:


Product Overview

Description



PRODUCT SPECIFICATIONS


1
Working Width
1300mm
2
Working Thickness
0.5-80mm
3
Feed Speed
5-12m/min
4
Min. size of workpiece
30*30(vacuum table)
5
Machine dimension
2450*1850*2200mm
6
Working type
belt + roller


PRODUCT CONFIGURATION




Products Description


Grinding process

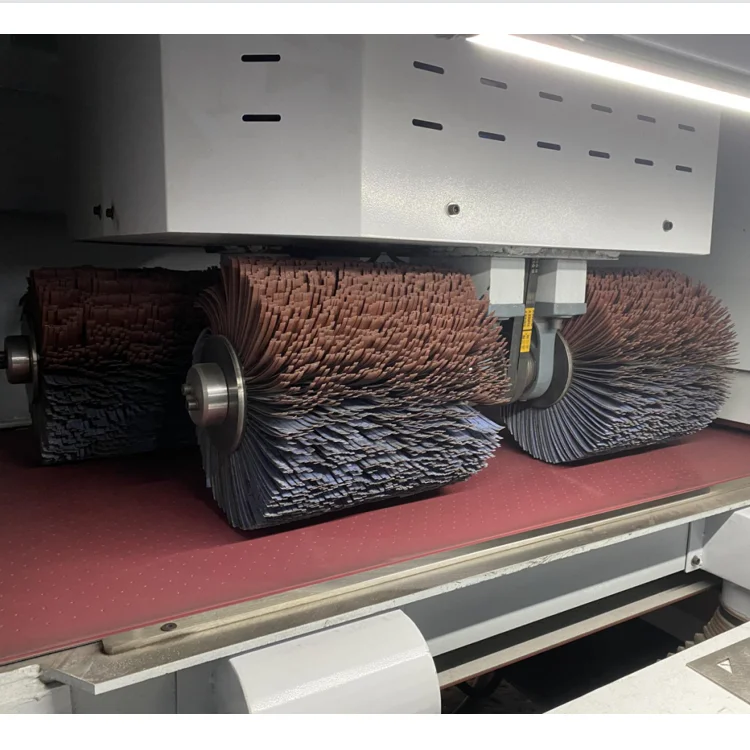

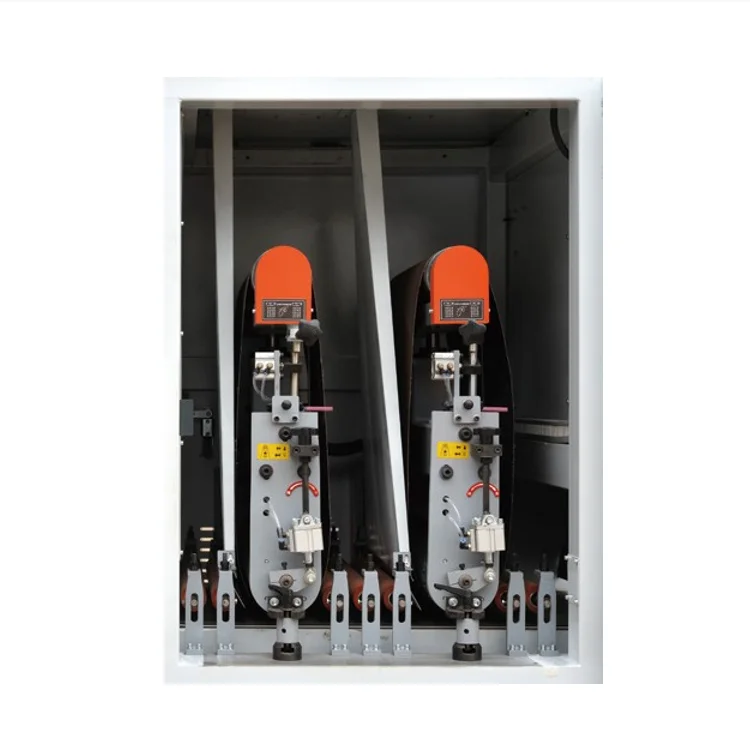

• Combination of double wide sand belt and brush rollers

Conveying Mode
• Turbine vacuum adsorption, Conveying by high damping and wear resistant rubber belt (Optional permanent magnet)

Application

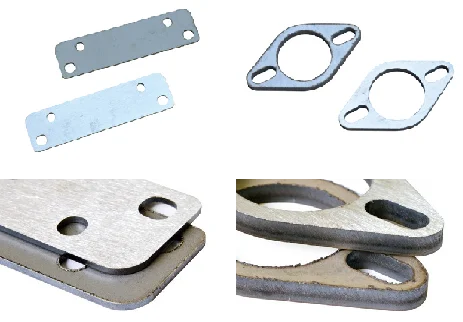

• Slag, hard burr produced by laser, flame, plasma and other hot-working processes
• Burr, sharp edge of NCT, die stamping, cutting, etc.

Applicable Material
• Stainless steel,aluminium,iron,copper,etc


Our Advantages


• Remove large slag and burr, remove oxide scale; surface wire drawing
• Chamfer of outside and inside profile more uniform
• Strong adsorptive force, Satisfy smaller parts
• Automatic compensation for abrasive material
• process parameters memory
• Adsorption cavity automatic cleaning
• Intelligent awareness protect




Application Industry
