6.5hp 10 Inch Truck Forestry Portable Self Propelled Crawler Wheels Mobile Diesel Drum Rotor Trailer Carbide Waste Wood Chipper
- Category: Wood Crusher >>>
- Supplier: Henan,Shunzhi,Machinery,Co.,Ltd.
Share on:
Product Overview
Description

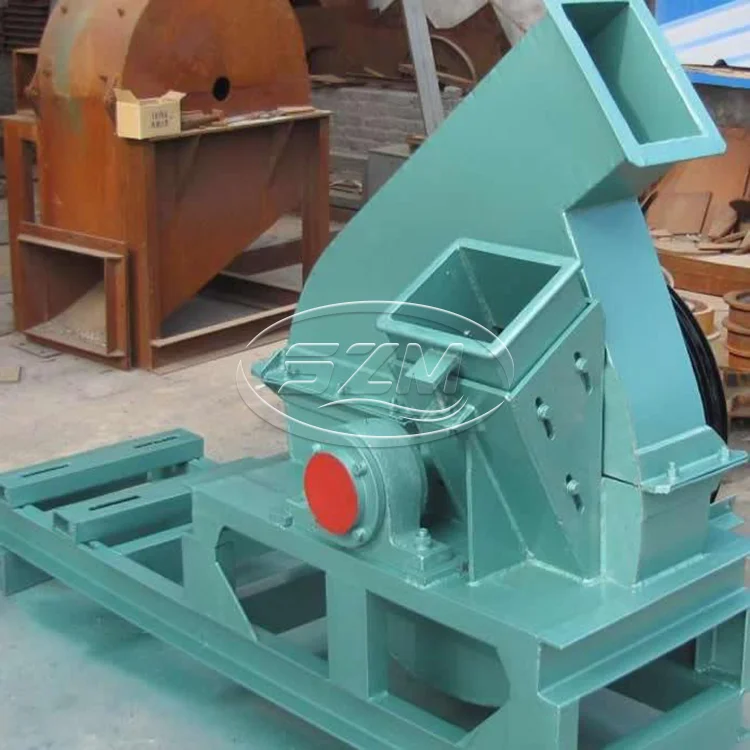

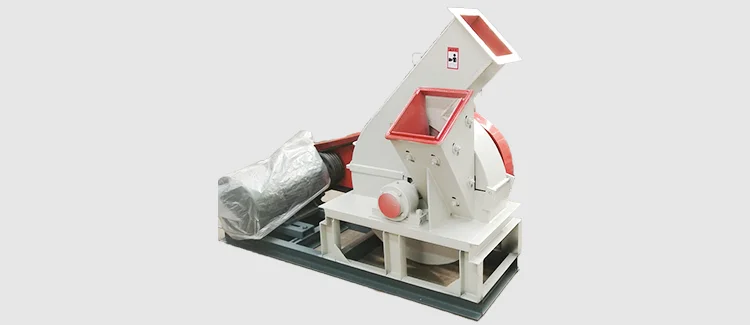

Wood chipper
Wood chipper is a series of special equipment for wood crushing invented after years of research and design according to the needs of China's industrial production. Due to the advantages of reasonable design, compact structure, durability and high production efficiency, after popularization and use, the effect is good. The whole set of equipment is driven by only one motor, with low noise, simple structure, compact layout, low price, stable operation, low energy consumption, high output, good quality of sawdust products and low processing cost.
Customers can be equipped with electric motors or diesel engines according to actual conditions.
Can provide customers with motor voltage modification services to adapt to local voltages.
Wood chipper is a new type of woodworking machinery and equipment that is ideal for pre-production of wood series. The components of the wood shredder are mainly composed of a shell, a bearing, a screen, a transmission wheel, and a trough frame. All materials are cast from manganese steel.
The wood shredder is composed of a body, a middle body and a lower body. The middle body is equipped with a triple stator ring, a crushing cutter and a fineness analyzer. The main machine adopts alloy cutter head. It has a high degree of wear resistance, which also improves production. With coarse crushing, fine crushing, and centrifugal crushing, the motor drives the rotor of the crusher to run at high speed, so that the machine generates high-speed airflow to produce high-strength impact force, compression force, and cutting force on the crushed materials, and achieves unique crushing functions.
The wood crusher is suitable for the crushing of the following materials: bamboo wood flour, nut shells, Chinese herbal medicine, bark, leaves, wheat bran, konjac, sap, rice husk, corn cob, straw, starch, grains, shrimp skin, fish meal, Shells, seaweed, dehydrated vegetables, hawthorn, dried ginger, garlic slices, pumpkin powder, seasonings, jujubes, paper, circuit boards, plastics, chemical raw materials, marine products, seasonings, feed, mica, graphite, bentonite, perlite, Distiller's grains, furfural, cakes, charcoal, activated carbon, cellulose, potato residue, tea, hair, soybean meal, cotton, refined cotton, cowhide, sheepskin, plant roots, stems, leaves, flowers, fruits, various edible fungi, etc. Difficulty material processing.
model | YH-600 | YH-700 | YH-800 | YH-1000 | YH-1200 | YH-1410 |
Diameter of cutter head (mm) | 590 | 690 | 790 | 990 | 1190 | 1380 |
Number of blades () | 4 | 4 | 4 | 4 | 4-6 | 4-6 |
Blade size (mm) | 150*80*10 | 180*80*0 | 230*90*10 | 260*90*10 | 280*90*10 | 330*90*10 |
Inlet size (mm) | 180*200 | 200*220 | 220*260 | 280*320 | 330*300 | 450*450 |
Speed (r/min) | 680 | 650 | 650 | 600 | 550 | 500 |
Output (kg) | 1000-1500 | 2000-2500 | 2500-3000 | 3000-4000 | 4000-5000 | 6000-8000 |
Motor (kw) | 11-15 | 18.5-22 | 30-37 | 45-75 | 75-110 | 132 |
Diesel engine power (HP) | Single cylinder15-18 | Single cylinder22-35 | 4100（Supercharge） | 4108（Supercharge） | 6105（Supercharge） | 6126（Supercharge） |
Pre-sale Service:
1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician;
5.Free CAD design: if you can provide the material, your aim capacity and your factory information, we can make a free CAD design for you.
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipment;
4.Dispatching engineers to install and debug equipment;
5.Training the first-line operators on site;
6.Regularly visit clients to solve production problems Providing life-long maintenance service
7.Providing technical exchanging.s.
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician;
5.Free CAD design: if you can provide the material, your aim capacity and your factory information, we can make a free CAD design for you.
After-sales Service:
1.Highly inspecting equipment in every working procedure, quality comes first;2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipment;
4.Dispatching engineers to install and debug equipment;
5.Training the first-line operators on site;
6.Regularly visit clients to solve production problems Providing life-long maintenance service
7.Providing technical exchanging.s.
Q1. Are you factory or trade company?
A1. We are manufacturer, we also supply trade service.Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good reputation.Our price is 3%-5% lower than the average market price.
Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.
Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
