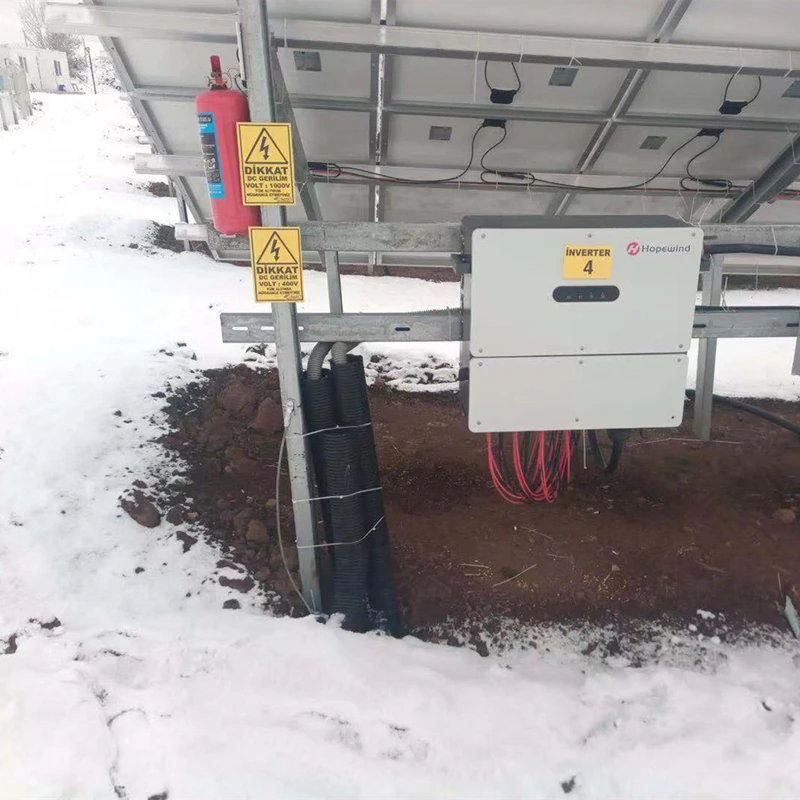

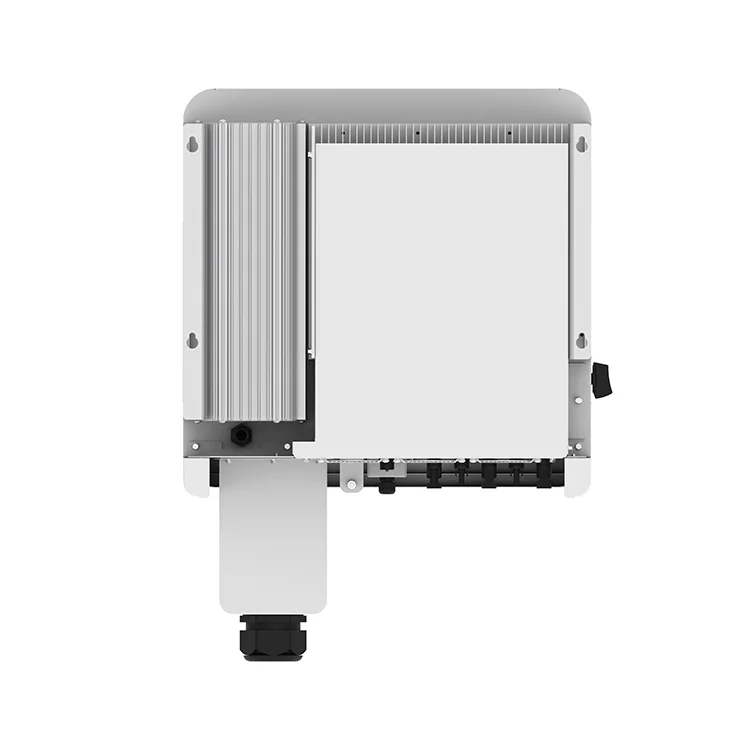

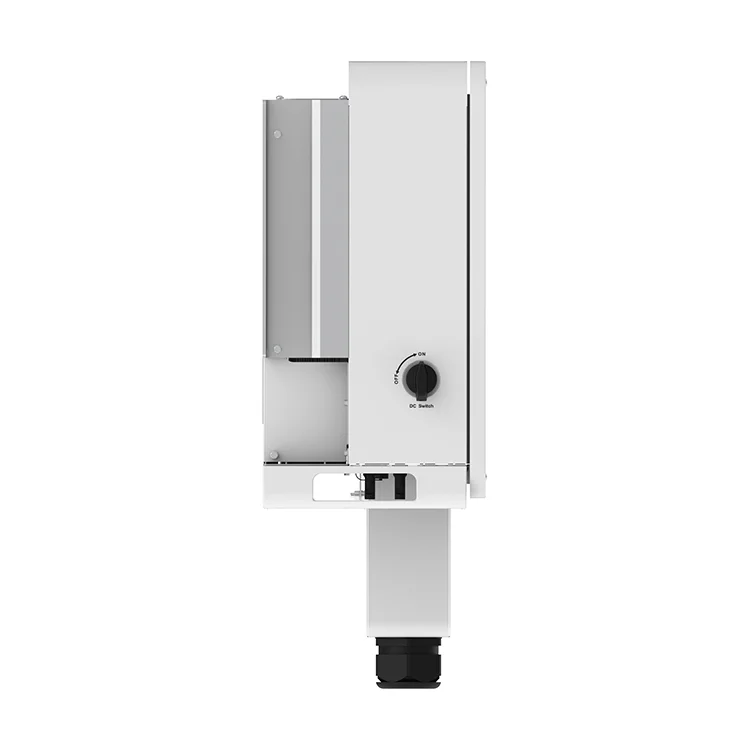

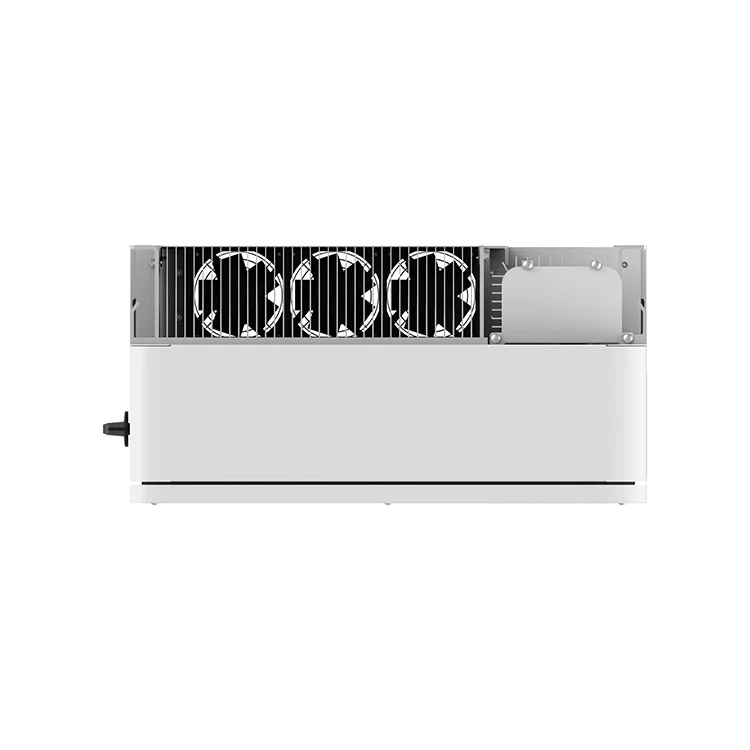

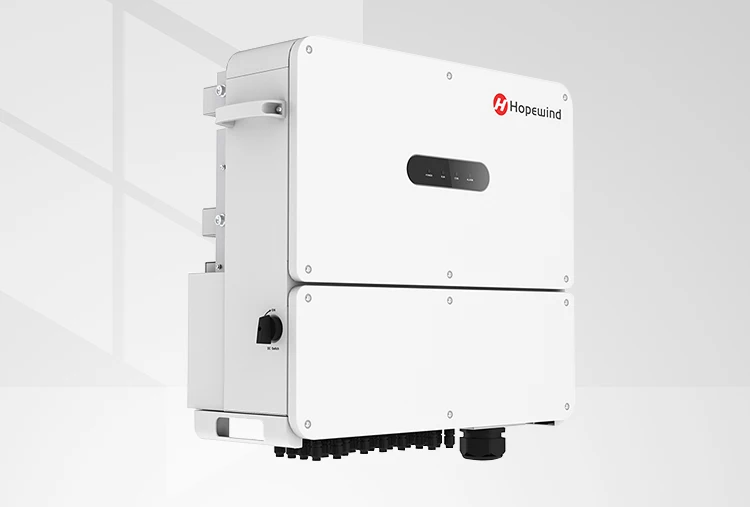

Ongrid PV Inverter 36KW 40KW 50KW 60KW 70KW 75KW 3 Phase DC to AC MPPT Grid Tie Solar Inverter Without Battery
- Category: Solar Energy Products >>>
- Supplier: Shenzhen Hopwin Innovation Technology Co. Ltd
Share on (1600338445290):
Product Overview
Description
Products Description
Technical Parameters
Model | hopeSun 36KTL | hopeSun 40KTL | hopeSun 50KTL | hopeSun 60KTL | hopeSun 70KTL | hopeSun 75KTL | ||||||
DC Input | Max. DC Voltage | 1100V | ||||||||||
MPPT Voltage Range | 250V-1000V | |||||||||||
Max. Input Current of Each MPPT | 26A | 39A | ||||||||||
Number of DC Inputs | 8 | 9 | 12 | |||||||||
MPPT Number | 4 | 3 | 4 | |||||||||
AC Output | Rated Output Power | 36KW | 40kw | 50kw | 60kw | 70KW | 75KW | |||||
Max. Active Power(cosθ=1) | 39.6KW | 44kw | 55kw | 66kw | 77KW | 82.5KW | ||||||
Rated Output Voltage | 400V (Three Phase) | |||||||||||
Operating Voltage Range | 400V±20% | |||||||||||
Rated Output Current | 52.0A | 57.7A | 72.2A | 86.5A | 101A | 108.2A | ||||||
Max. Output Current | 57.2A | 63.5A | 79.4A | 95.3A | 111A | 119A | ||||||
Rated Grid Frequency | 50Hz/60Hz | |||||||||||
Power Factor | 0.8(Leading)~0.8(Lagging) | |||||||||||
THD | ＜3% | |||||||||||
System Parameters | Max. Efficiency | 98.97% | 98.95% | 99.03% | 98.85% | 99.00% | 99.02% | |||||
European Efficiency | 98.45% | 98.51% | 98.51% | |||||||||
AC/DC SPD | Support | |||||||||||
PV String Fault Detection | Support | |||||||||||
RCD | Support | |||||||||||
AC Overcurrent Protection | Support | |||||||||||
Cooling System | Smart Air Cooling | |||||||||||
Operating Temperature | —40℃ ~ 60℃ | |||||||||||
Protection Level | IP65 | |||||||||||
Standby Power Consumption | ＜1W | |||||||||||

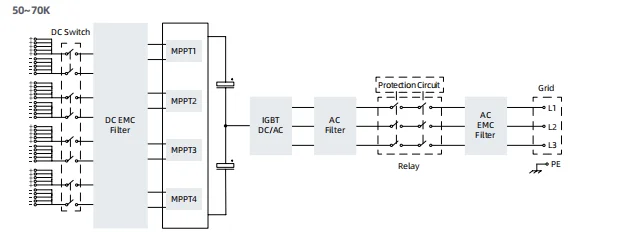

Topology Structure | Transformerless | |||||||||||
Operating Altitude | 5000m (Derating above 4000m) | |||||||||||
Display | LED+APP | |||||||||||
Communication | RS485 / WiFI / GPRS | |||||||||||
DC Terminator | MC4 | |||||||||||
AC Terminator | OT/DT (MAX 50mm²） | OT/DT (MAX 95mm²） | ||||||||||
Certification | IEC62109 / IEC61000 / IEC62116 / IEC61727 / EN50549 / CQC / CGC | |||||||||||
Mechanical Parameters | Dimensions(W*H*D) | 705*650*283mm | ||||||||||
Weight | ＜65kg | ＜75kg | ||||||||||
