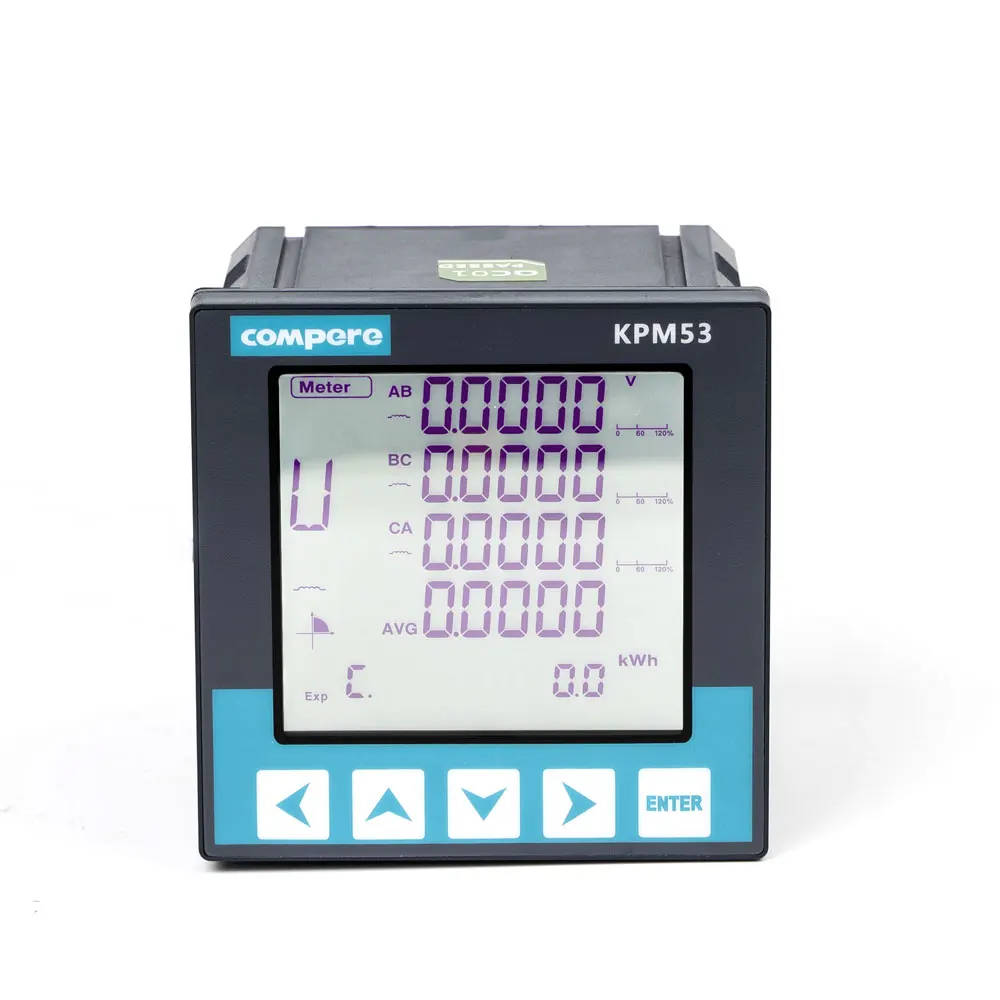

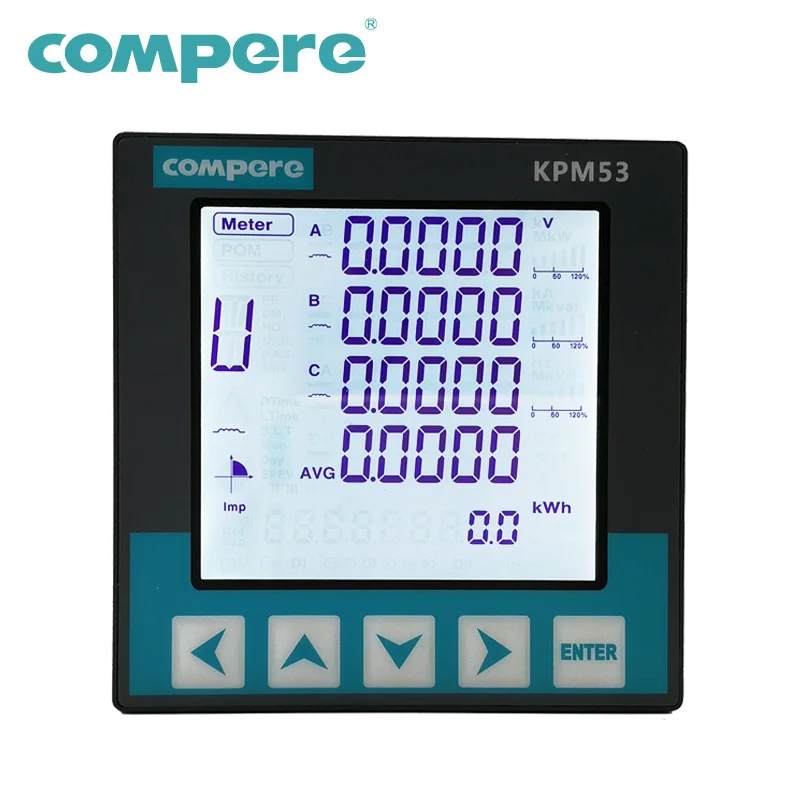

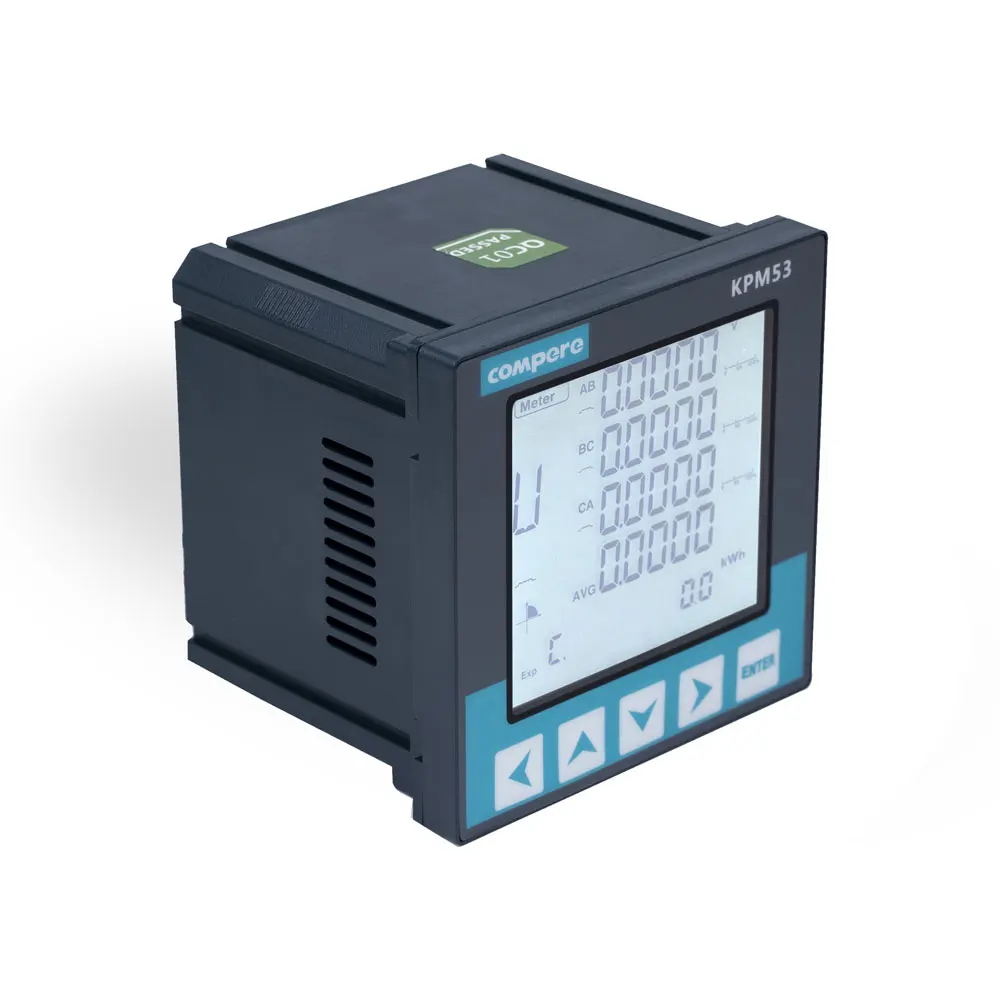

Панельный Цифровой Измерительный Прибор Многофункциональный анализатор качества электроэнергии с 3 х фазным измерителем мощности rs485 (1600343462227)

Share on (1600343462227):


Price:70,00 $ - 75,00 $
Price in USD:Details

Quantity:


Product Overview

Description



Product Overview

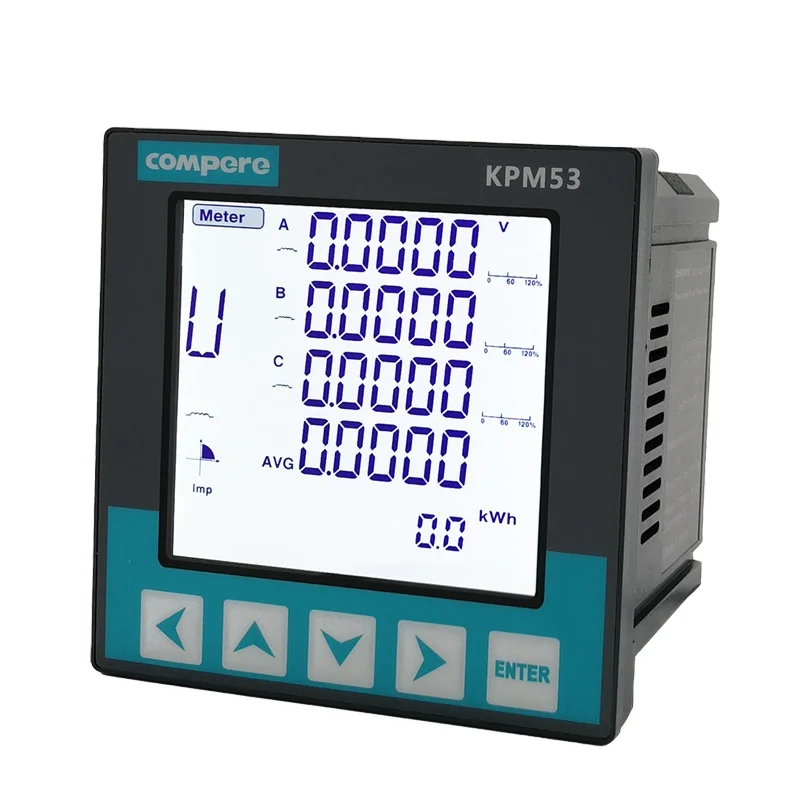

Digital panel meter multifunction power analyzer 3 phase power meter rs485
KPM53 series 3 phase power meter rs485 is with accurate measurement of power parameters,the instrument uses advanced ARM processor and digital signal processing technology designed from the set of three-phase electrical parameters measurement,display, power statistics,power quality analysis,digital input/Output and network communications in one;with high precision,strong isolation,stable performance,anti-interference ability and a little; the instrument also has a very strong expansion capabilities,such as monitoring of external switching action,4-20mA analog output,but also The network management of the instrument can be realized through RS-485/Modbus communication protocol.






FEATURES AT A GLANCE


1.Alternative analog pointer table.
2.Display and control of electrical parameters in mid-low voltage distribution System.
3.Collect energy consumption data that cost center analysis needs.
4.Green building or DC.

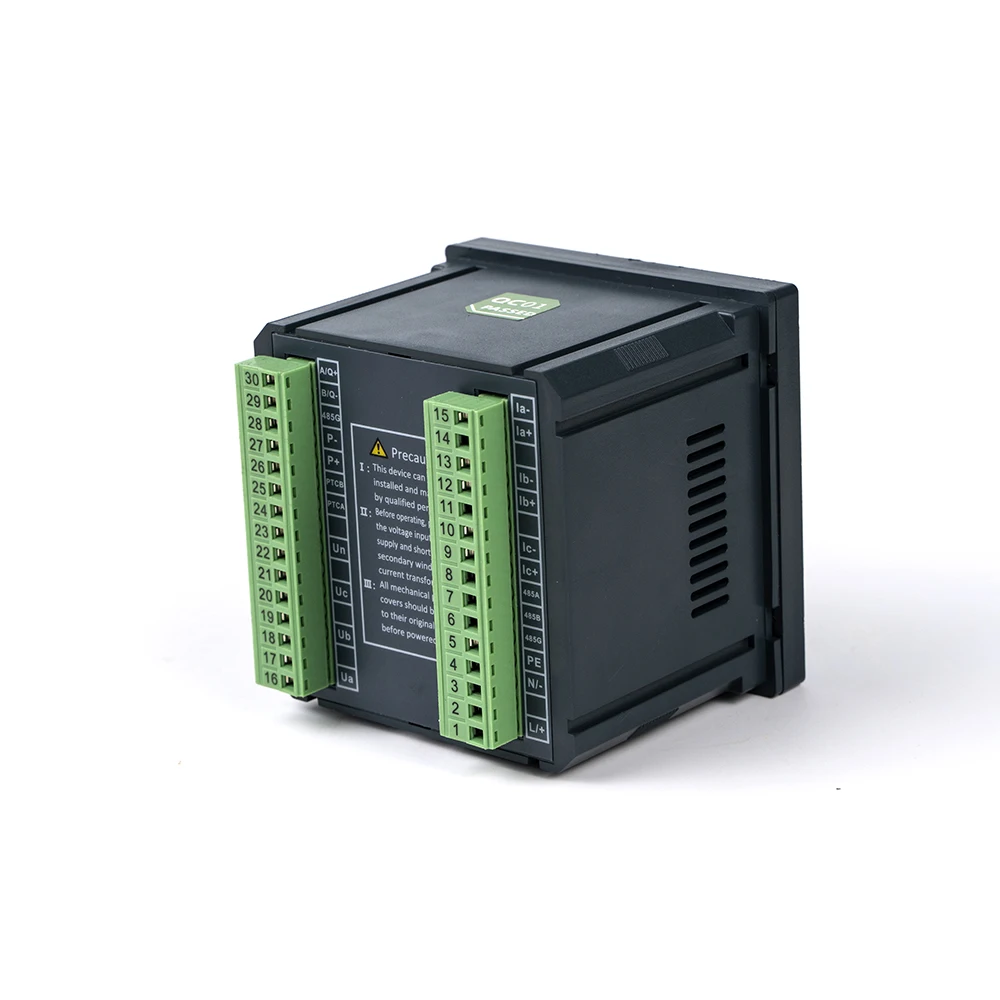

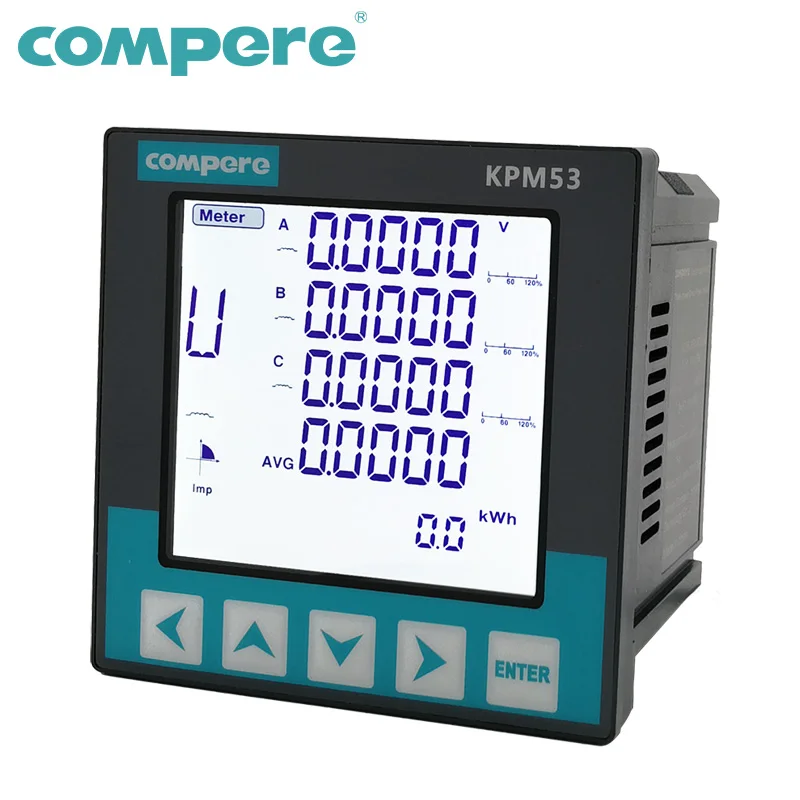

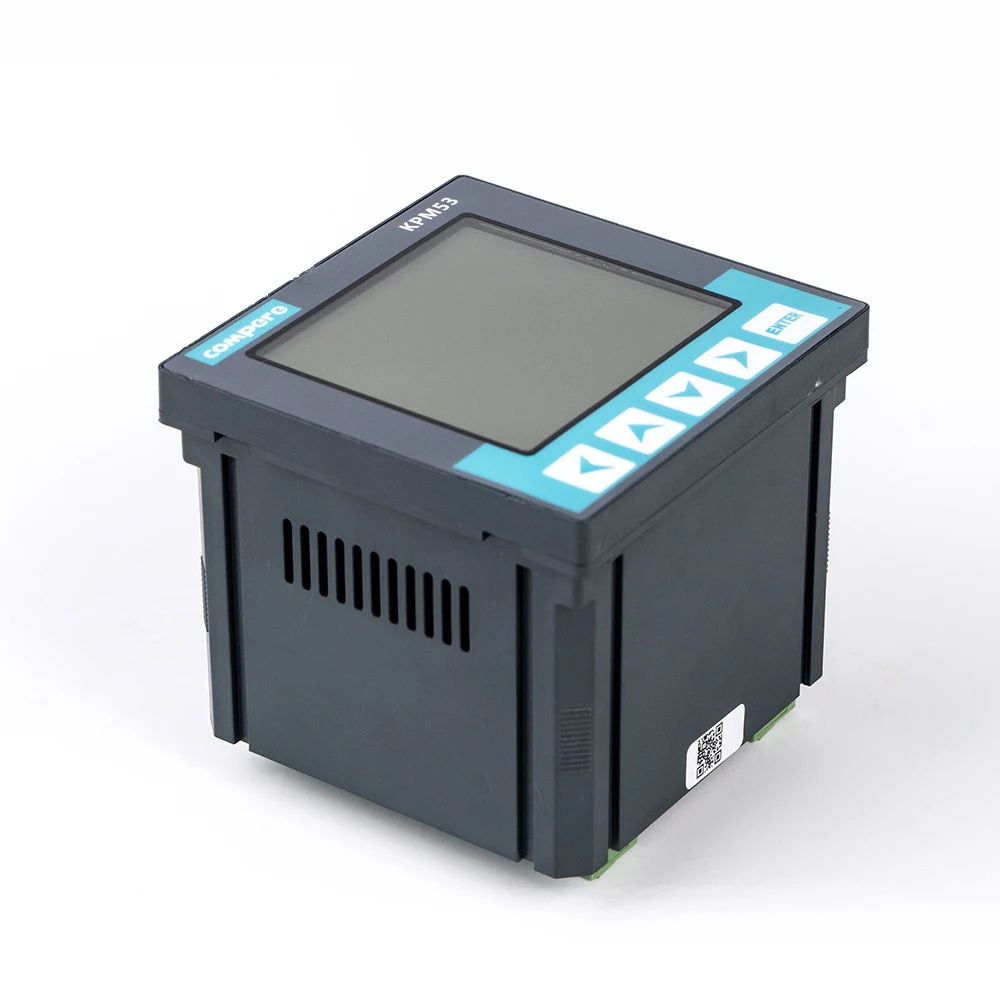

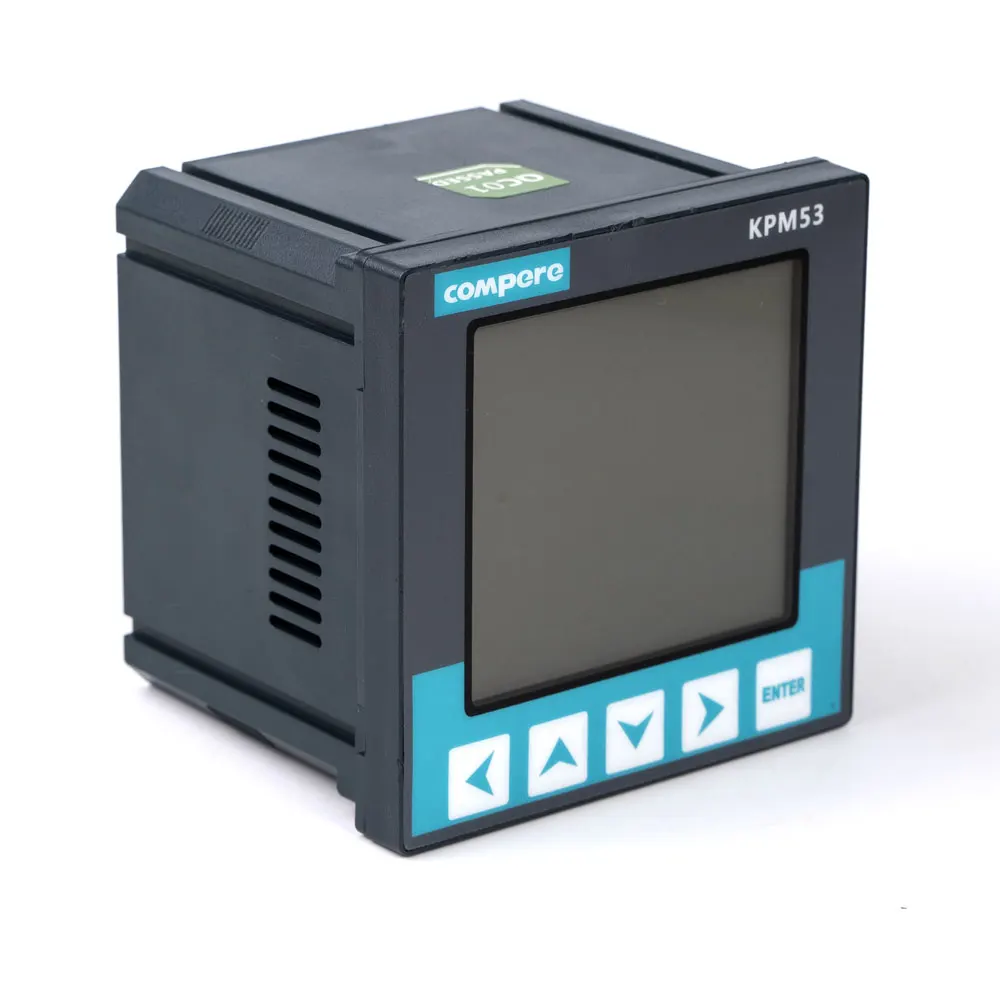

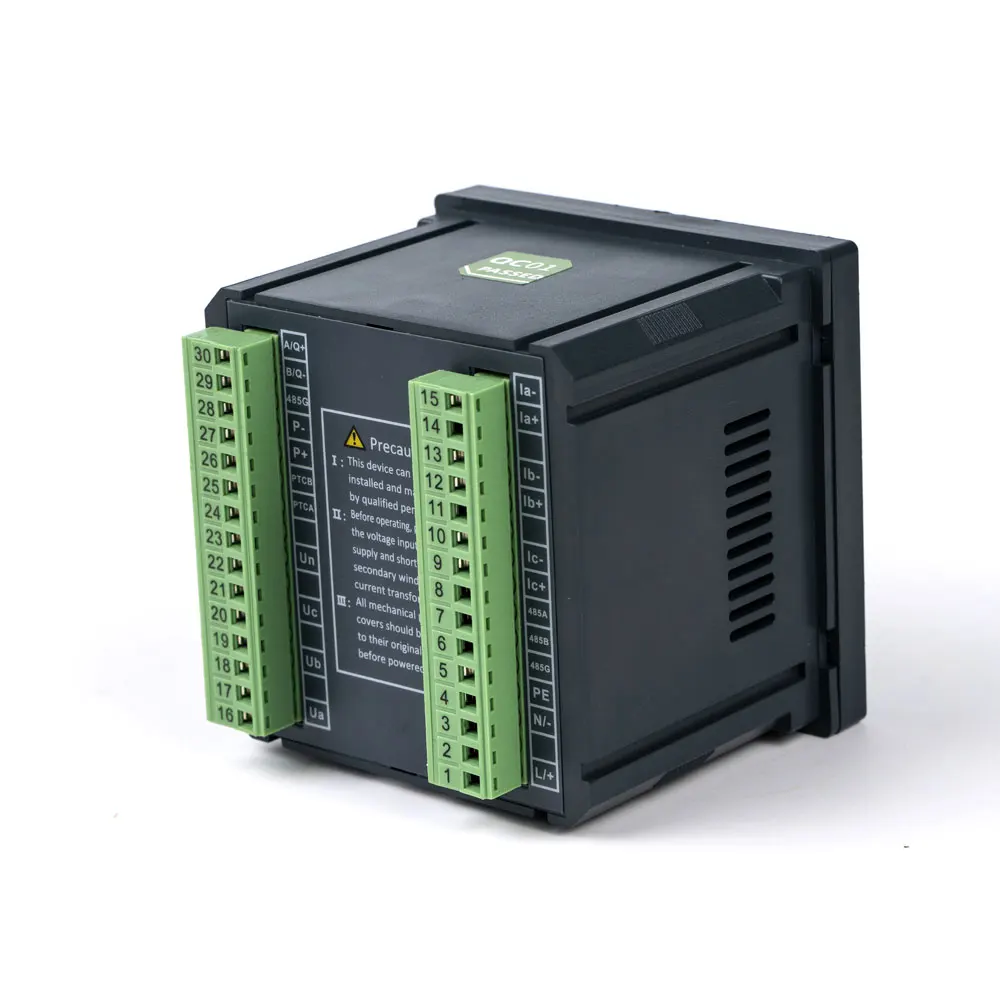

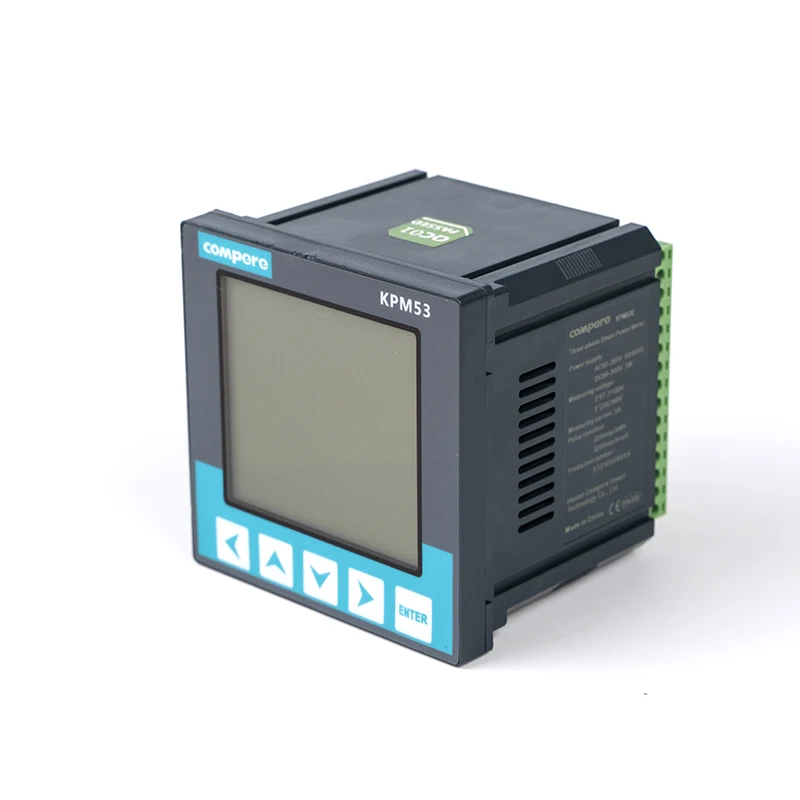

Details Images












Product Paramenters


Technical Parameters
KPM 53 3 phase power meter rs485
Accuracy Class
Voltage: 0.2; Current: 0.2; Frequency: 0.02 Hz; Power Factor: 0.5
Active Power: 0.5S; Reactive Power: 2.0
Active Energy: 0.5S; Reactive Energy: 2.0
Input
Rated Value
Voltage: 57.7/100V, 220/380V,380/660V
Current: 1A(0~1.2A), 5A (0~6A)
Overload
Voltage: Sustained Overload: 1.2 times of the rated value
Momentary Overload: 2 times of the rated value, allows 1s
Current: Sustained Overload: 1.2 times of the rated value
Momentary Overload: 20 times of the rated value, allows 1s
Frequency
45-60Hz
Functional Module
Pulse Output
1
Interface
1*RS485; Modbus RTU protocol; Baud Rate: 1200-38400 bps
Power Supply
Working Range
AC: 85-265V; DC: 80-300V
Consumption
< 3VA
Working Condition
Temperature
Operating: -25°C~+70°C. Storage: -30°C~ +75°C
Humidity
5%~95% No condensation
Altitude
<4000m
Dimensions:
96×96×88mm
