Product Overview

Description


X96 -



Introduction

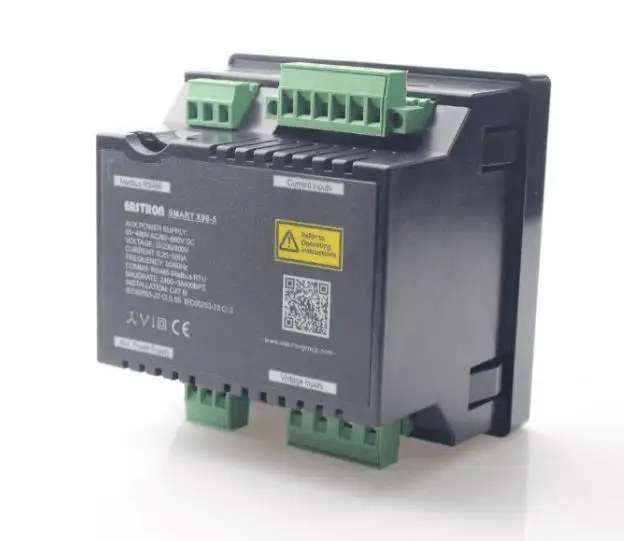

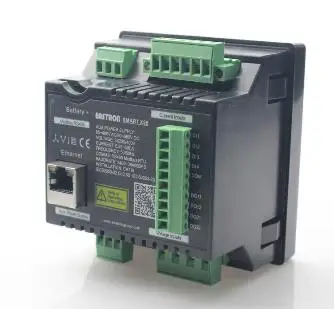

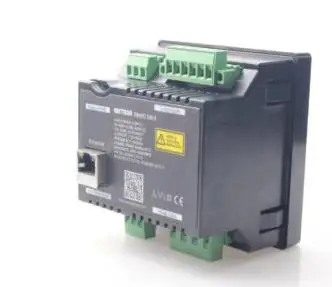

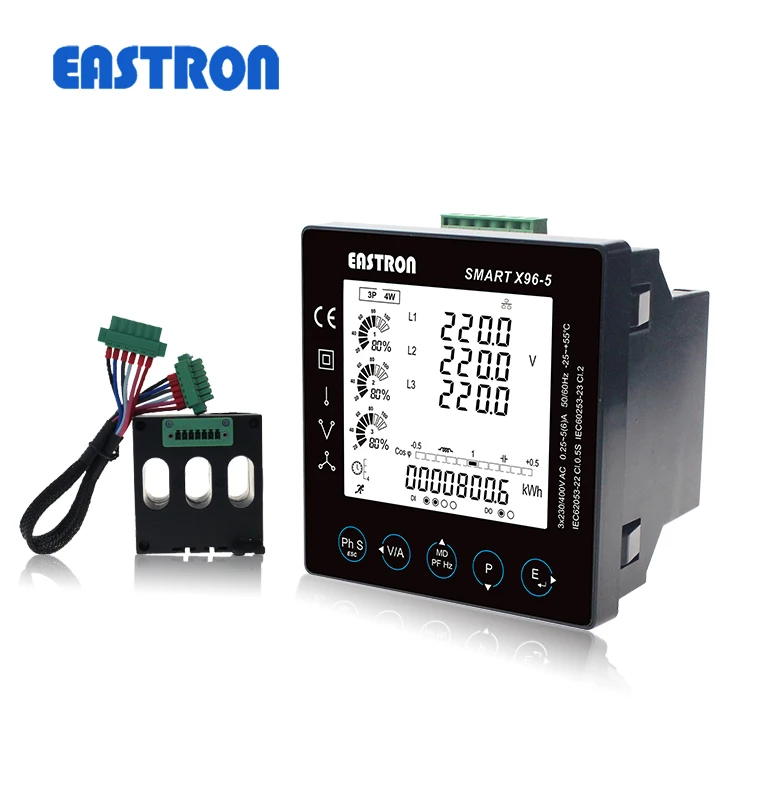

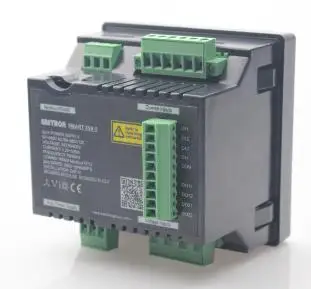

The multifunction energy analyzer SMART X96 series is a top new-generation intelligent panel meter, used not only in the electricity transmission and power distribution system, but also in the power consumption measurement and analysis in high voltage intelligent power grid.



This document provides operating, maintenance and installation instructions for the Eastron SMART X96 series. The unit measures and displays the characteristics of 1p2w, 3p4w and 3p3w supplies, including voltage, frequency, current, power and active and reactive energy, imported or exported, Harmonic, Power factor, Max. Demand etc. Energy is measured in terms of kWh, kVArh and kVAh. Maximum demand current can be measured over preset periods of up to 60minutes.



In order to measure energy, the unit requires voltage and current inputs in addition to the supply required to power the product. The requisite current input(s) are obtained via current transformers. The SMART X96 can be configured to work with a wide range of CTs, giving the unit a wide range of operation. Built-in interfaces provides RS485 Modbus RTU and Ethernet TCP/IP communication. Digital input and outputs are provided for external signal counting and external device control.  30 types parameters can be set for alarm.



The unit uses plug-in terminals for easy wiring and push-in mechanism for quick installation.



Model options





Specifications

SMART X96 SMART X96



Electrical characteristics

Type of measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

128 samples per cycle

Measurement accuracy

Power

IEC 61557-12 Class 0.5

Active Energy

IEC 62053-22 Class 0.5S, IEC 61557-12 Class 0.5

Reactive Energy

IEC62053-23 Class 2, IEC 61557-12 Class 2

Frequency

±0.1%

Current

±0.2%

Voltage

±0.2%

Power Factor

±0.01

Harmonic Distortion

2

Data Update Rate

1 second nominal

Input-Voltage

VT Primary

100~500000V ac

Un

230 V L-N

Measured Voltage with Over-range and Crest Factor

100 to 480Vac L-L

100 to 276Vac L-N

Permanent Overload

490V L-L

280V L-N

Impedance

1M Ω

Frequency Range

45~66Hz

Input- Current

CT Ratings

Primary

1~9999A

Secondary

1A / 5A

Measured current  with Over-range and Crest Factor

5mA~6A

Withstand

Continuous 8A

120A for 0.5Seconds

Impedance

<1 mΩ

Frequency Range

45~66Hz

Burden

<0.036VA at 6A

Auxiliary Power Supply

Operating Range

65~480V AC / 80~660V DC

Power Consumption

< 7VA/3.5W.

Frequency

45 to 65 Hz

Digital output

Number/Type

2 - electromagnetic relay

Output Frequency

1 Hz maximum

Switching Current

250 Vac at 3.0 Amps, 100k cycles,

Isolation

2.5 KVac for 1min

Digital Input

Number

4

Input Resistance

10 kΩ

Maximum Frequency

1kHz

Response Time

10 milliseconds

Isolation

2.5 KVac for 1min

Mechanical Characteristics

Weight

250g

IP Degree of Protection

(IEC 60529)

IP51 front display

Dimensions (WxHxD)

96x96x70.3

Mounting Position

Vertical

Panel Thickness

1~5mm

Material of meter case

Self-extinguishing UL 94 V-0

Mechanical environment

M1

Environmental Characteristics

Operating Temperature

-25 to 55°C

Storage Temperature

-40 to  70°C

Humidity Rating

<95% RH at 50 °C (non-condensing)

Pollution Degree

2

Altitude

2000m

Vibration

10Hz to 50Hz, IEC 60068-2-6

Electromagnetic Compatibility

Electrostatic Discharge

IEC 61000-4-2

Immunity to Radiated Fields

IEC 61000-4-3

Immunity to Fast Transients

IEC 61000-4-4

Immunity to Impulse Waves

IEC 61000-4-5

Conducted Immunity

IEC 61000-4-6

Immunity to Magnetic Fields

IEC 61000-4-8

Immunity to Voltage Dips

IEC 61000-4-11

Radiated Emissions

EN55011 Class A

Conducted Emissions

EN55011 Class A

Harmonics

IEC 61000-3-2

Safety

Measurement Category

Per IEC61010-1

CAT III

Current Inputs

Require external Current Transformer for Insulation

Over voltage Category

CAT III

Dielectric Withstand

As per IEC 61010-1 Double Insulated front panel display

Protective Class

II

Communications

Interface standard and protocol

RS485 and MODBUS RTU

Communication address

1~247

Transmission mode

Half duplex

Data type

Floating point

Transmission distance

1000m Maximum

Transmission speed

2400bps~38400bps

Parity

None (default), Odd, Even

Stop bits

1 or 2

Response time

<100 mS

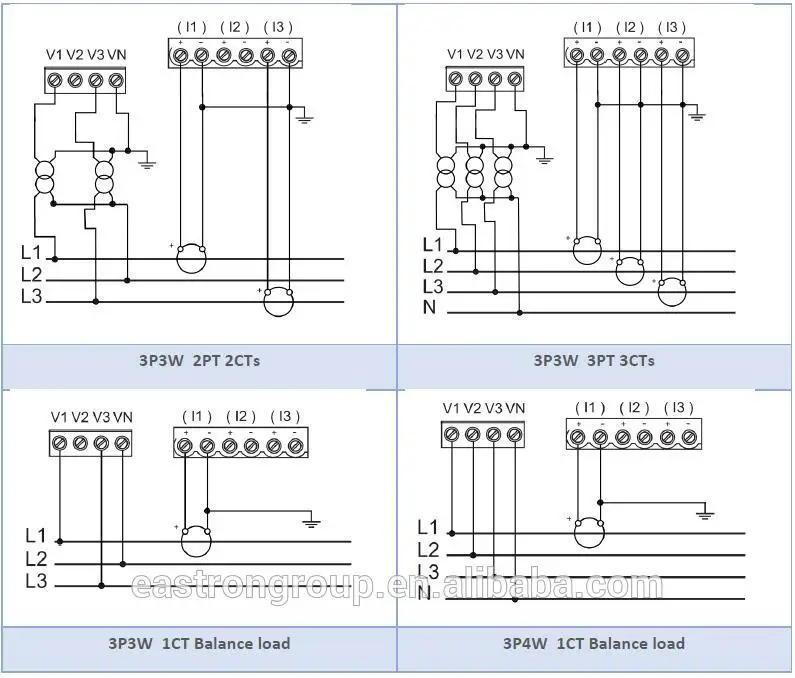

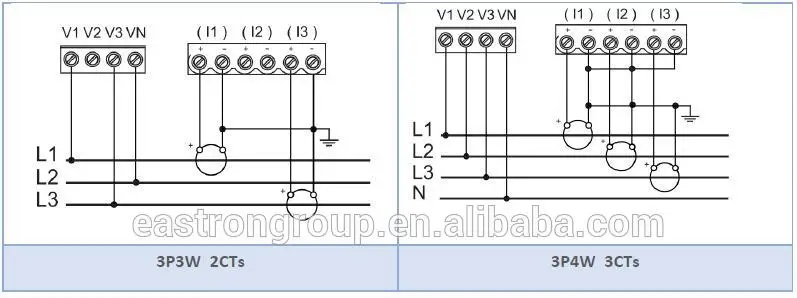

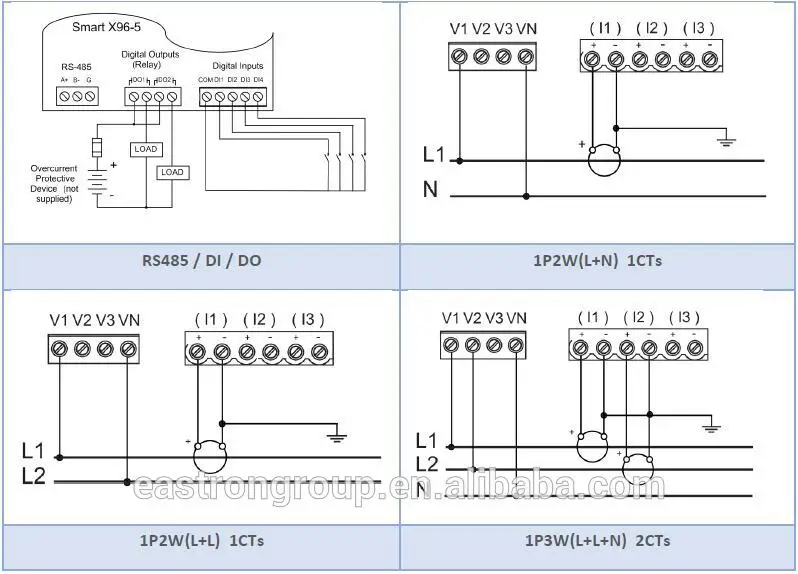

Wiring diagram



X96-5A MID






X96-5-F~J




Energy management software EEMS



Certificates
