AC/DC Digital Power meter (60434100431)

Share on:


Price:$260.00
Price in USD:Details

Quantity:


Product Overview

Description


AC/DC Digital Power meter





 The product Description:





1.  LED Digital display: Voltage, Current, Power, Power factor, frequency


2.  All measurements are TRMS


3.  Max. test current 26A


4.  Accuracy:0.5


5. Min. Measuring current is 10mA, Max. current is 20A


6.  Not affected by external noise


7.  Support data latching


8.  Can be set the upper and lower limit for alarm function, PASS is Green Light, NG is Red light, easy to distinguish.








































































Connection



Single Phase



Display



LED Digital Screen



Measuring items



Voltage-V, current-A, active power-W, power factor-PF, frequency-Hz



Voltage Range AC/DC



5V-600V AC/DC(Switch the range automatically


Peak Voltage:700V AC/DC


Min test voltage:5V(Below 5V, can be customized )



Current Range AC/DC



10mA-20A AC/DC (Switch the range automatically)


 Peak Current:26A  AC/DC Min test current :10mA AC/DC( Below 10mA, can be customized)



Power Range(AC/DC)



0.1W-12KW



Power factor Range(AC)



0.001-1.000 Calculation method: Watt(W)/[voltage(V) current(A)]=Power Factor(PF)


Note: when t is DC signal, power factor PF display 1.000



The frequency range



45-65Hz Note: when it is DC signal, no frequency display



Communication Interface



Optional RS232 or RS485, Relay output function



Basic Accuracy



±(0.4% reading +0.1%range+1 digit)



Measuring Speed



Five times per second



Input Impedance



About 2MΩ(All voltage)



Power Supply



100~250V AC 50/400Hz, 100-300V DC



Volume and weight



355mm(L)*225mm(W)*112mm(H),Holesize:225mm(W)*99mm(H)≈1.7KG



Attachment



Power line, Operation Manual, Warranty Card

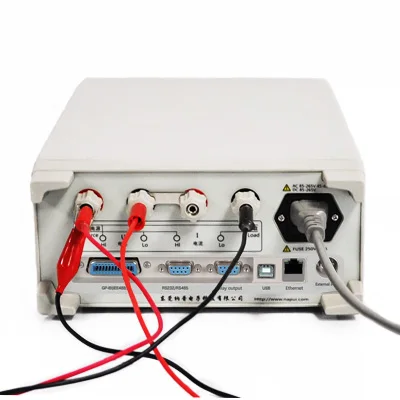

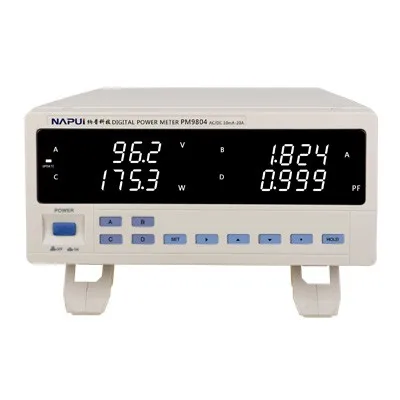

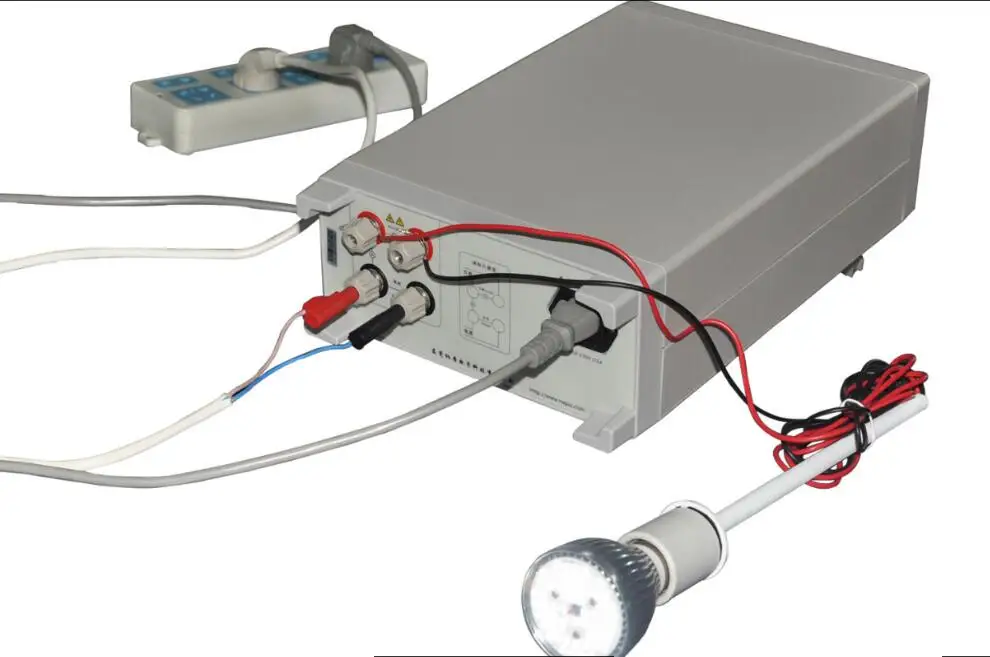

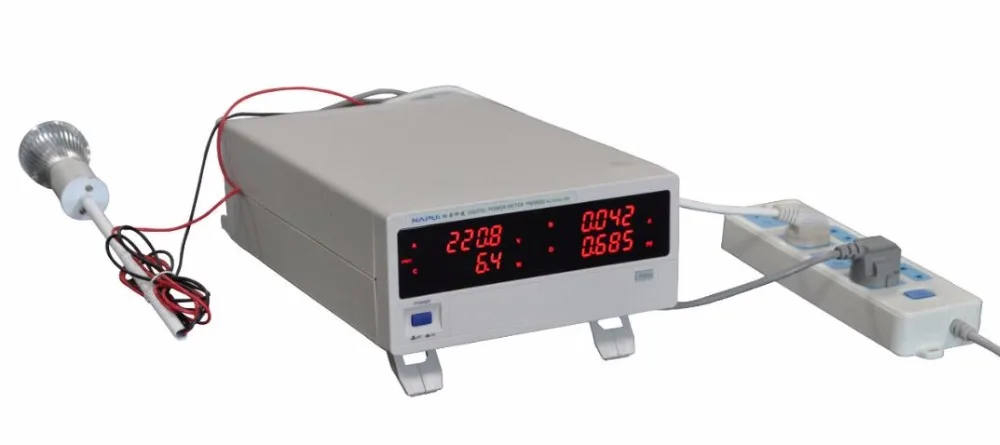

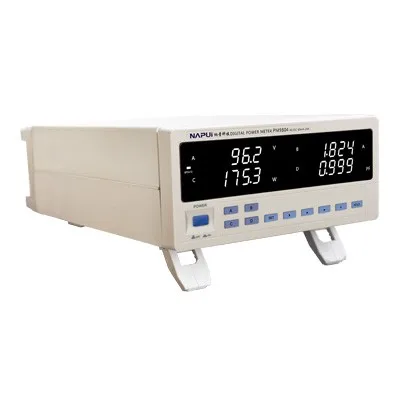

The power meter details:


 Digital Power meterDigital Power meterDigital Power meter













































Packaging & Shipping







QQ20170505145111QQ20170505145121





Dispatch is arranged within 1-3days once your payment is finished verification by our Financial department. If there is no option of express you need. Pls contact us in advance.








The delivery time show when you choice the express is for reference. We don't guarantee the time the same with it all the time, due to difference in customs clearing times in individual countries, which may affect how quickly your product is inspected.















Our Services





Dongguan NAPUI Electronic Technology Co., Ltd  is  8 years specialist digital power meter Manufacturer in China.





All the power meter  waranty are 12 months.




All the items are EXW.

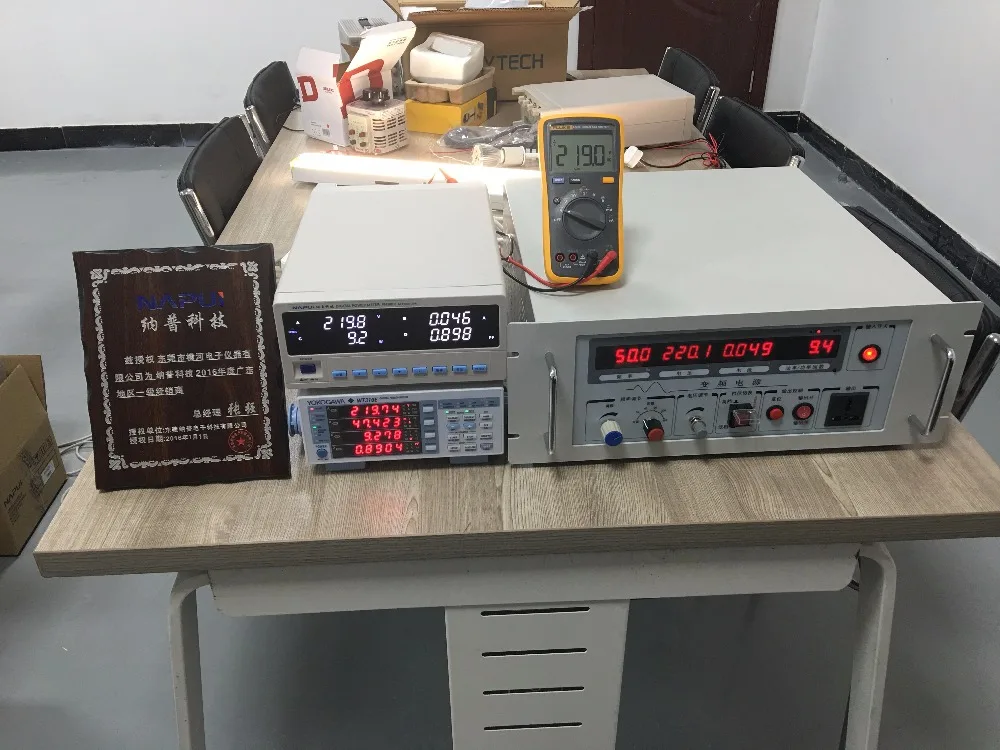

Company Information


 Digital Power meterDigital Power meterDigital Power meter











FAQ


  Q: 1. English version is available?
A: Yes

Q: 2. Does it have the function of Communication?
A: Yes, there have RS232 or RS485 (Optional).

Q: 3. What is the lead time for delivery?
A:7 workdays according to your specific requirement

Q: 4. Do you have any MOQ limit?
A: 1pc

Q: 5. what express do you often use?
A: DHL, UPS, FedEx,etc.Any method you can choose!

Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T, L/C,Paypal, etc.

Q: 7.Can you make OEM service?
A:yes
