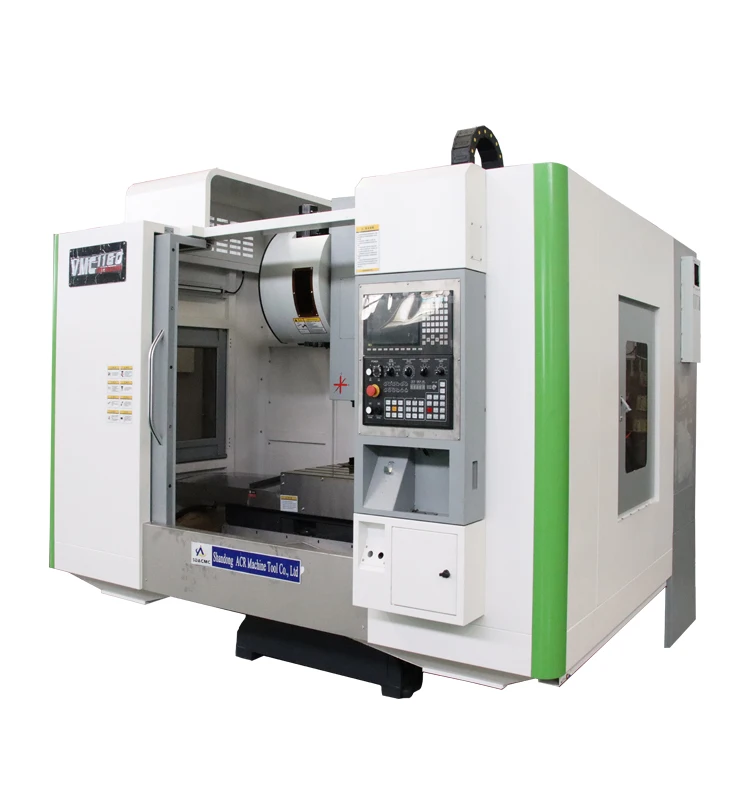

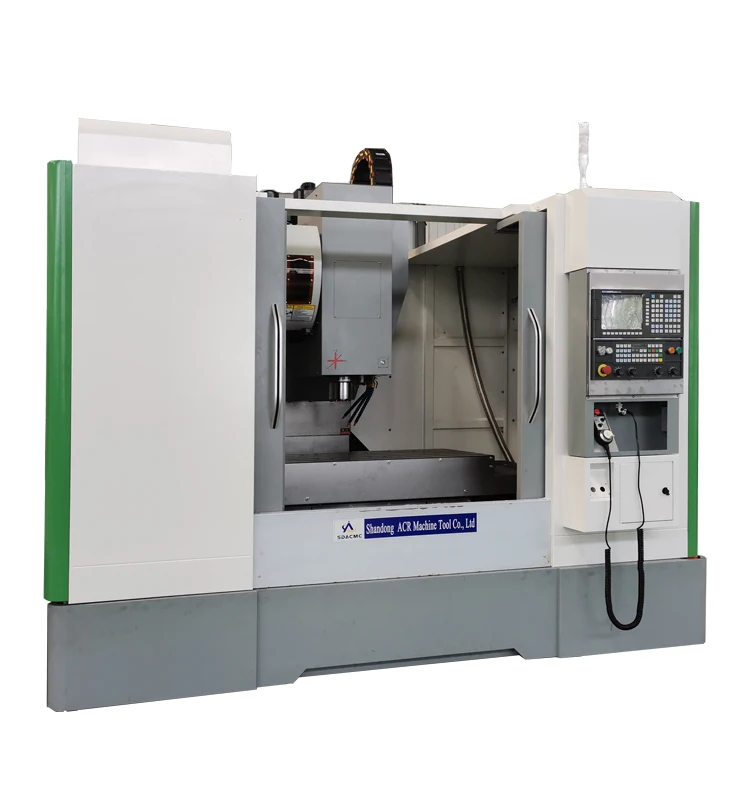

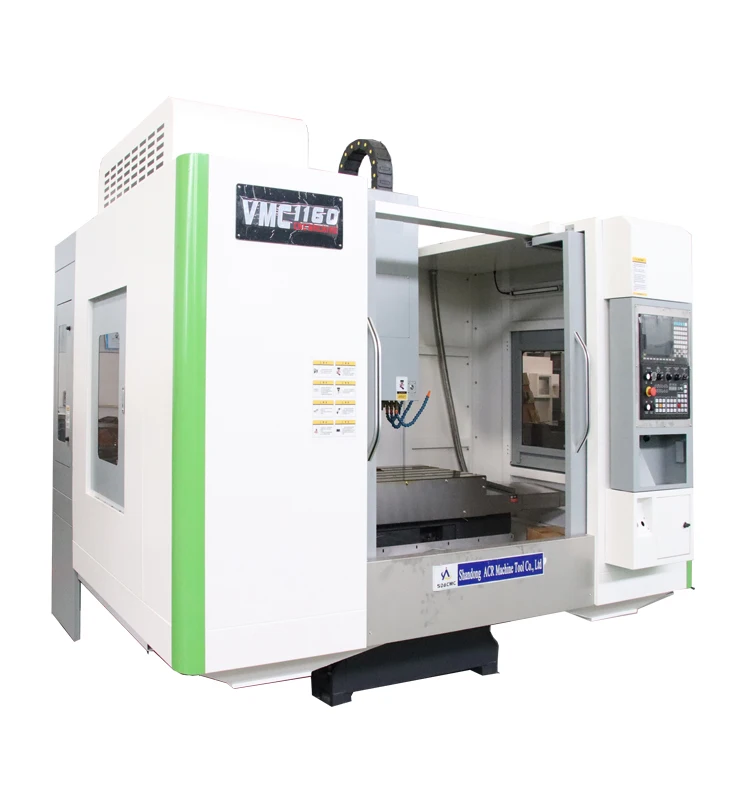

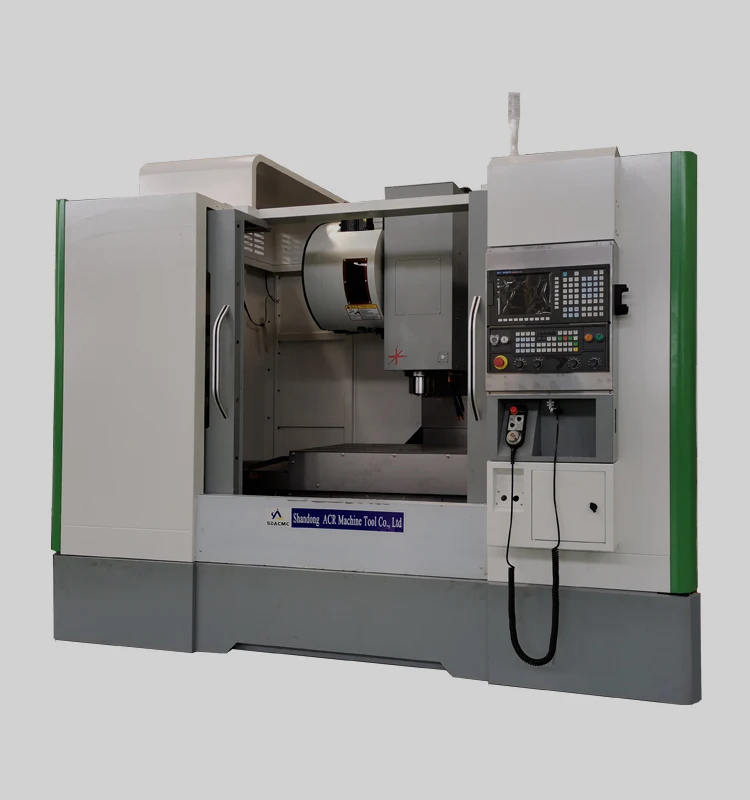

VMC1160 Vertical cnc Machining Center for hot sale Metal Mexico Russia Max Canada Australia
- Category: Machine Centre >>>
- Supplier: Shandong ACR Machine Tool Co. Ltd.
Share on (1600344163183):
Product Overview
Description
Product Description
Specification
SPECIFICATIONS | Units | VMC1160L3 |
Worktable size | mm | 1200*600 |
X /Y/Z axis travel | mm | 1100*600*600 |
Maximum load bearing of worktable | KG | 800 |
T Shot | mm | 5×18×90 |
Spindle face to table distance | mm | 120-720 |
Distance between spindle center and column guide surface | mm | 667 |
Spindle taper | BT40 | |
Main shaft connection | Belt | |
Range of spindle speed | rpm | 8000(Optional:12000 ) |
Spindle motor power | KW | (Alternating current servo)11 |
X/Y/Z axis rapid movement rate | m/min | 36/36/36 |
Feed moving velocity X, Y, Z | m/min | 1-12 |
ATC capacity | 24qty | |
Maximum tool size | mm | Φ120(tool from a distance) |
Maximum tool weight | kg | 8 |
PositionaI accuracy(JIS standard) | mm | ±0.008/300 |
Repeated positioning accuracy(JIS standard) | mm | ±0.005 |
X/Y/Z Guide way type | TAI WAN roller Linear rail | |
X/Y/Z Screw type | TAI WAN ball screw | |
Machine size | mm | 3340×2800×2700 |
Weight | T | 7.5 |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
