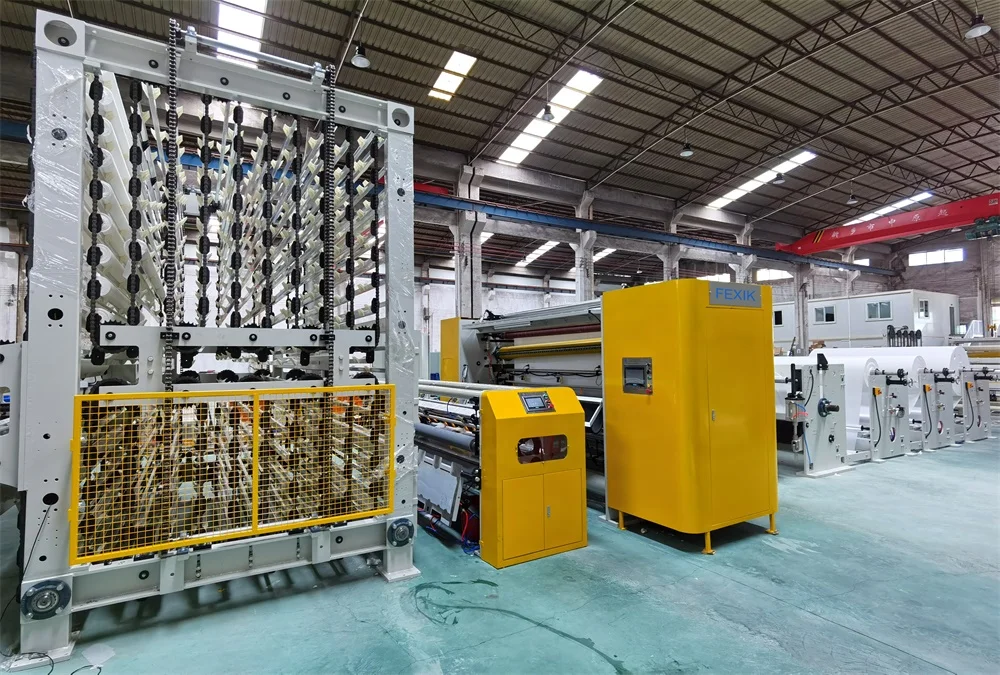

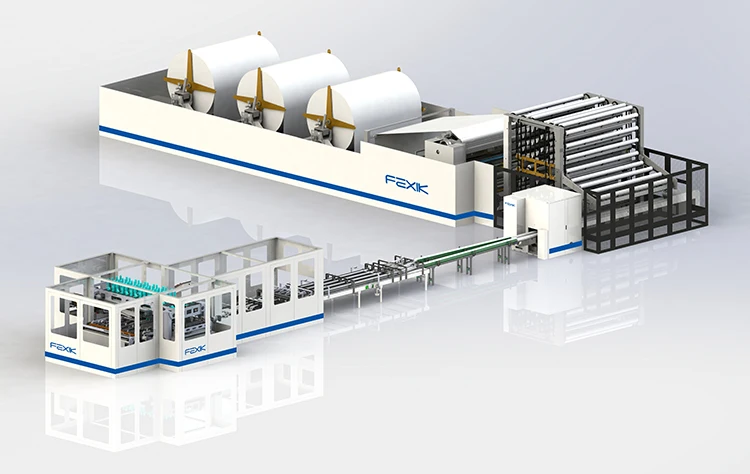

Automatic Small Toilet Tissue Paper Roll Making Machine

Product Overview

Description







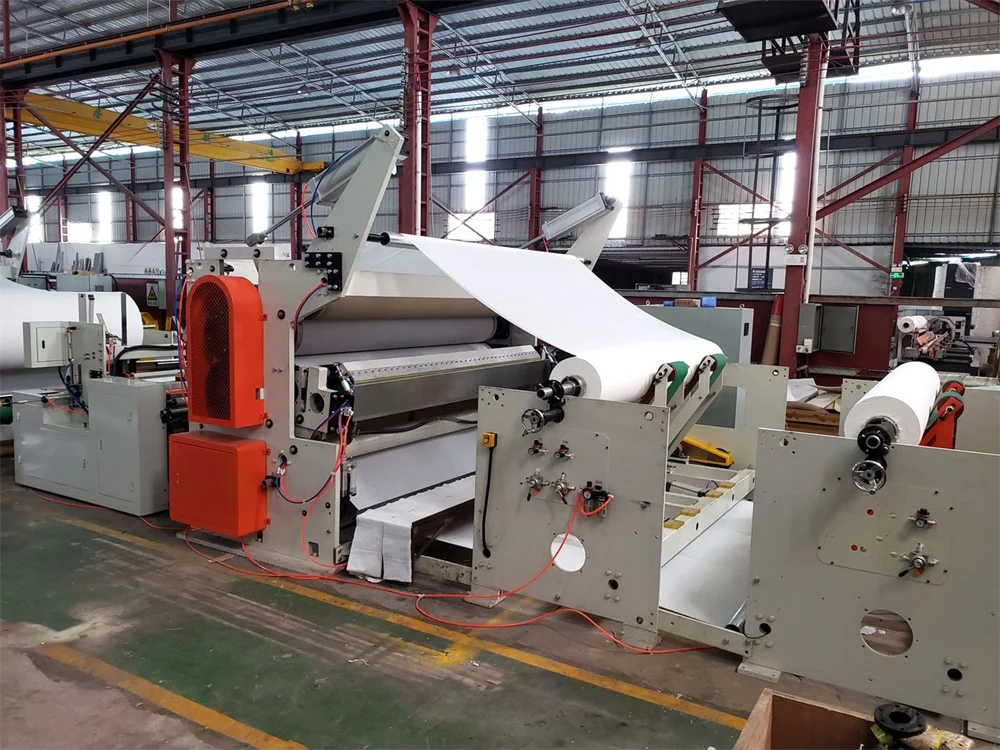

 1. Parameters of nonstop rewinding machine:



Model	1850/2150/2200/2800/2900/3000mm
Jumbo roll width	1750/1850/1930/2150/2750/2850/2950mm
Jumbo roll diameter	≤ 1500mm (other size to be specified)
Jumbo roll core size	Dia:76mm (other size to be specified)
Finished roll diameter	Dia:90-150mm(Tightness is adjustable)
Finished roll core diameter	Dia:30-50mm
Perforation width	Standard size:110mm(Adjustable)
Perforation	4 PCS sprial upper perforation knives,improve the durability
Rewind type	Automatic rewinding machine
Parameter set	Touch Screen HMI
Rewind system	With core integrated
Control system	PLC,inverter,etc.
Machine speed	200-250m/min

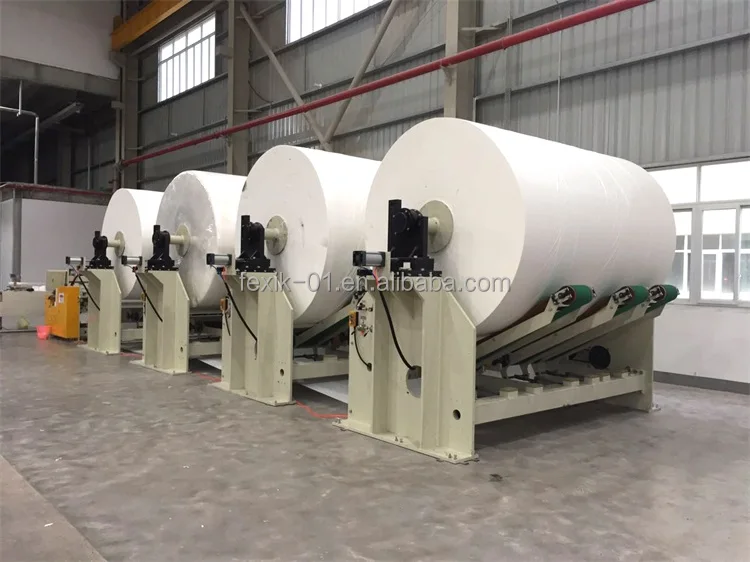

Backstand	1-3 ply (to be confirm by client), independent drive
Edge embossing unit	Steel to steel
Glue Lamination unit	Available (Confirm by client)
Embossing unit	Steel to steel, steel to rubber (Confirm by client)



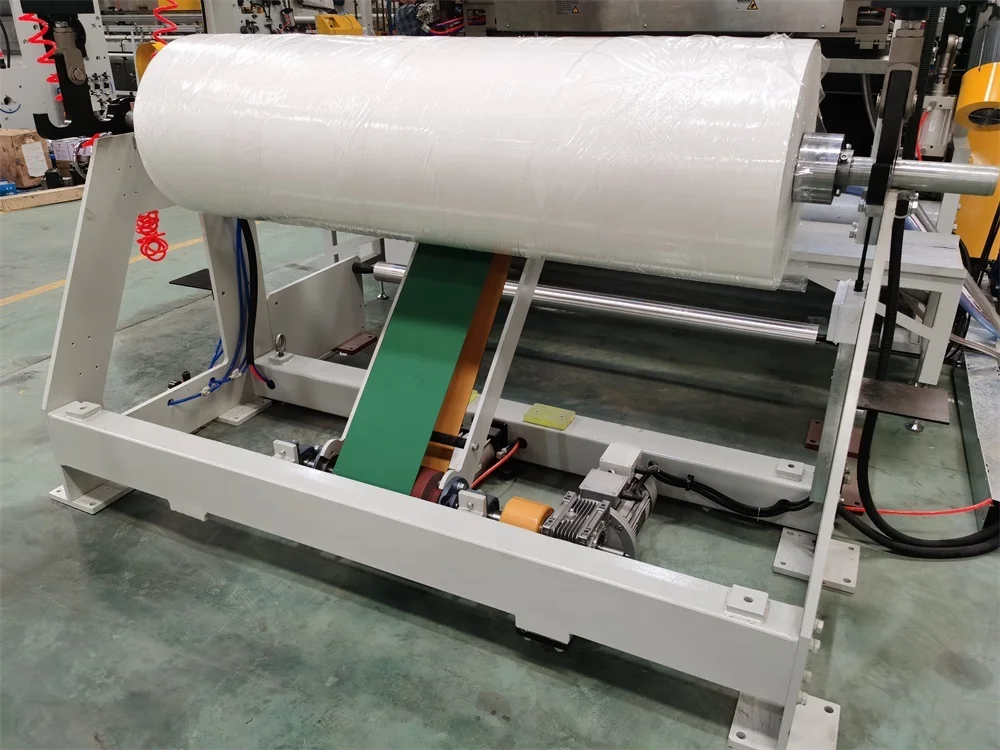

1 . Unwind is equipped with closed loop frequency conversion control system.
2 . When the webs do not align,you can operate on the touch button screen to move the jumbo roll till webs align.
3 .  When the core unit can not detect core or core will use up, the machine will alarm to tell operator or workers to put some cores on the core bracket.
4.   When the machine is running,web break off suddenly for reason of speed change sharply of problem from jumbo roll.
5 .  Degree of tightness can be adjusted while a log is rewinding.It can produce different degree of tightness in one log.
6 .  When a log is rewinding,the next core is ready.
7 .  For the reason of using advanced technology:Program Logic Control System; synchronous frequency conversion drive;integration of mechanics,electrics and photo.
8 .  The perforation roll of the rewinder is machined by high precision numerical control milling machine.It is one-up in the world.The perforation blade can produce well-proportioned perforation with low noise and long life.
9 .  When the finished log come to tail sealer,trimming,glue spraying and sealing can be finished at the same time.
10 .  Embossing unit and glue applicator edge embossing unit printing system is order by customer.

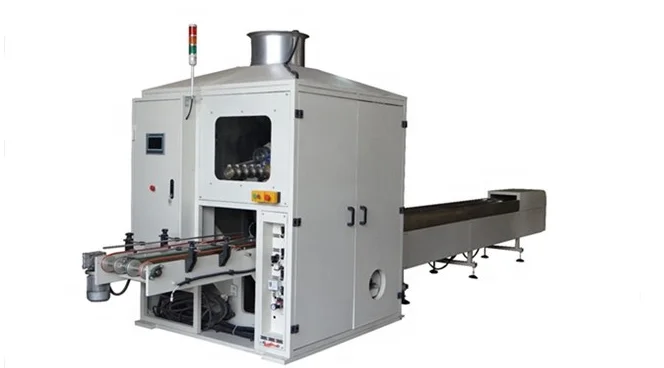

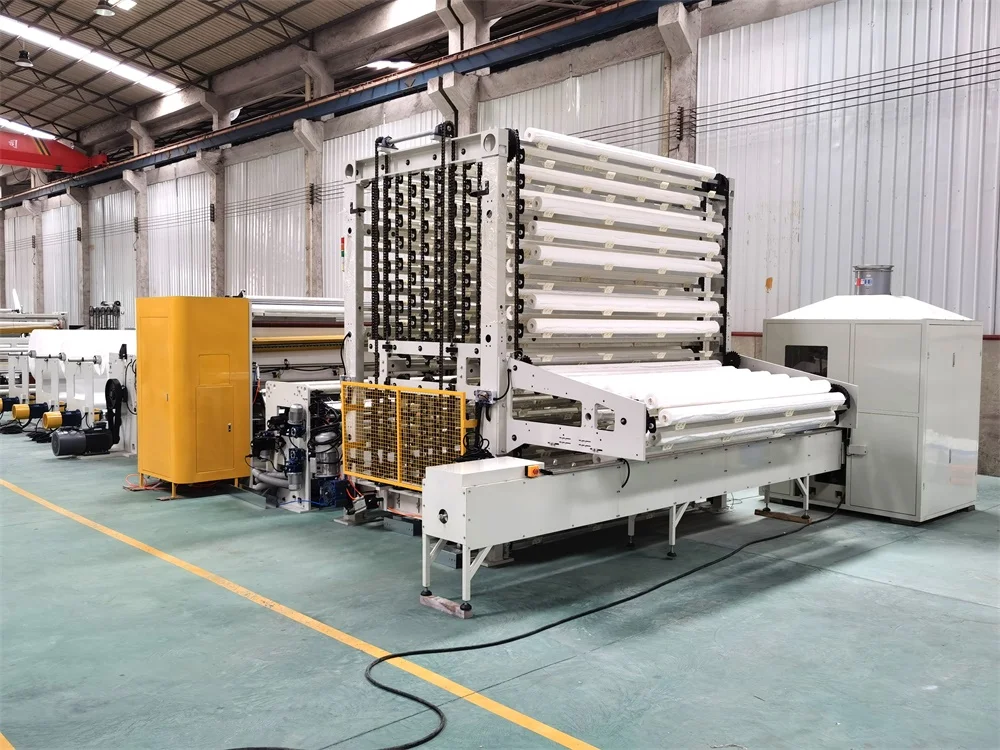

2. Full aotumatic 2 channels log saw cutting machine





1) Stable production speed: 120 cuts/ min.

2) Adopt to independent servo motor drive and PLC control system.

3) High precision positioning,with length tolerance ±1mm.

4) Model clamping unit, reliable and easy to assemble.

5) Reliable and stable servo drive high precision trimming system.

6) Cutting diameter: 90-150mm, tolerance ±5mm

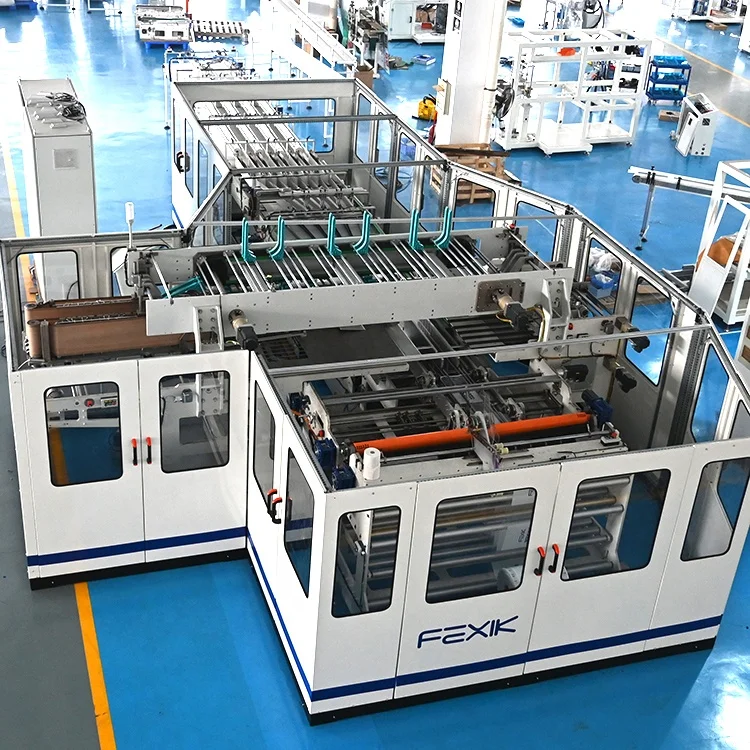

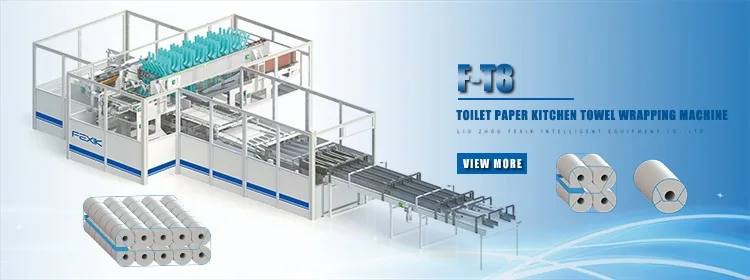

3. Automatic toilet paper and kitchen towel film wrapping machine





The rolls are coming by five channels conveyor; they are launched in the number of lanes according to packaging configuration needed, which is set by HMI, in the single layer or double layers into in-feed section, where they are transported and stacked by group of carbon bars mounted on trimming belts. Carbon bars convey the group of rolls on the elevator, which leads them into the area of folding. The foil positioning section brings the packaging film directly above the rolls by transport belts. The folding process is performed by universal side folders, as well bottom folder and counter folder. Side folding is done by innovative air supported mechanical folders. The overhead pack transport section continuously moves the pack through section of side folding and rotating bottom sealer and deliver pack to side sealing section. All motions and functions are fully controlled by the 27 independent servo motors.
