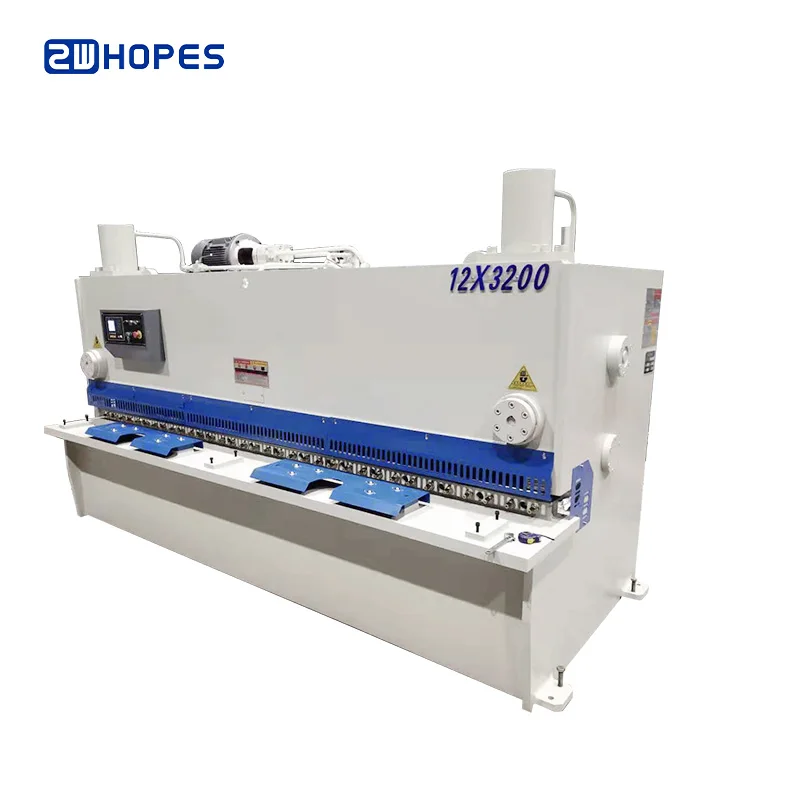

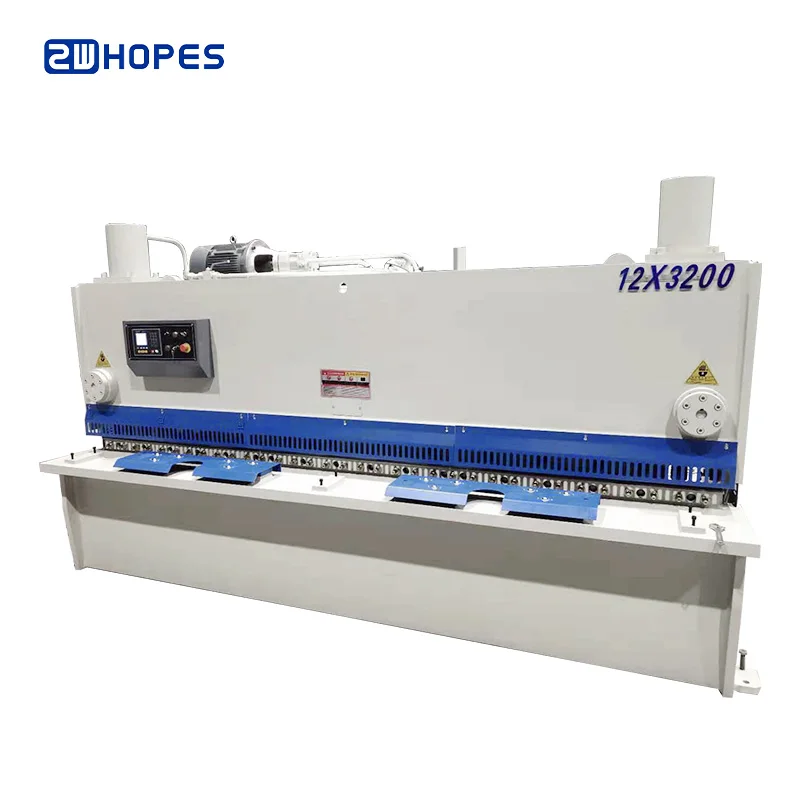

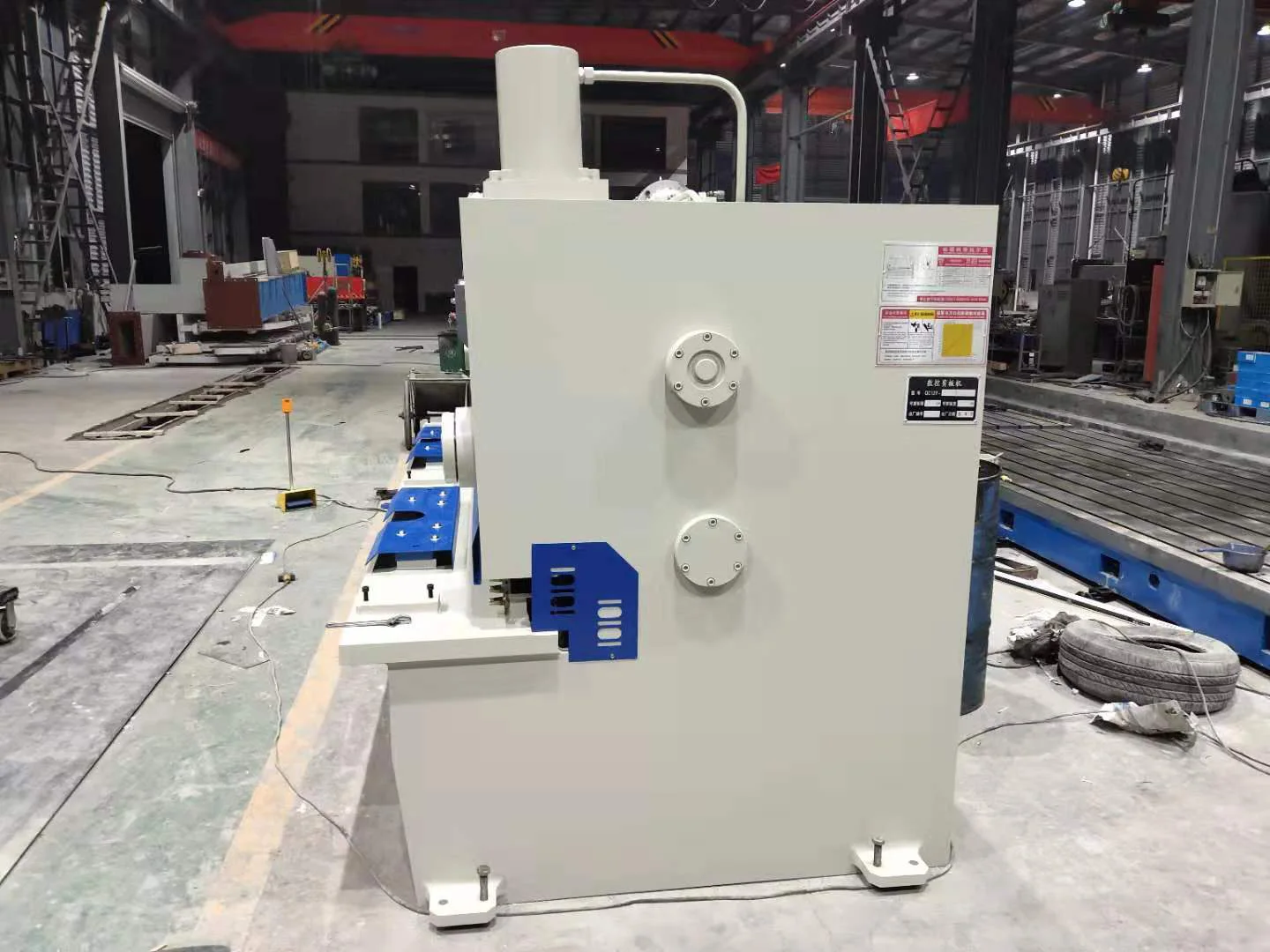

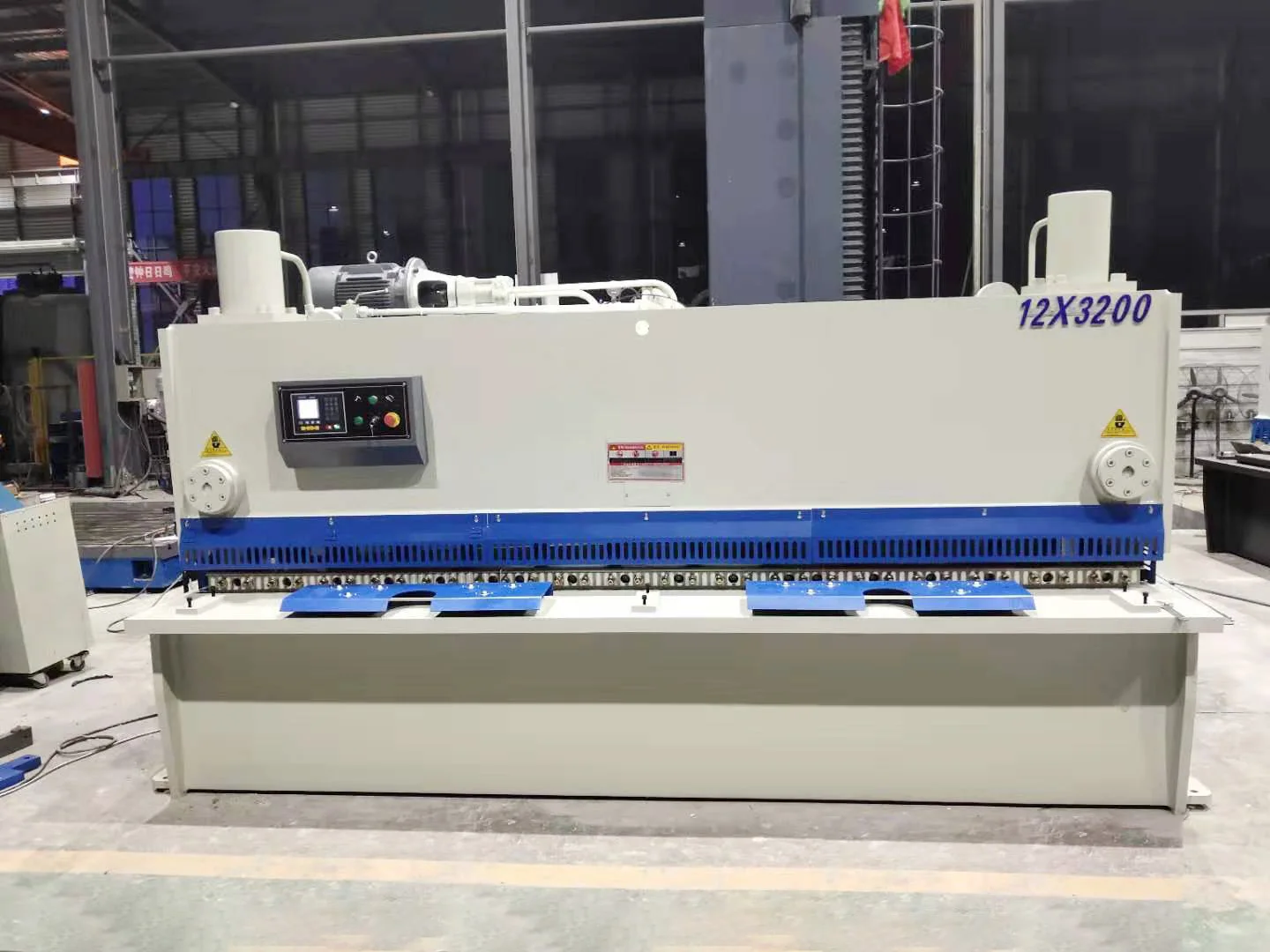

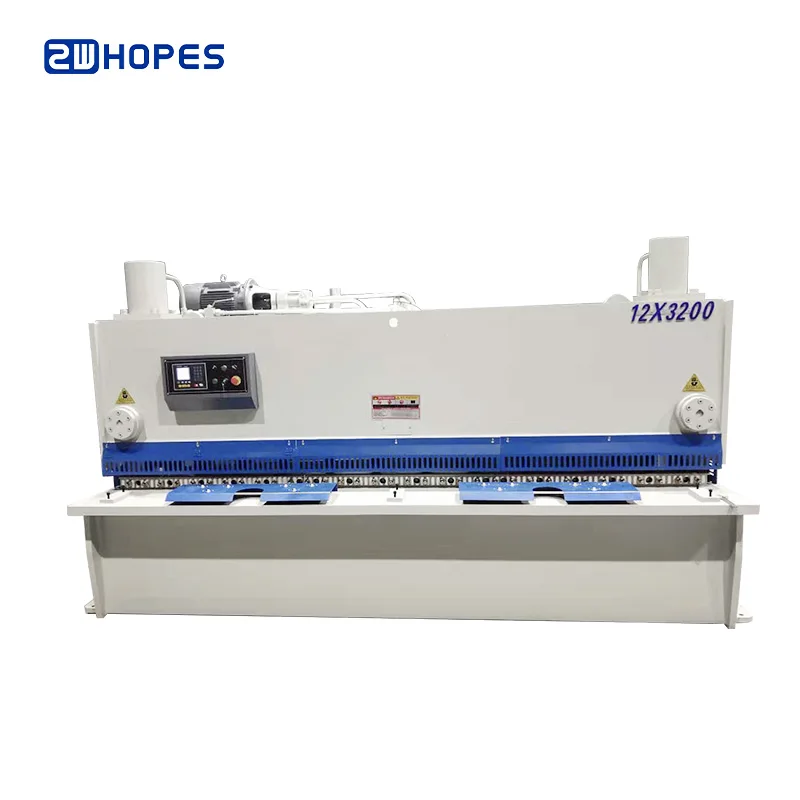

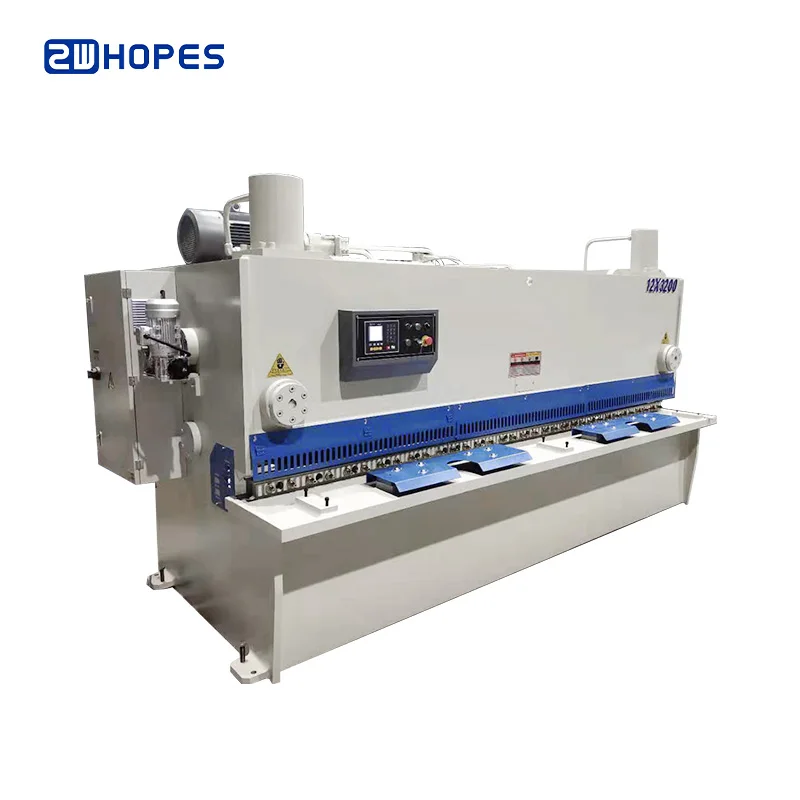

Mechanical shearing machine, QC11K series metal sheet cutting machine
Hydraulic system:
1. Hydraulic control system by BOSCH-REXROTH Germany or FIRST America.
2. Oil seals by Japanese, NOK.
3. Overload & overflow protection to ensure there is no leakage and protect hydraulic system, and the oil level can be read
directly.

Servo motorized back gauge:
1.CNC Back gauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings
2. Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.
3. High-precision ball screw and linear guide-way. Particular finger-stop design, enlarge the range of back gauge.

Electrical parts and protection device:
1. Schneider or Siemens Low-voltage apparatus. In accordance with international standards, reliable safety, long life,good
anti-interference ability, a radiation unit is fitted in electrical cabinet.
2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
3. Light screen protection or Laser protection are optional.

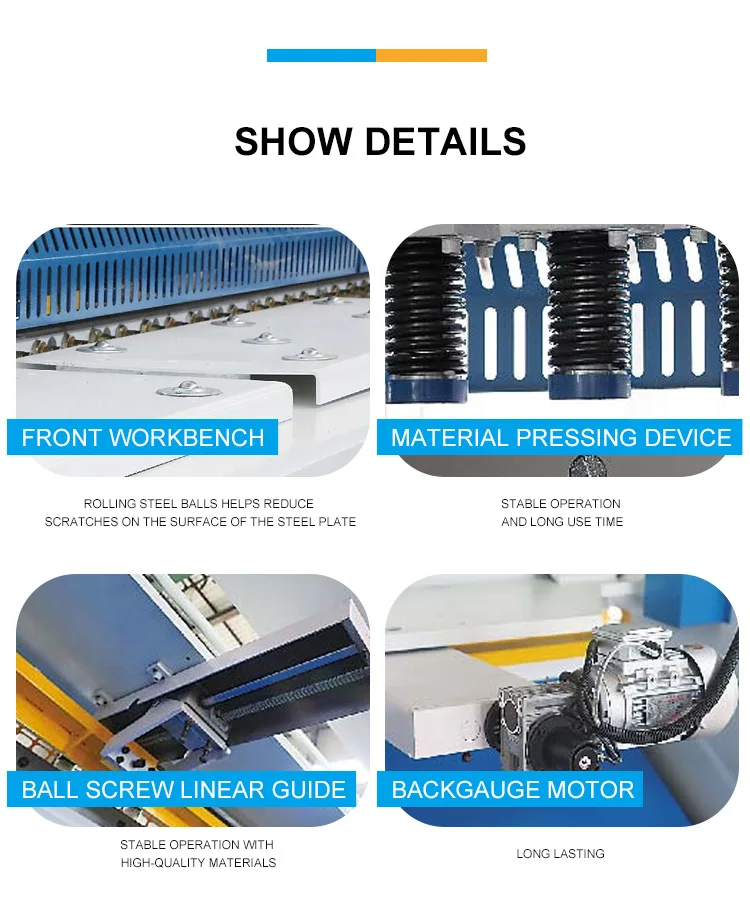

Details Images




Specification


Type
Cutting length (mm)
cutting capacity mild steel 450N/mm²
cutting capacity stainless steel 700N/mm²
Cutting angle(°)
Throat Depth（mm)
Back gauge travel(mm)
Motor power (kw)
Overall Diamentions LxWxH(mm)
Weight (Ton)
6X2500
2500
6
3
1.5
100
10-500
7.5
3100x1700x1950
4.2
6X3200
3200
6
3
1.5
100
10-500
7.5
3800x1700x1950
5.7
6X4000
4000
6
3
1.5
100
10-600
7.5
4600x1700x1950
8.5
6X5000
5000
6
3
1.5
100
10-700
11
5700x1850x2150
11
6X6000
6000
6
3
2
100
10-700
11
6700x1900x2350
14
8x2500
2500
8
4
2
100
10-500
7.5
3100x1800x2050
4.4
8x3200
3200
8
4
2
100
10-500
7.5
3800x1800x2050
6
8x4000
4000
8
4
2
100
10-800
7.5
4600x1800x2050
8.9
8x5000
5000
8
4
2
100
10-600
11
5700x1900x2250
11.5
8x6000
6000
8
4
2
100
10-800
11
6700x1900x2250
16
10x2500
2500
10
5
2
120
10-600
11
3100x1850x2100
6.5
10x3200
3200
10
5
2
120
10-600
11
3800x1850x2100
8
10x4000
4000
10
5
2
120
10-600
18.5
4600x1850x2100
12
10x5000
5000
10
5
2
120
10-800
18.5
5700x2000x2500
16
10x6000
6000
10
5
2
120
10-800
18.5
6700x2000x2600
24
12x2500
2500
12
6
2.5
120
10-600
18.5
3100x2000x2200
8.5
12x3200
3200
12
6
2.5
120
10-600
18.5
3800x2000x2200
10
12x4000
1000
12
6
2.5
120
10-600
18.5
4600x2000x2250
13.5
12x5000
5000
12
6
2.5
120
10-800
22
5700x2100x2700
20
12x6000
6000
12
6
2.5
120
10-800
22
6700x2100x3000
26
