Product Overview
Description

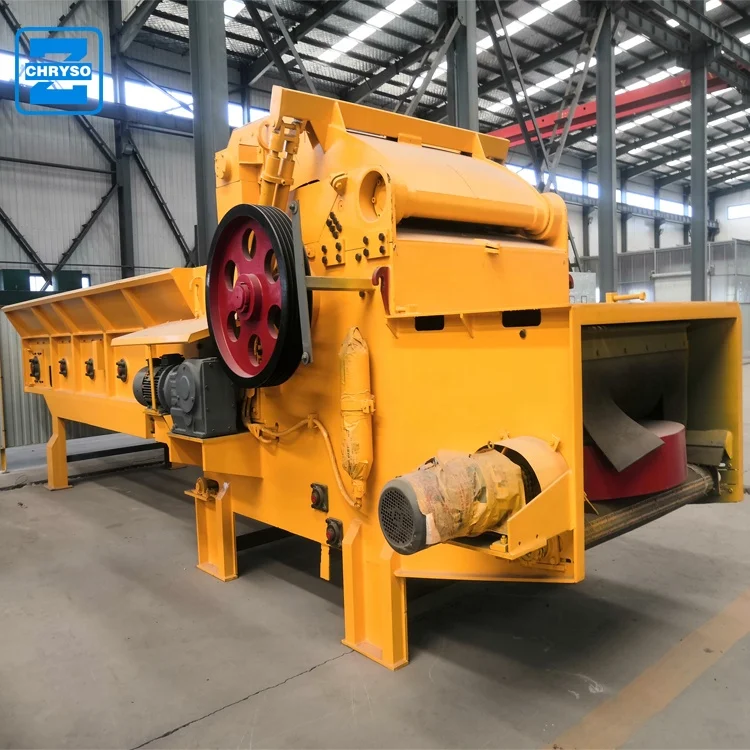

Industrial Wood Shredder Wood Crusher
Product Description
| Product Description of Wood Shredder |
Wood shredder is a kind of machine to shred the following raw materials
1). All kinds of wood material, such as wood log, slab, batten, log core, tree, building templates, wood pallets, waste wood, wood waste etc
2). All kinds of non-wood materials, such as straw, cotton rod, reed, hay etc.
for particle board factory, high density fiberboard, stubble factory, biomass power plant, wood factory, organic fertilizer plant etc.
| Material and Final product |
| Technical Parameter |
| Model | CRS-1260-500 | CRS-1400-500 |
| Rotor Diameter(mm) | 800 | 800 |
| Cutter Quantity(piece) | 4 | 4 |
| Input Size(mm) | 1260*500 | 1400*500 |
| Max. Material Diameter(mm) | 300 | 400 |
| Rotor Rotation Speed(rpm) | 650 | 926 |
| Production Capacity(TPH) | 12-15 | 18-20 |
| Main Motor Power(kw) | 160 | 200 |
| Feeding Motor Powder(kw) | 7.5+5.5 | 7.5+11 |
| Oil Pump Motor Power | 3 | 4 |
| Feeding Conveyor Length(m) With Chian Plate | 5 | 5 |
| Discharge Conveyor Length(m) | 10 | 10 |
| Weight(t) | 14 | 16 |
Standard model Crushing width 1260 or 1400mm width , feeding height 500mm.
Large capacity 12-20 tons/h for free choice for wood industry produciton.
Feeding type : Chian feeding.
Feeding and discharging conveyor: Optional.

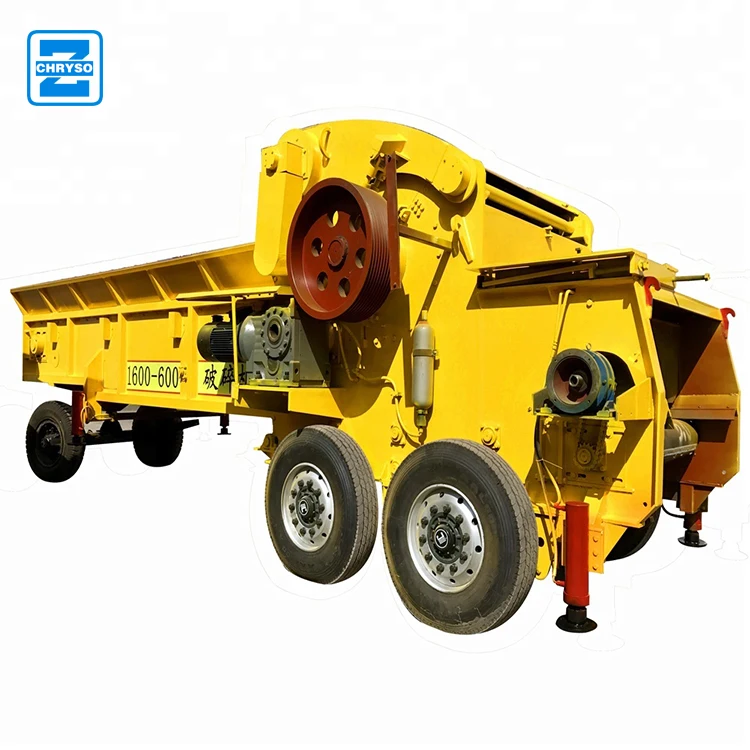

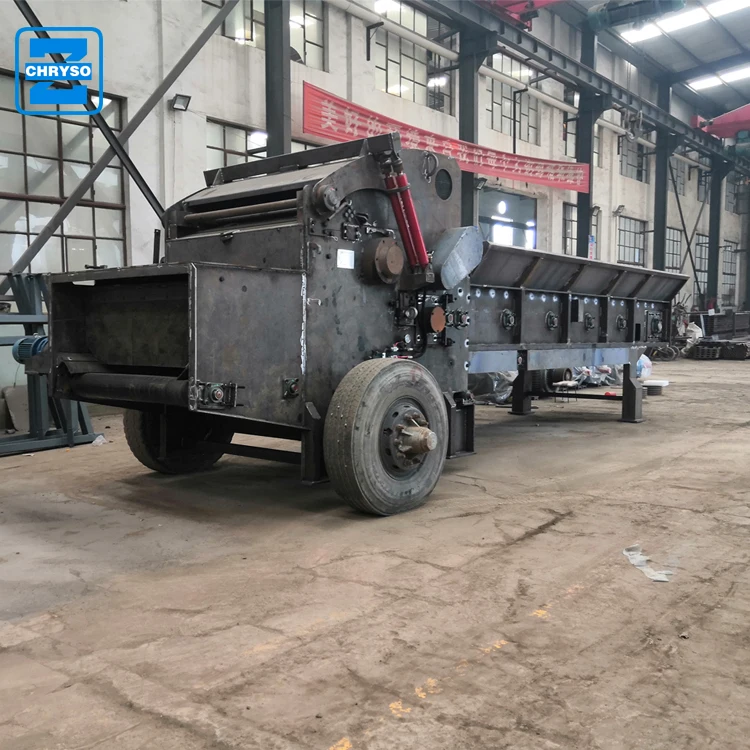

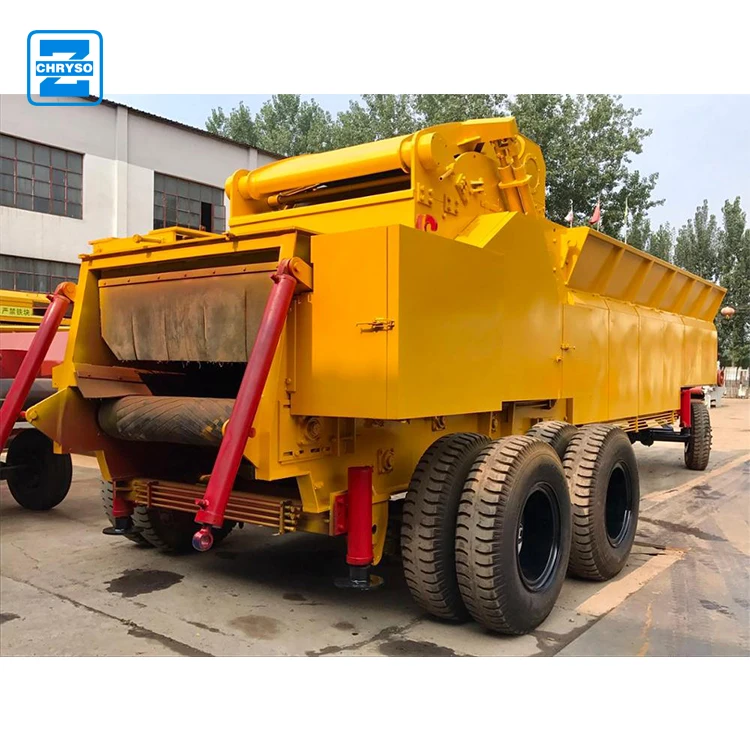

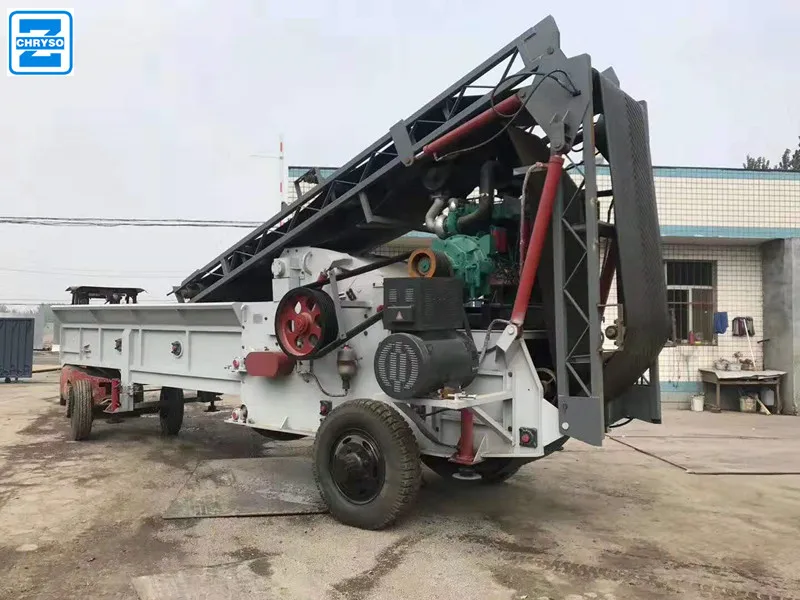

Machine with feeding conveyor show(With wheels movable diesel type):

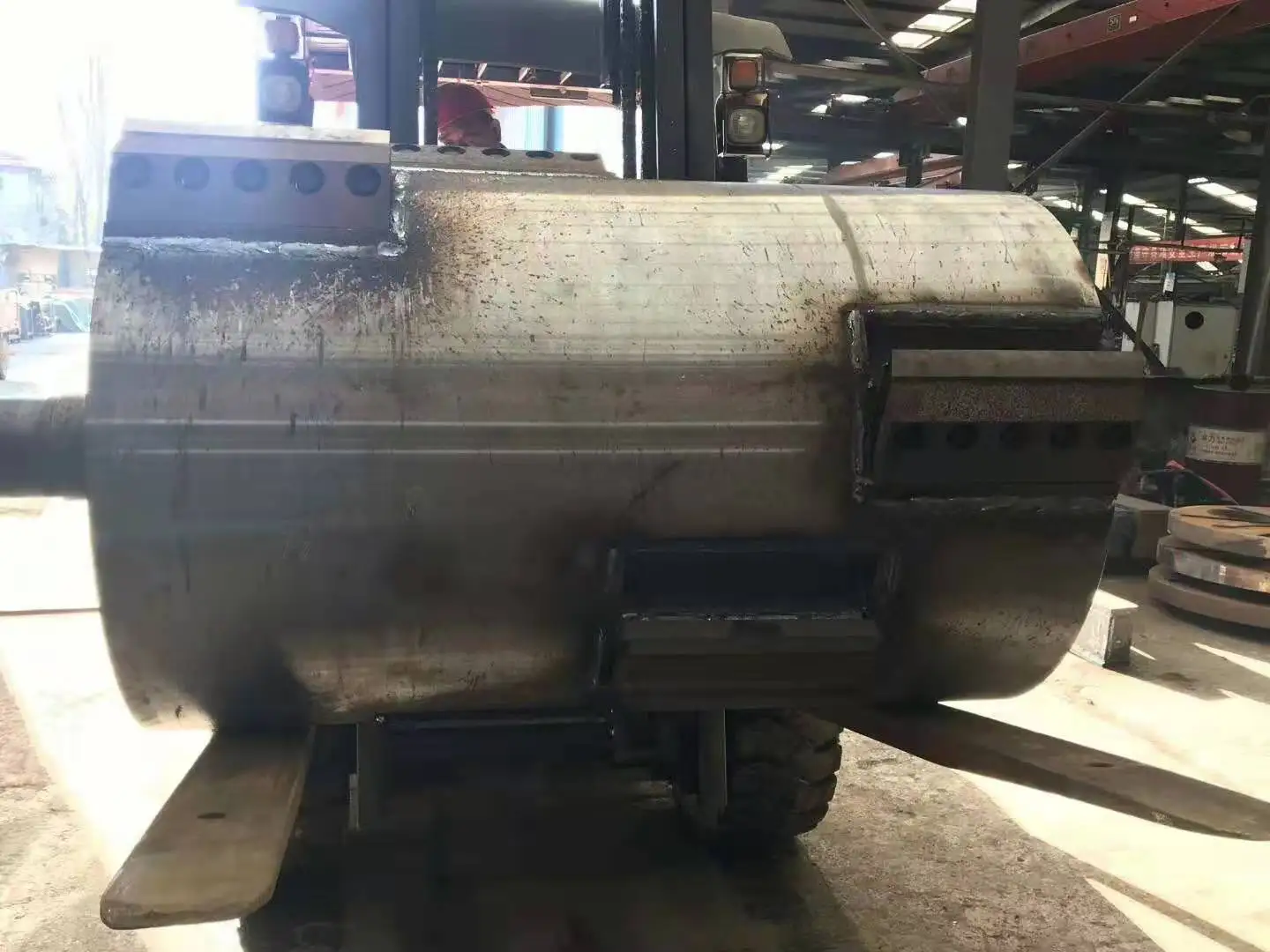

Blades roller type show:(For crush logs). Standard 3 pcs blades.

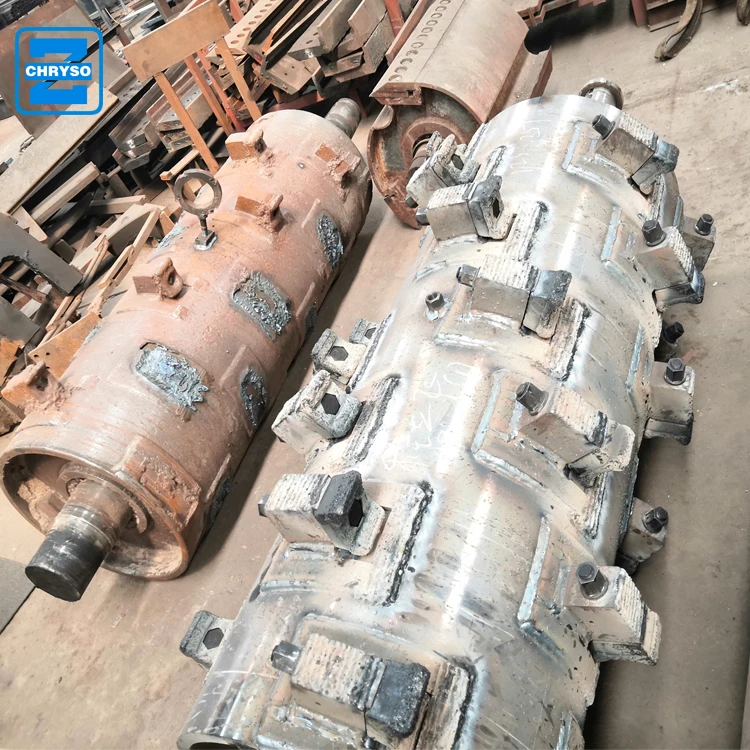

Hammer Type Machine Roller:

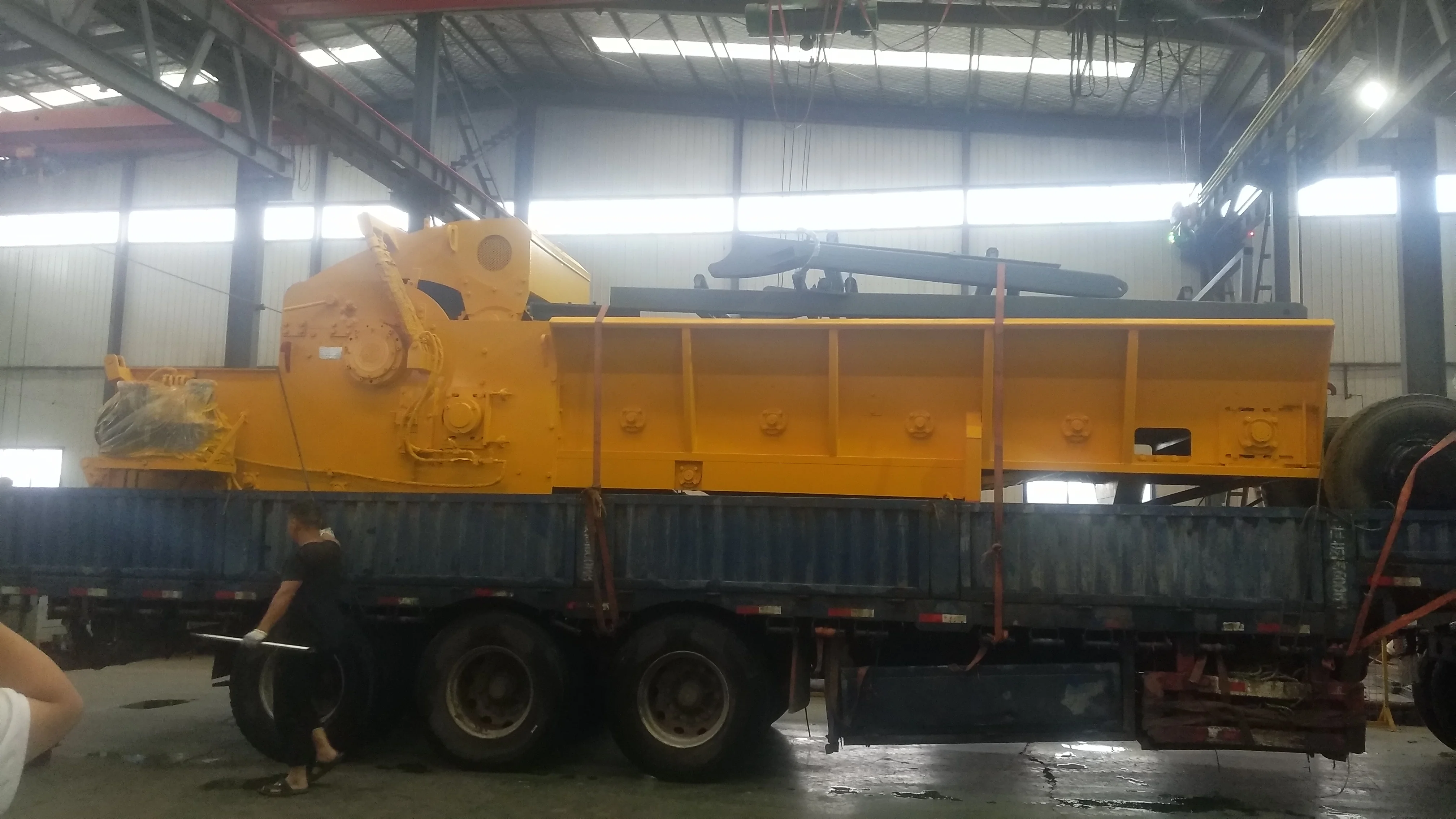

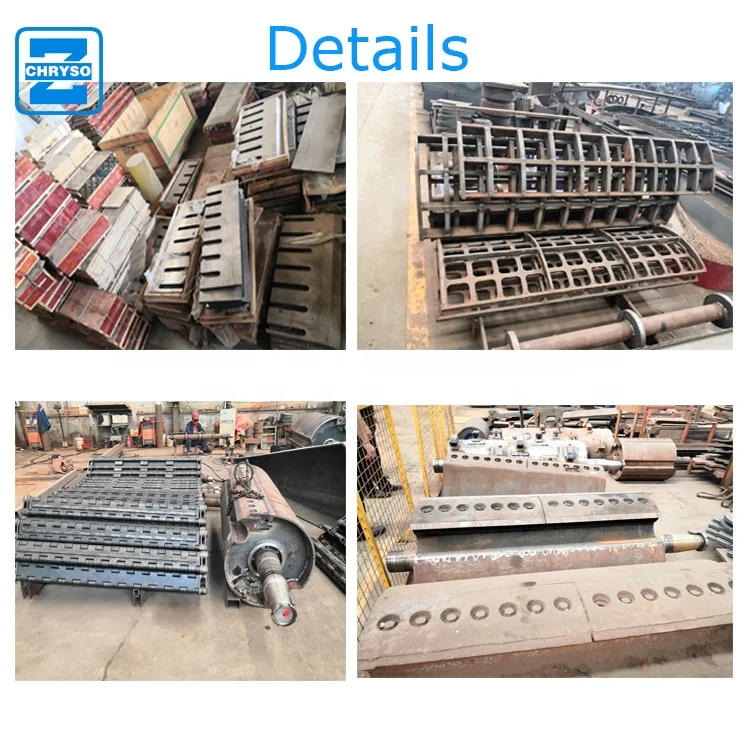

Shredder Details:
Related Product

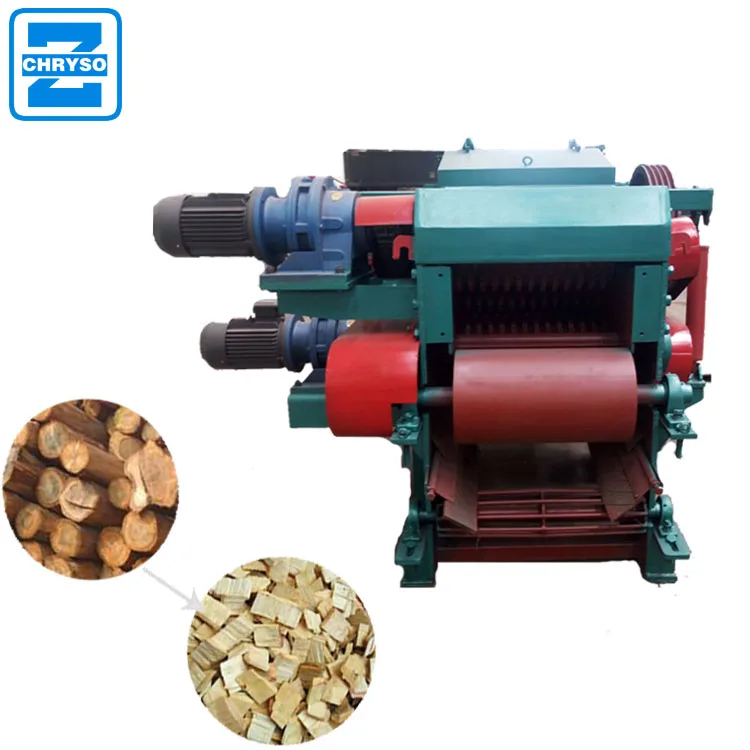

Drum wood chipper machine:
The Drum wood chipper machine, it can produce the wood waste wood logs into wood chipps , then can use high efficient wood crusher machine Get the wood sawdust.
Specification list:
| Model | CRS-215 | CRS-216 | CRS-218 | CRS-2110 | CRS-2113 |
| The Diamteter of Knife Roll(mm) | 500 | 650 | 650 | 800 | 1000 |
| Blades(pcs) | 2 | 2/3 | 2/3 | 3/4/5 | 3/4/5 |
| Inlet Size(mm) | 180*400 | 240*540 | 310*680 | 500*680 | 500*700 |
| The Speed of Knife Roll(r/min) | 590 | 590 | 650 | 500 | 500 |
| Feeding Speed(r/min) | 38 | 38 | 38 | 38 | 38 |
| Maximum Diameter of Raw Material(mm) | 160 | 200 | 300 | 420 | 450 |
| Length of Wood Chips(mm) | 35 | 35 | 35 | 15-35 | 30 |
| Capacity(t/h) | 5-8 | 8-12 | 10-20 | 15-25 | 11-15 |
| Motor Power(kw) | 45 | 55 | 75 | 110 | 220 |
| Feed Conveyor Motor Power(kw) | 2.2 | 4 | 4 | 11 | 11 |
| Discharge Conveyor Motor(kw) | 2.2 | 3 | 5.5 | 5.5 | 7.5 |
| Weight(t) | 2.99 | 4.07 | 7.2 | 12.5 | 14.5 |
| Dimension(L*W*H) (mm) | 1540*1240*1020 | 1980*1950*1250 | 2300*2150*1500 | 3850*2448*2050 | 3850*2448*2050 |
Equipped with large diameter roller 500m-1000mm ;
Standard 3 pcs blades ,
can crush the wood log diameter from 160mm to 450mm;
final product chipps length 30-35mm;
large capacity 5-25tons/h;
Optional feeding and diacharge conveyor .
Second step : Crush the chipps into wood sawdust

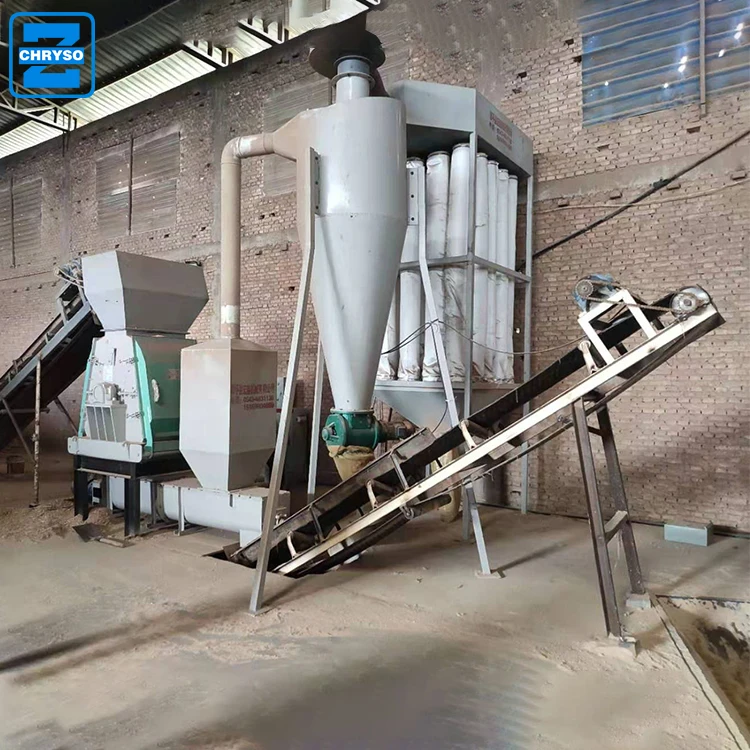

Large capatity Wood crusher machine
This machine with high efficiency to get wood sawdust . it can equipment cyclone , air below and feed screw conveyor.
Suggest prepare underground base hole for discharging convery connection.
Final sawdust product :(Min. 5mm sawdust , sawdust size customized according to requirements)
Specification data:
| Model | CRS530 | CRS680 |
| Diameter of Knife Roller(mm) | 650 | 800 |
| Speed of Knife Roller(rpm) | 2320 | 2400 |
| Knife Quantity(piece) | 72 | 100 |
| Production Capacity(TPH) | 2-3 | 4-6 |
| Main Motor Power(kw) | 90 | 132 |
| Feeding Size(mm) | 1000*300 | 1300*300 |
| Discharge Conveyor Length(m) | 10 | 10 |
| Weight(t) | 3.2 | 4 |
| Machine Size | 2480*2900*2180 | 2980*2900*2840 |
Hammer type crusher machine ;
72pcs or 100pcs hammers optional ;
Feeding length 1000 or 1300mm, width 300mm.
Optional discharge conveyor.
