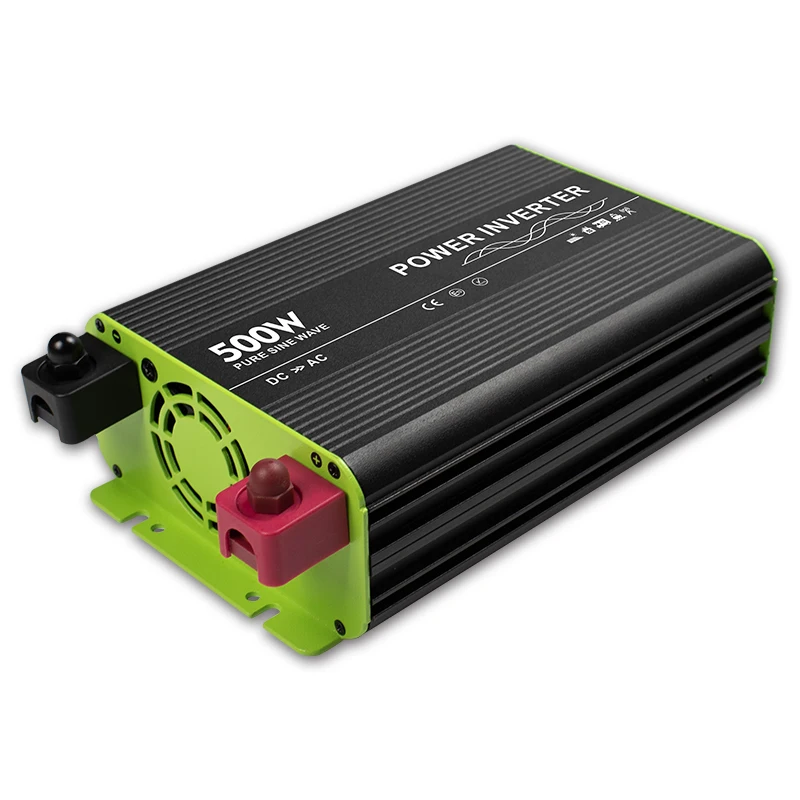

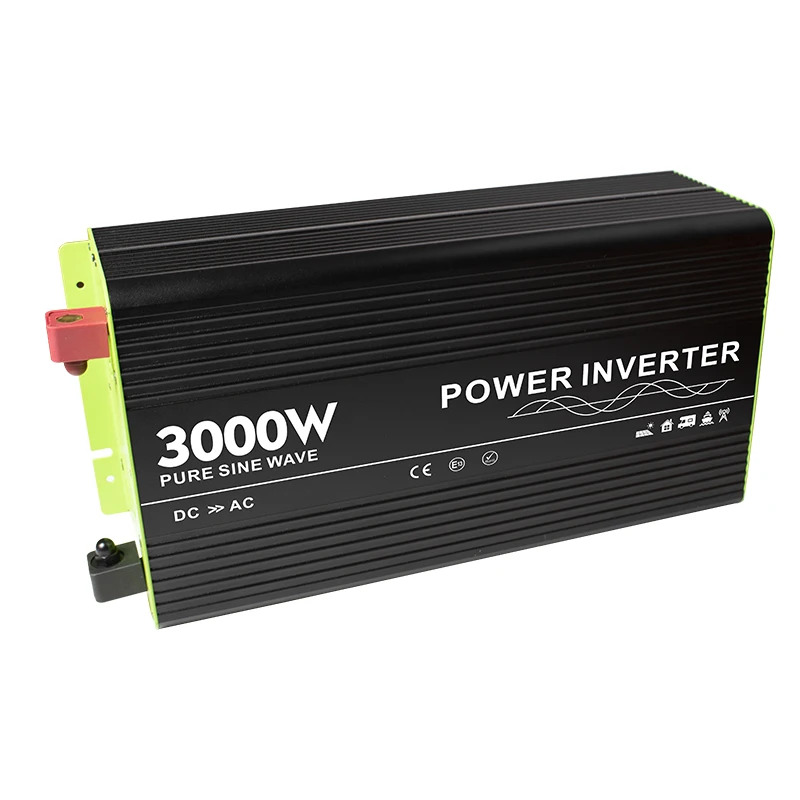

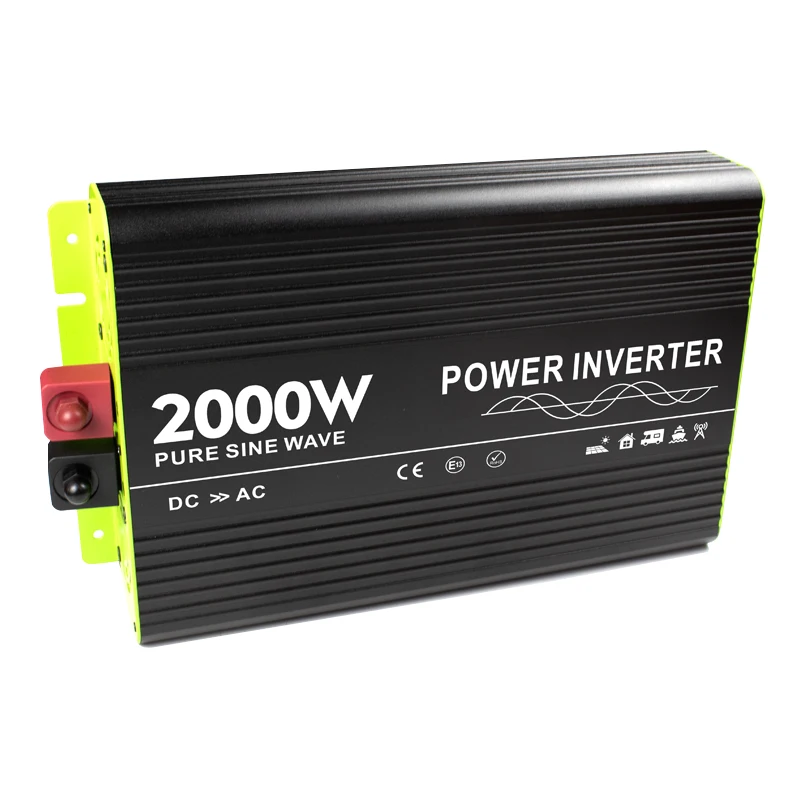

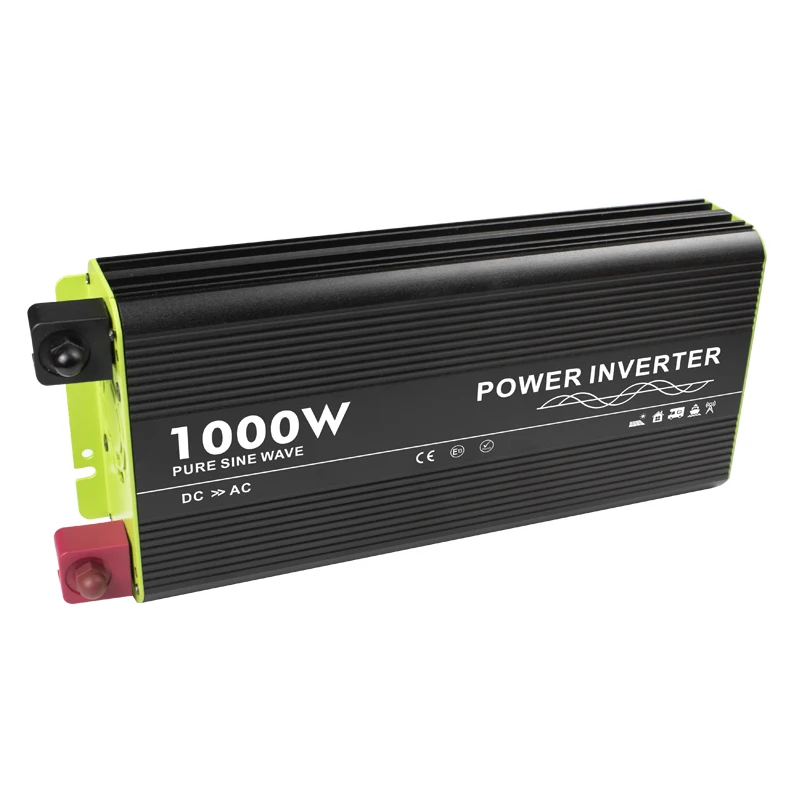

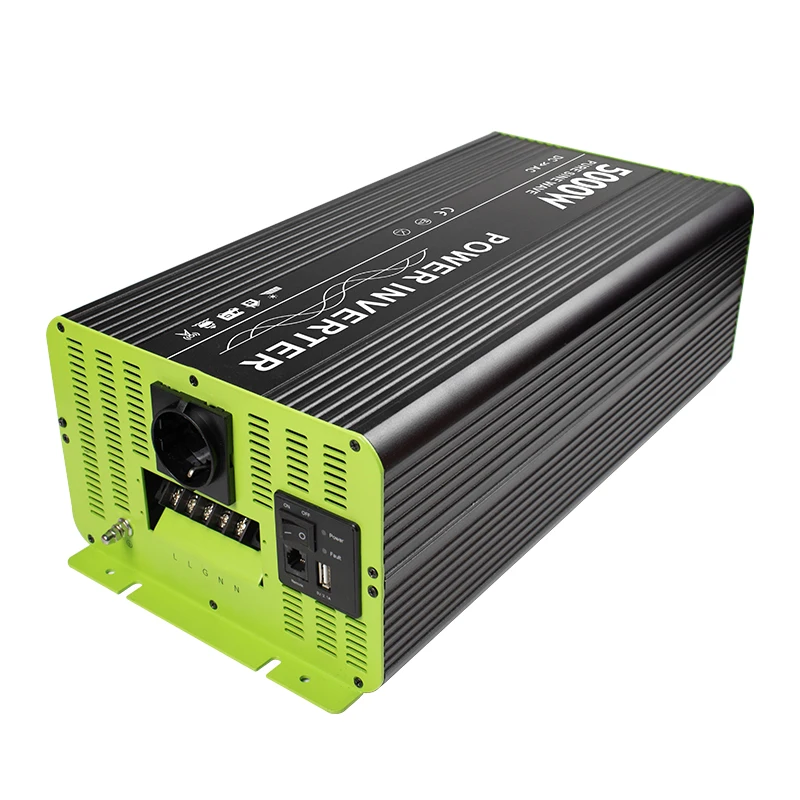

500W 1KW 2KW 3KW 5KWDC to AC pure sine wave power inverter off grid solar inverter
500W 1KW 2KW 3KW 5KWDC to AC pure sine wave power inverter off grid solar inverter
500W 1KW 2KW 3KW 5KWDC to AC pure sine wave power inverter off grid solar inverter
500W 1KW 2KW 3KW 5KWDC to AC pure sine wave power inverter off grid solar inverter
500W 1KW 2KW 3KW 5KWDC to AC pure sine wave power inverter off grid solar inverter
500W 1KW 2KW 3KW 5KWDC to AC pure sine wave power inverter off grid solar inverter
500W 1KW 2KW 3KW 5KWDC to AC pure sine wave power inverter off grid solar inverter

500W 1KW 2KW 3KW 5KWDC to AC pure sine wave power inverter off grid solar inverter

Share on (1600370506705):


Price:$123.00 - $129.00

Quantity:


Product Overview

Description









Pure Sine Wave THD <4%




OUTPUT Efficiency 87%~93%




11 Protection Functions
Soft Start Protection/Over Current Protection








25 Years Experience Engineers Team




Certifications







High Recognized Market

Germany Market
France Market
Norway Market
Switzerland Market
Italy Market
Turkey Market Australia Market
Brazil Market
Colombia Market
Mexico Market
Peru Market
South Africa Market
Saudi Arabia Market



Scene











Exhibition






SPECIFICATIONS


MODEL
RS5000-112
RS5000-124
RS5000-148
RS5000-212
RS5000-224
RS5000-248
Rated power
5000W
Maximum output power
5500W for 180 sec./6000W for 10 sec./surge power 10000W for 2 sec
Frequency
Factory setting set at 50Hz or 60Hz or switchable
Output wave form
Ture sine wave (THD<4%)at rated input voltage
Output AC regulation
5%
Output standard receptacles
Schuko/UK/Australia/Universal/USA/France/JP/Brazil
Output front panel indicator
Operation and fault status
Input BAT.voltage
12V
24V
48V
12V
24V
48V
Input voltage range
10.8~15.5VDC
21.6~31VDC
43.2~62VDC
10.8~15.5VDC
21.6~31VDC
43.2~62VDC
Input DC current
500A
250A
130A
500A
250A
130A
Input fuse
35A*40
30A*20
20A*20
35A*40
35A*20
20A*20
No load current draw
1.1A
0.55A
0.28A
1.1A
0.55A
0.28A
Input efficiency
88%
90%
91%
89%
91%
92%
Battery types
All kinds battery on the market/Recommend use open&sealed lead acid battery
Battery BAT.low alarm
10.8±0.2V
21.6±0.4V
43.2±0.8V
10.8±0.2V
21.6±0.4V
43.2±0.8V
Battery BAT.low shut down
10.2±0.2V
20.4±0.4V
40.8±0.8V
10.2±0.2V
20.4±0.4V
40.8±0.8V
Battery BAT.over shut down
15.5±0.2V
31±0.4V
62±0.8V
15.5±0.2V
31±0.4V
62±0.8V
Battery  reverse polarity
By fuse open
Output over temperature
75℃
Output short
Protection type:shut down o/p voltage,re-power on to recover
Output over load
120% rated power/protection type:shut down o/p voltage,re-power on to recover within 10 times
Working temperature
0~+40℃@100%Load;60℃@50%Load
Working humidity
20%-90% RH non-condensing
Storage temperature
-30~+70℃/-22~+158℉
Storage humidity
10-95% RH non-condensing
CE(safety)
Compliance to EN61000-3-2,3
LVD(safety)
Compliance to EN60950-1
21.6±0.4V
43.2±0.8V
10.8±0.2V
21.6±0.4V
43.2±0.8V
RoHS(safety)
Compliance to EN1122B:2001-1
Low bat ararm
(LED buzzer)
Buzzer sound 2 times and red light blink 2 times every 8 Sec
Low bat shut down           (LED buzzer)
Buzzer sound 3 times and red light blink 3 times every 8 Sec
21.6±0.4V
43.2±0.8V
10.8±0.2V
21.6±0.4V
43.2±0.8V
Over bat shut down
(LED buzzer)
Buzzer sound 4 times and red light blink 4 times every 8 Sec
Over temperature               (LED buzzer)
Buzzer sound 5 times and red light blink 5 times every 8 Sec
Over load
(LED buzzer)
Linght blink constantly
Cooling
Load and temperature control the fan
Control wiring
RJ11
Demension
660*350*260mm(L*W*H)
Packing
11.6kg;1pcs/15KG/carton
Application
Home and office appliances,power tools and portable equipment,Vehicle ,Yacht and solar system


Notes
1.Volue test by input voltage at 13V,26V,48V
2.All parameters are measured at rated load,25℃ of ambient temperature
3.The specifications are subject to change without prior notice for further improvement of products
