10 лет работы, 2 кВт, 3 кВт, 5 кВт, Автономная гибридная литиевая батарея Lifepo4, полная солнечная панель, энергосистема
- Category: Solar Energy Products >>>
- Supplier: Shenzhen Enershare Technology Company Limited
Share on (1600375492088):
Product Overview
Description

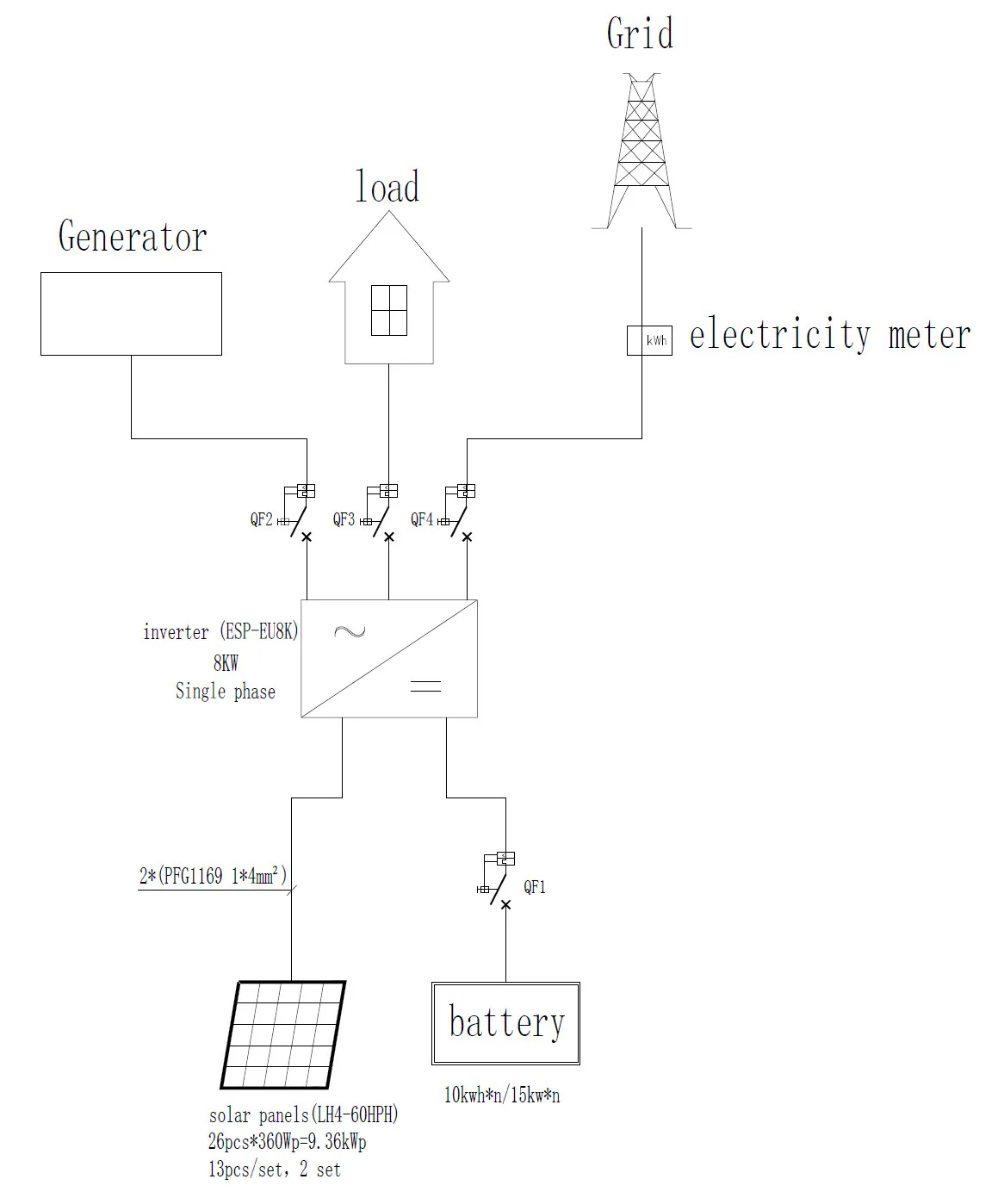

System Connection
System Configuration
Item | Description | Quantity | |||||

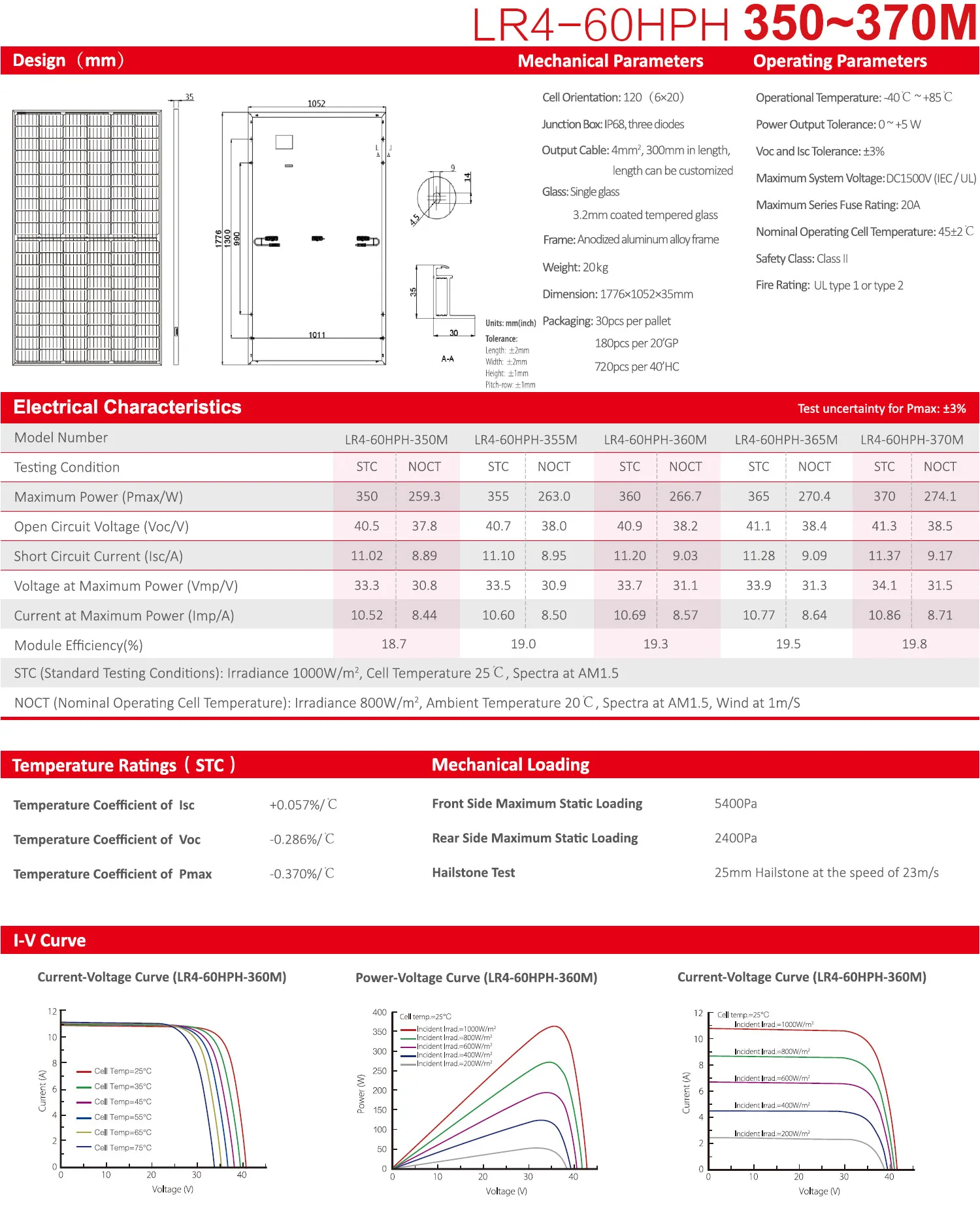

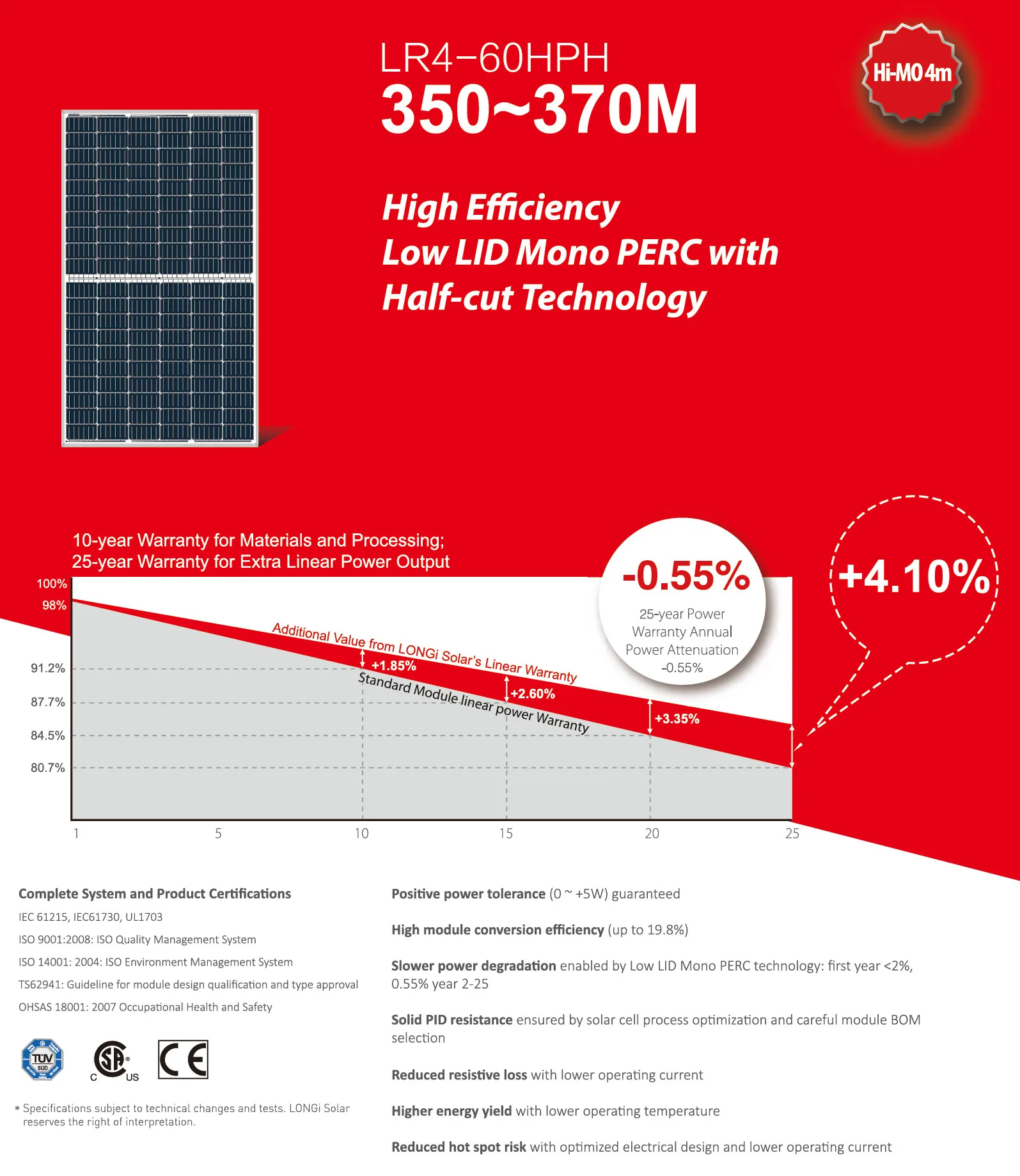

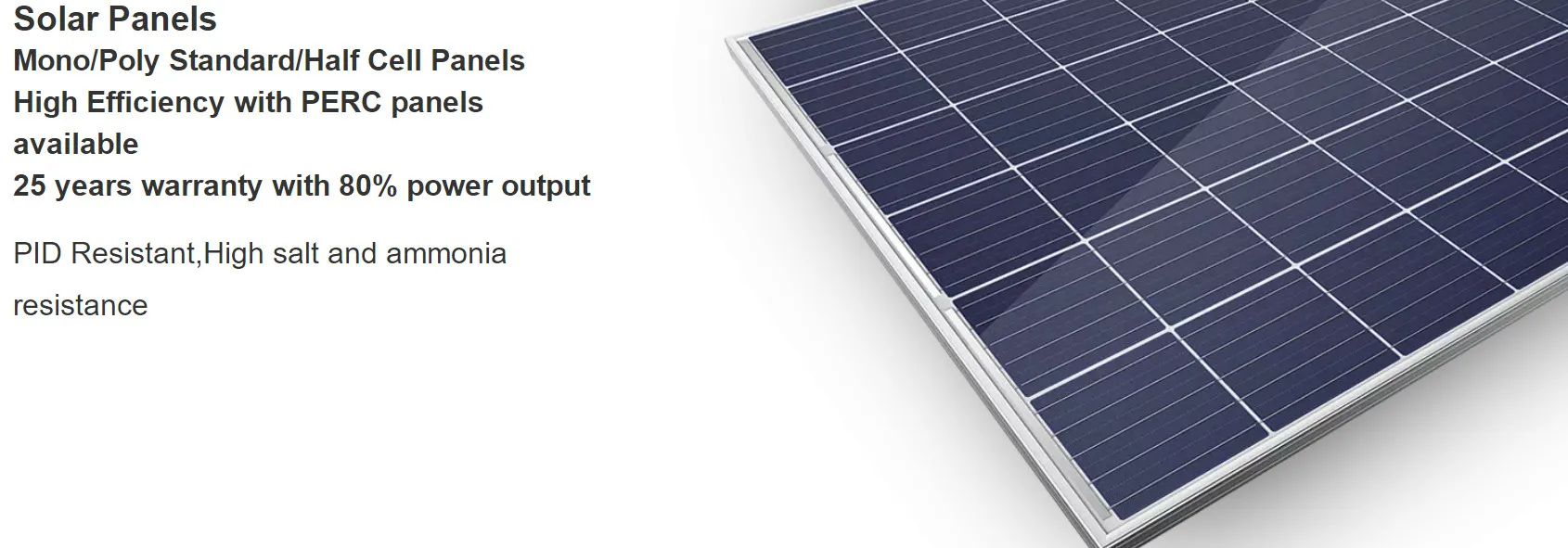

Solar Panels:9.36 KWp | 9.36 KWp Solar panel,Longi Mono Half Cell/LR4-60HPH/ 360W/380W etc Optional， 360Wp *26pcs=9.36KWp | 26 pcs | |||||
Inverter with MPPT charge controller :8KW | 8KW Off-Grid/Hybrid inverter; Model:ESP-EU8K, Rated AC output 8000W,50/60Hz 120/240Vac,230Vac,97.6% Efficiency,Dual MPPT | 1 pcs | |||||
Lithium-ion Battery: 10KWh | 10KWh Battery, voltage:48V Capacity:200Ah Lithium-ion LiFePO4 (LFP)Batteries with BMS,10KWh * n or 15KWh * n optional | 1 set | |||||
DC Combiner Box | 1inputs 1output(Switches, Breaker, SPD, Thunder Protector) | 1 pcs | |||||
Cables and connectors | PV Cable; 4mm2/6mm2/10mm2 etc,MC-4 Connector 10 pairs; MC-4; 30A/1000Vdc | 1 set | |||||
Installation Mounting Structure/Brackets | Aluminum/Galvanized/steel/pastic;Customized,Whole set mounting structure for solar panel for 16pcs solar modules | 1 set | |||||
Technical Specification, Installation Manual, Quotation/Packing List | 1 set | ||||||
Products Description

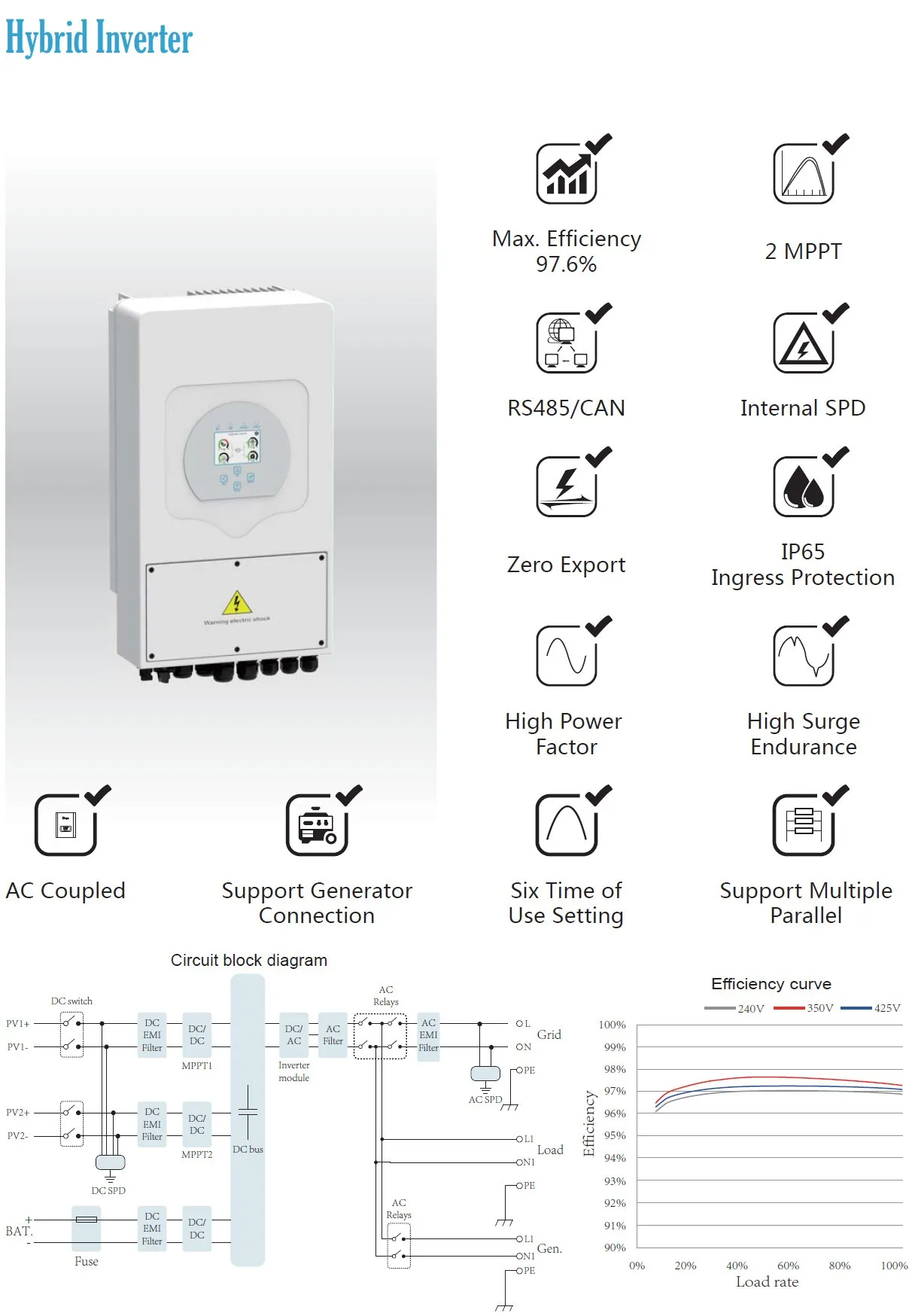

Inverter
LCD Screen for setting
Dual MPPT
High Efficiency 97.6%
IP65 Ingress Protection
High Efficiency 97.6%
IP65 Ingress Protection
Remote Monitor by App on phone

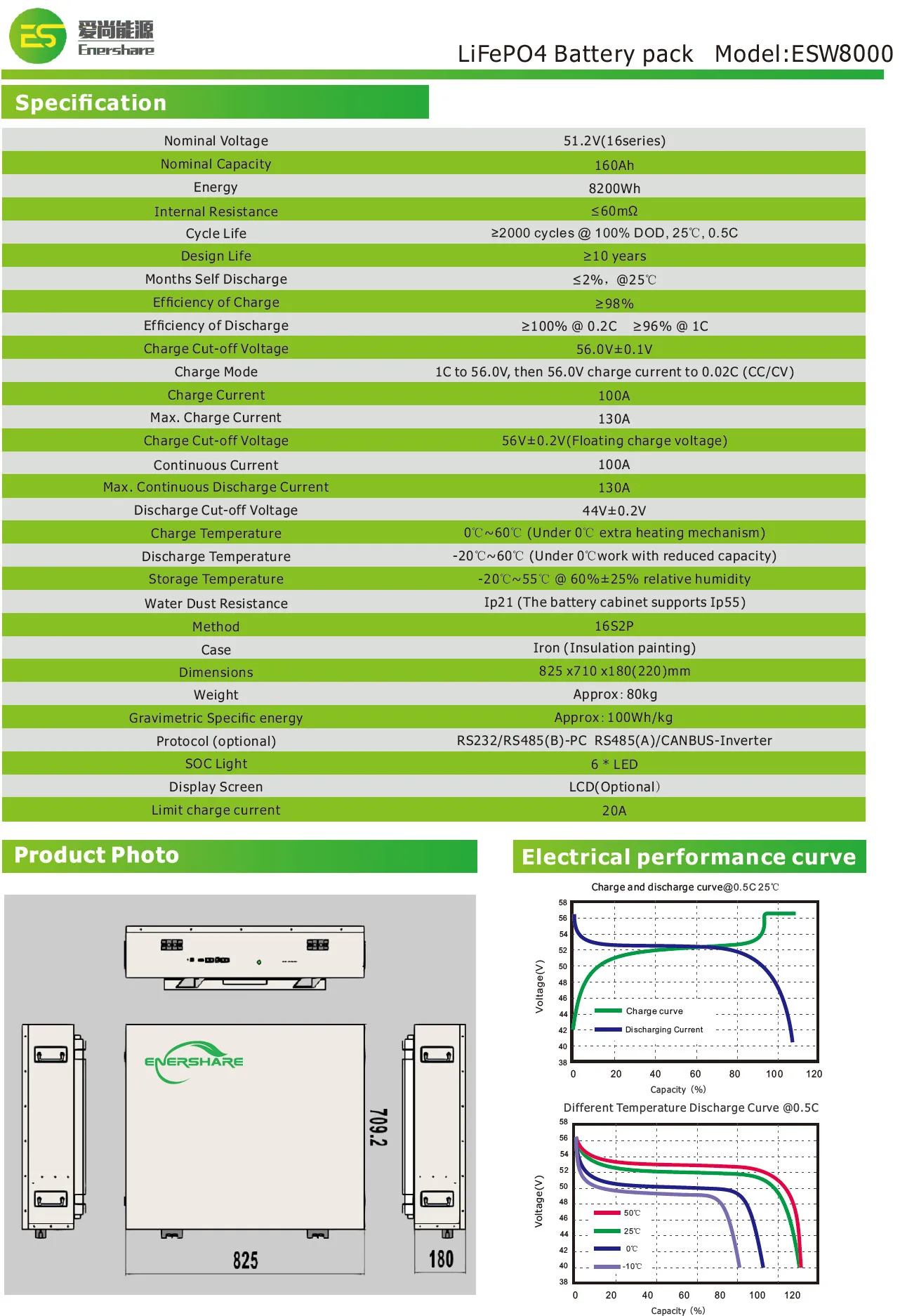

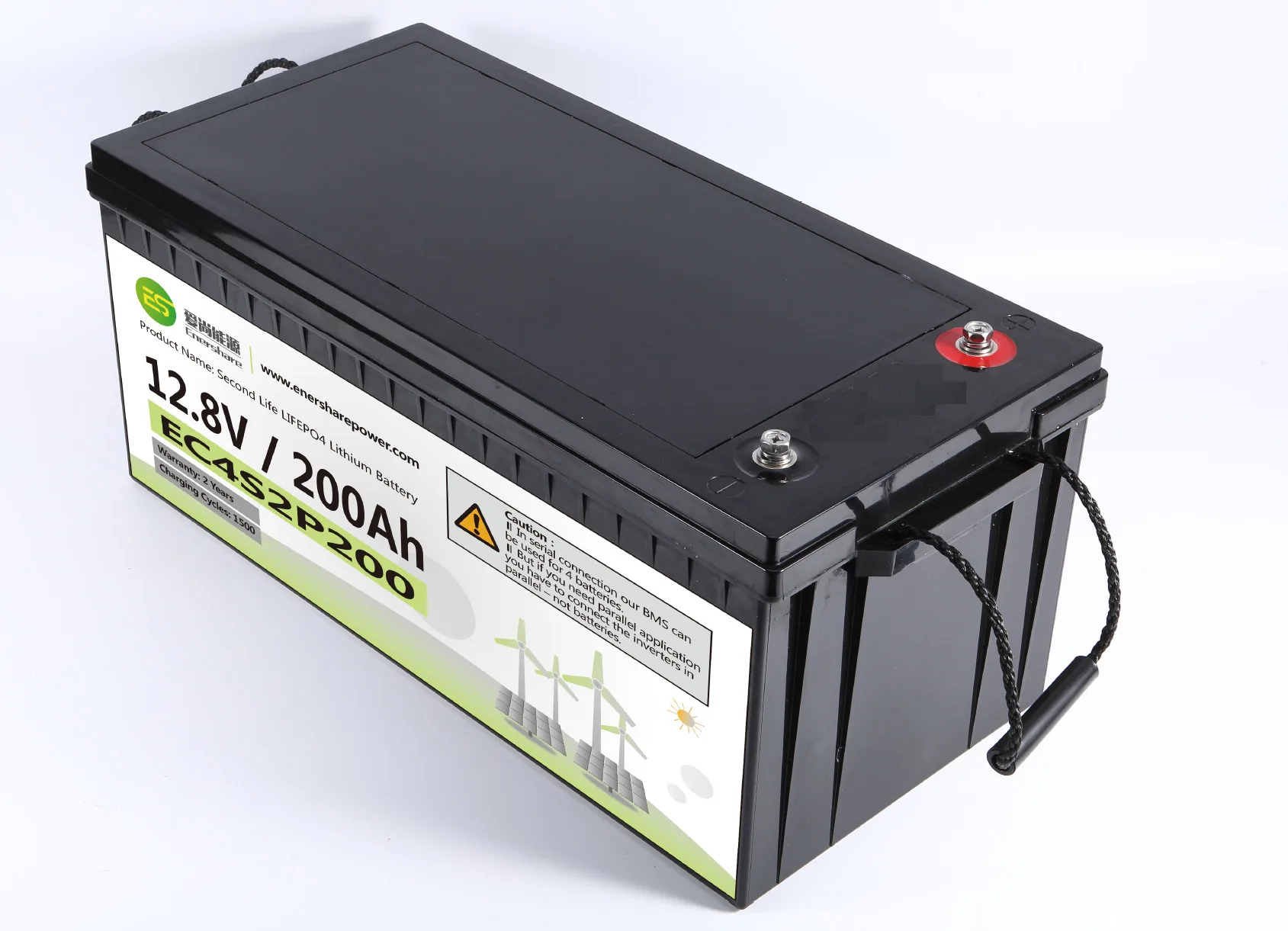

Solar Battery
10KWh Battery, voltage:48V Capacity:200Ah LiFePO4 (LFP) is the most safe Chemistry and long lifespan
10KWh * n or 15KWh * n optional, 7.5KWh,10KWh,15kwh,20KWh...

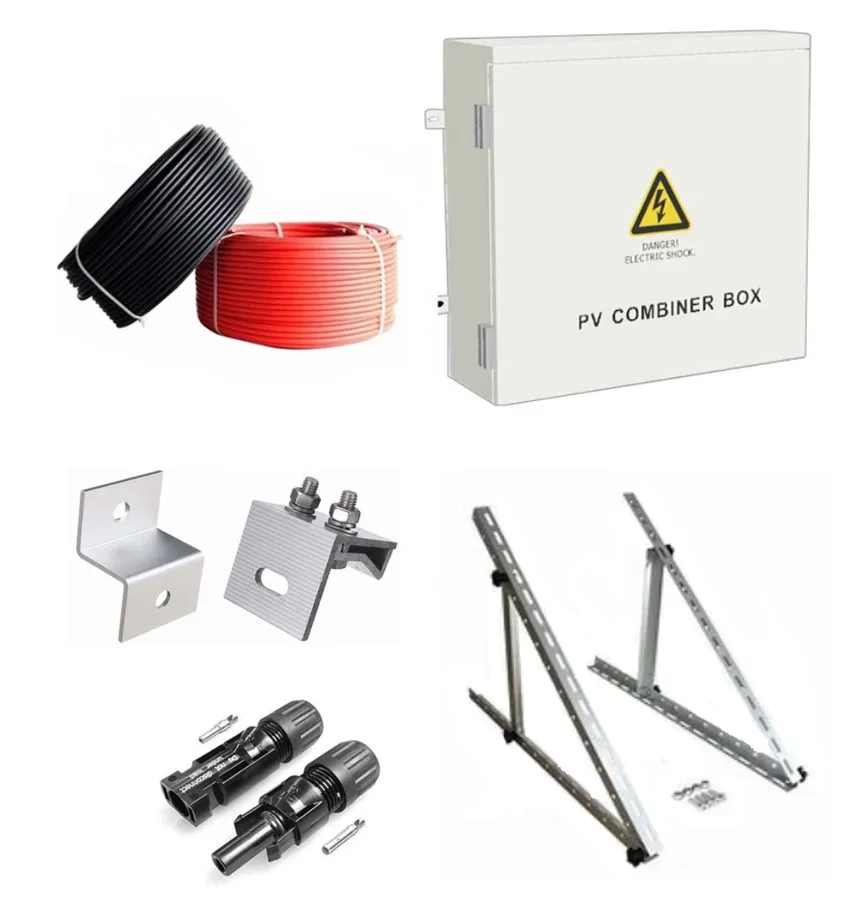

Mounting Brackets and Cables
Aluminum/Galvanized/steel/pastic optional;Customized,Whole set mounting structure for solar panel for 12pcs solar modules
PV Cable; 4mm2/6mm2/10mm2 etc,MC-4 Connector 10 pairs; MC-4; 30A/1000Vdc

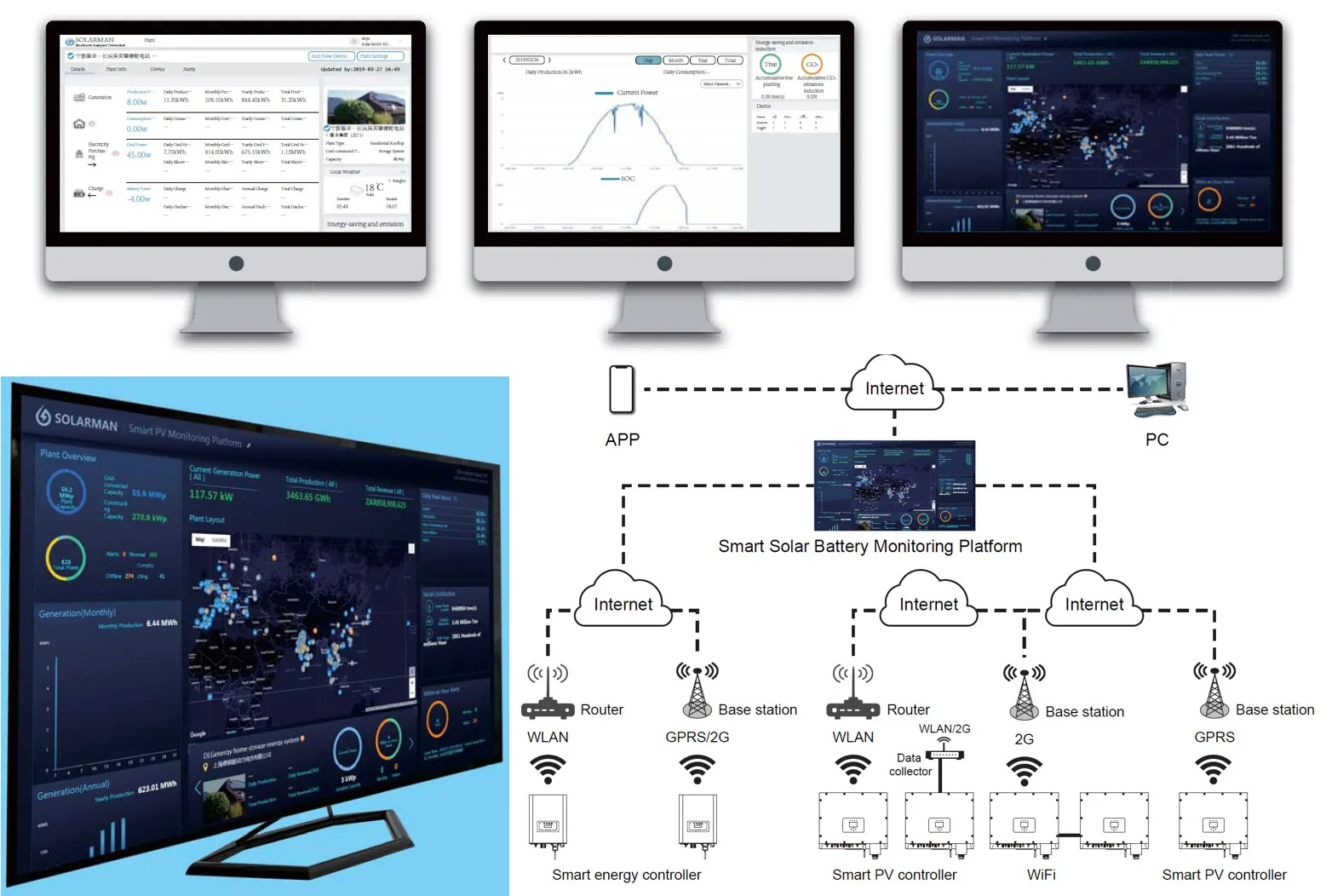

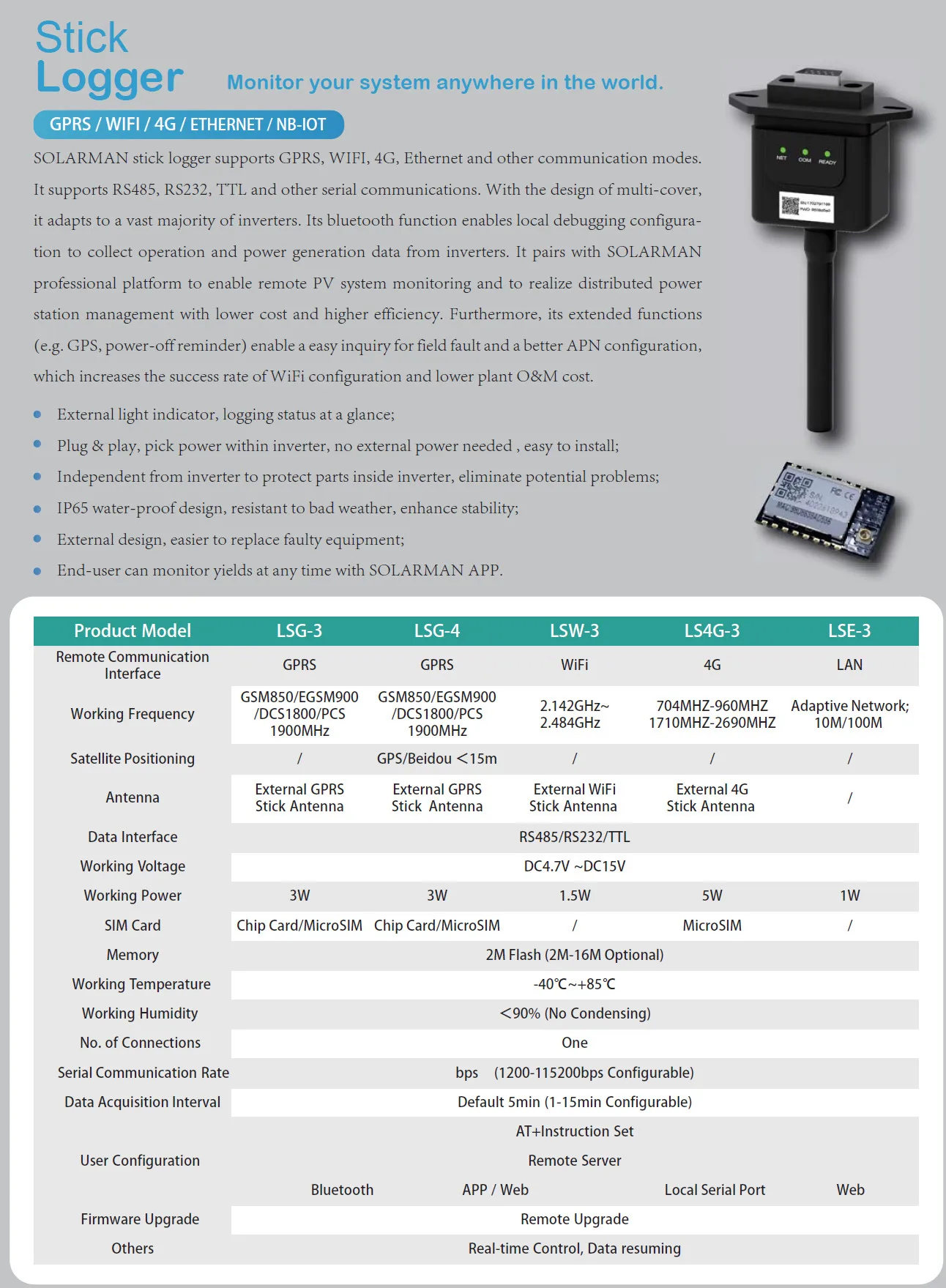

Remote Monitoring platform
Enershare residential monitoring solution take great care to ensure that your solar battery system is in excellent operation throughout its entire life-cycle.This monitoring solution offer you details information of your power generating plant including Today energy,Monthly energy,yearly energy,total energy etc,through wireless communication with your router to the internet by an smart wifi plug.User can easily access to the monitoring page via PC web or phone APP.
Maximum your energy output while minimizing your costs.Scan here to build your power station !
Maximum your energy output while minimizing your costs.Scan here to build your power station !

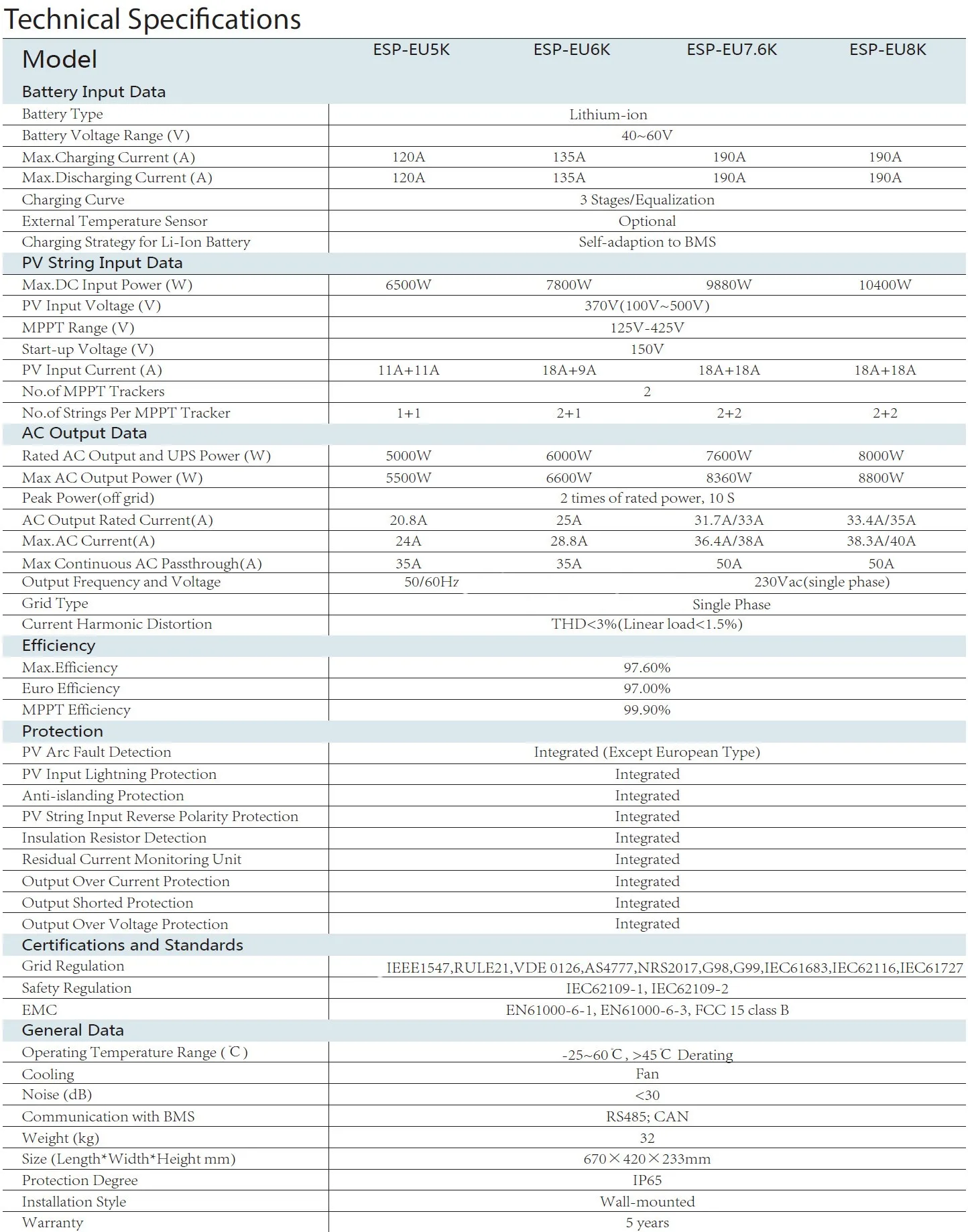

Detailed Specification
