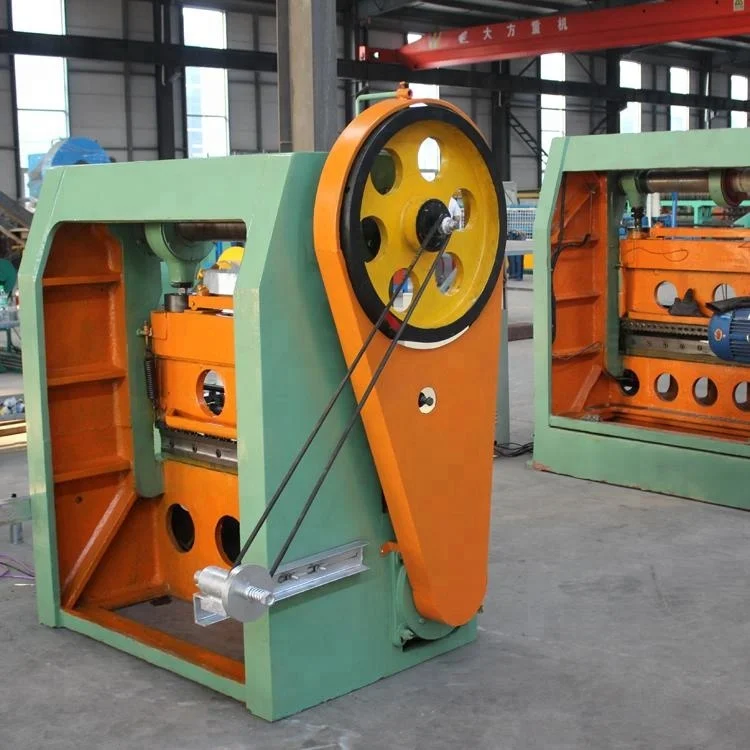

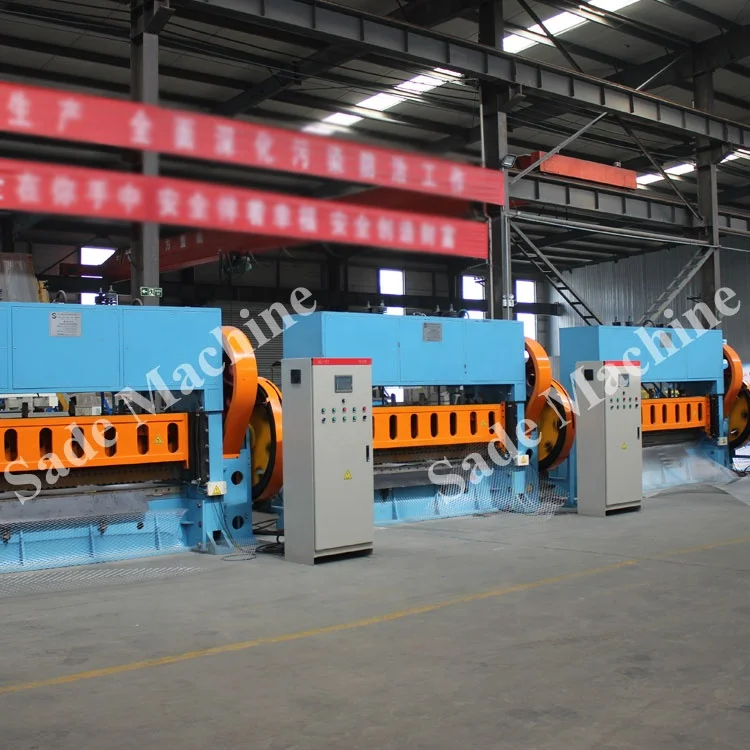

aluminum small hole expanded metal mesh machine for gutter guards
- Category: Metal & Metallurgy Machinery >>>
- Supplier: Hebei Sade Machine Manufacturing Co. Ltd.
Share on (1600379280070):
Product Overview
Description
Product Description
Product Description
hebei laien Expanded Metal Mesh Making Machine With Flattening And Cutting &roll
Expanded metal mesh machine also called expanded diamond mesh machine ,it can produce expanded metal mesh which is widely used in civil construction, Audio Network,hardware, window and door, machine protection etc.The material for expanded metal sheet mesh making machine can be low carbon steel plate, aluminum plate, copper plate ,stainless steel plate....
technical parameters
Technical parameters
Type | SD-400 | SD-750 | SD-1250 | SD-1580Light | SD-1580Heavy |
Thickness(mm) | 0.15-0.6 | 0.15-1 | 0.3-1.2 | 0.5-2 | 0.8-4 |
Width(mm) | 400 | 700 | 1250 | 1580 | 1500 |
Strand (mm) | 0.1-2 | 0.15-5 | 0.2-9 | 0.5-20 | 1-25 |
Hole range | 0.5*1-5*10mm | 1*2-20*10 | 2*4-12*25 | 3*6-25*60 | 4*8-35*100 |
Speed(times/min) | 700 | 600 | 500 | 380 | 260 |
Motor(kw) | 3 | 5.5 | 7.5 | 22 | 30 |
Detailed Images
Detailed Images

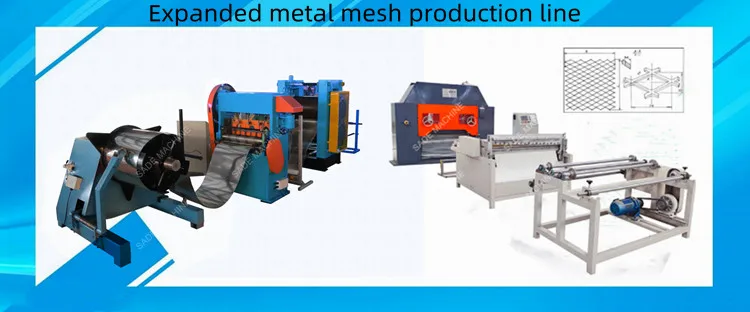

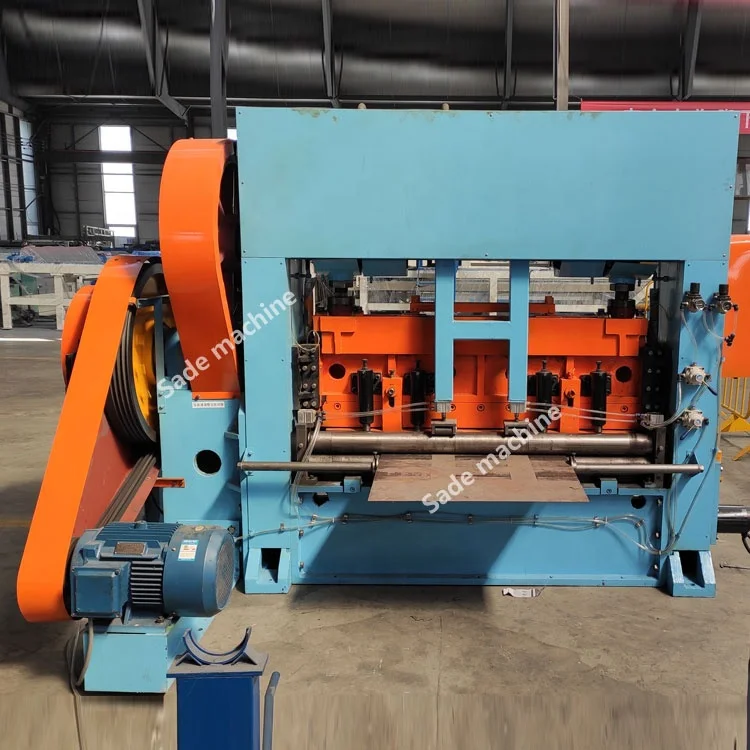

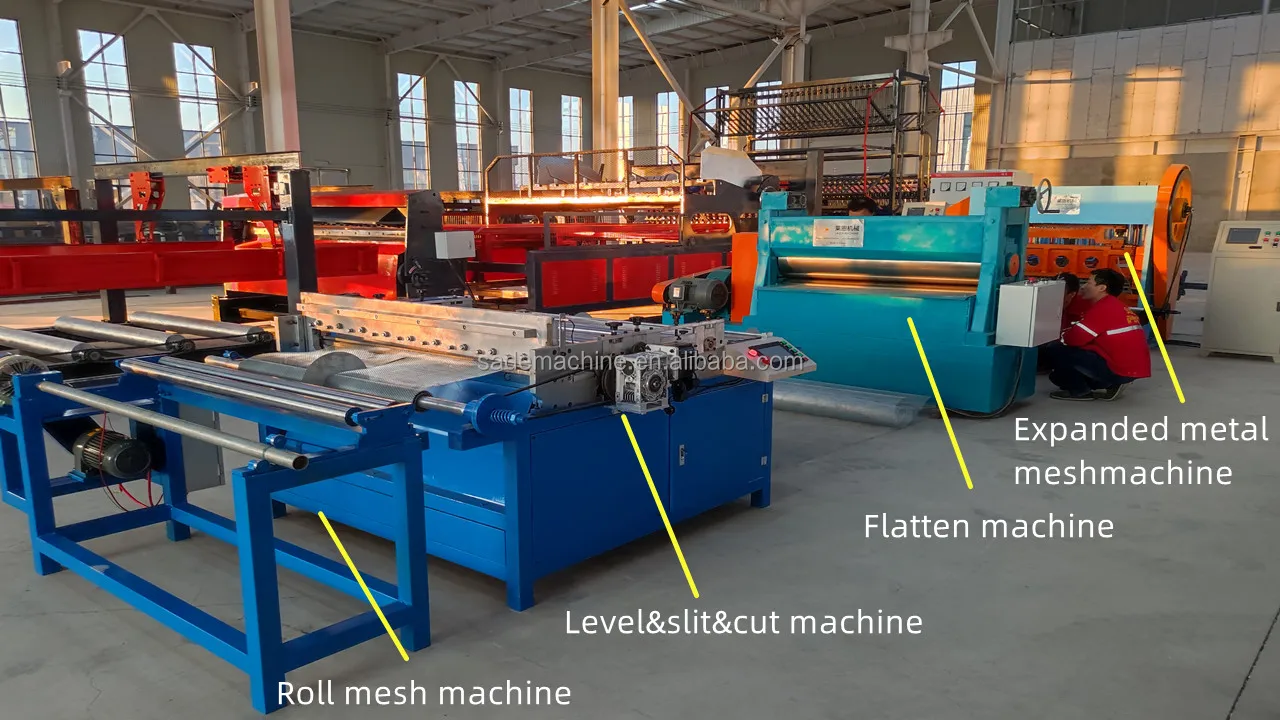

| 1.>Decoiler | 2.>Punch part | 3.>Expandedmetalmeshmachine |
 |  |  |

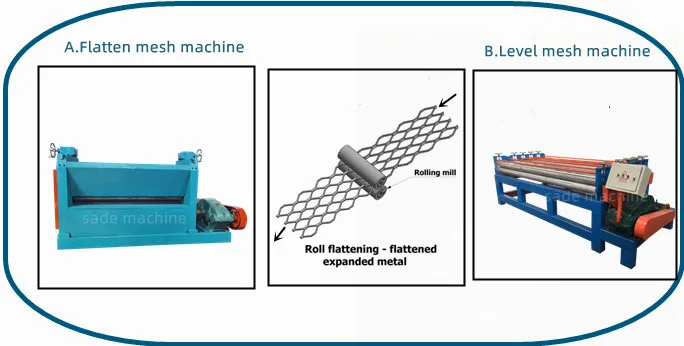

| 4.>Electrical carbinet | 5.>Straight mesh&cut machine | 6.>Slitting or roll meshmachine |
 |  |  |

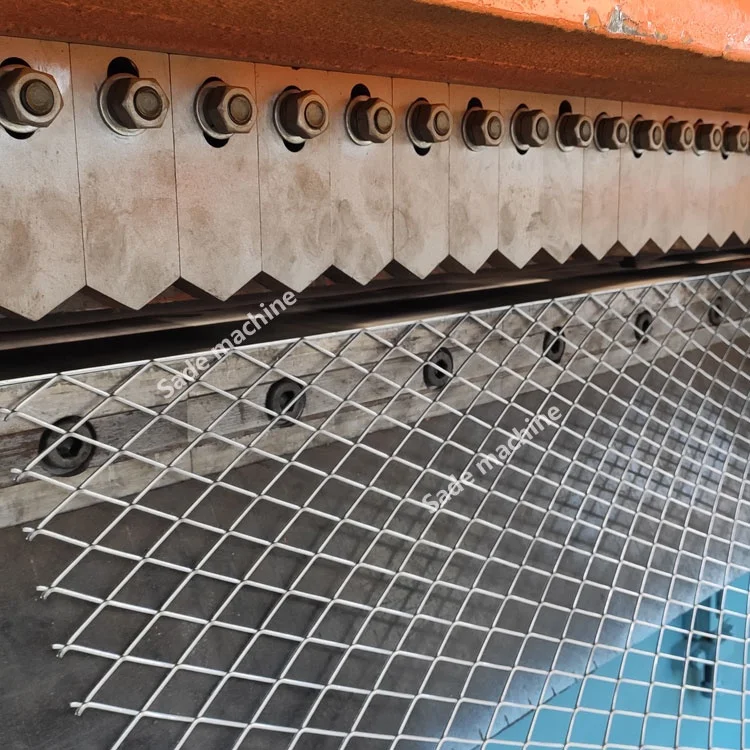

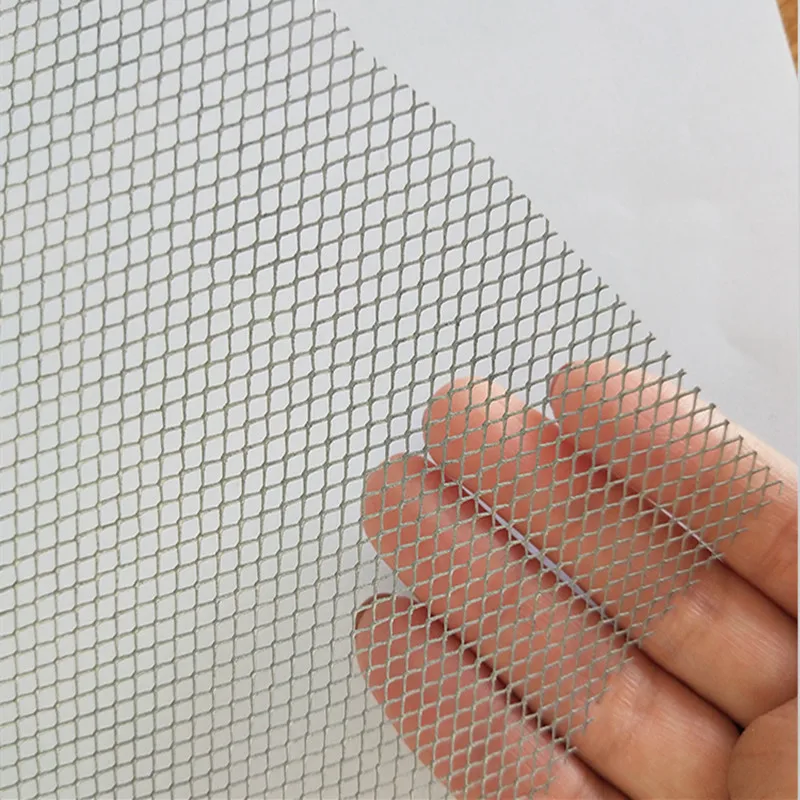

| 7.>Final mesh | 8.>DC53 Mould | 9.>Final mesh |
 |  |  |
Our advantage
Our advantage
1.Mould material with DC53 ,long service life
2.it both can roll feeding and sheet feeding
3.fast speed with max 260times/min
4.Equip automatic lubracation device
5.International famous electrical brand
6.higher effeiciency ,lower noise
7.Easy operation with more stable machine performance
Application
Application

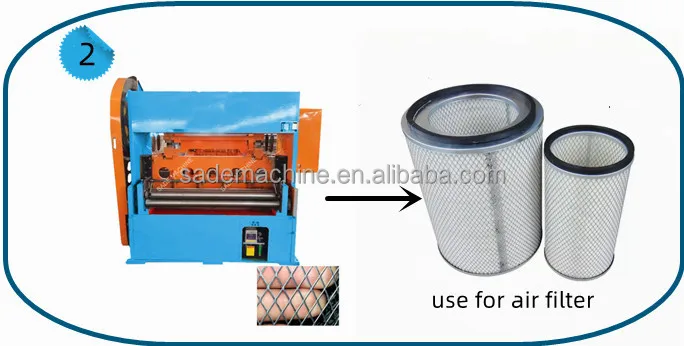

Aluminum Expanded metal mesh machine for filter mesh
diamond expanded aluminum metal sheet mesh machine

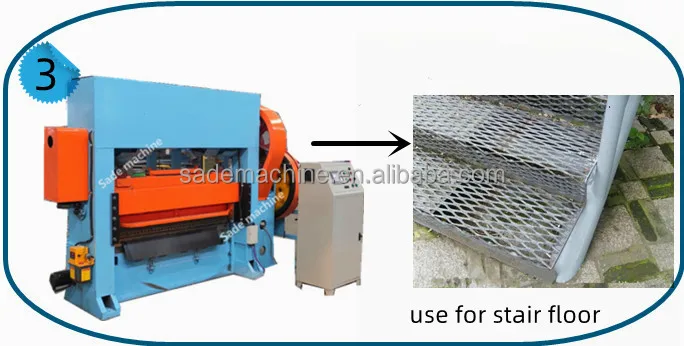

grill expanded metal mesh machine for Walkway Flooring
Raised Expanded Metal mesh machine
