Automatic chain link wire mesh weaving and fence making machine
- Category: Metal & Metallurgy Machinery >>>
- Supplier: Hebei Secure-Net Fence Facility Co. ltd
Share on (1600390169799):
Product Overview
Description

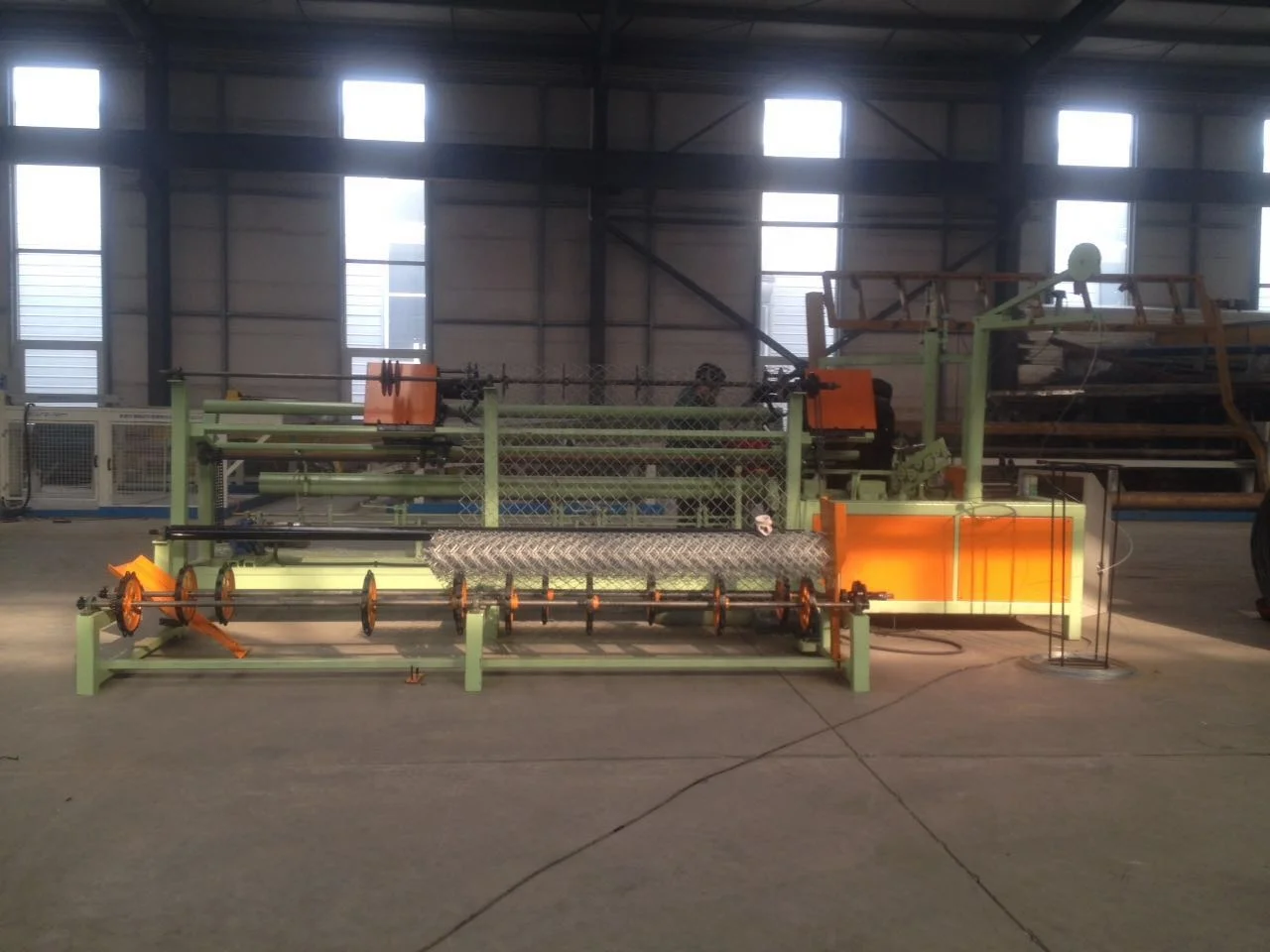

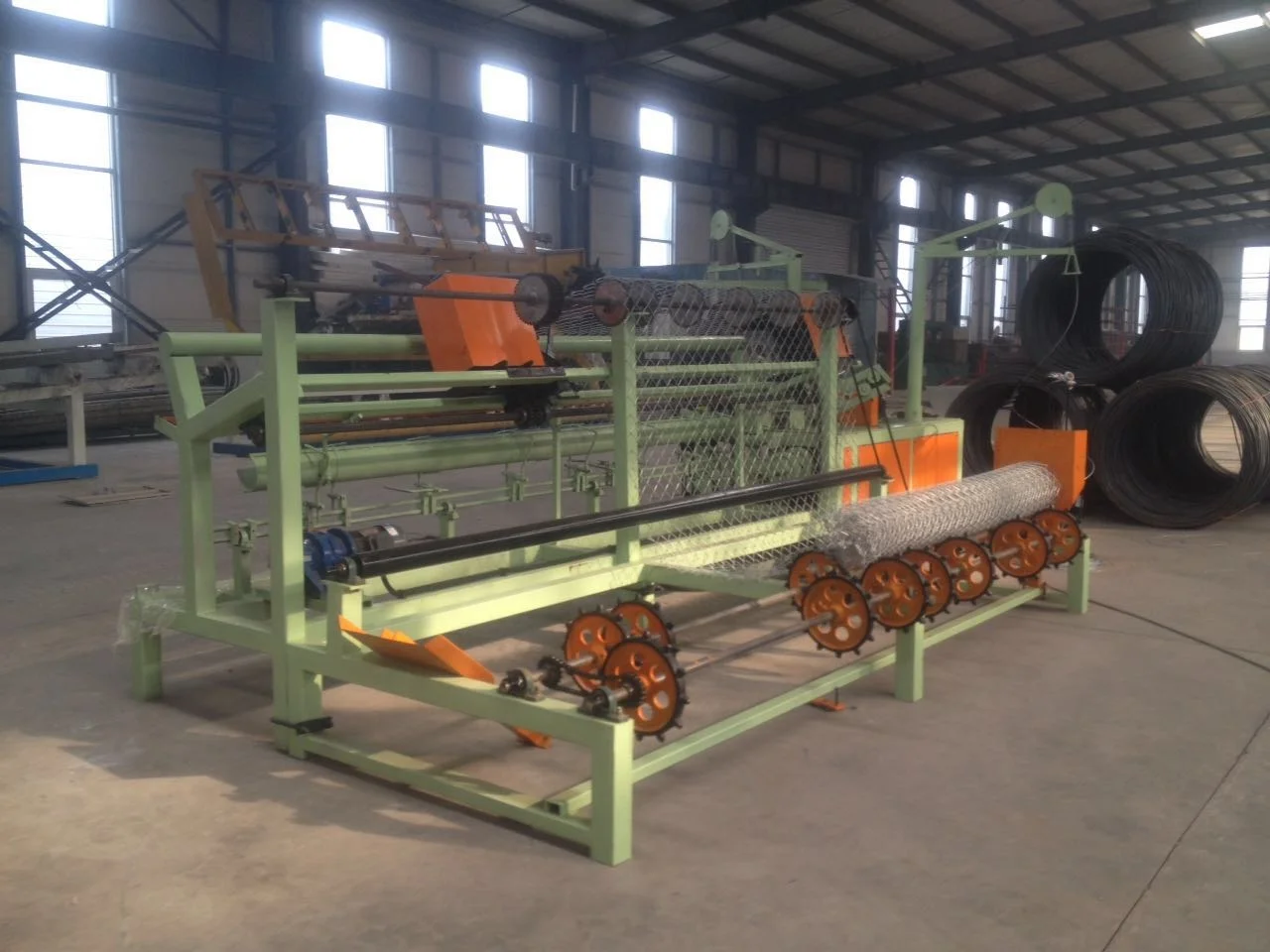

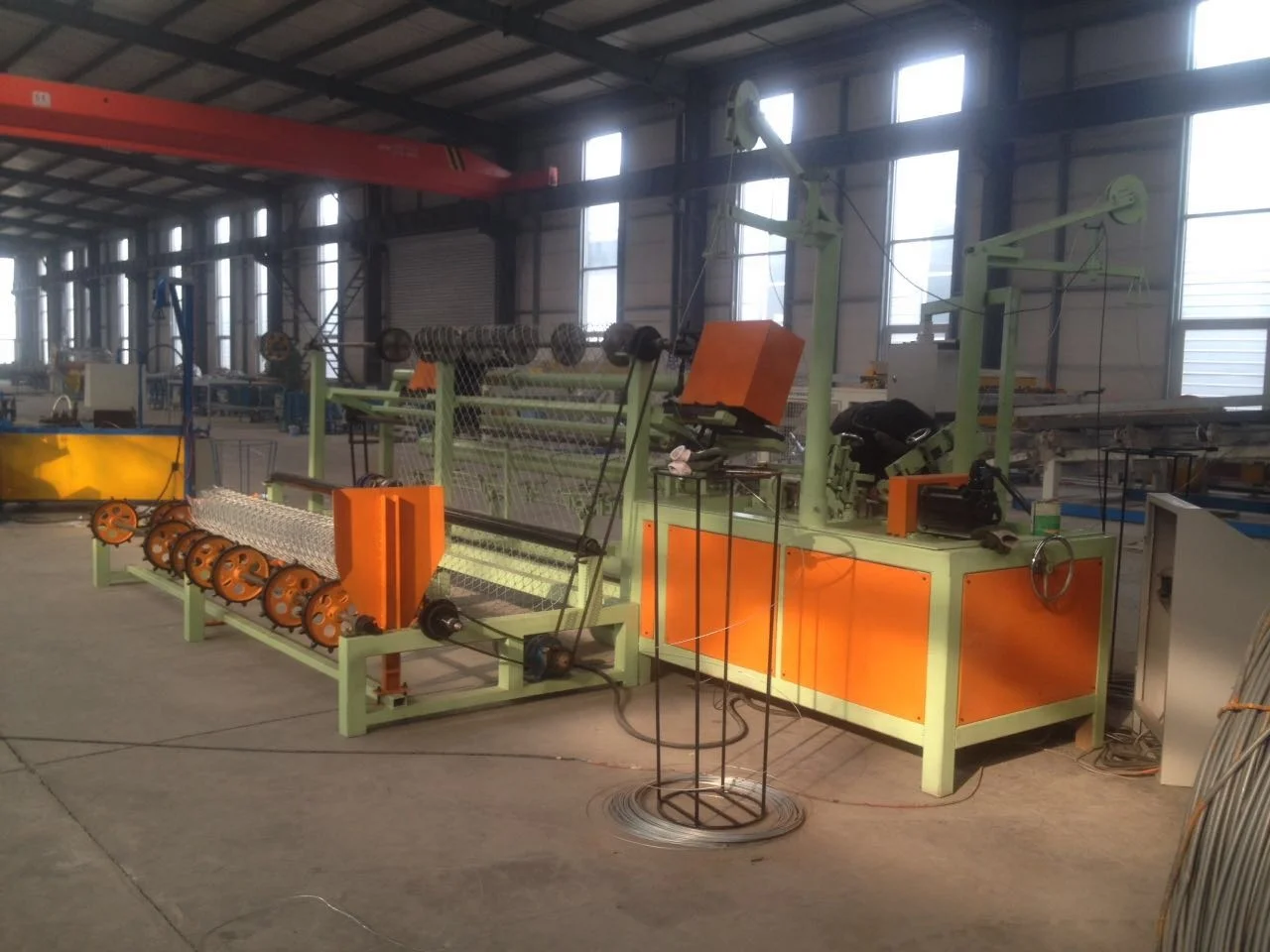

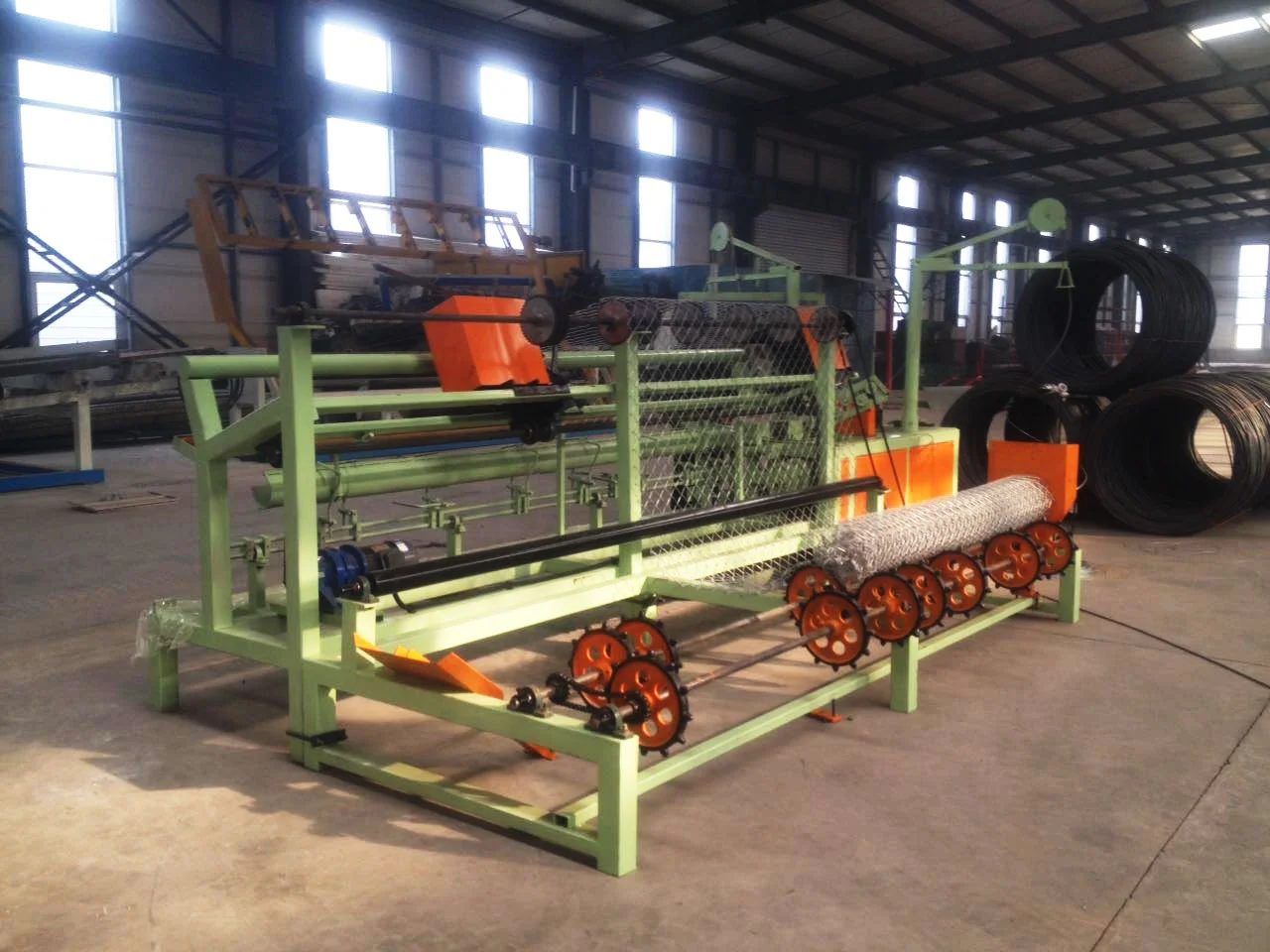

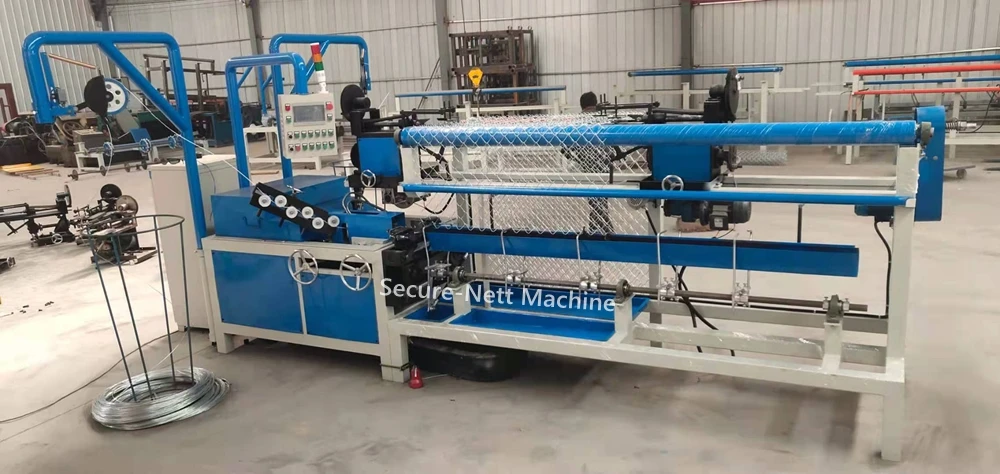

Chain Link Fence Making Machine
The Chain link fence making machine is specially used for manufacturing chain link fence of different sizes with different mould.The wires are fed from wire pay-off and pass through the mould where the diamond size takes place.After passing through the mould, the diamond pattern is automatically thrown on the winding shaft in the switching process.Once the switching is complete,the woven work is automatically glided down to enable the next switch to take place.The chain link is automatically wound to form rolls after the set length is manufactured.
The machine powered by serve motor is controlled by PLC automatic controller,so only one person is enough to operate it.
The machine powered by serve motor is controlled by PLC automatic controller,so only one person is enough to operate it.
Machine Advantages
1.The machine adopts aluminum alloy cantilever box for operation, which is simple and convenient.
2.The mesh rolling system is equipped with brake device, so the wire mesh will not reverse.
3.The cutter device is also equipped with a brake system for more accurate positioning.
4.The machine is equipped with two sets of edge system ( hook edge and twisted edge).
5.The machine will give an alarm when the coil is disordered.
6.Single mold double screw (independent R & D patent certification).
7.The connecting line uses aviation plug, which is convenient for customers to install machinery.
8.The machine is equipped with remote control device, which is convenient for employees to operate the machine.
4.The machine is equipped with two sets of edge system ( hook edge and twisted edge).
5.The machine will give an alarm when the coil is disordered.
6.Single mold double screw (independent R & D patent certification).
7.The connecting line uses aviation plug, which is convenient for customers to install machinery.
8.The machine is equipped with remote control device, which is convenient for employees to operate the machine.
Machine Parameters
No | Name | Date | ||||
1 | Wire diameter | 1.6-4.5mm | ||||
2 | Mesh width | 500-6000mm | ||||
3 | Mesh size | 30*30-120*120mm | ||||
4 | Wire feeding | Double | ||||
5 | Speed | 30-170㎡/h | ||||
6 | Mesh length | 0-30m | ||||
Machine Details
Wire Feeding
Wire Cutting
Mesh Edge Reparing

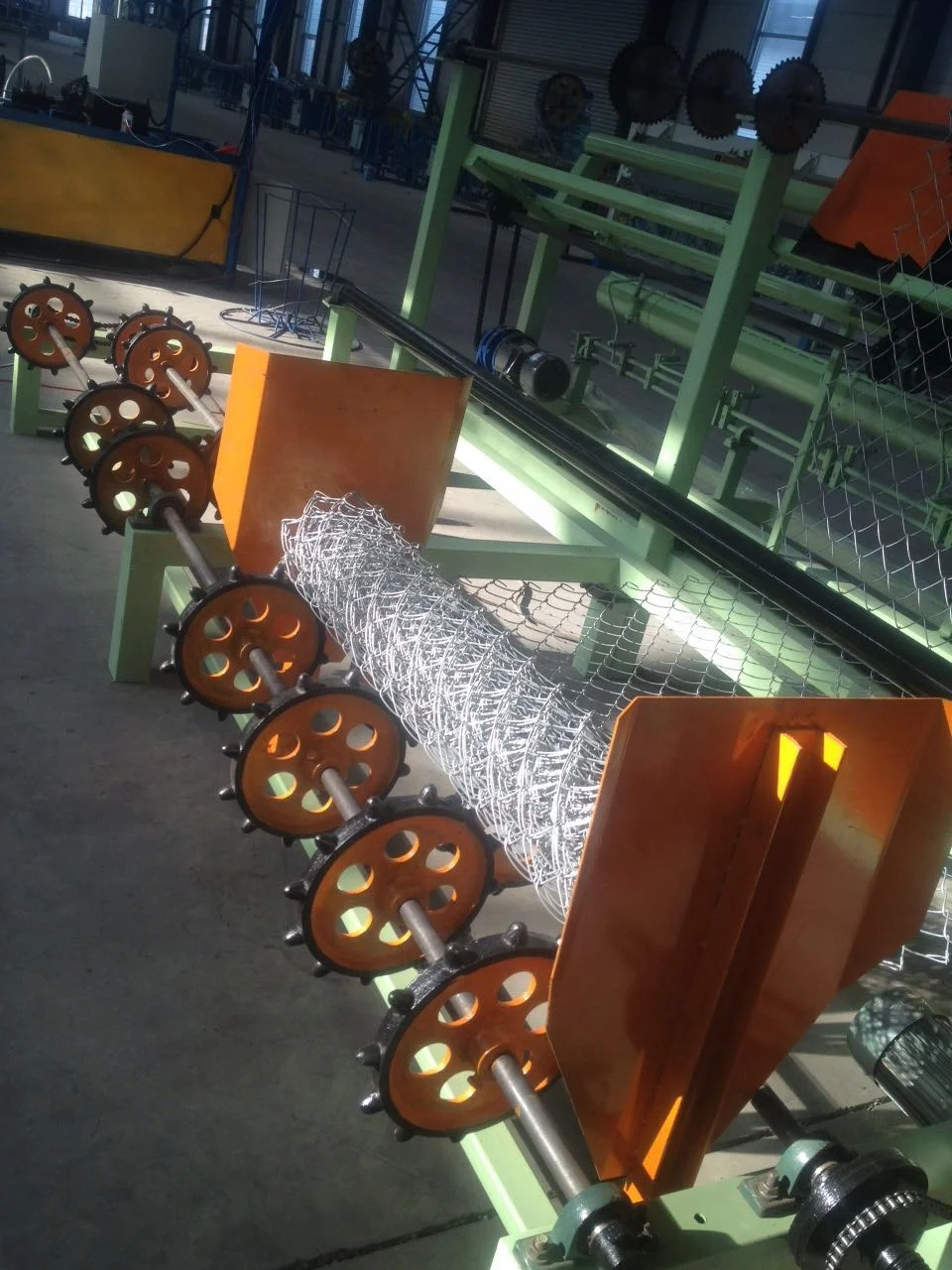

Mesh Rolling
Why choose us:Secure-Net Machine
Secure-Net Company:
As one of the largest manufacturers of wire mesh machines in northern China, Secure-Net has existed for 20 years and will continue to exist for a long time. You don’t have to worry that we, like other small companies, will disappear one day in the future, so that we cannot continue to provide After-sales service, the guarantee and warranty cannot be continued.
Secure-Net’s R&D:
As the heart of the company,R&D of secure-net is full of Mechanical Engineer and Electrical Engineer which are professional and well-educated，We cannot guarantee that our machine will never have problems, but if we have problems, we will promptly and professionally help you solve them.
Secure-Net’s workers:
The workers in our company, unlike other companies that hire farmers, they are experienced and responsible, and work in our company for a long time, so as to ensure the quality of our machines keep improving.
Quality of machine:
As a component of the machine body ,the raw materials of the machine frame, we use thick and heavy steel plates and steel tubes.All of suppliers of electrical appliances and motors, We have been cooperating with for many years,so as to ensure reliable quality.
As one of the largest manufacturers of wire mesh machines in northern China, Secure-Net has existed for 20 years and will continue to exist for a long time. You don’t have to worry that we, like other small companies, will disappear one day in the future, so that we cannot continue to provide After-sales service, the guarantee and warranty cannot be continued.
Secure-Net’s R&D:
As the heart of the company,R&D of secure-net is full of Mechanical Engineer and Electrical Engineer which are professional and well-educated，We cannot guarantee that our machine will never have problems, but if we have problems, we will promptly and professionally help you solve them.
Secure-Net’s workers:
The workers in our company, unlike other companies that hire farmers, they are experienced and responsible, and work in our company for a long time, so as to ensure the quality of our machines keep improving.
Quality of machine:
As a component of the machine body ,the raw materials of the machine frame, we use thick and heavy steel plates and steel tubes.All of suppliers of electrical appliances and motors, We have been cooperating with for many years,so as to ensure reliable quality.
