KPFH 1300/1600/1800/2000/2200 Paper Hardboard Production Line No.1 Manufacturer in China

Product Overview

Description

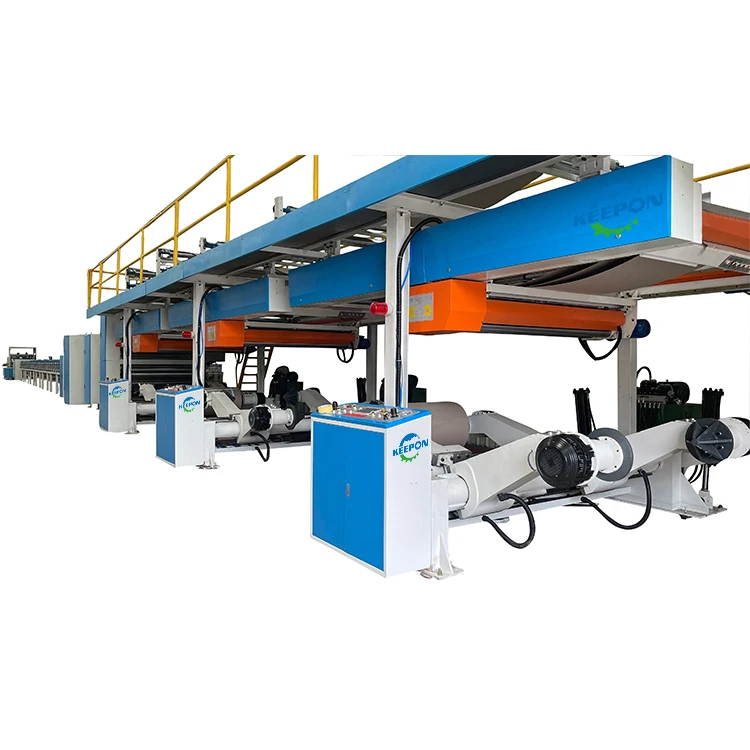

Hard Board Production Line



This Hard Board Production Line is suitable for compounding 2-4 layers from 80 o 600gsm gray board paper into thick cardboard of various thicknesses and specifications required. The production line adopts world advanced technology with reasonable design, compact structure, convenient operation and maintenance, and energy saving. The production line also makes up for many shortcomings such as single-machine manual pasting, which greatly reduces production costs, improves product quality, and improves the flatness of cardboard. The strength and adhesion are greatly improved. It is your ideal equipment for making cardboard.

Web Width	500mm -1600mm
Web Diameter	350mm-1500mm
Web Thickness	80 -600ggsm
Max.Speed	100m/min
Working Speed	30-90m/min
Power	180kw
Sheet Length	499mm-9999mm
Accuracy	±1.0mm
Center Height	1100mm
Dimension	72800mm*4900mm*3600mm
Voltage	380V/50Hz
Pressure	Pneumatic(Working pressure<0.5Mpa)
