Product Overview
Description
Product Description
Lntelligent paper core cutting and conveying
Usage and Features:

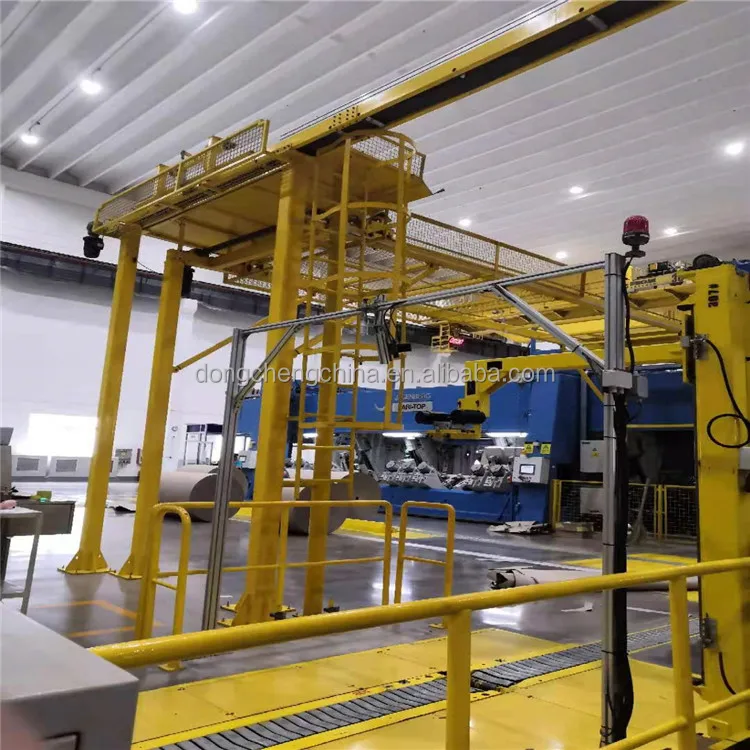

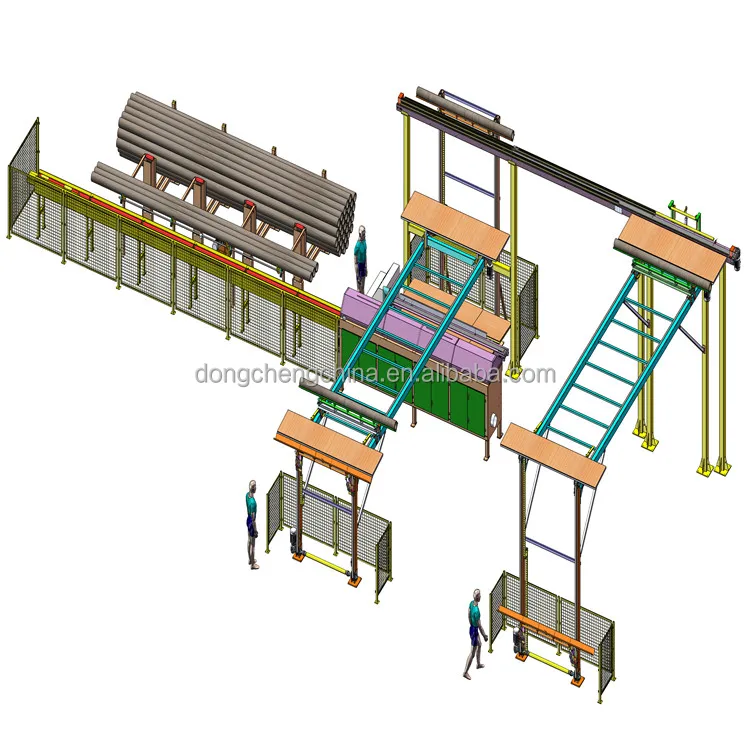

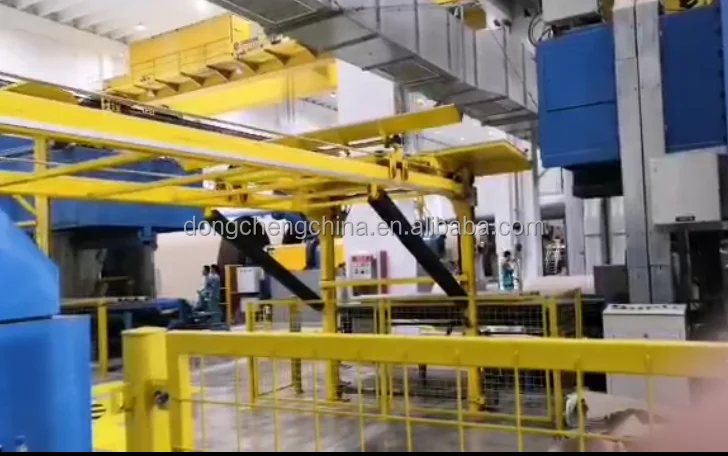

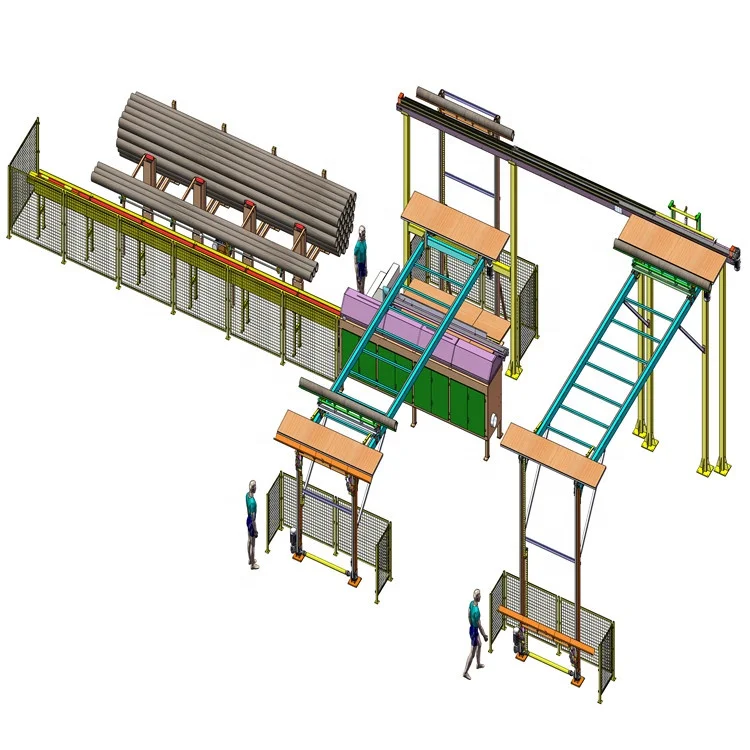

H33 intelligent cutting and conveying system is specially used for automatic paper core supply of multiple large-scale high-speed rewinder. The system can automatically put on the pipe according to the instruction, preset length cutting, waste judgment, recycling, automatic centering, intelligent analysis and positioning, and lift and transport to the middle position of the winding bottom roll. The system replaces the imported production line for the first time in China and runs well in Shandong century sunshine listed company. The system can process up to 9 meters of main pipe and cut up to 3.3 meters. It can automatically adapt to 3-inch and 6-inch paper cores. When replacing paper cores with different diameters and thicknesses, the machine does not need to make any adjustment and automatically adapts to complete the conversion, so as to put the intelligent, high-speed and efficient paper core conveying system into use, filling the gap in the domestic market.
H33 intelligent cutting and conveying system is specially used for automatic paper core supply of multiple large-scale high-speed rewinder. The system can automatically put on the pipe according to the instruction, preset length cutting, waste judgment, recycling, automatic centering, intelligent analysis and positioning, and lift and transport to the middle position of the winding bottom roll. The system replaces the imported production line for the first time in China and runs well in Shandong century sunshine listed company. The system can process up to 9 meters of main pipe and cut up to 3.3 meters. It can automatically adapt to 3-inch and 6-inch paper cores. When replacing paper cores with different diameters and thicknesses, the machine does not need to make any adjustment and automatically adapts to complete the conversion, so as to put the intelligent, high-speed and efficient paper core conveying system into use, filling the gap in the domestic market.
Detailed Images
Introduction of product advantages or application effect or application mode
Function introduction:
For the storage of large bundles of paper tubes, the paper tubes are lifted by the rotating tightening sling of the motor reducer. When the paper tubes reach the upper limit height, they automatically roll down to the storage platform to ensure one layer arrangement. The arc turnover plate can only turn one paper tube to the feeder at a time through pneumatic control.
For the storage of large bundles of paper tubes, the paper tubes are lifted by the rotating tightening sling of the motor reducer. When the paper tubes reach the upper limit height, they automatically roll down to the storage platform to ensure one layer arrangement. The arc turnover plate can only turn one paper tube to the feeder at a time through pneumatic control.
Function introduction:
The feeding propulsion device provides a paper tube for the sawing host. The paper tube enters the feeding idler and the detection switch feeds back to the PLC to control the motor to advance at a certain speed. After the paper tube enters the sawing host and approaches the positioning plate, the motor is controlled to change the torque mode until it stops in place.
Through the mutual cooperation of motor, belt, idler, head and detection switch, it is ensured that the paper tube is pushed to the positioning plate of the host every time to realize the paper tube pushing function.
The feeding propulsion device provides a paper tube for the sawing host. The paper tube enters the feeding idler and the detection switch feeds back to the PLC to control the motor to advance at a certain speed. After the paper tube enters the sawing host and approaches the positioning plate, the motor is controlled to change the torque mode until it stops in place.
Through the mutual cooperation of motor, belt, idler, head and detection switch, it is ensured that the paper tube is pushed to the positioning plate of the host every time to realize the paper tube pushing function.

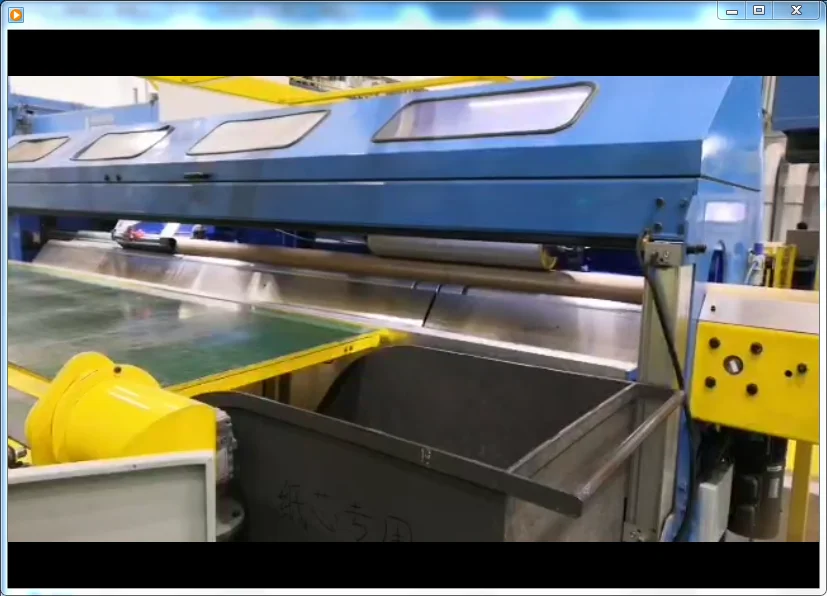

The structure is a main device integrating paper tube length fixing, cutting, finished paper tube, material head judgment, dust collection and protection. Through the combination of servo motor and encoder of linear module, the closed-loop control is realized, and the accuracy is greatly improved. The imported Italian TDK high-speed sawing mode is adopted, and the end face is smooth and flush. The main machine adopts closed dust collection structure to ensure the cleanness of on-site air and ground.
Products Description
Certificate
Company Introduction
JINAN CHENGDONG MACHINERY MANUFACTURE CO.,LTD. was founded in 1993 and have more than 20 years for manufacturing experience of paper-processing equipment in China. There are a group of senior engineers and technicians and R&D department to ensure the producing capacity and high quality. The company successively develops a group of leading products in homeland based on the ideology of constant development and creation. The main products including Paper roll slitting and rewinding machine, Spiral paper tube/core winding machine, Fibre/Paper drum production line, Composite can production line, Paper tube/core cutting machine, paper board laminating machine, paper edge board protector machine, Paper tube polishing machine and other different paper processing machines
Packing&Shipping
Company Capacity

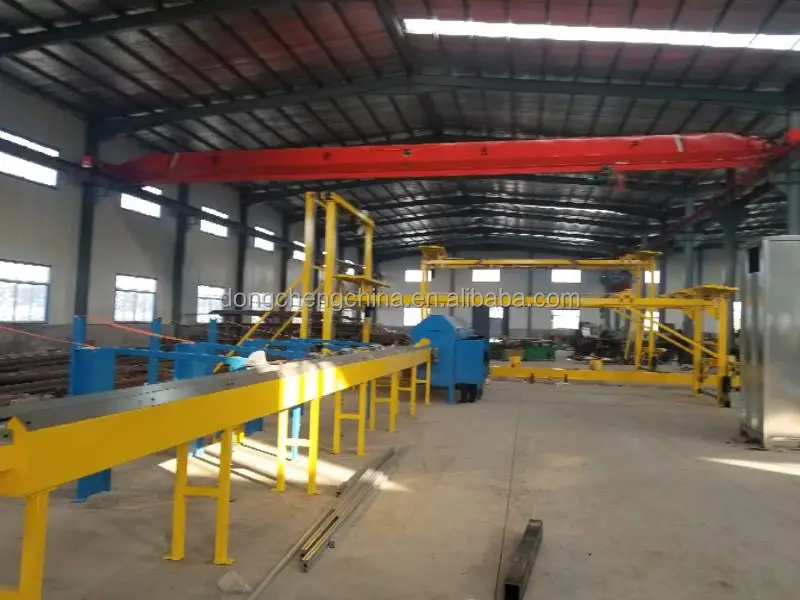

We have more than 20 sets precision and valuable equipment such as: horizontal and vertical machining centers, heavy-duty boring lathes, Doppler laser interferometric instrument, etc.. More than 80% of the key parts of our products are manufactured by ourselves. We have achieved the information sharing of design, production, marketing, management of quality and after-sale service in the development of software for remote diagnosis and construction of network. This has contributed to shortening production period, reducing the production cost and improving service quality for our customers.
