ZONERGY 590w 595w 600w 605w 610w 210*105mm 60 Cell Monocrystalline Solar Panel Mono MC4 compatible connectors Module Price
- Category: Solar Energy Products >>>
- Supplier: Zigong Xingchuan Photoelectric Co. Ltd.
Share on (1600411397144):
Product Overview
Description
Product Overview

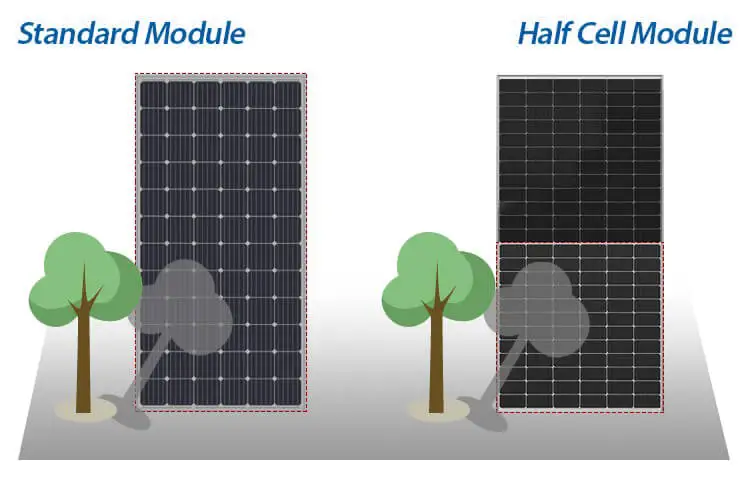

What is a half cell?

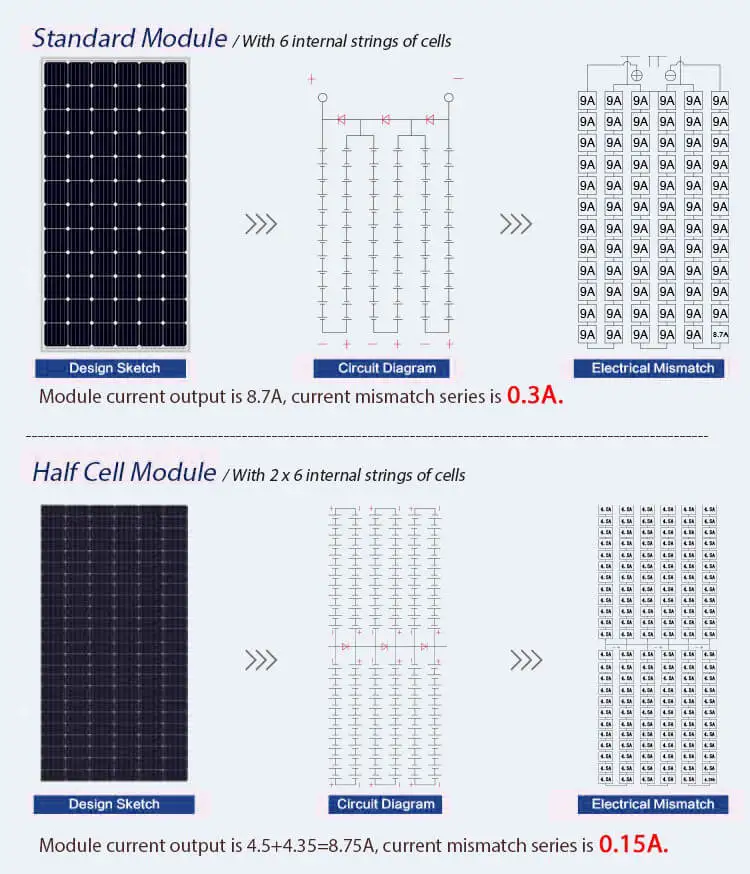

Half-cell technology is a technique of laser cutting a standard size cell (156 mm x 156 mm) equally into two cells (156 x 78 mm), which are cut and connected together. The cells of the entire module are then divided into two groups, each containing 60 half-cells connected in series, and the cells form a complete 120-cell module, thus reducing the current through each main grid to 1/2 of the original, and reducing internal losses to 1/4 of the whole cell, thus increasing the module power.
Product Features
High output power: The application of multi-grid half-sheet technology increases energy density and brings higher output power.
High reliability: Passed TUV certified salt spray and ammonia corrosion test, and passed 2400Pa wind load and 5400Pa snow load certification, with stronger reliability.

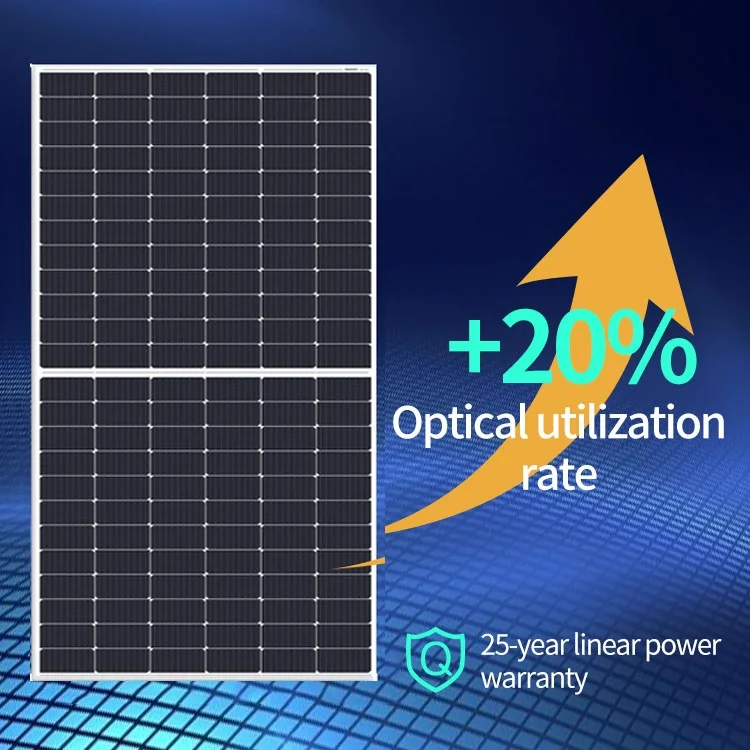

Low attenuation: less than 2.5% attenuation in the first year and 0.55% linear attenuation per year for 25 years.
Low hot spot risk: Adopt new generation battery technology and optimized circuit design to obtain better temperature coefficient and thermal shift resistance.
Low risk of hidden cracking: Adopt multiple main grid technology, with stronger resistance to hidden cracking and anti-breakage capability.
High reliability: Passed TUV certified salt spray and ammonia corrosion test, and passed 2400Pa wind load and 5400Pa snow load certification, with stronger reliability.
Low attenuation: less than 2.5% attenuation in the first year and 0.55% linear attenuation per year for 25 years.
Low hot spot risk: Adopt new generation battery technology and optimized circuit design to obtain better temperature coefficient and thermal shift resistance.
Low risk of hidden cracking: Adopt multiple main grid technology, with stronger resistance to hidden cracking and anti-breakage capability.
Technical Parameter | ||||||||||
Model | ZPM590MH8-60 | ZPM595MH8-60 | ZPM600MH8-60 | ZPM605MH8-60 | ZPM610MH8-60 | |||||
Electrical performance parameters (STC) | ||||||||||
Maximum output power | 590 | 595 | 600 | 605 | 610 | |||||
Open circuit voltage | 41.09 | 41.29 | 41.49 | 41.69 | 41.89 | |||||
Short-circuit current | 18.43 | 18.48 | 18.53 | 18.58 | 18.64 | |||||
Maximum power voltage | 33.99 | 34.19 | 34.39 | 34.59 | 34.79 | |||||
Maximum power current | 17.36 | 17.41 | 17.45 | 17.5 | 17.54 | |||||
Module conversion efficiency | 20.85 | 21.02 | 21.20 | 21.38 | 21.55 | |||||
Operating Temperature | ’-40 ℃~ 85℃ | |||||||||
Maximum system voltage | 1000/1500VDC | |||||||||
Structure Parameters | ||||||||||
Cell Specification | 210×105mm Monocrystalline silicon | |||||||||
Module Size | 2172×1303×35mm | |||||||||
Module Weight | 31.0kg | |||||||||
Front Glass | 3.2mm high transmittance, coated tempered glass | |||||||||
Back side backsheet | Aging resistant film | |||||||||
Module Bezel | Anodized aluminum alloy | |||||||||
Junction Box | Protection grade IP68 | |||||||||
Cable | 4.0mm2 Positive:250mm Negative:300mm Wire length can be customized | |||||||||
Connector | MC4 compatible connector | |||||||||
Temperature Characteristics | ||||||||||
Temperature Coefficient(Pm) | -0.340%/℃ | |||||||||
Temperature Coefficient(Voc) | -0.250%/℃ | |||||||||
Temperature Coefficient(lsc) | 0.040%/℃ | |||||||||
NMOT battery rated operating temperature | 41±3℃ | |||||||||
Certification | IEC61215-1;IEC61215-2;IEC61730-1;IEC61730-2 | |||||||||

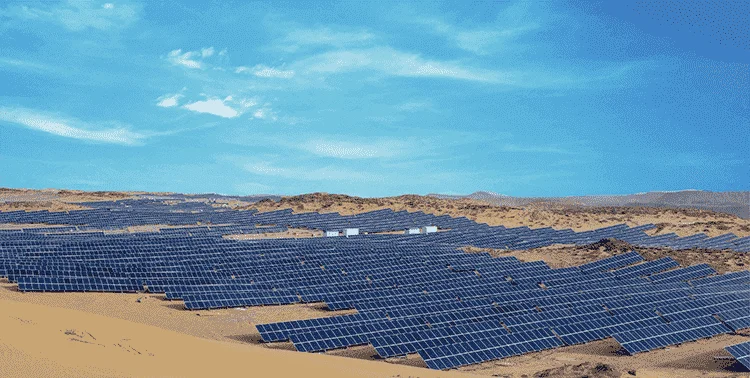

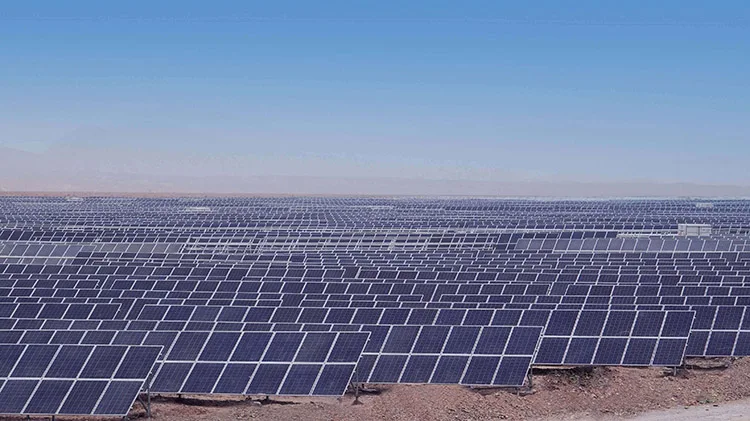

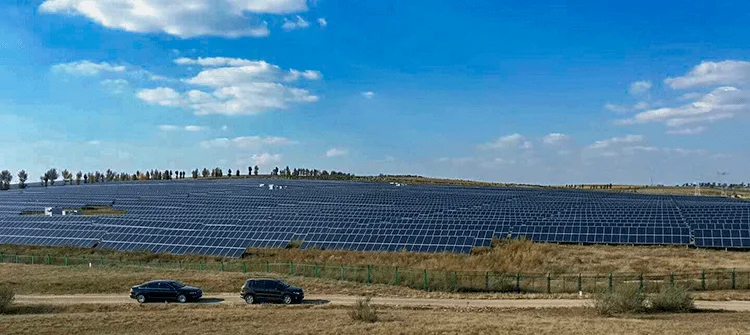

Successful Project
Nepal project
Pakistan project
India project
Tajikistan project
Uzbekistan project
China project
