China Best 100kW 150kW 200kW 500kW Off Grid Hybrid Solar Inverter With LifePO4 Battery
- Category: Solar Energy Products >>>
- Supplier: Bluesun Ess Co. Ltd.
Share on (1600437995809):
Product Overview
Description
Advantages of Bluesun
Product Description
Model | BMPS30 | BMPS50 | BMPS100 | BMPS150 | BMPS250 | BMPS500 | ||||||
AC(grid-connected) | ||||||||||||
Apparent power | 33kVA | 55kVA | 110kVA | 165kVA | 275kVA | 550kVA | ||||||
Rated power | 30kW | 50kW | 100kW | 150kW | 250kW | 500kW | ||||||
Rated voltage | 400V | |||||||||||
Rated current | 43A | 72A | 144A | 217A | 361A | 722A | ||||||
Voltage range | 320V-460V | |||||||||||
Rated frequency | 50/60Hz | |||||||||||
Frequency range | 45-55/55-65Hz | |||||||||||
THDI | <3% | |||||||||||
PF | 0.8lagging-0.8leading | |||||||||||
AC connection | 3W+N+PE | |||||||||||
Transformer | Yes | |||||||||||
AC(off-grid) | ||||||||||||
Apparent power | 33kVA | 55kVA | 110kVA | 165kVA | 275kVA | 550kVA | ||||||
Rated power | 30kW | 50kW | 100kW | 150kW | 250kW | 500kW | ||||||
Rated voltage | 400V | |||||||||||
Rated current | 43A | 72A | 144A | 217A | 361A | 720A | ||||||
THDU | ≤2% linear | |||||||||||
Rated frequency | 50/60Hz | |||||||||||
Overload capability | 110%-10min120%-1min | |||||||||||
PV | ||||||||||||
Max. PV open-circuit voltage | 1000VDC | |||||||||||
MAX PV power | 60/120KW | 120/180/240KW | 300/360KW | 600/660/720KW | ||||||||
PV mppt voltage range | 200V-850V | |||||||||||
MPPT number | 1/2 | 2/3/4 | 5/6 | 10/11/12 | ||||||||
Battery | ||||||||||||
Battery voltage range | 250V-850V | 320V-850V | 420V-850V | 420V-850V | 420V-850V | 500V-850V | ||||||
Battery full Load operating voltage range | 250V-850V | 320V-850V | 420V-850V | 420V-850V | 420V-850V | 500V-850V | ||||||
Genera data | ||||||||||||
Dimension(WXDXH) | 800X800X1900mm | 1200X800X2050mm | 1800X800X2050mm | 2800X800X2050mm | ||||||||
Weight | 440kg | 620kg | 900kg | 1250kg | 1700kg | 3520kg | ||||||
Environmental temperature | -25ºC~+55ºC | |||||||||||
Relative humidity | 0-95%non-condensing | |||||||||||
Protection degree | IP20 | |||||||||||
Noise emission | 75dB(A)@1m | |||||||||||
Max.imum altitude | 5000m(derate over 3000m) | |||||||||||
Cooling | Forced-air | |||||||||||
Communication | ||||||||||||
Display | Touch screen LCD | |||||||||||
Communication interface | RS485/CAN | |||||||||||

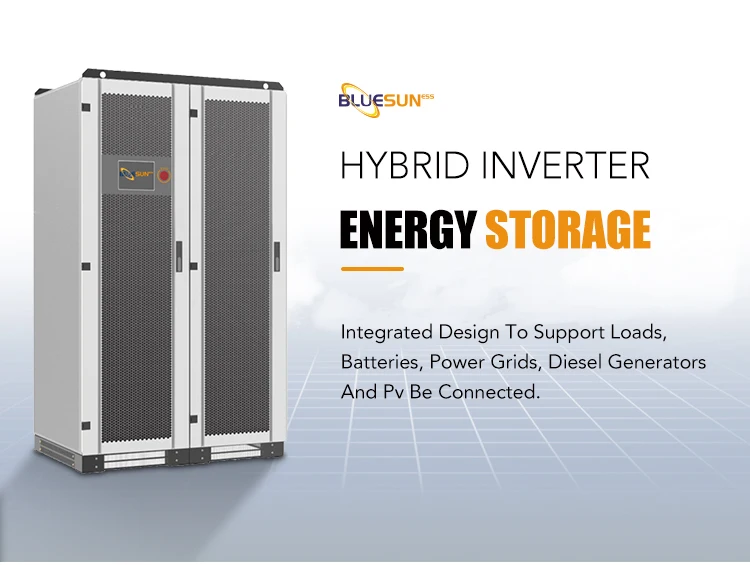

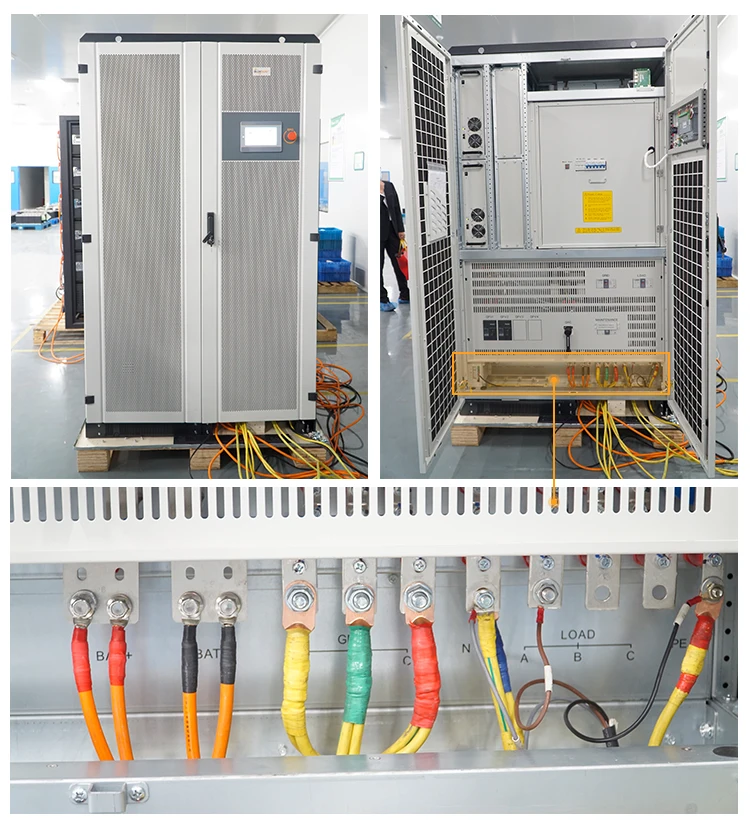

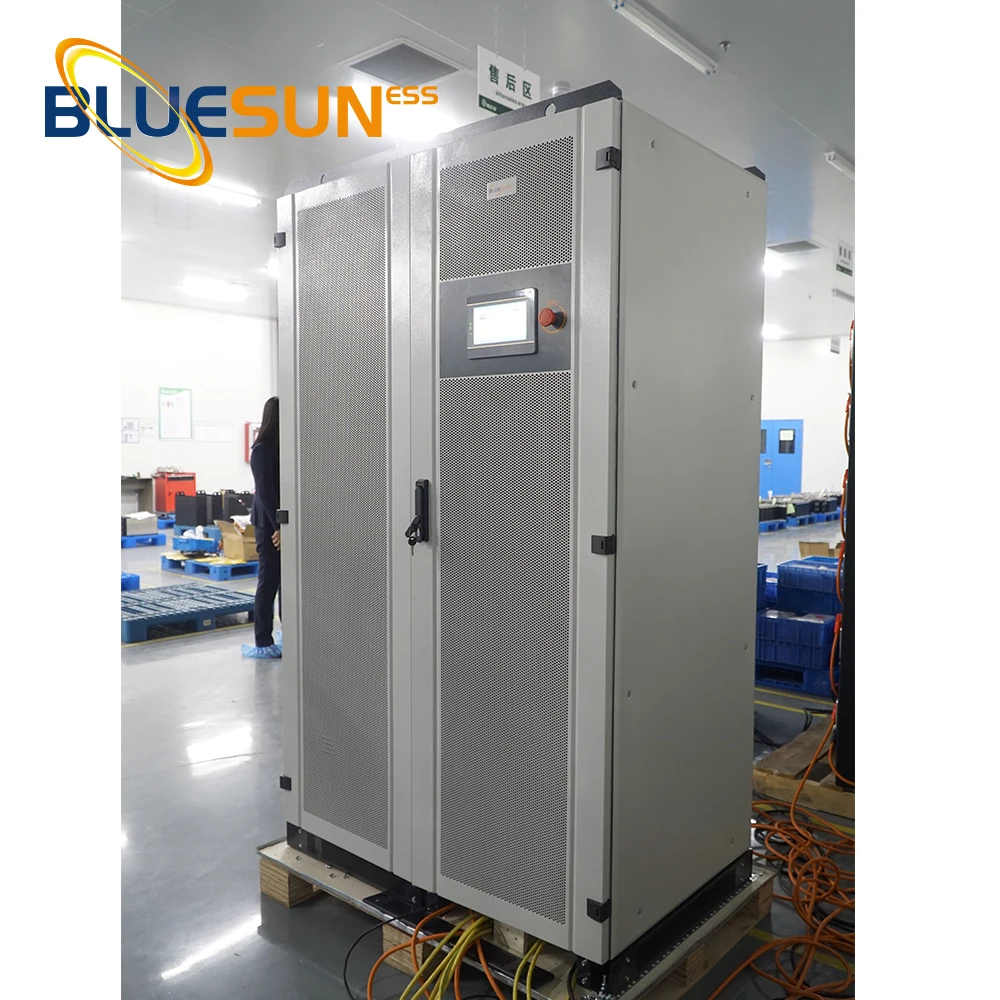

Details Images

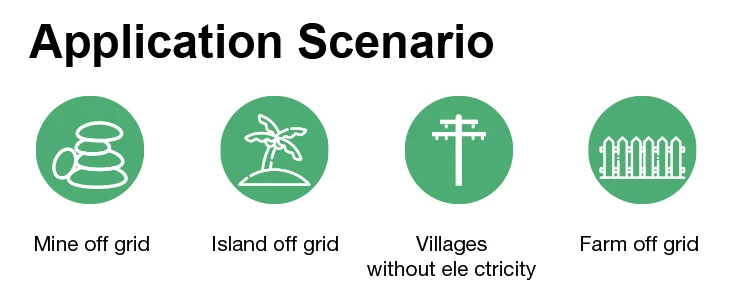

Application Scenario

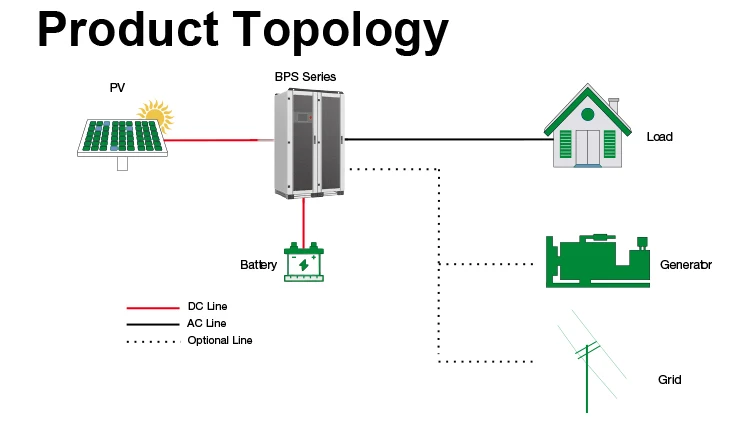

Product Topology

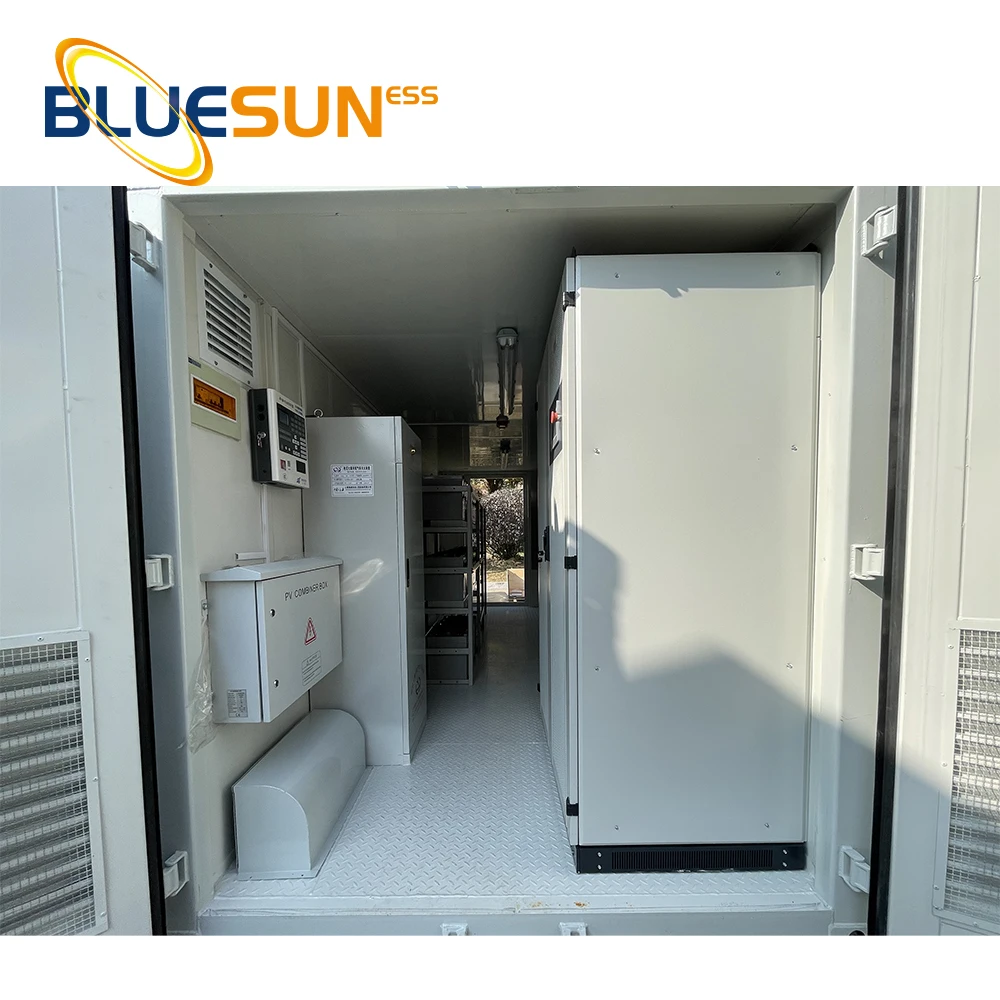

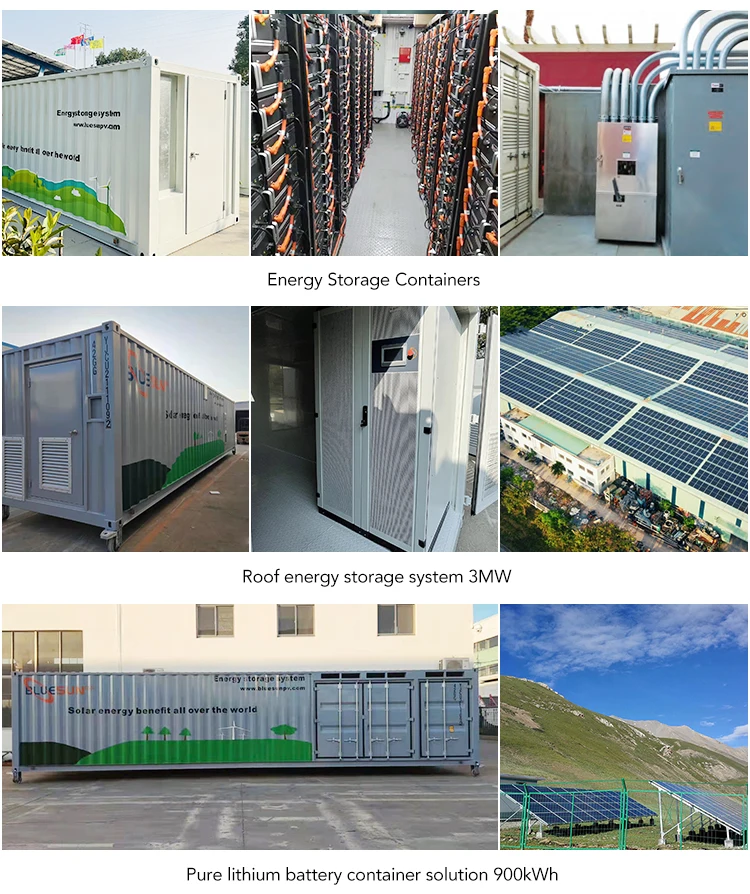

Our Project
Payment
Payment Term | EXW | 30% T/T in advance, paid the balance before shipment | |||||
FOB | |||||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||||
CIF | |||||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||||
Paypal | Amount lower than 5000usd | ||||||
Western Union | |||||||
Delivery Time | 7~10 days after receiving payment for one container | ||||||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
