Solar Panel Mounting Rails Structure Hook Free Sample S Tile Roof Bracket Overseas warehouse Racking System Customized solutions
- Category: Solar Energy Products >>>
- Supplier: Shanghai Chiko Solar Technology Co. Ltd.
Share on (1600439679412):
Product Overview
Description
Products Description
Chiko Efficient Tile Roof Mount
The Chiko Solar tile roof mounting system is designed as a modular unit assemblely system with quality materials. Which enables an installer to install any module in almost any mounting situation or configuration.The components are easy to install and used for variety of tile roof types.
No. | Item No. | Descriptions | Quantity (1x8=8 Panels) |

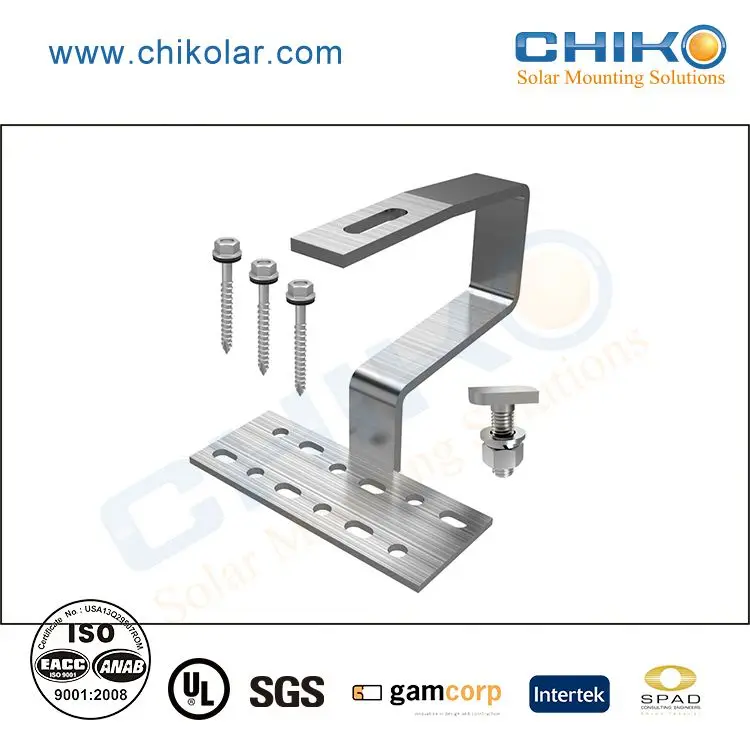

1 | CK-FTH-01 | CHIKO TILE ROOF HOOK 01# KIT | 12 |
2 | CK-FT-R43B1-4200 | CHIKO ALU Rail No.43--4200mm | 4 |
3 | CK-154R4F-40-40 | CHIKO Mid Clamp 40 mm For 43 Rail | 14 |
4 | CK-146R4F-30-40 | CHIKO End Clamp 40mm for 43 Rail | 4 |
5 | CK-573-1-150 | CHIKO Rail Splice Kit For 43 Rail | 2 |
6 | CK-GTC-R3H | CHIKO Grounding Clip for 043# Rail | 14 |
7 | CK-076R43-3-20 | CHIKO Grounding Lug for 043Rail | 2 |
Features
• Easily adaptable to most tile roof types: Pan tile roof,Cement/Flat tile roof,Asphalt Shingles
• Supports high wind and snow loads• Pre-assembled components designed for fast and easy installation
• Available to match all kinds of solar panels
• Available in portrait and landscape mounting solution
• Available in portrait and landscape mounting solution
Advantages
• Flexible system suitable for most pitched roof designs.

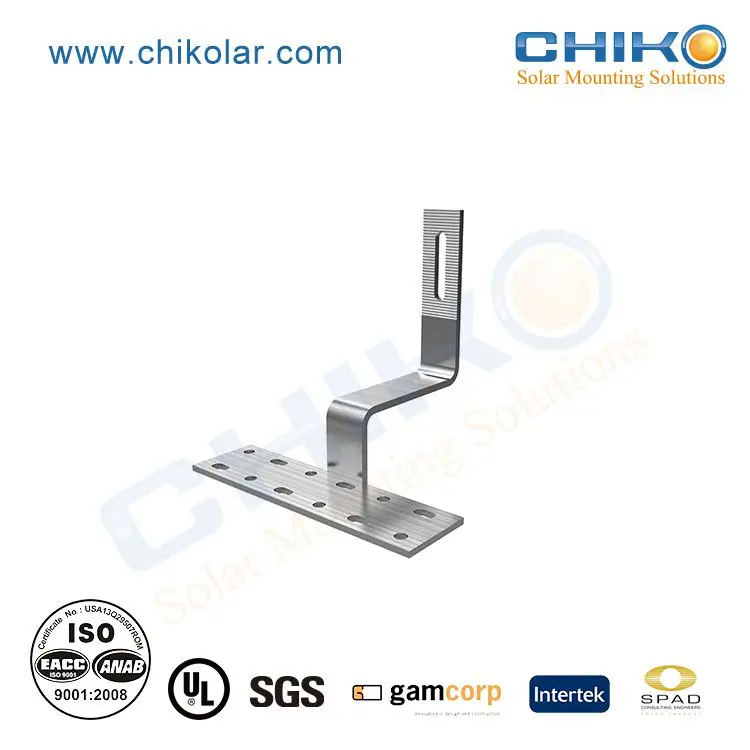

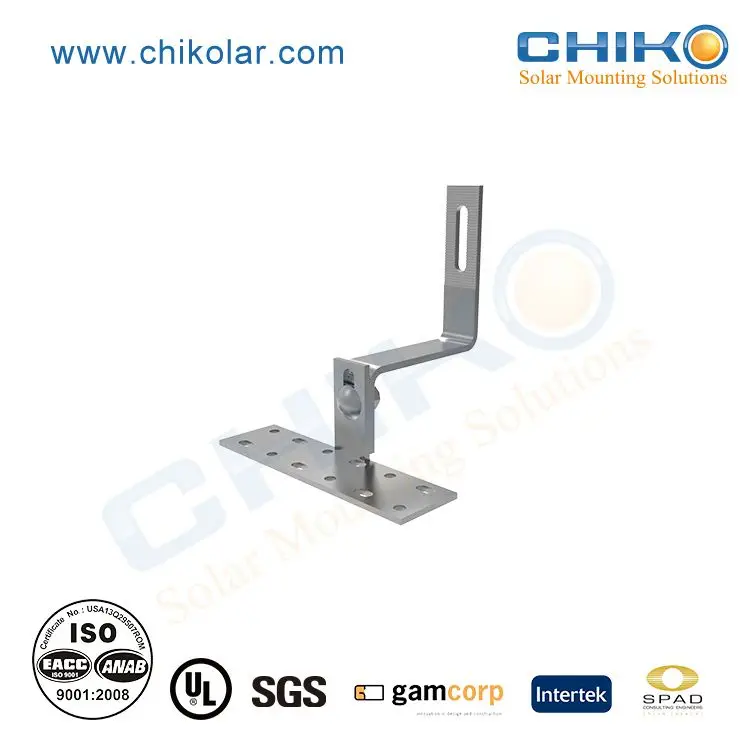

• Fixed Chiko hooks or adjustable Chiko hooks for all type of tiles.
• Complete range of stainless steel hooks and aluminum profiles.
• Compatible with all Chiko profiles.
• Fixed Chiko hooks or adjustable Chiko hooks for all type of tiles.
• Complete range of stainless steel hooks and aluminum profiles.
• Compatible with all Chiko profiles.
Company Profile
CHIKO Solar designs and manufactures high quality solar mounting systems for pitched roof, flat roof and ground open areas.
Whether for small or large-scale projects, standard models or tailor-made systems, we deliver what your need.
We are working with companies from USA, Mexico, Germany, UK, Brazil, Korea, Thailand, Australia, South Africa,Japan etc to provide
best services.
We are proud of the fact that more than 4GW solar project from worldwide used CHIKO mounting systems.
Whether for small or large-scale projects, standard models or tailor-made systems, we deliver what your need.
We are working with companies from USA, Mexico, Germany, UK, Brazil, Korea, Thailand, Australia, South Africa,Japan etc to provide
best services.
We are proud of the fact that more than 4GW solar project from worldwide used CHIKO mounting systems.
Our Service
Please provide Project informations as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
WHY CHOOSE CHIKO ?
• Cost-effective - Factory manufacturing • Installation - Special design is available
• Guarantee - Warranty 10 years and service life up to 30 years
• Delivery - Globally warehouse
• Guarantee - Warranty 10 years and service life up to 30 years
• Delivery - Globally warehouse
Packing&Shipping
CHIKO Packaging: Put Warranty Chiko solar mounting products into CHIKO standard carton/ wooden pallet/ other customized packages
CHIKO Shipping Lead-time: 1-2 weeks after the order payment confirm
CHIKO Shipping Lead-time: 1-2 weeks after the order payment confirm
Company Introduction
CHIKO Solar designs and manufactures high quality solar mounting systems for pitched roof, flat roof and groundopen areas. Whether for small or large-scale projects, standard models or tailor-made systems, we deliver what your need.
CHIKO Solar is a leading manufacturer in solar industry. We provide design & manufacture & sales & service customers support from our head quarters in Shanghai.
We are working with companies from USA, Mexico, Germany, UK, Brazil, Korea, Thailand, Australia, South Africa,Japan etc to provide best services.We are proud of the fact that more than 4GW solar project from worldwide used CHIKO mounting systems.
CHIKO Solar is a leading manufacturer in solar industry. We provide design & manufacture & sales & service customers support from our head quarters in Shanghai.
We are working with companies from USA, Mexico, Germany, UK, Brazil, Korea, Thailand, Australia, South Africa,Japan etc to provide best services.We are proud of the fact that more than 4GW solar project from worldwide used CHIKO mounting systems.
Quality
With CHIKO, you will meet leading highest standard quality. All of our Aluminum profiles are made 6005 T5 with surface protection anodic oxidation 12-15 micron (µ), hooks and bolts are made of Stain- less steel 304.Ground mounting systems that made of Q235 steel will be hot dip galvanized with a averagethickness 80 micron (µ).
Production Certification
CHIKO Solar have obtained product certifications, and management system endorsement granted and approved by leading testing agencies including UL SGS Gamcorp MCS Intertek, SPAD etc. Our product designs are based on the following Australian Standards and sections of Building Code of Australia relevant to structural issues.
