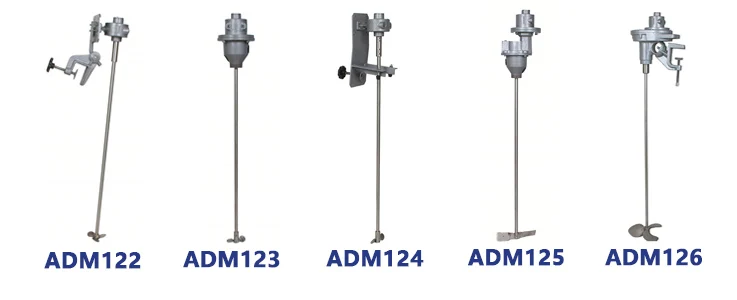

Clamping bucket pneumatic mixer ADM122
- Category: Chemical Machinery & Equipment >>>
- Supplier: Rudong Hongxin Machinery Co. Ltd.
Share on (1600444012016):
Product Overview
Description
Product Description

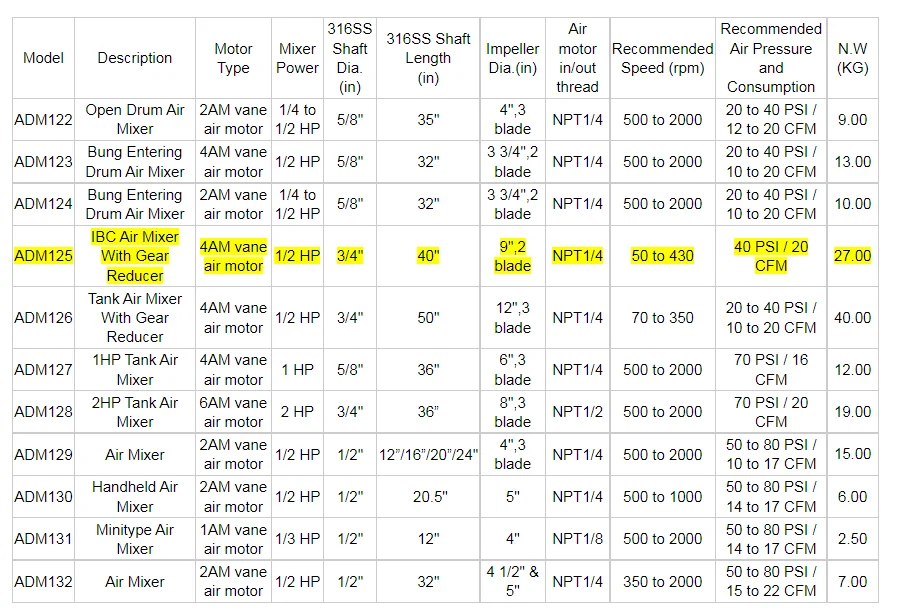

Specification
Application | Liquid |
Place of Origin | China |
Brand Name | HongXin |
Warranty of core components | 1 Year |
Motor model | HX2AM-H Vane Air Motor |
Motor power | 0.68kW (under 0.69MPa, 3000rpm) |
Maximum speed | 3000rpm |
Recommended speed | 500-2000rpm |
316L stirring shaft | 15.88*889mm |
working pressure | 0.4-0.8MPa |
Connection size | 1/4" NPT |
Maximum air consumption | 825L/min |
Machine quality | 6.5kg |
Stirring capacity | 250L |
product features :

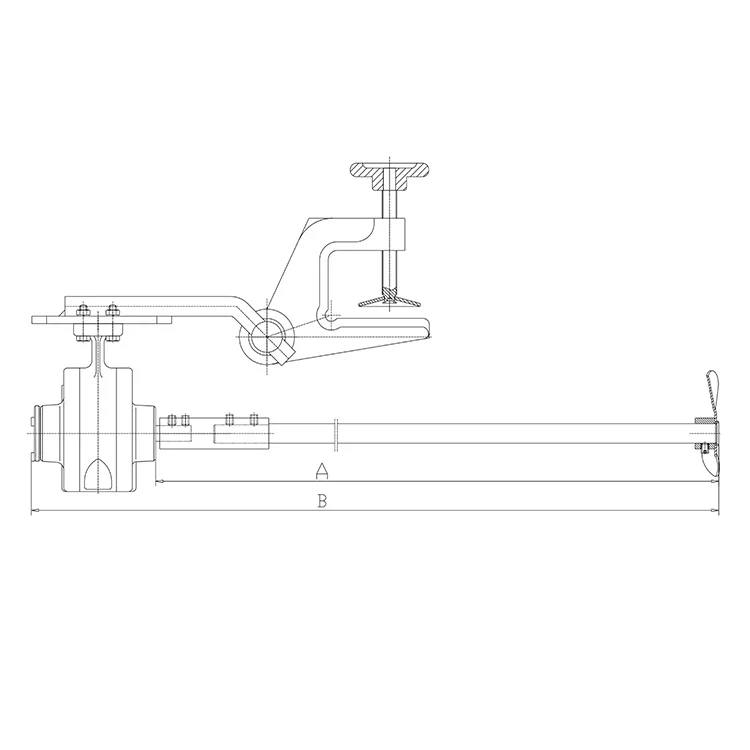

This is mainly composed of a stirrer vane air motor , 2 inch threaded mounting base , boss , stirring rod and stirring impeller (304 / 316L material composed Alternatively , suitable 250L (55 gallon ) closed tub stirred solution of medium viscosity , which can be fixed at the mouth of the 2 -inch barrel through the mounting base thread . The mixer can control the stirring speed by adjusting the intake flow of compressed air to meet the requirements of different working conditions , and can work continuously for more than eight hours without causing temperature rise and heat generation . Special conditions can be realized weather 24 hours of continuous operation . applicable to chemical , coal , paper and other industries .
Packing & Delivery
Plywood Case
Matters needing attention
(1) The motor of the pneumatic mixer must be driven by dry, clean and lubricated compressed air, and an air filter, a pressure regulating valve, and a lubricator must be installed in the air system joints or triples. The double and triple parts must be installed close to the air motor (within 0.5 meters).
(2) The inner diameter of the nozzle is not less than 6.5mm. After connecting the air path, the air must be ventilated to clean up the debris and debris that may appear inside the air pipe. These foreign objects enter the mixer. The inside of the air motor will cause the motor to jam.
(3) The motor of the mixer must be lubricated continuously (the lubricating oil enters the air motor with the compressed air after being atomized by the lubricator). Lubrication will reduce the wear of the air motor blades and the corrosion of the internal parts of the motor, and prolong the service life. The lubricating oil label is ISO-VG32 special oil for lubricator or other lubricating oil with the same label. The amount of lubrication is 3-4 drops per minute. If there is no lubricator in the air circuit, 15 drops of lubricating oil can be manually dripped into the motor air inlet before each operation.
(2) The inner diameter of the nozzle is not less than 6.5mm. After connecting the air path, the air must be ventilated to clean up the debris and debris that may appear inside the air pipe. These foreign objects enter the mixer. The inside of the air motor will cause the motor to jam.
(3) The motor of the mixer must be lubricated continuously (the lubricating oil enters the air motor with the compressed air after being atomized by the lubricator). Lubrication will reduce the wear of the air motor blades and the corrosion of the internal parts of the motor, and prolong the service life. The lubricating oil label is ISO-VG32 special oil for lubricator or other lubricating oil with the same label. The amount of lubrication is 3-4 drops per minute. If there is no lubricator in the air circuit, 15 drops of lubricating oil can be manually dripped into the motor air inlet before each operation.
