Price:$19,500.00

Quantity:


Product Overview

Description



Products Description

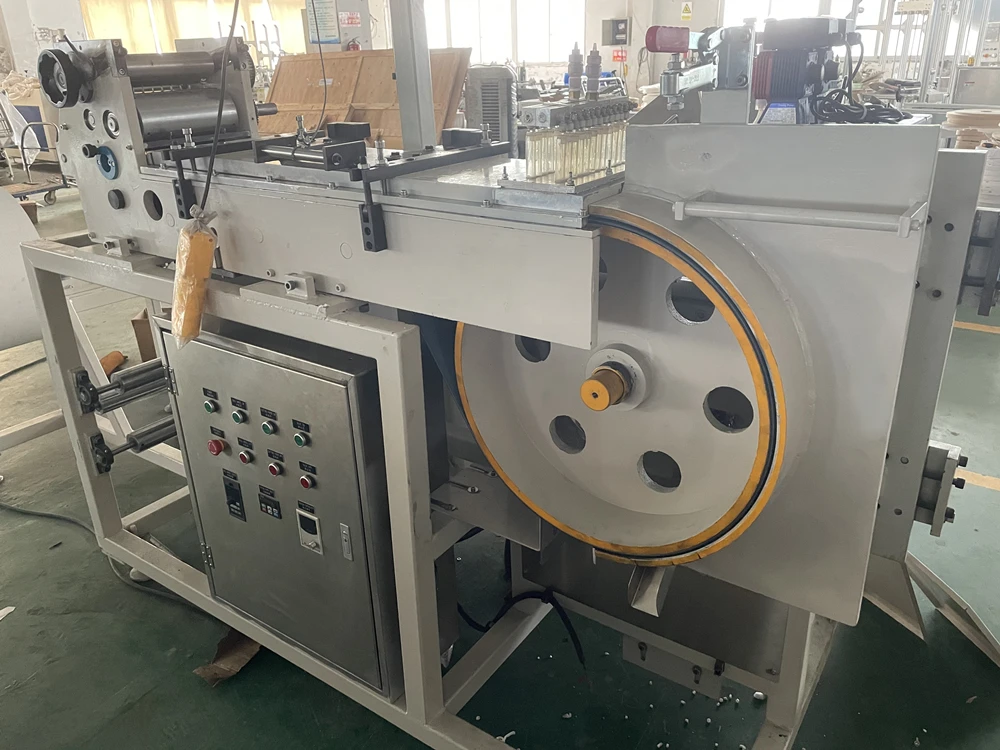

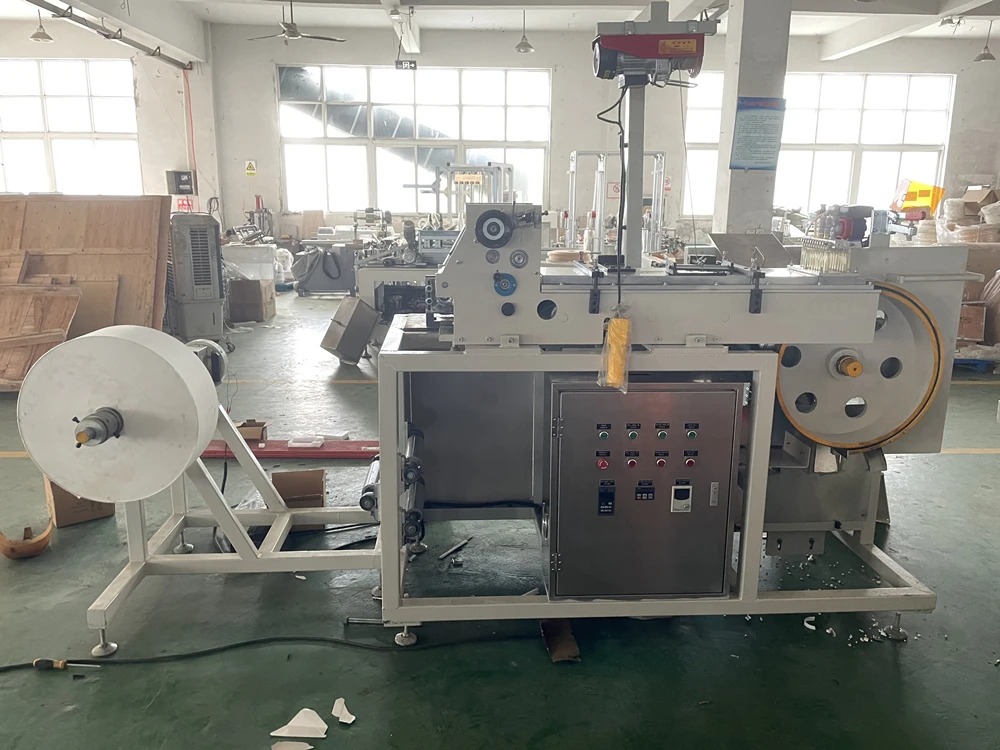

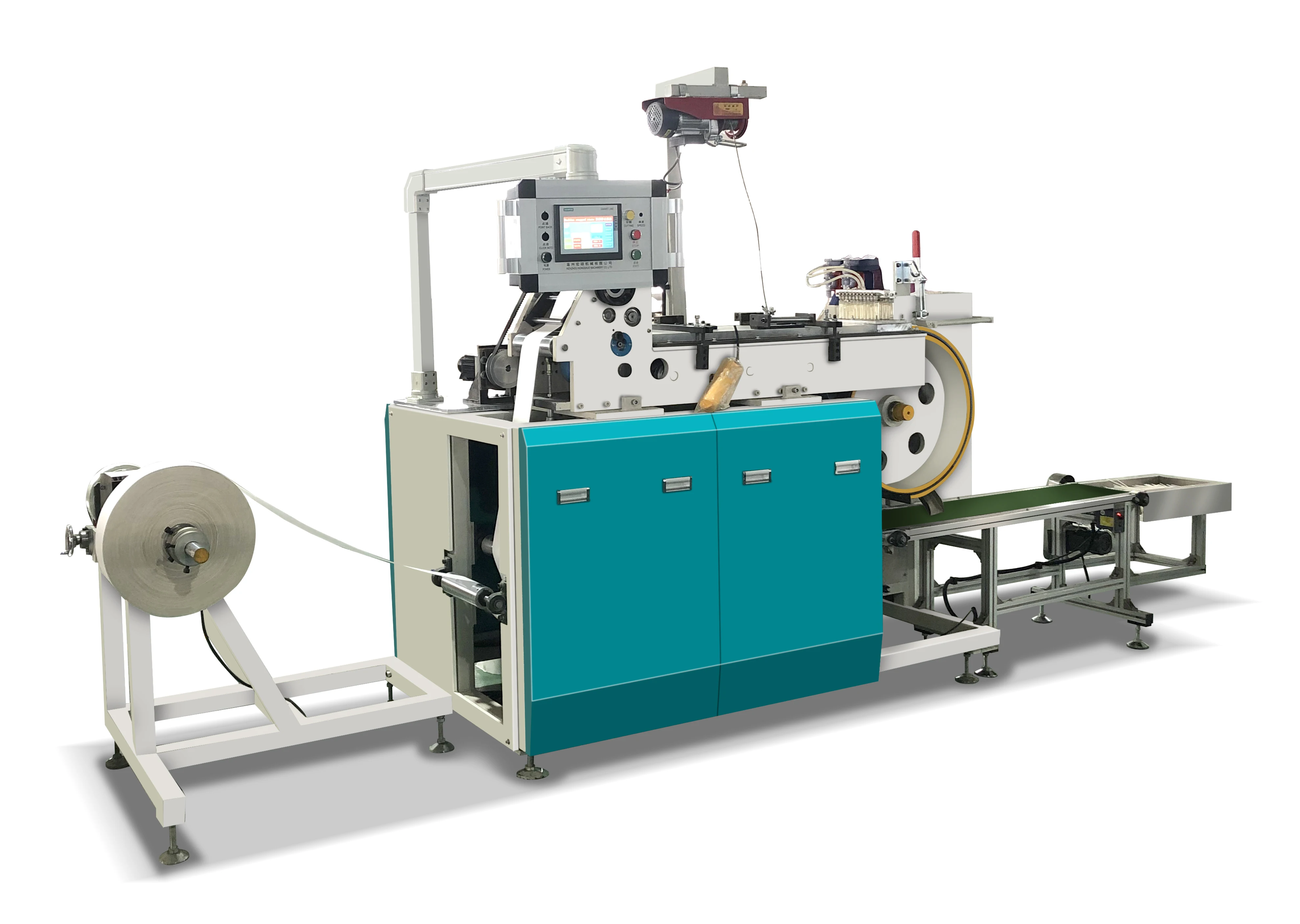

HS-ZBJ Paper Stick Machine
The paper stick machine is also called the straight winding machine. The working method is to cut the whole roll of paper according to the length, and then roll it up from the beginning until the whole paper section is finished. In the rolling, the two ends of the paper stick are always flush. , So it is called a straight roll machine.


FEATURES AT A GLANCE





(1) Because the straight roll machine only coats the outer circle of the paper stick with a layer of glue, the paper stick
produced by it is slightly softer than the slanting machine paper stick, so the straight roll machine paper stick is generally
supported in cakes, lollipops, shoes, etc. Used in products or industries;
(2) Straight-winding machines mostly produce products with diameters above 3.0mm (paper sticks above 3.0mm are a bit soft);
(3) It adopts man-machine interface, intuitive display and easy operation. With multiple sets of memory devices, there is no need to reset the product to change the product;
(4)The parts are welded, finished and specially processed to ensure high quality. The machine has stable performance and long service life.
(5) The diameter of the paper rod can be changed by servo control.




Certifications




PRODUCT SPECIFICATIONS


Paper rod diameter
2.5-6mm
Paper stick length
50-260mm(Can be customized)
Productivity
400-1000pcs/min
Paper thickness
30-100g/m²
Applicable glue
Polyvinyl alcohol glue, starch glue
Paper requirements
Single gloss paper
Power Supply
380V 50HZ
Total Power
4.5KW
Dimensions
3200*900*2200mm
Weight
2000KG


PRODUCT CONFIGURATION


Touch Panel
Siemens:Smart700IE V3
PLC
Siemens:Smart SR20
Inverter
Siemens:v20，3Kw
Circuit Breaker
Eaton:E6-32/3/C
Contactor
Eaton:XTCG018C00DT
Relay
Schneider:RXM2LB2BD
Switching Power Source
Eaton:A22-STOP/K10
Proximity Switch
Otonix:PRE12-2DN


Exhibition






Wenzhou Hongshuo Machinery Co., Ltd. participated in exhibitions in Yiwu, Beijing, Shanghai and other places.









Panorama of the exhibition booth


Packing & Delivery




FAQ


1.Who are we?
We are based in Zhejiang, China, start from 2019,sell to North America(30.00%),Eastern Asia(30.00%),Western Europe(30.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Paper straws machine,hamburg box machine,cake box machine,paper cup machine,kraft paper food container machine

4. Why should you buy from us not from other suppliers?
The inventor of no glue paper straw machine,have more than 20 years hamburg box machine experience,Korea Starbucks nominated paper straws machine supplier.

5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
