APPLICATION


China Supplier Copper Aluminium Fine Wire Drawing Production Line is special used for drawing copper cladding aluminum wire .
Finished wire is wound by 300 or 400 steel bobbin.


FEATURE


(1) Wire quantity: 1 wire
(2) Max.Inlet wire: 2.05 mm, outlet wire: 0.25-0.50 mm
(3) Raw material: CCA wire
(4) Capstan quantity: 2 PCS


MAIN SPECIFICATION


Machine type
BRN-14D
BRN-24DL
             BRN-24D
Inverter control
                                                          Double inverter control
Body structure
two cones in horizontal
                               four cones in vertical
Max. Inlet Dia. (mm)
2.05
1.2
Outlet Dia. (mm)
0.25~0.50
0.1~0.3
0.1~0.4
Max. Die No.
14
                                                     24
Max. Line speed (m/min)
1200
2000
                  2000
Body structure
                                                                   Ironed cast
Drawing capstan
                                                      Ceramic plasma capstan
Slip ratio of m/c ( % )
15
10
                    13
Fix speed capstan Dia.(mm)
268
160
                   160
Transmission type
                                                                            Belt
Take-up bobbin size (mm)
                                                                        300-400
Traversing type
                                                           Synchronous motor +belt
Tension control
                                                              Weight balance type
Lubrication type
                                                                         Spray
Brake
                                                                  Magnetic brake
Weight (KG)
2200
2000
                       2000

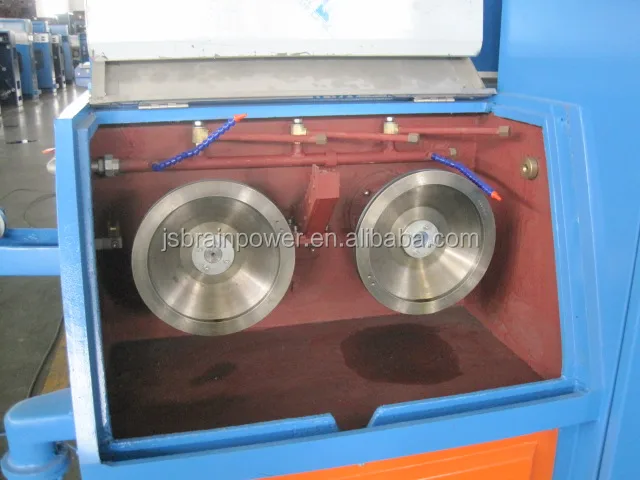

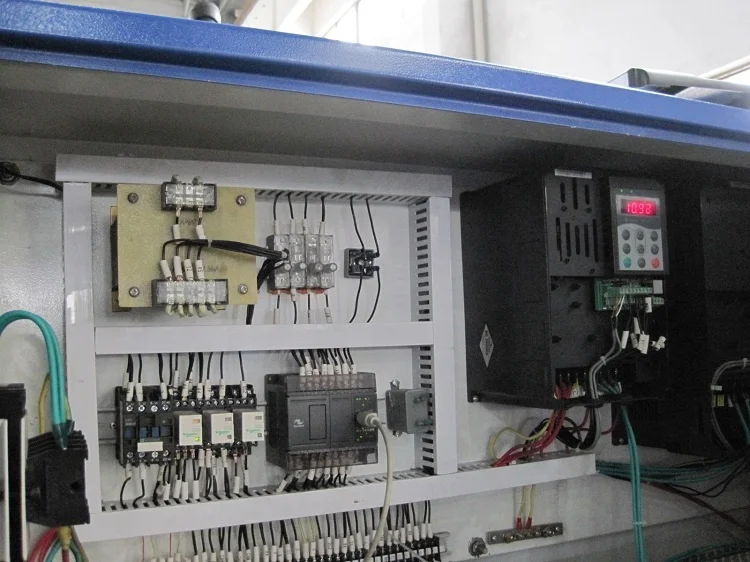

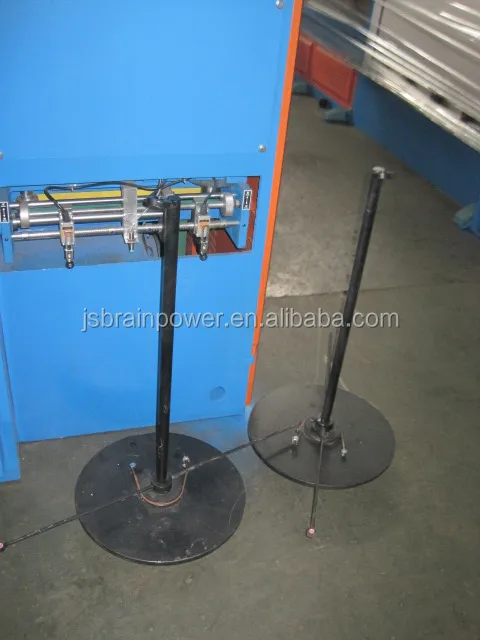

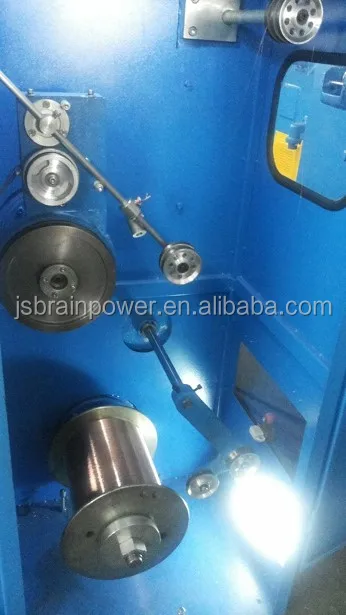

PHOTO SHOW




ADVANTAGES


(1) Double drivers ensure precisely tension and minimum ratio of the wire.
(2) Easy string-up and maintenance operations.
(3) Energy saving and excellent wire surface quality.
(4) Best choice for diversify products manufacturer.


ABOUT US






PACKAGING & SHIPPING




FAQ


Q1: What’s the payment terms?
A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.

Q2: How about the after-sell service?
A2: Engineer will be dispatched at needed.

Q3: How much need pay for after-sell service?
A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage.

Q4: Can you support complete project instead of single machine?
A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.

Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
