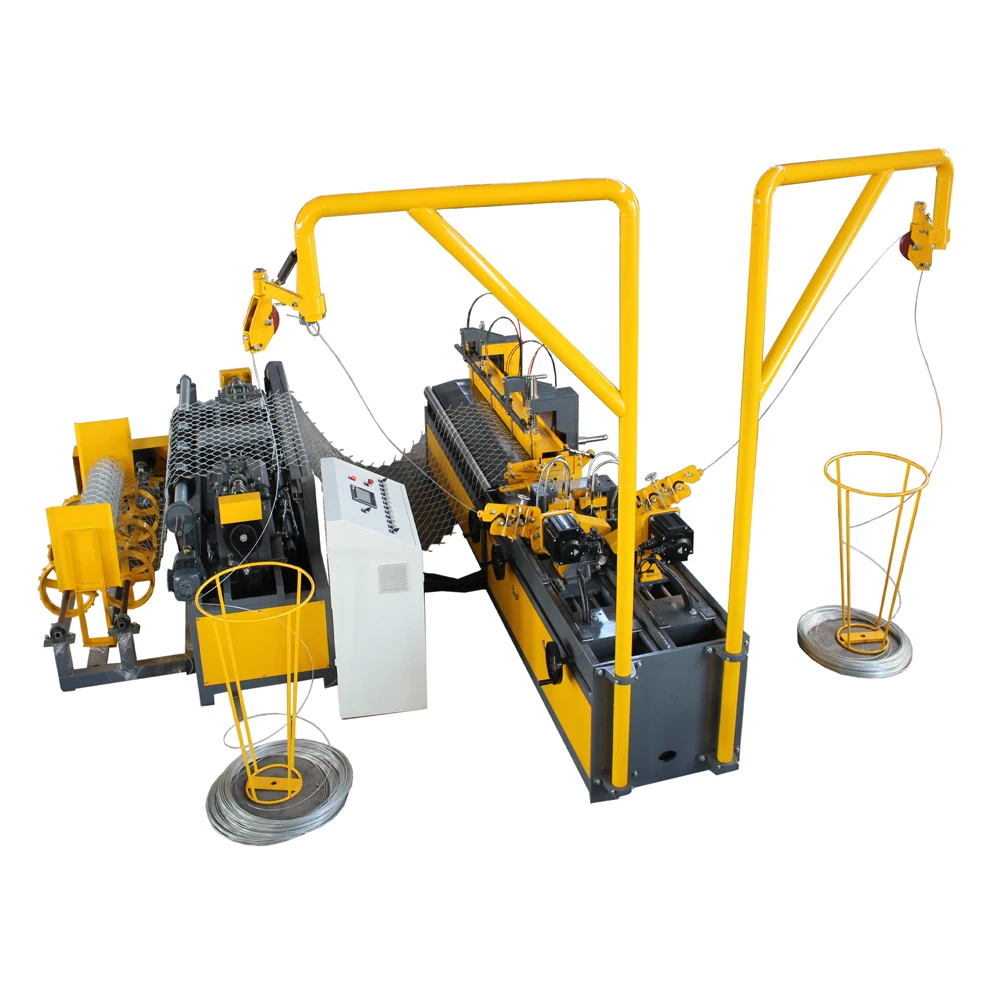

Полностью автоматическая машина для ограждения из проволочной сетки, заводская цена

Share on (1600466322153):


Price:12 500,00 $ - 15 000,00 $

Quantity:


Product Overview

Description







OPERATING PRINCIPLE

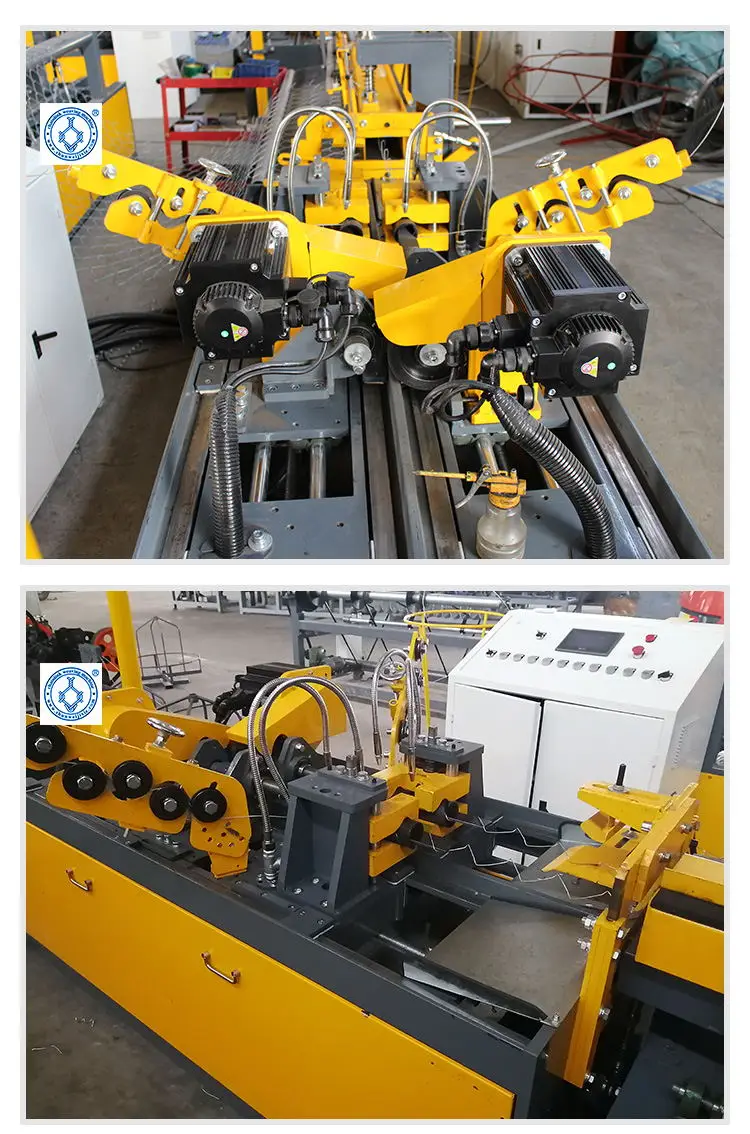

This type of machine adopts a Double molds two wires working together to weave the wire mesh.
This machine makes up for the shortcomings of the old double wire machine to wire tensile strength requirements, combined with the working principle of single wire machine, two wires work at the same time, to achieve a machine, double production innovation.




MACHINE ADVANTAGES






Technical   Parameters
Model
WFM-DUDW
Wire diameter
1.6-4.5mm
Mesh opening size
25-100mm
Mesh width
500-6000mm
Voltage
380V/50HZ
Row material
Galvanized wire,pvc coated wire,etc

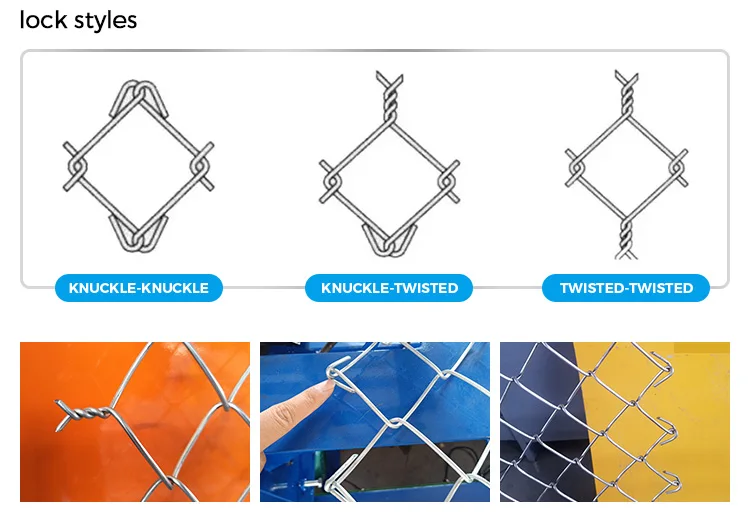

Mesh side

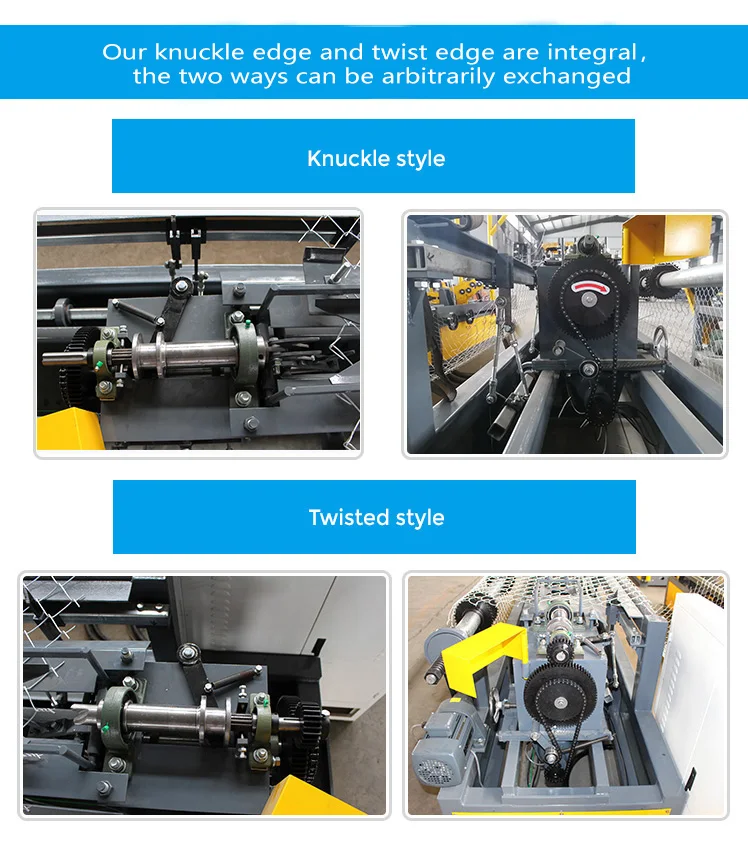

Knuckled and twisted,or knuckle or twisted
Machine production/H
40mm/70-80㎡ 50mm/100-120㎡
60mm/150-180㎡ 75mm/180-200㎡ 100mm/260-300㎡

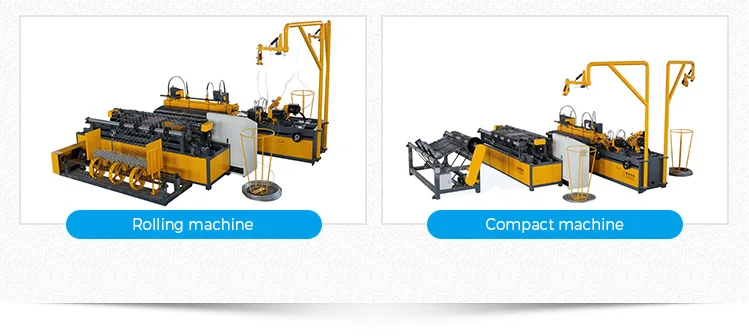

We have compact machine or roll machine for your choose
















Q: Are you a factory?
A: Yes, We are factory specializing in the manufacture and export of machines for more than 20 years, all of the production we sale are at a very best price and high quality.

Q:What is your terms of payment?
A: T/T 30% as deposit, and 70% balance against B/L copy.

Q: What's the guarantee time for your machines?
A: 24 months warrantly, man-made destory will be exception.
B: After the warrantee time, we can supply materials or teach support to you for reducing the cost of you.

Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went more than 60 countries before. They are very experienced.

Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
