ELEJOY EY800W LCD MPPT solar panel multimeter solar panel tester smart current tester voltage tester digital power meter VOC

Product Overview

Description

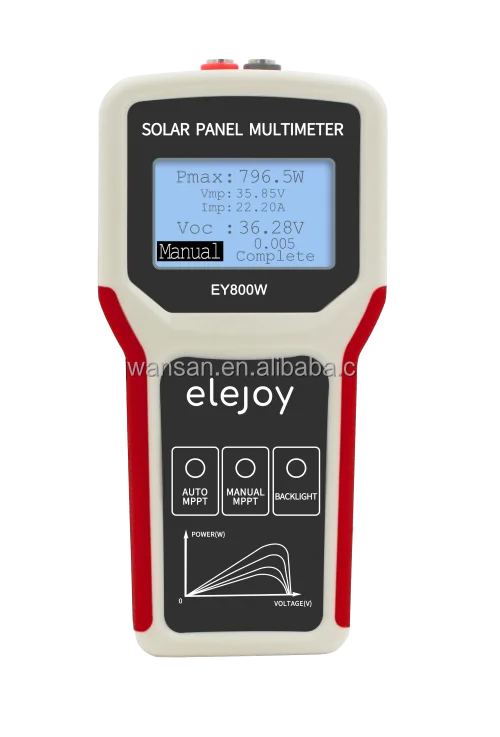

SOLAR PANEL MULTIMETER

Model: EY800W

•  Original ELEJOY factory


•  Independent research and development


•  Patented chip

Product function:

This solar panel multimeter can test the maximum power point and open circuit voltage of photovoltaic panel.

Notice: The multimeter is directly powered by solar panels without additional batteries.



Product feature:

1.    AUTO MPPT test

2.    Manual MPPT test

3.    Over-voltage, over-temperature, over-current protection

4.    Over rated power protection

5.    No additional power supply required



Use object:

1.    Solar panel manufacturer

2.    Solar panel distributor

3.    Solar panel user

4.    Solar panel fans

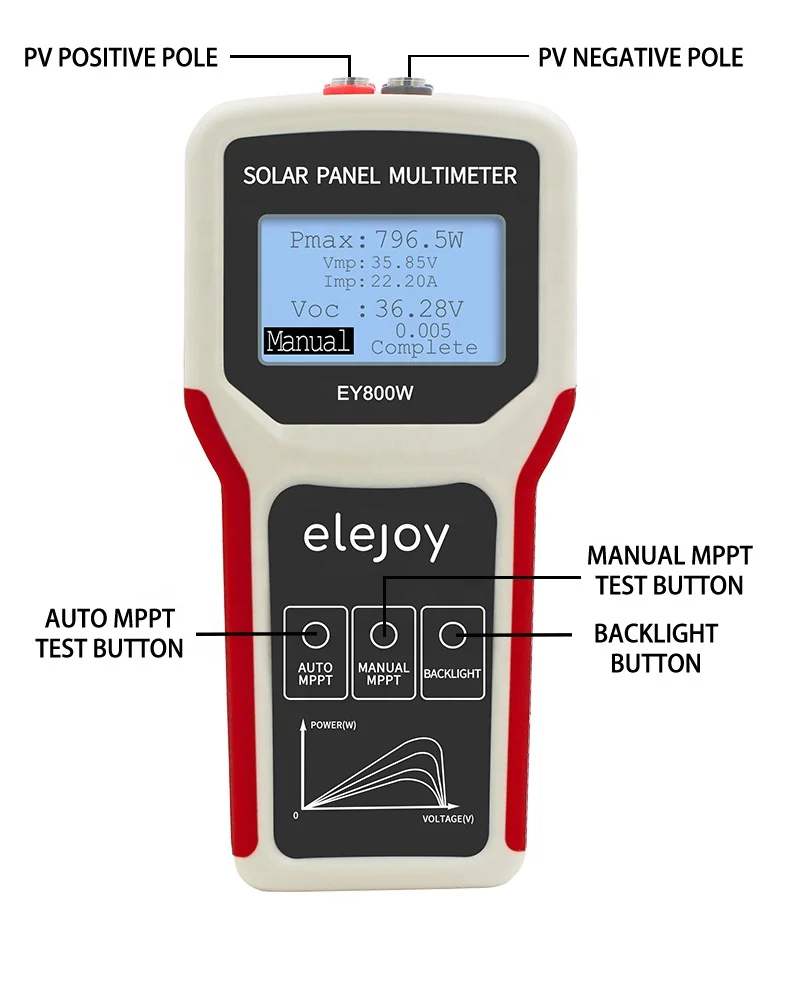

Key instructions:

AUTO MPPT DETECTION:

When pressing the AUTO test button, the instrument automatically adjusts the test interval time according to the current power value and refreshes the digital display.



For example: when the power of photovoltaic panel is 100W, refresh once every 5S; when the power is 300W, refresh once every 15s.



MANUAL MPPT DETECTION:

When pressing the manual test button, the instrument starts a scan of the maximum power point and refreshes the digital display.





Attention:

1. Please be sure to use this product within the rated voltage and current power range.

2. Please be sure to disconnect the photovoltaic board from other equipment or loads before testing.

ACCESSORIES:



Aligator clip cable:

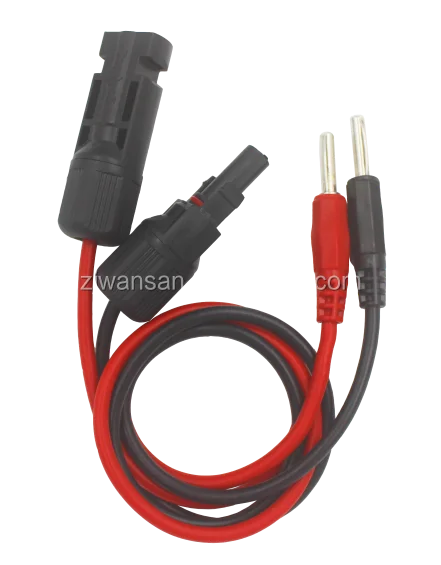

MC4 connecting cable:

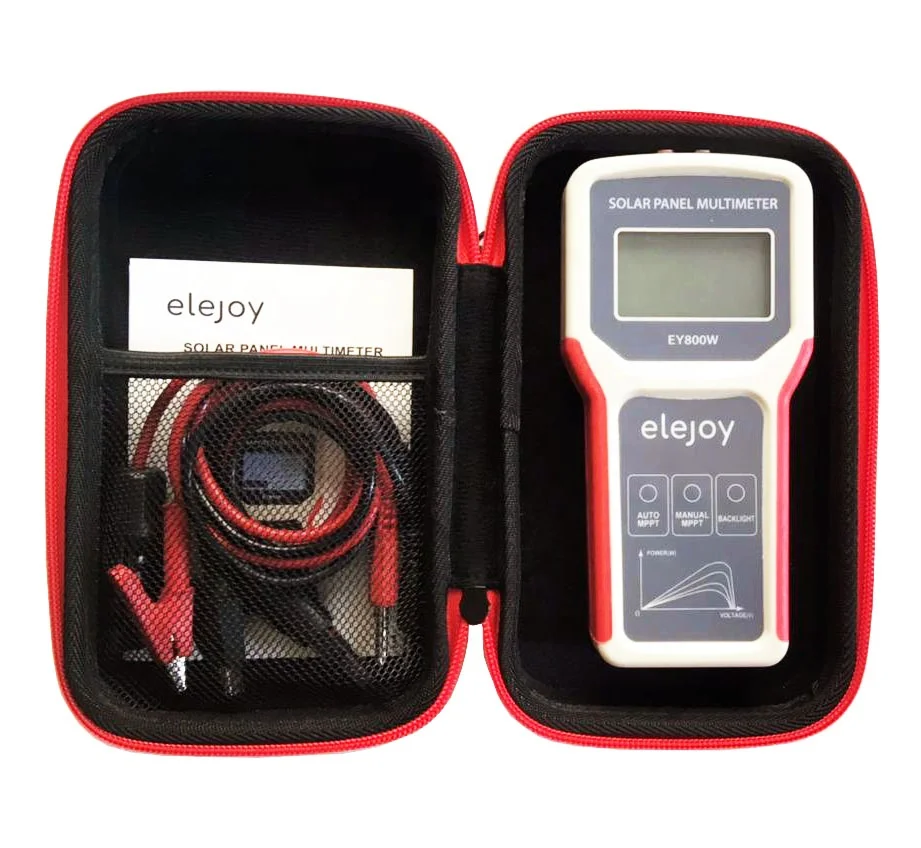

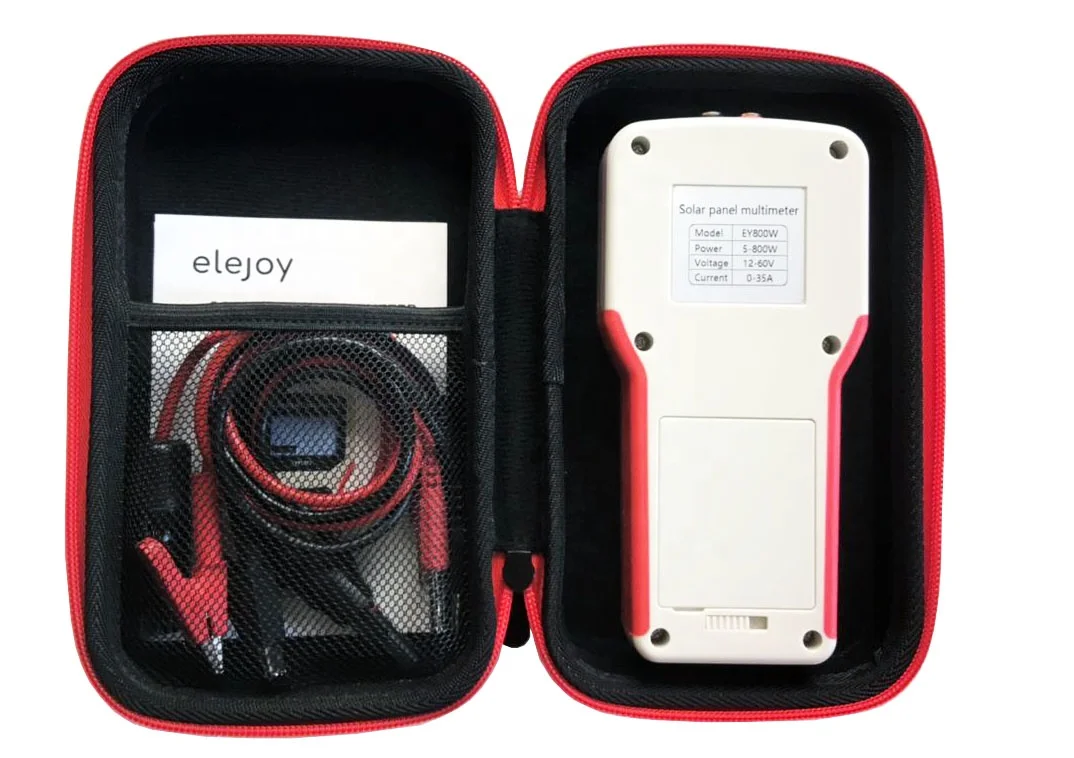

Full kits:

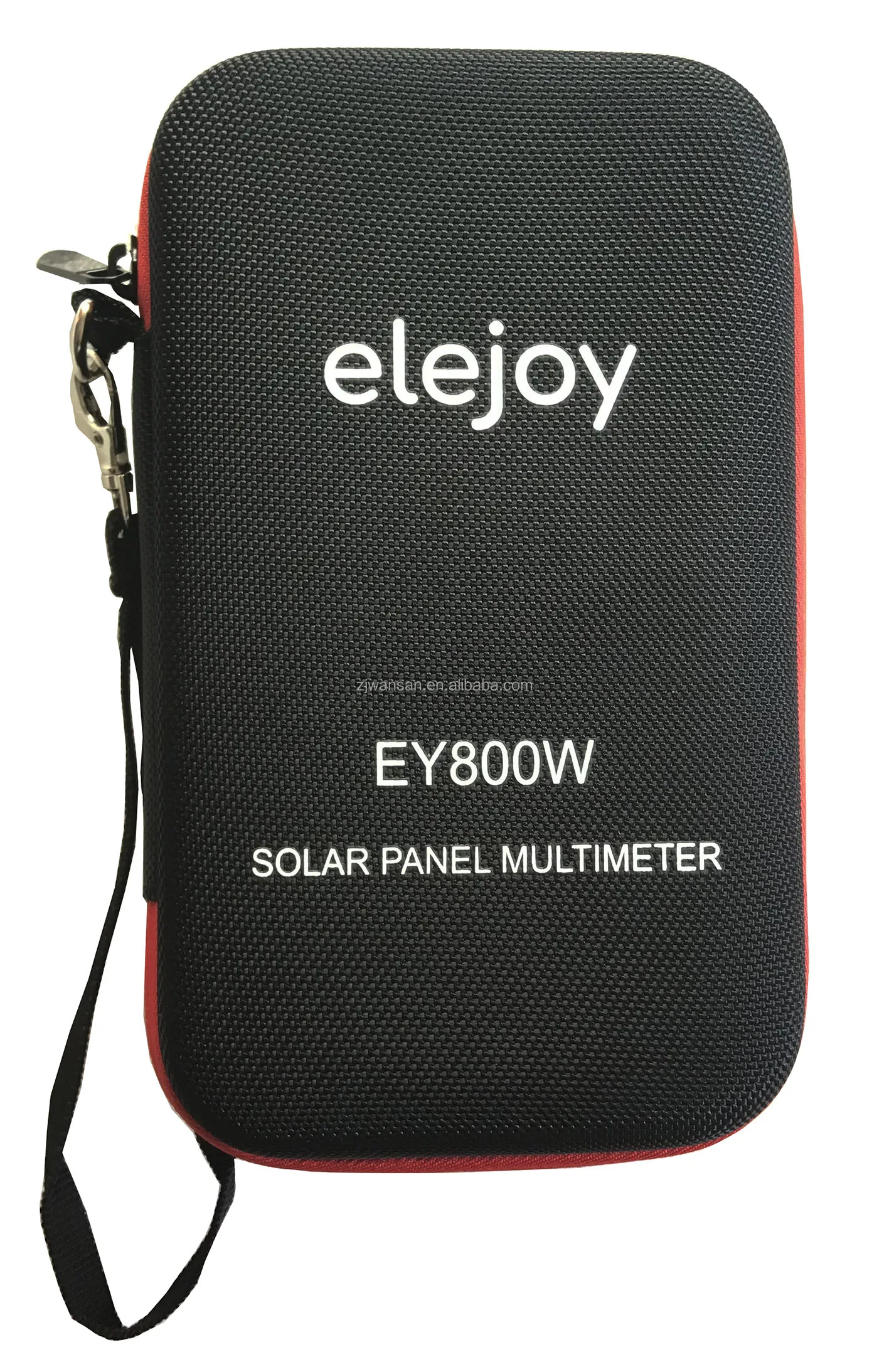

EVA box:



TECHNICAL DATA:

Product name	Solar panel multimeter
Model	EY800W
Power	5-800W
Voltage	12-60V
Current	0-35A
Power supply mode	Solar panel power supply
Packing	EVA package
Dimensions	165×80×30 mm
Weight	470g



  TROUBLESHOOTING:

ERROR	CAUSE	EXPLANATION
No display	Reverse connection protection	Please check the input polarity
Display over power	Over rated power	Using within the rated power range of the instrument
Display over temperature	Over-temperature protection	To be used after cooling
Display over voltage	Over-voltage protection	Using within the rated voltage range of the instrument
Display over current	Over-current protection	Using within the rated current range of the instrument

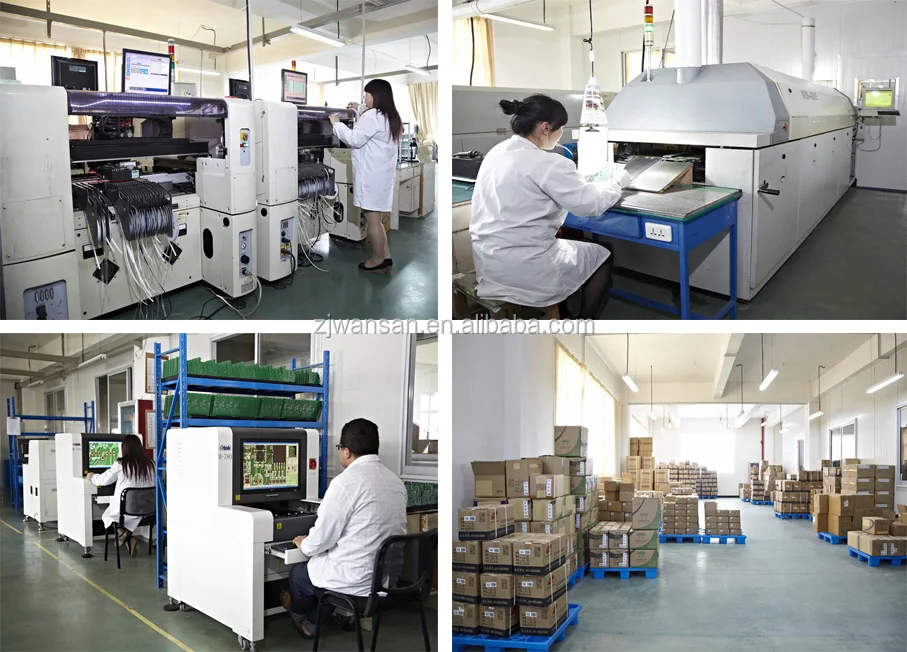

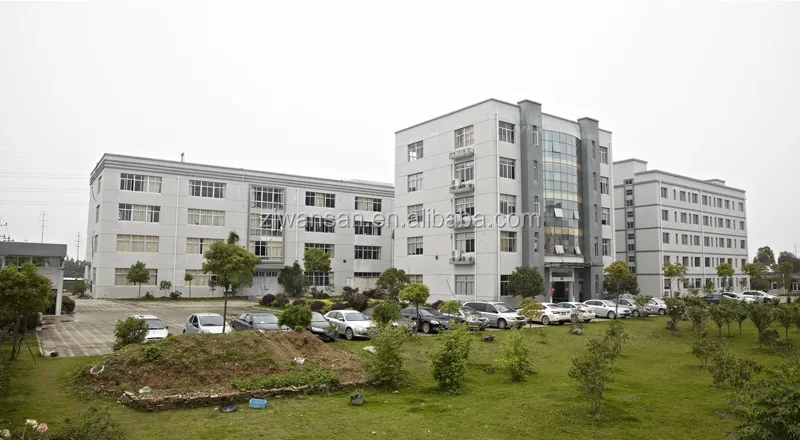

COMPANY INFORMATION:



FAQ:

1. Are you a manufacturer?

100% yes, if you have a chance, you can visit our factory anytime.

2. Do you have any MOQ limit?

One piece is possible, you can buy one sample for testing first.

3. What about the lead-time?

Normally 3-5 working days after receive the payment.

4. How to pay for the sample fee?

Please send the payment to our PayPal account or from alibaba directly.

5. How do you ship the goods?

We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.

6. Do you offer guarantee for the products?

Yes, we offer 2-years warranty for all solar panel multimeter.

7. I cannot find the suitable model, can I ask for a special model I need?

Sure. We are professional solar panel multimeter designer and manufacturer in China, please advising the detail specification you need, we will make it according to your request.
